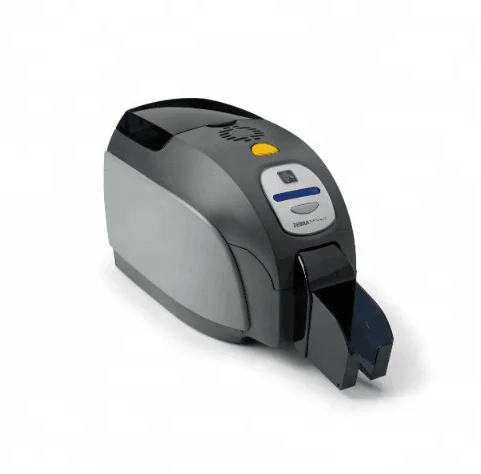

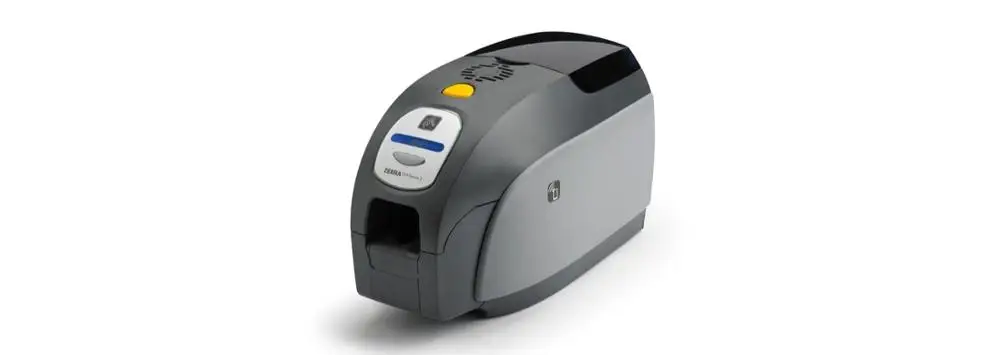

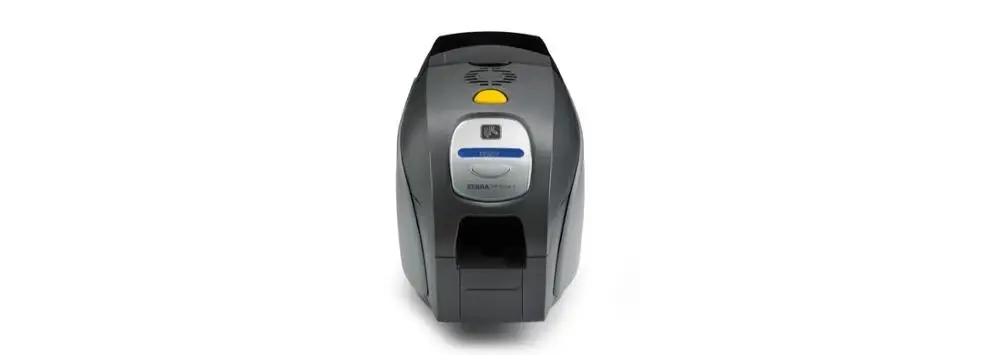

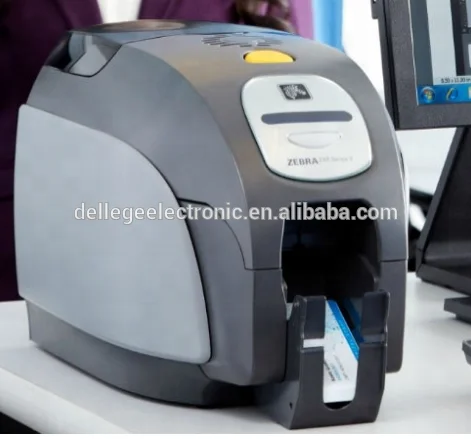

Zebra ZXP Series 3 Reliable Smart Card Printer



Zebra ZXP3 Printing Specifications

• Dye sublimation thermal transfer direct-to-card
• ZRaster host-based image processing technology
• Full-color or monochrome printing
• Single- and dual-sided printing
• 750 cards per hour monochrome single-sided
• 180 cards per hour full-color YMCKO single-sided
• Edge-to-edge printing on standard CR80 plastic cards

General Specifications

• Zebra True Colours® ix Series™ high-performance ribbons with intelligent media technology
• Microsoft® Windows® drivers
• Standard USB connectivity
• Standard covered 100 card feeder (30 mil)
• Standard 45 card output hopper (30 mil)
• Auto calibration of media
• Load-N-Go™ drop-in ribbon cartridge
• 16-character LCD display
• 300 dpi (11.8 dots/mm) print resolution
• 32 MB memory standard
• Two-year warranty on printer
• Two-year (unlimited passes) original printhead
• Kensington® physical lock slot
• Optional Magnetic stripe encoder—ISO 7811 (new and re-encoded, tracks 1, 2, and 3, high and low coercivity, stripe down, 30 mil card thickness)

Other Optional Features



Contact an ID Expert at 877-868-0012 for more information on these Zebra ZXP3 options

• CardSense™ single-card feed mode
• Built-in 10/100 Ethernet connectivity
• Lockable enclosure/card feeder and obscured output hopper
• ZebraCare™ extended warranty programs
• Smart card contact station—ISO 7816
• Combined MF® contactless ISO 14443 and ISO 7816 contact encoder—PC/SC and EMV level 1 compliant

Bar Codes & Fonts

• Code 39, Code 128 B & C with & without check digit
• 2 of 5 Interleaved
• UPC-A, EAN 8 & EAN 13
• PDF417 2-D bar code and other symbologies can be printed via Windows drivers
• TrueType® and other symbologies available via Windows driver

Software

• Microsoft Windows Certified Printer Drivers
• Windows XP, *Windows Vista®, Windows Server® 2003, *Windows Server 2008, *Windows 7 *32 bit and 64 bit compatible

Supplies Specifications

• Card Compatibility
• Card Thickness: 10 - 40 mil
• Card Size: CR-80 ISO 7810 format, Type ID-1, 2.12" x 3.38" (54 x 86 mm)
• Card Material: PVC and composite
• Smart card contact—ISO 7816-1,2,3,4
• Smart card contactless MF ISO 14443 A/B Communications Interfaces
• USB V2.0—standard (cable included)

Electrical

• Single-phase AC power
• 90V~264V AC RMS and 47-63 HZ (50-60 Hz nominal)
• FCC Class A

Physical

• Width: 7.9"/201 mm
• Height: 9.3"/236 mm
• Depth: 14.5"/368 mm
• Weight (printer only): 12.2 lbs/5.53 kg

Environmental

• Operating Temperature: 60º F/15º to 86º F/30º C
• Storage Temperature: 23º F/-5º C to 158º F/70º C
• Operating Humidity: 20% to 65% inclusive, non-condensing
• Storage Humidity: 20% to 70% inclusive, non-condensing







The internal structure





  Interface



   Packing





OTHER PRODUCTS







CMYKO ribbon                      Blank pvc card







Printing effect





We have been awarded 'SME High-Tech Enterprises in Jiangsu Province'; obtained 20 application patents and 10 Software copyright. For the high quality of our production, we were given the honor of ISO9000 certification and ULcertification.
Various testing instruments along with abrasive cutting off machine. Teat paper slitting machine and Adhesive label machine are applied in the company. With the present manufacturing facilities, we are able to produce an annual capacity of 300 metric ton of products approximately. These products have gained a good reputation and customer base in South East Asia and other regions.
Our company business philosophy is to provide our excellent services, excellent quality as well as competitive pricing to our clients; we welcome your enquiry and to make successful stories together with your esteem companies.

1.Q: What are your lead time ?
A: The first 20 feet container order will be delivered within 15-20 days.

2.Q: How can I get samples ?
A: We can make out the free samples according to your requirement within 1-2 days,But express fee should be paid by customers.

3.Q: Are you a factory or trading company ?
A: We are a factory at Suzhou, Jiangsu. any time welcome visit us.

4.Q: Do you accept OEM order or personal tailor ?
A: Yes,we are professional manufacturer for thermal paper and label items,we have professional designer for your needs.

5.Q: What is MOQ policy ?
A: Generally MOQ is 5000pcs, sometimes,we can do 1000pcs based on higher price.
