Вилочный погрузчик на 1-3 тонны 3 5 дизельный вилочный в
- Категория: Грузоподъемное оборудование >>>
- Поставщик: Xiamen,Tider,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7844.81 $* | 8236.58 $* |
| Aug-18-2025 | 7779.38 $* | 8168.54 $* |
| Jul-18-2025 | 6526.3 $* | 6852.78 $* |
| Jun-18-2025 | 7647.45 $* | 8029.20 $* |
| May-18-2025 | 6658.5 $* | 6991.72 $* |
| Apr-18-2025 | 7515.27 $* | 7891.83 $* |
| Mar-18-2025 | 7449.2 $* | 7821.4 $* |
| Feb-18-2025 | 7383.85 $* | 7752.17 $* |
| Jan-18-2025 | 7317.70 $* | 7683.57 $* |
Характеристики

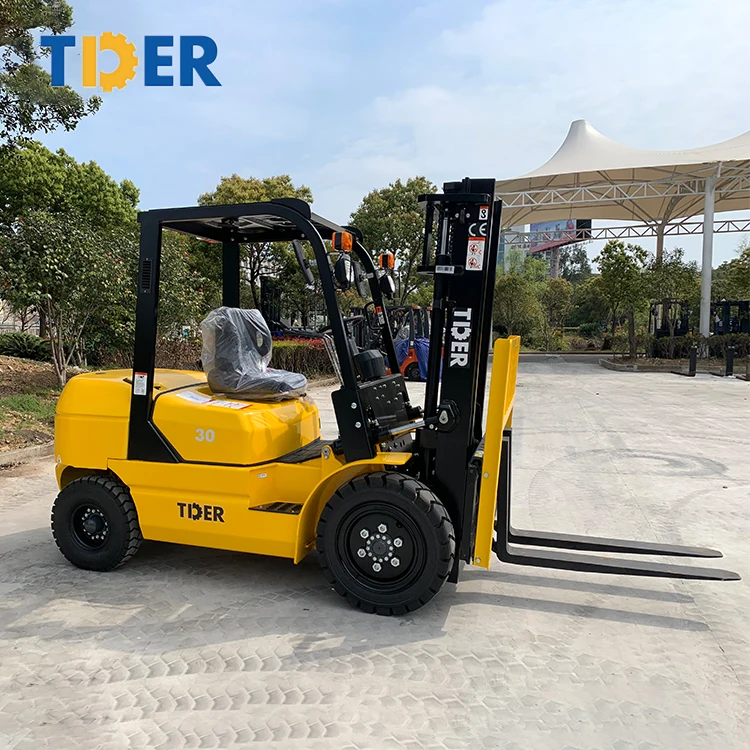

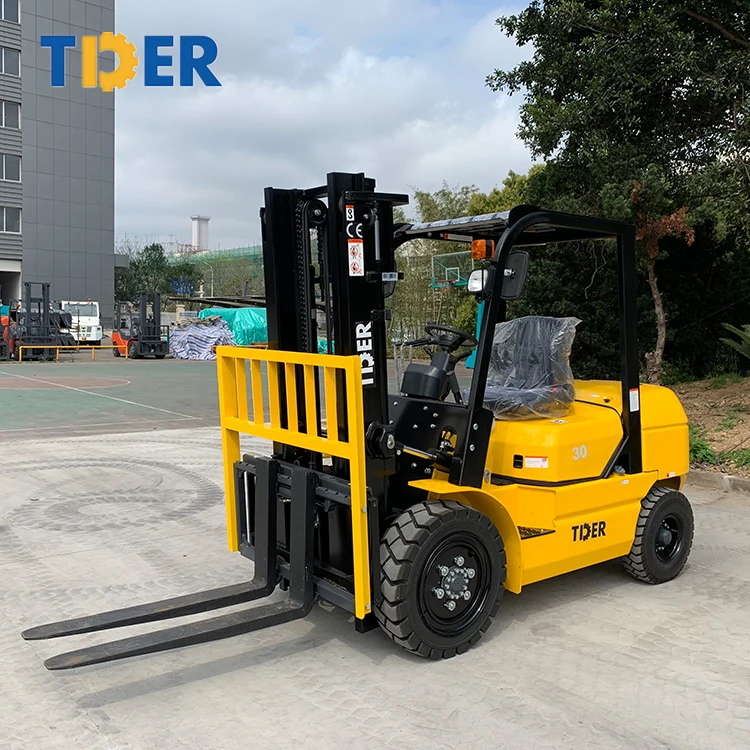

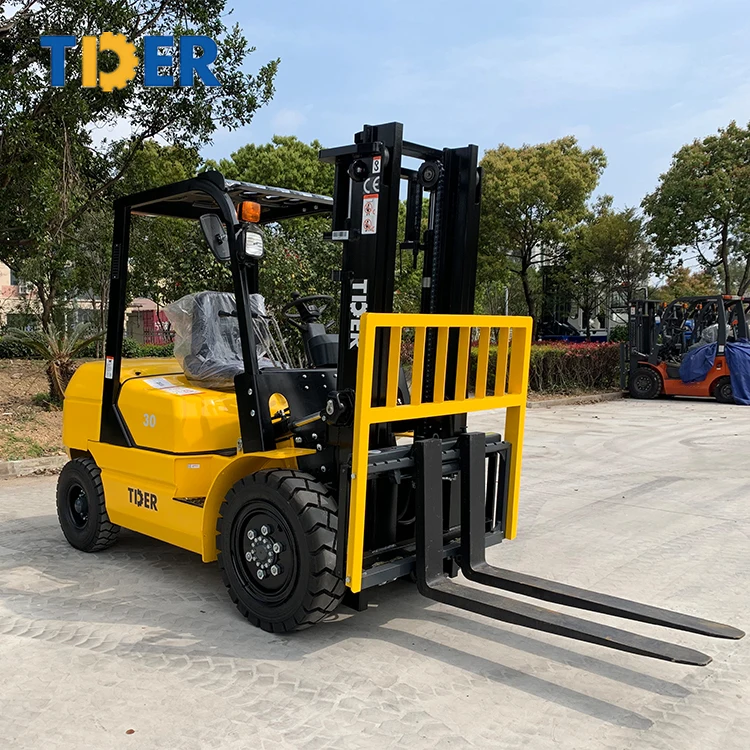

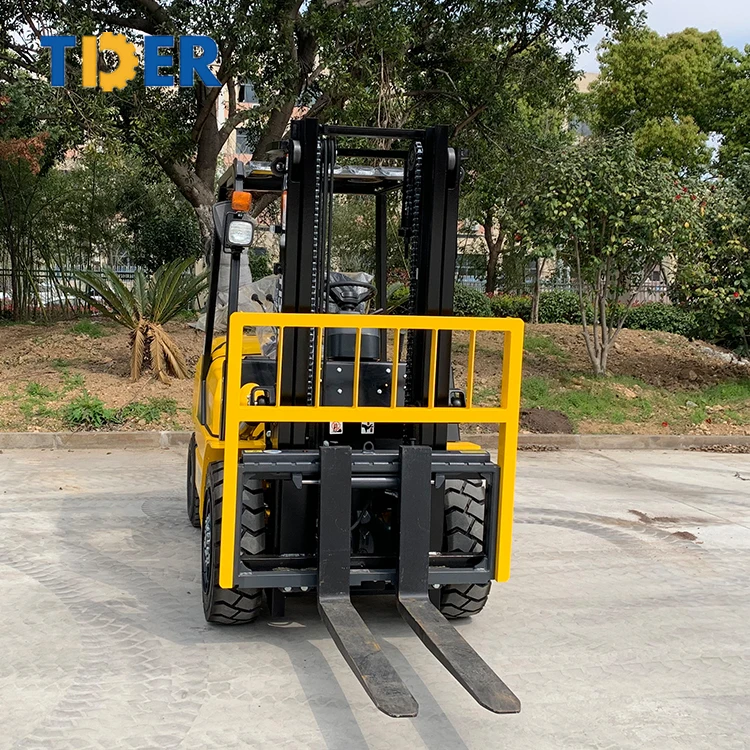

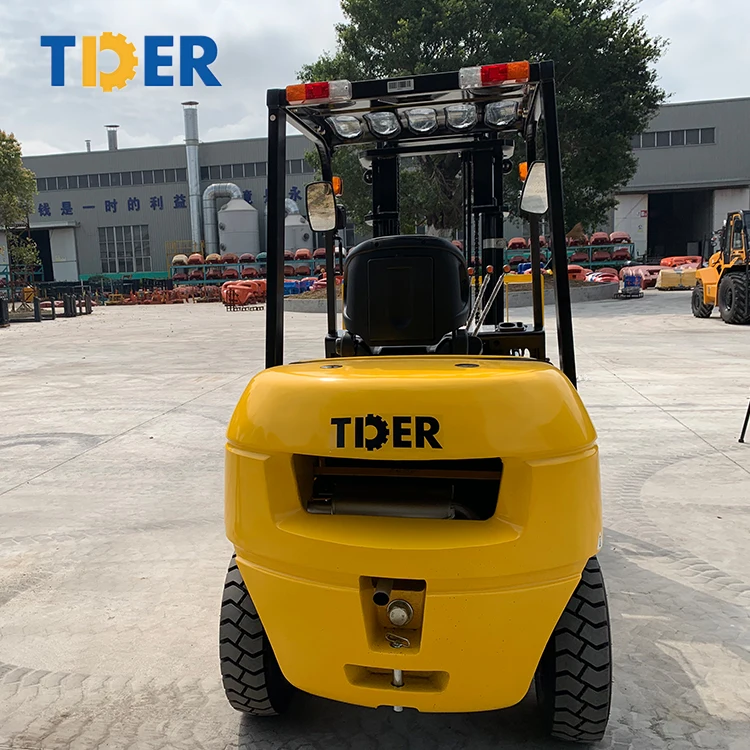

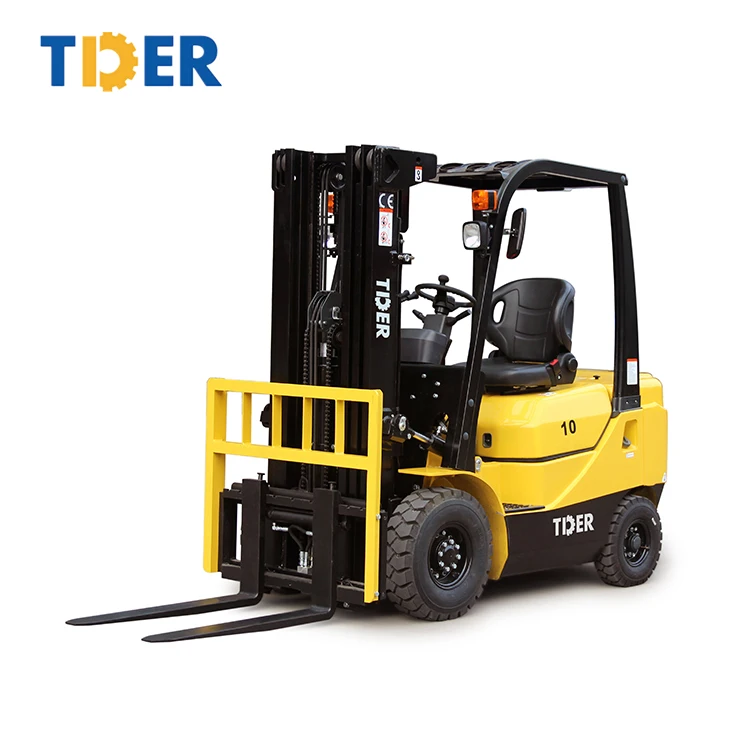

1-3 ton small fork lifter 3 ton 3.5 ton diesel forklifts truck forklift 3 ton diesel forklift in oman
Product Description
Application
Our High quality fork lift diesel 3 ton forklift is widely used in the port, wharf, industrial and mining enterprises, station, warehouse, and others.
The Technical Parameters of 3 ton diesel forklift
Standard Configuration of our 2ton 2.5 ton 3tonDiesel Forklift Truck
1.Chinese Engine
2. Hydraulic / Automatic Transmission
3. Duplex Mast Lifting Height 3000mm
4. Pneumatic Tires
5. 1070mm Fork Length
Optional Equipments
1.Janpan engine ISUZU or Mitsubishi
2.Lifting Height 3m-7m
3.Full-free Duplex or Triplex Mast
4.Side Shift, Solid Tires, Suspension Seat, fork positiner .
5.Driver's Cabin, Customized Color, air-conditioner, etc.
6.Attachments :paper roll clamp,bale clamp ,rotating clamp ect.
The specification of chinese forklifts 3 Ton Mini Diesel forklift quotation | ||||||
Manufacturer | TIDER | |||||
Model | Power shift T/M | FD30 | ||||
Load capacity | kg | 3000 | ||||
Load center | mm | 500 | ||||
Power unit | Diesel | |||||
Operator type | Driver/seat | |||||
Tire type | Pneumatic | |||||
Wheel | Front/rear | 2/2 | ||||
Max. lifting height | mm | 3000 | ||||
Free lift | mm | 150 | ||||
Fork size | L*W*T | mm | 1070*125*45 | |||
Tilt range | Mast forward/backward | deg | 6/12 | |||
Overall length(without fork) | mm | 2705 | ||||
Total width | mm | 1225 | ||||
Mast height (fork lowering) | mm | 2075 | ||||
Overall height fork raised | With backrest | mm | 4250 | |||
Height to head guard | mm | 2140 | ||||
Turning radius(outside) | mm | 2445 | ||||
Front face of fork to front axle | mm | 480 | ||||
Min. right angle stacking aisle | without load length&clearance | mm | 2925 | |||
Speed | Max Travelling full/no load | km/h | 18/19.5 | |||
Lifting full/no load | mm/s | 450/500 | ||||
Lowering full/no load | mm/s | 450/450 | ||||
Max.drawbar pull | Power shift T/M full/no load | kg | 1500/1000 | |||
Manual shift T/M full/no load | kg | 1550/1000 | ||||
Gradeability at 1.6km/h | Power shift T/M full/no load | % | 18/20 | |||
Manual shift T/M full/no load | % | 18/20 | ||||
Truck weight | kg | 4380 | ||||
Weight distribution | Full load front/rear | kg | 6490/890 | |||
No load front/rear | kg | 1670/2700 | ||||
Tires | Number | front/rear | 2/2 | |||
Model | front axle | 28x9-15-12PR | ||||
rear axle | 6.50-10-10PR | |||||
Wheelbase | mm | 1700 | ||||
Tread | Front/rear | mm | 1000/970 | |||
Ground clearance | At lowest point(mast) | mm | 120 | |||
Frame | mm | 135 | ||||
Brake | Service brake | Hydraulic-foot pedal | ||||
Parking brake | Mechanical-hand lever | |||||
Battery | Voltage/capacity | V/AH | 12/80 | |||
Engine | Model | ISUZU C240 | ||||
Rated power | kw/rpm | 34.3/2500 | ||||
Rated torque | N.m/rpm | 138/1800 | ||||
Number of cylinders | 4 | |||||
Placement | L | 2.369 | ||||
Fuel tank capacity | L | 70 | ||||
Transmission | Speed forward/backward | Power shift T/M Manual shift T/M | 1-1 power shift T/M 2-2 manual shift T/M | |||
Our Company
Shipping&packging
various attachments
Customer Feedback
TIDER always pay more attention to customer feedback
