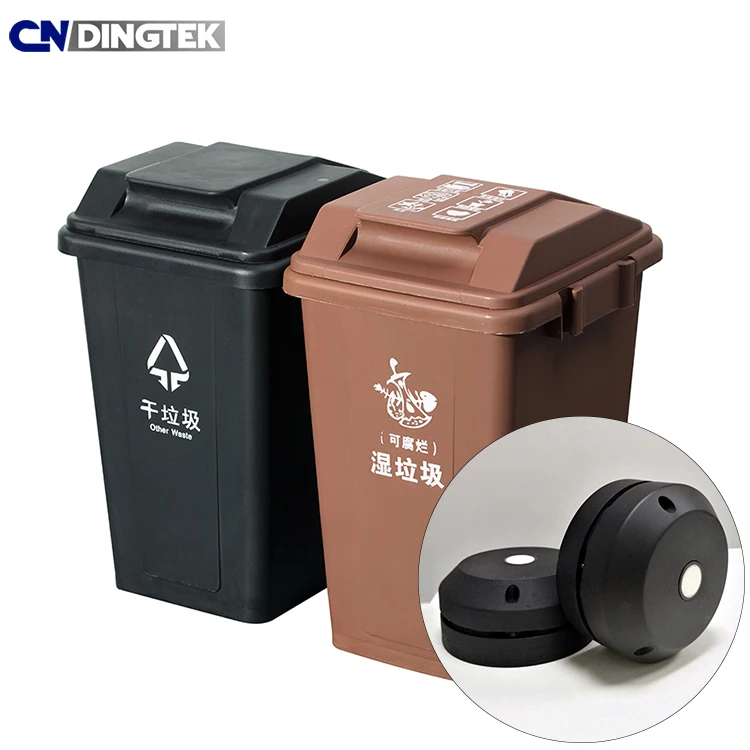

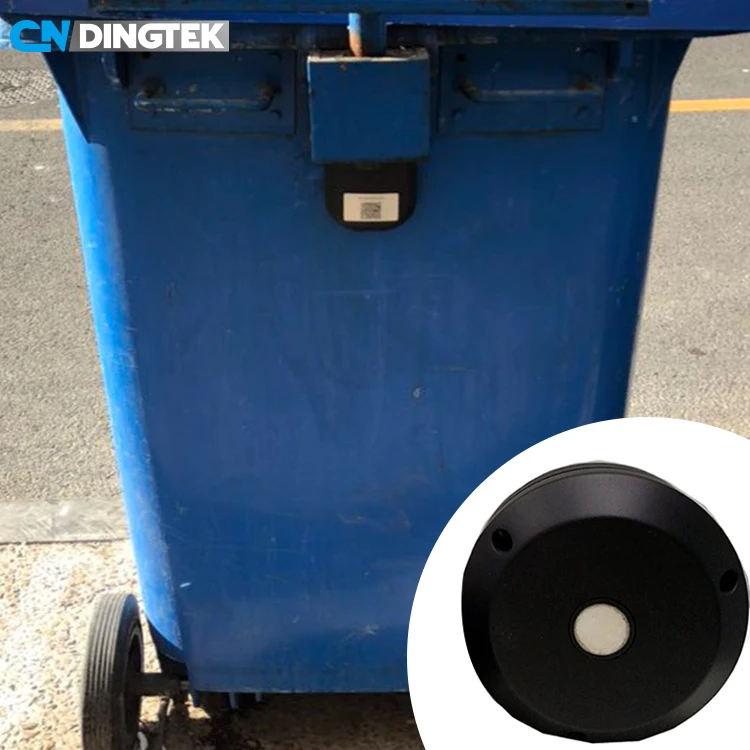

The DF702 sensor is designed for waste bin status detection. It detect the following status:
- Full
- Flame risk
- Inclined or not
Through the NB-IoT/Lorawan/GPRS/4G module. it transmit the status to base station or gateway, then via internet network to network server or application server. Finally user can monitor the status remotely.
As it is with algorithm of low power consumption, the internal battery can work for more than 3 years (at 4 hours interval upload interval).
Specification
Overview
Dimension
115*115*50mm
Net Weight
150g
Color
Black
Material
ABS
Detector
Principle
Ultrasonic
Detection Range
200cm/500cm
Blind area
0-15cm
Accuracy of height
3mm
Accuracy of temperature
2℃
Accuracy of angel
2° (optional)
Controller
MCU
STM32, 32bit ARM® core controller
Wireless
Communication
NB-IoT/Lorawan/Sigfox/GPRS/4G
Battery
Inner Battery
Non-recharged Lithium Battery 8000mAh @ 3.6V
Battery Life
More than 3 years
Environment
Operating Temperature
-20 ~ +70℃
Storage Temperature
-40 ~ +85℃
Protection Level
IP66
Network
Platform
Application Case
Company Profile
Product Lines
➤Waste management. Bin sensor DF702, Classification bin ZT202/ZT203/ZT204
➤Parking management. Parking sensor DO200, parking lock DO300
➤Manhole management. Manhole sensor DC400/DC410
➤Level measurement. Top installation DF550, bottom installation DF520, LPG tank sensor.
➤People Counter DC500
➤Air Temperature and Humidity Sensor DT310
➤Door Magnetic Sensor DH100
➤Water Leak Sensor DC600
➤Density measurement. DM500.
➤Cement Mixer sensor. DZ300.
