Высококачественная шлифовальная машина для металла B5032D производства

High Quality Slotiting Cutting Machine For Metal B5032D FromTaiwan

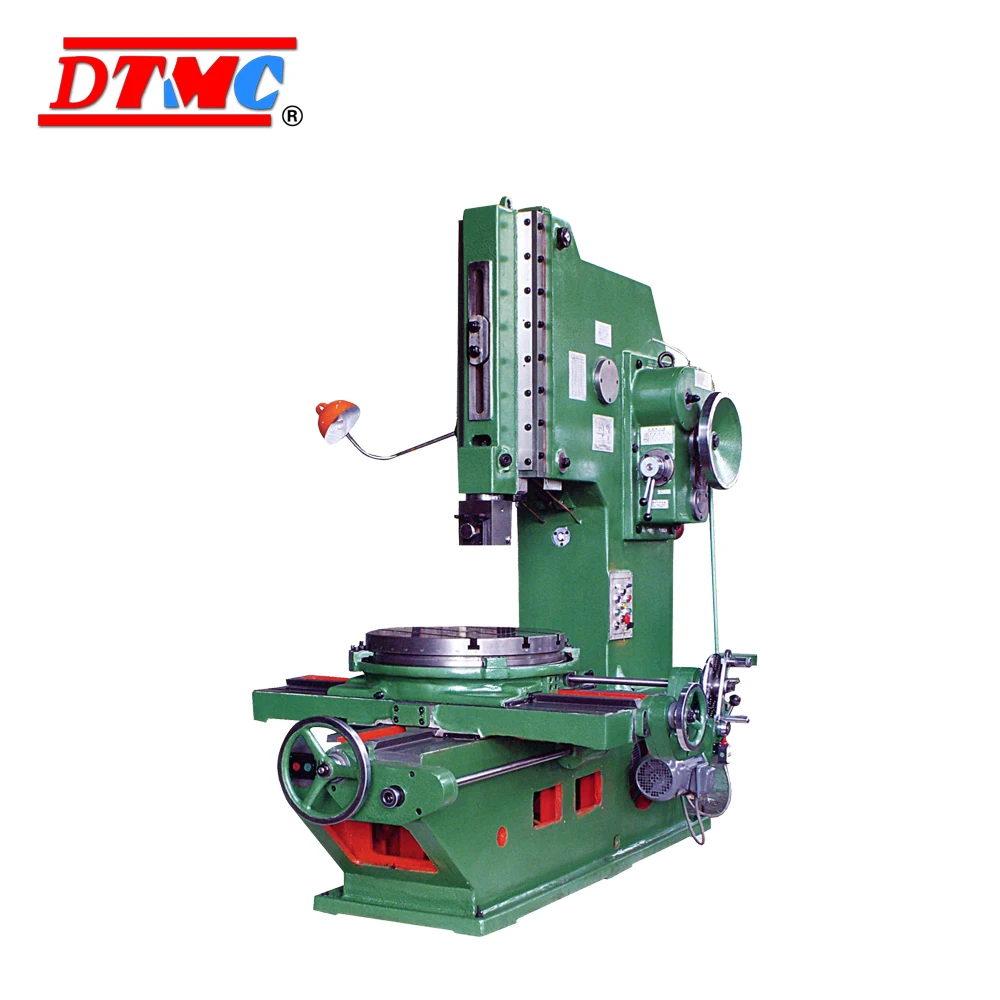

Vertical slotting machine Main features:

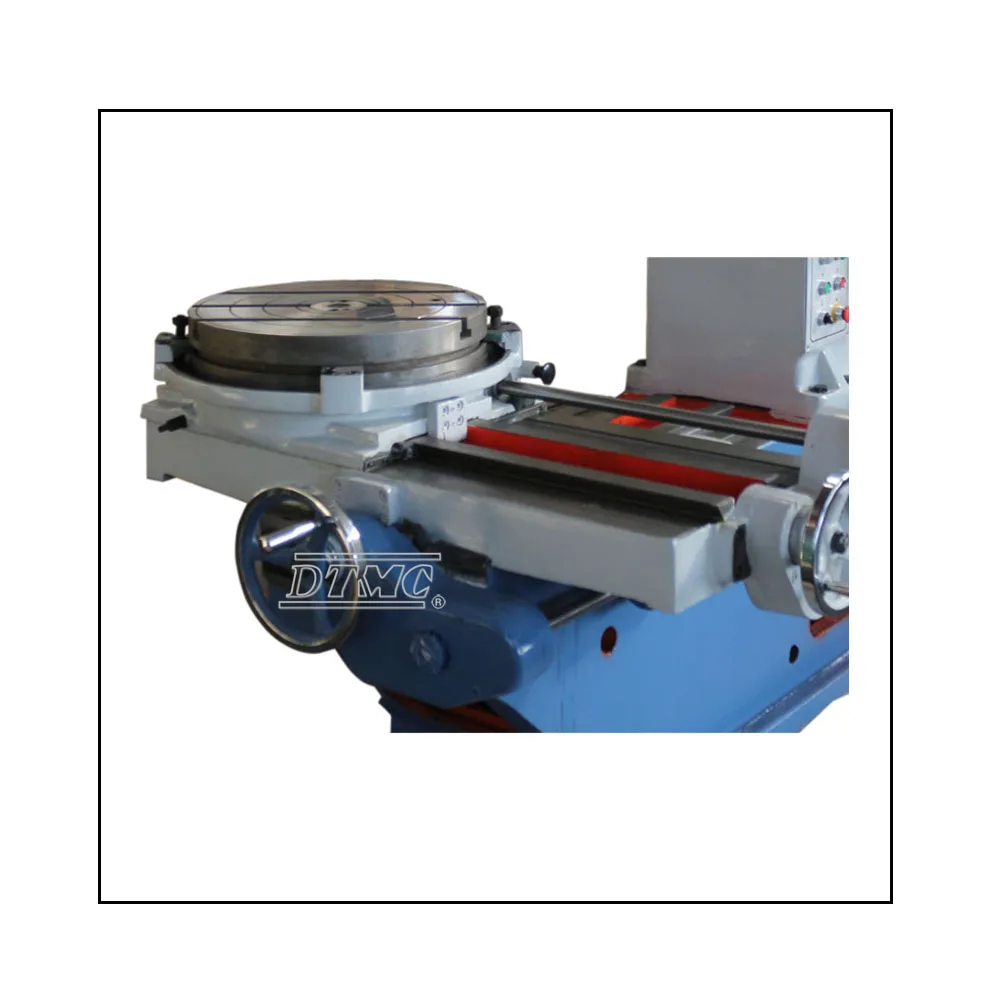

1.The working table of the machine tool is provided with three different directions of feed (longitudinal, horizontal and rotary), therefore work object go through once clamping, Several surfaces in the machine tool machining

2.Hydraulic transmission mechanism with sliding pillow reciprocating motion and hydraulic feed device for working table.

3.The sliding pillow has the same speed in every stroke, and the movement speed of the ram and the working table can be adjusted continuously.

4.Hydraulic control table have ram commutation oil for oil reversing mechanism, In addition to hydraulic and manual feed outer, Even there single motor drive vertical, horizontal and rotary fast moving.

5.Use hydraulic feed the slotting machine, Is when the work is over  turning back instantaneous feed, Therefore be better than mechanical slotting machine used drum wheel feed.

Application:

This machine be used for interpolation plane, forming surface and Keyway Etc. And can insert the inclination in the 10&deg Mold and other  within the scope of etc. work matter,Enterprise suitable for single or small batch production.

Parameter:

   Tengzhou Datong Machine Tool Co., LTD (DTMC) is a joint stock enterprise founded in 2000, we are the integration company in R&D, manufacture and export machinery. Our main products lines are 1) CNC machine tools, 2) Precision metal cutting band saws, 3) Precision sheet metalworking machines,4) Lathe Machine, 5)Milling Machine 6) Drilling Machine 7)Grinding Machine,8)Drilling Machine; total eight lines and we can provide more than 600 types products.

Our Factory is located in No.566 Tengfeixi Road,Tengzhou Industrial area.Head office is located in Rm. 805, Floor 10, Wentian Plaza, Tengzhou city, Shandong Province.We are grouped by eight branch factories with around 270,000 square meter workshops and 800 employees (including 220 technicians and management people). We established complete manufacturing systems, covering the casting, punching&pressing, CNC machining, painting and assembling. The advanced casting technology and complete production-chain, give our company very strong competitive ability.

We has approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system and Social Accountability 8000 (SA8000). Most products of ours have been approved the Europe and American safety standard, including CE, GS, EMC & UL. In 2009, the company finished turnover of more than 10 billion US dollars. 90% products were exported to more than 60 countries and regions around the world, especially to Europe and Amercia market and win high reputation always.
With the principle of "Quality First, Credits Foremost", DTMC provides the customers of domestic and abroad with superior products and professional services. We sincerely welcome you to visit our company, to establish business relationship on mutual benefit with us for mutual development !
