Product Description

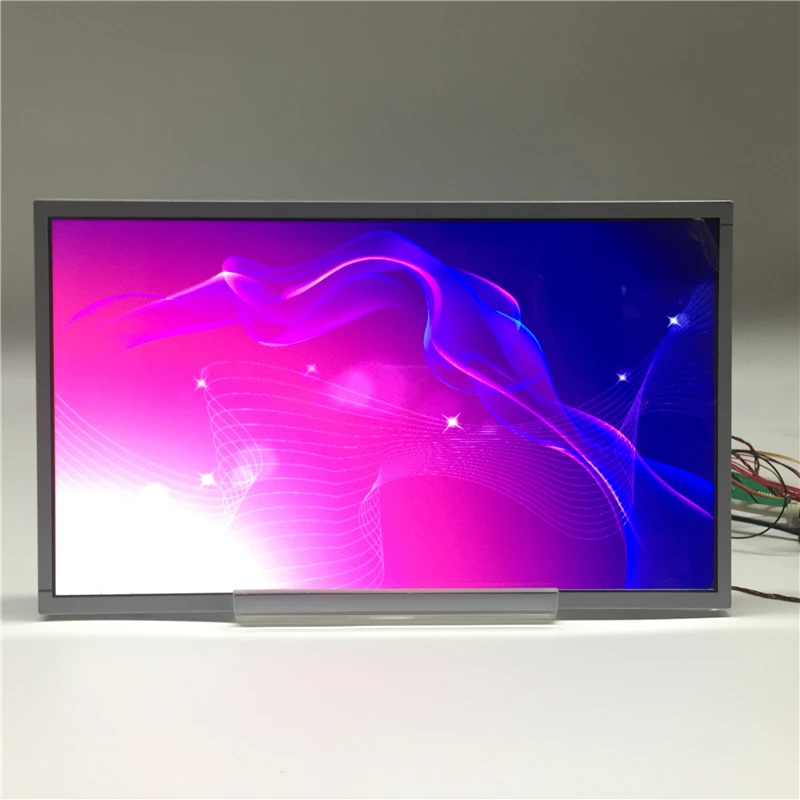

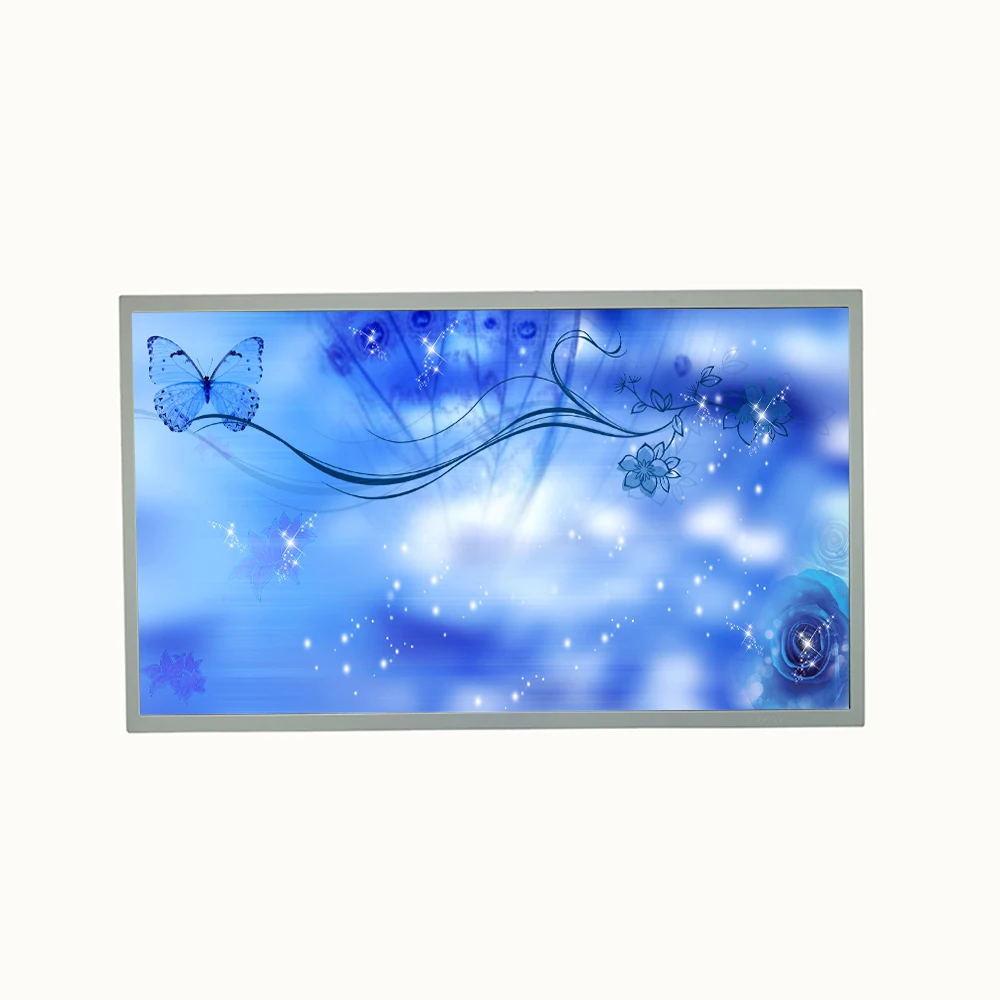

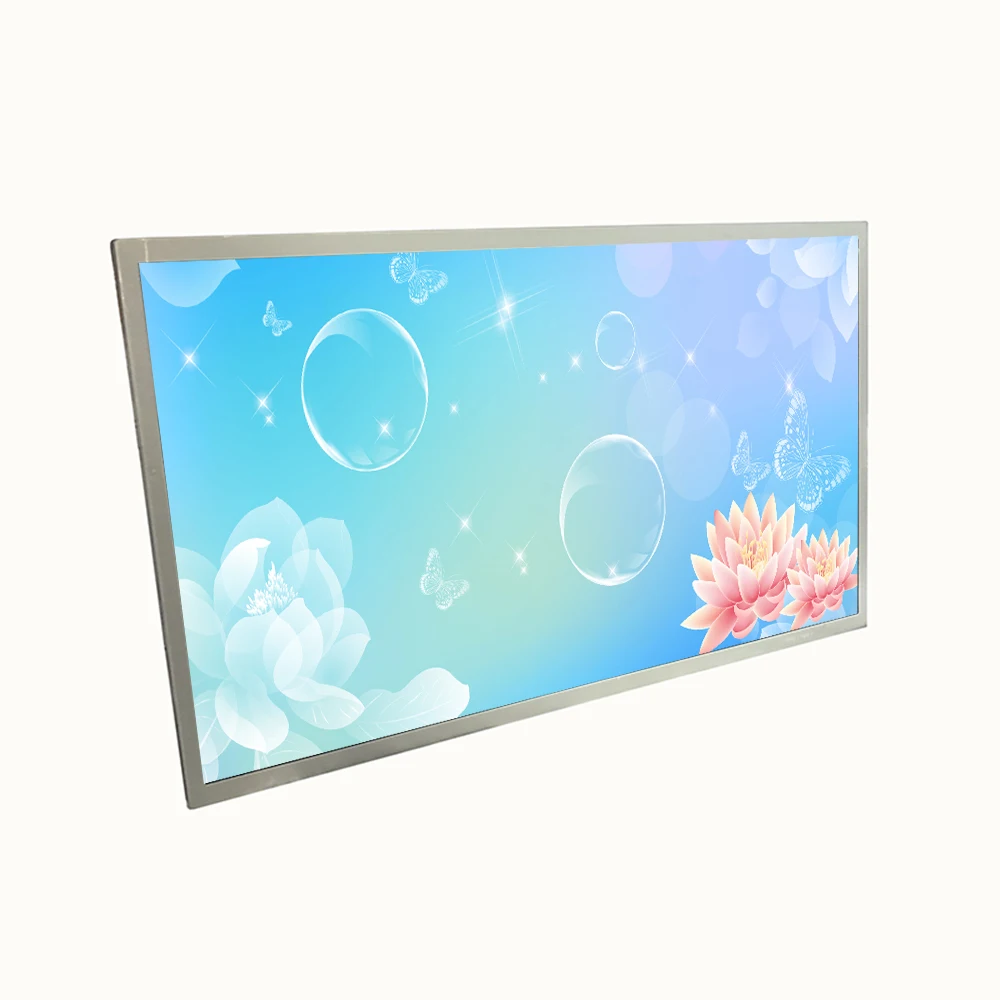

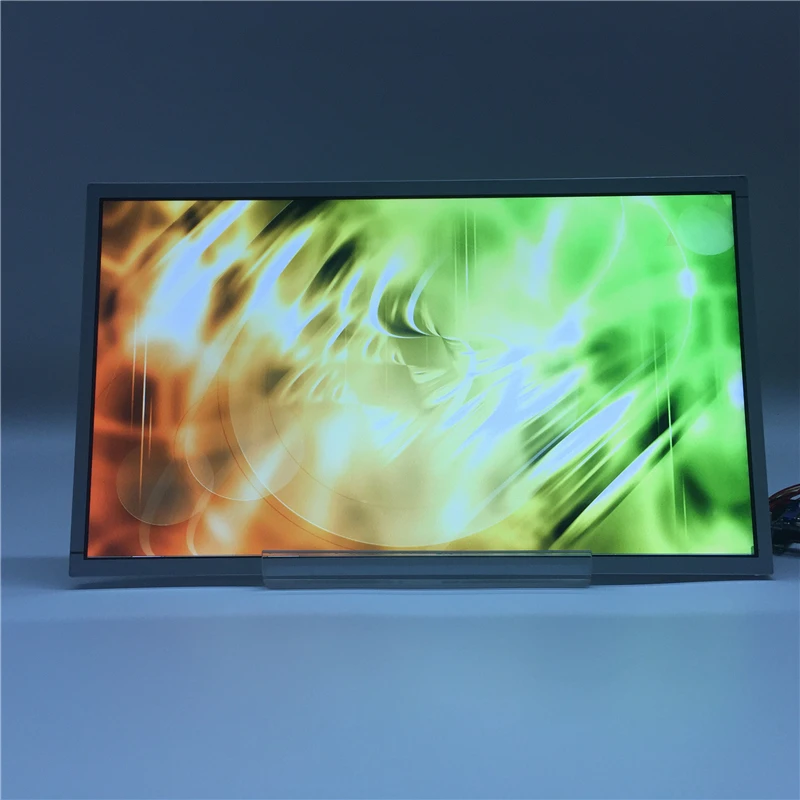

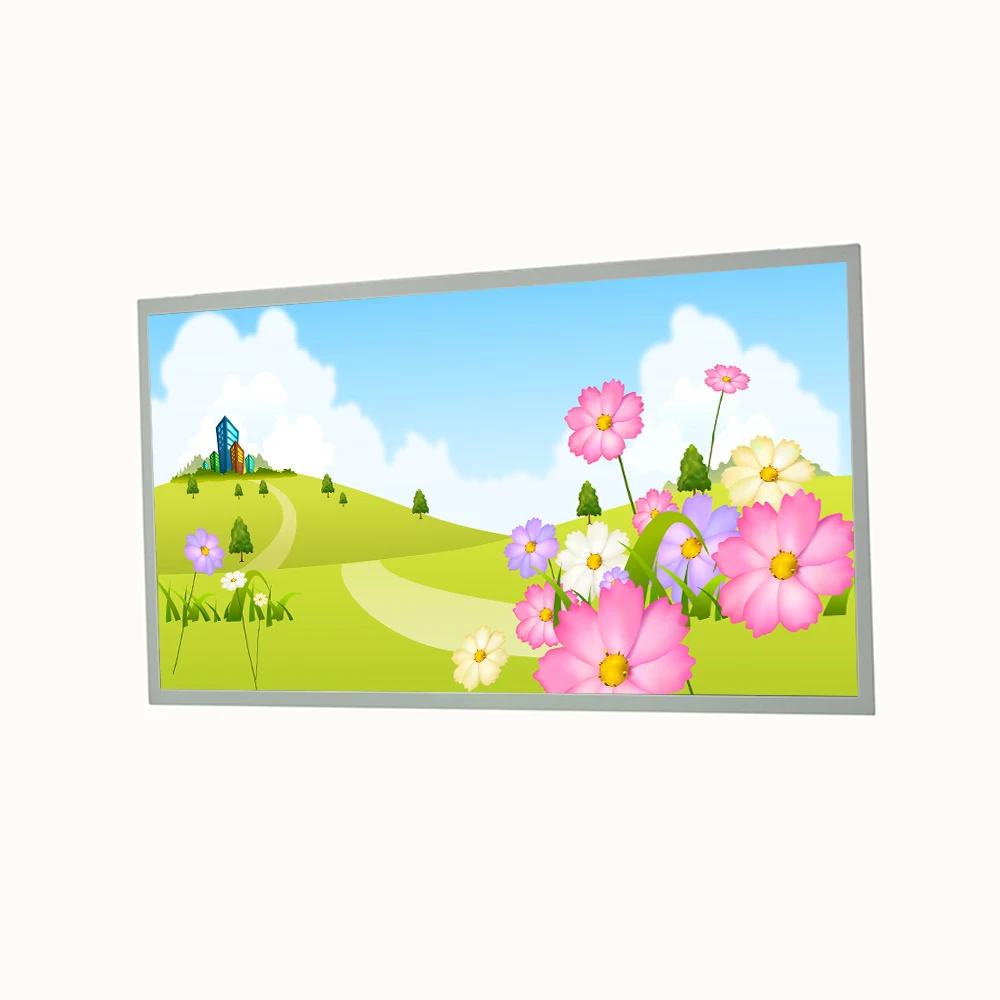

High brightness MV185WHB-N20 lcd 1000cd/m2 display panel for customer
MV185WHB-N20 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as an active switching devices. This module has a 18.5 inch diagonally measured active area with WXGA resolutions (1366 horizontal by 768 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for a low reflection and higher color type.
feature
LVDS Interface with 1pixel / clock
6-bit(Hi-FRC) color depth, display 16. 7Mcolors
High luminance and contrast ratio, low reflection and normalviewing angle
DE (Data Enable) only
RoHS
Gamma Correction
ForwardType
High luminance and contrast ratio, low reflection and normalviewing angle
DE (Data Enable) only
RoHS
Gamma Correction
ForwardType
Brand | BOE | Modle | MV185WHB-N20 |
Diagonal Size | 18.5 inch | Type | CELL , a-Si TFT-LCD |
Arrangement | RGB Vertical Stripe | Pixel Number | 1366(RGB)×768 (WXGA) |
Active Area | 409.8 × 230.4 (H×V) | Outline Dim. | 422.2 × 244.1 × 1.32 (H×V×D) |
Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C | Treatment | Antiglare (Haze 25%), Hard coating (3H) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) | Luminance | 1000 (cd/m²) |
View Direction | Symmetry | Response Time | 8 (Typ.)(G to G) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) Left / Right / Up / Down | Operating Mode | ADS, Normally Black, Transmissive |
Plate Thickness | 0.50+0.50 mm | Glass Thickness | 0.50+0.50 mm |
Color Depth | 16.7M | Light Source | No B/L |
Weight | 295.6g (Typ.) | Refresh Rate | 60Hz |
model name | ADS, Normally Black, Transmissive | Response | 14 (Typ.)(G to G) ms 5.2% (Typ.)(with Polarizer) |
Used for | Desktop Monitor | Touch panel | Without |
Signal Type | LVDS (1 ch, 8-bit) , Connector , 30 pins | Voltage Supply | 5.0V (Typ.) |
We are the one of the main agents of AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 3.2"-32" industrial & business lcds, we provide professional service for all of our customers, and for prices matters, we surely have the priority, and all the products came from original factory directly to save more cost for customers.
Packing & Delivery
Our services
Customization is available
Q: if i want a different outlook or function, can you customize for us?
A: Outlook and function customizable according to your demands.
Q: What is your guarantee period?
A: We provide one year warranty for the products from your purchase date, except human damage and force majeure factors, we will provide maintenance service and technical support (Hardware and other possible charges, we will not bear the responsibility).
