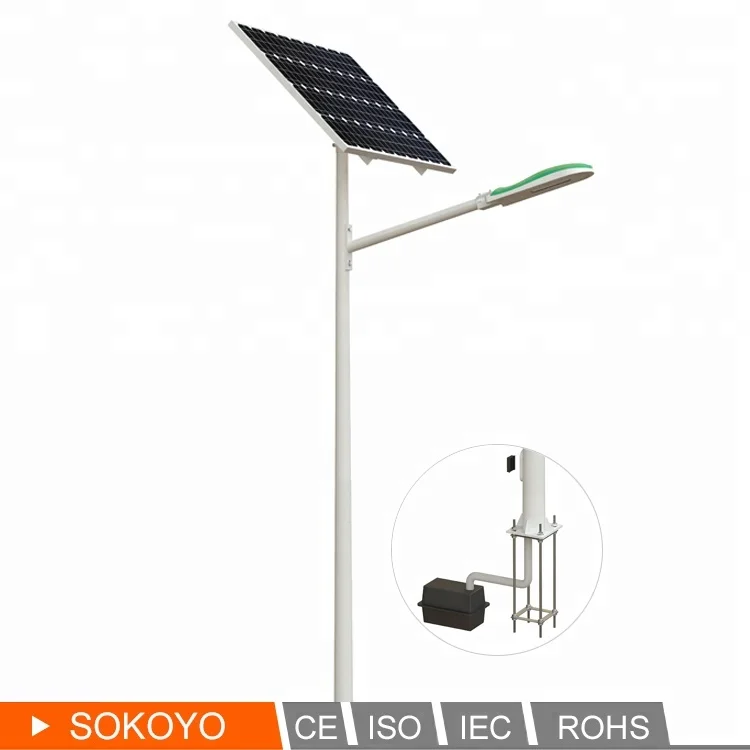

Уличное освещение на солнечной батарее SOKOYO производство

China solar power street lingting factory led lampadaire solaire

  Working mode:

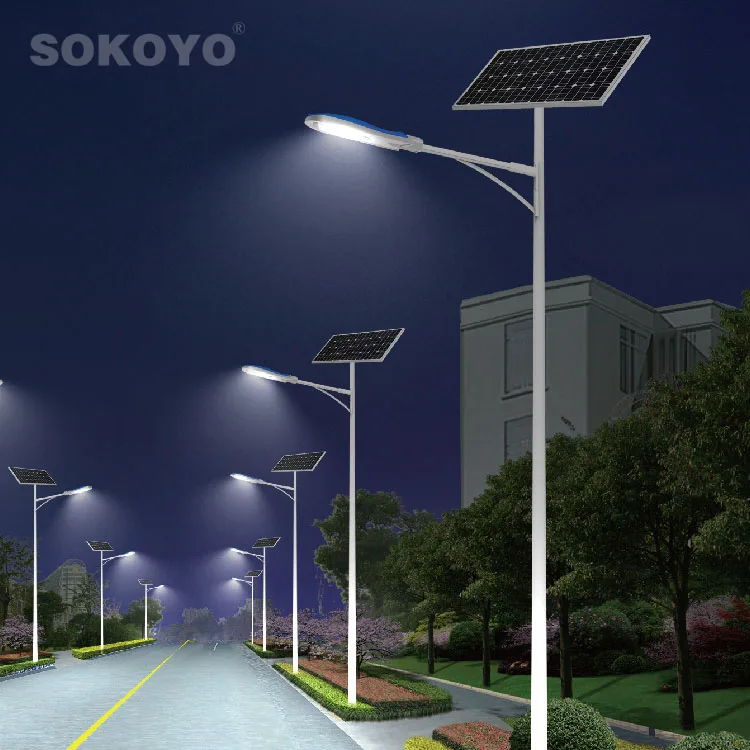

It is widely used in new rural roads, urban arterial roads or slow lane, branch roads, and road lighting in public places such as scenic spots, parking lots, parks, squares and other public places.

  Advantage of Star series LED solar street light:

•


  Modular pluggable technology, tool-free on-site maintenance;





•


  Control system, through lighting to achieve on-demand lighting, while reducing the entire lamp power consumption, energy saving. Dimming can also reduce the overall heating lamps, effectively extending the life of the entire lamp, reducing light failure;





•

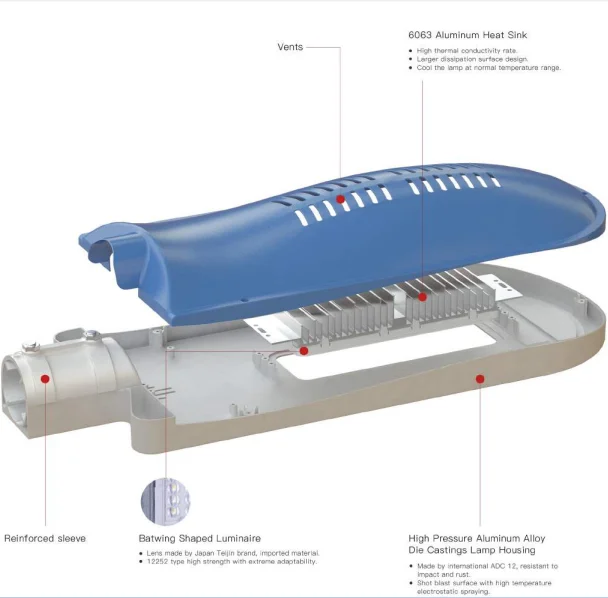

  Design the appearance of high-end, fashion, atmosphere. The whole lamp is made of high-pressure cast aluminum, impact-resistant, pure polyester electrostatic spray coating, corrosion-resistant;





•


  Bat wing + polarized lens: Specially tailored patented lens, a substantial improvement in lighting effects, illumination uniformity better;





•


  Simple assembly, easy maintenance: standard modular installation, versatility, easy maintenance.




  Lamp Specifications:

3030 light source(vertical module)

  Detailed information:

   Components description:

	Solar panel Monocrystalline solar panel from 55W to 120W, efficiency of more than 18% Polycrystalline solar panel from 50W to 120W, efficiency of more than 17% A GRADE high efficient solar panel Hydrophobic layer with higher light absorption and minimal surface dust 5 years warranty for solar panels; 20 years power generation capacity
	LED lamp Intelligent Solar Controller, lithium battery Over-charging/discharging Protection, Reverse-connection Protection Ligh Power LED, Lifespan: >80000Hrs, White Color,150LM/W,30Lux,6500K, IP66,120 Degree Angle
	Gel Battery Battery Type: Free maintenance Gel deep recycle battery Capacity(10hr,1.80V/Cell,25℃):60AH,12V Life span: 5 - 7 years
	Battery Box Capacity: 40 - 2*250AH Application: Buried battery solar street lights Material: ABS plastic Protection: anti-corrosion, waterproof, rustproof Features: Stainless steel bolt, easy to install
	Light pole Hot-Dip Galvanized, powder coating Lifespan: More than 20 years Equipped With Arm, Bracket, Flange, Fittings, Cable Resistant to Wind: ≥150KM/H

  Battery / solar panel performance:

•

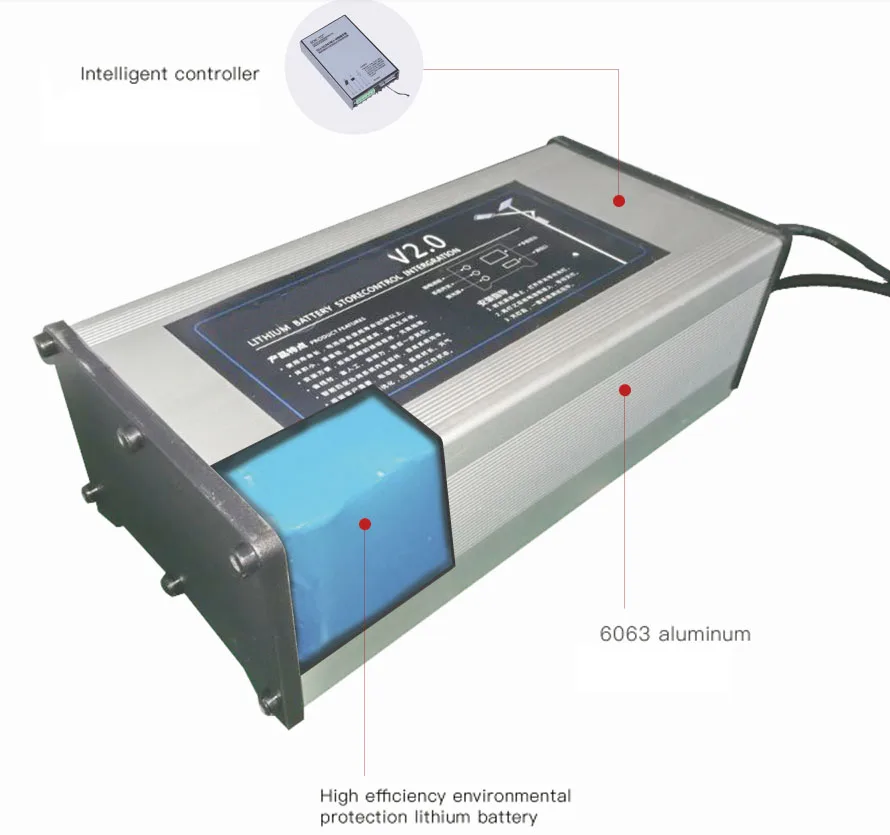

  Solar street lamp system uses a new lithium battery





•


  Life: 5-8 years





•


  Terminal with lead-tin terminal or female terminal





•


  Working environment temperature -40℃--+60℃





•


  Heat capacity, heat dissipation ability;





•


  To meet the continuous 7 days of rainy days lighting needs.





•


  Solar Cell: Monocrystalline silicon solar cell with conversion efficiency of> 19%, excellent low light response, meeting IEC61215 and Class II of Electrical Protection with a design life of more than 20 years.

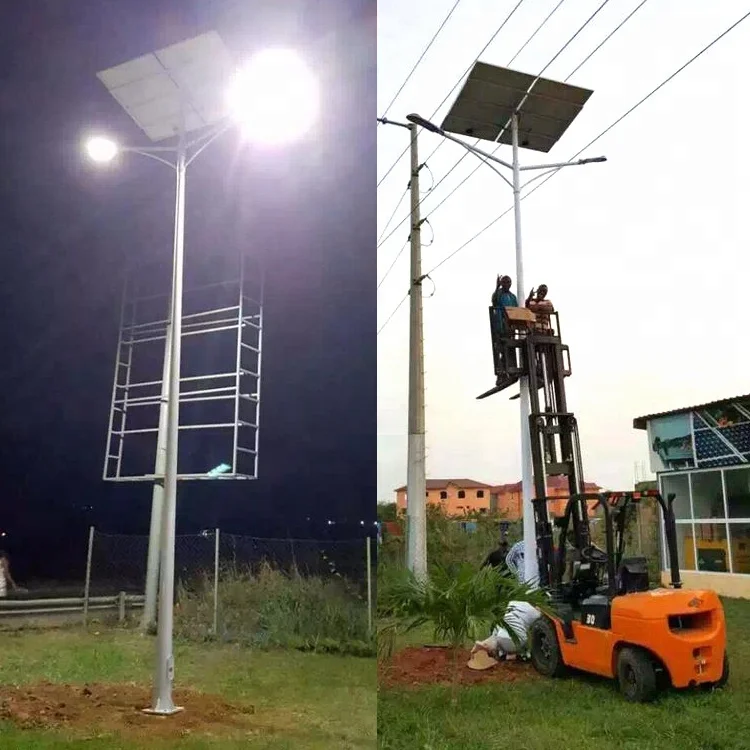

  Project:

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than

Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?
A: Firstly,let us know your requirements or application.
    Secondly,We quote according to your requirements or our suggestions.
    Thirdly,customer confirms the samples and places deposit for formal order.
    Fourthly,We arrange the production.

Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.

Q8:How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.

Solar outdoor lighting led road lamp with panel
