Небольшой монитор с сенсорным экраном 12-дюймовый

Небольшой монитор с сенсорным экраном 12-дюймовый

Категория: Мониторы >>>
Поставщик: Leadingtouch,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.15 $*	0.11 $*
Aug-17-2025	0.99 $*	0.22 $*
Jul-17-2025	0.71 $*	0.89 $*
Jun-17-2025	0.87 $*	0.90 $*
May-17-2025	0.60 $*	0.51 $*
Apr-17-2025	0.21 $*	0.0 $*
Mar-17-2025	0.99 $*	0.74 $*
Feb-17-2025	0.93 $*	0.86 $*
Jan-17-2025	0.33 $*	0.20 $*

Характеристики

Product Description

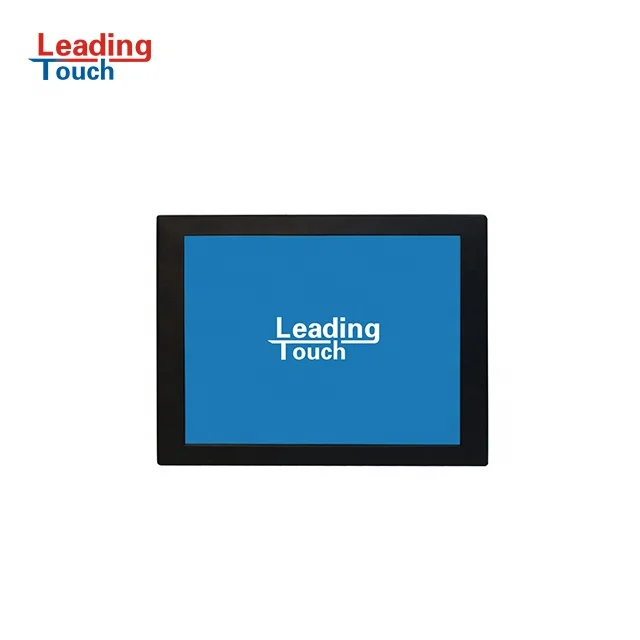

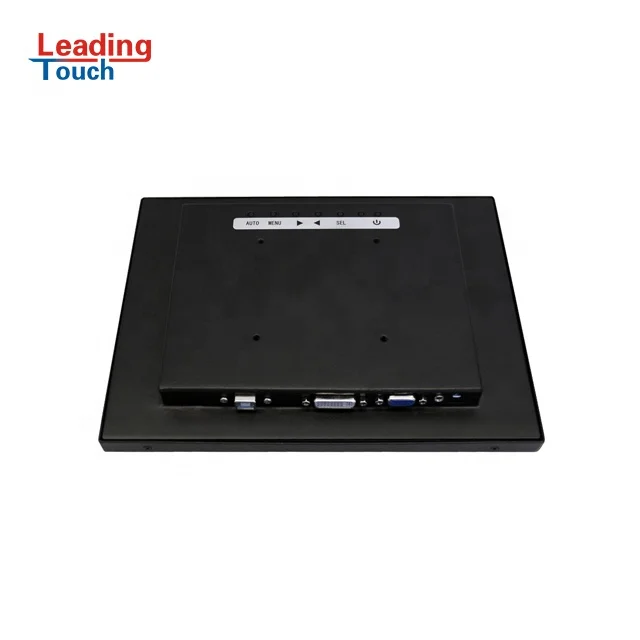

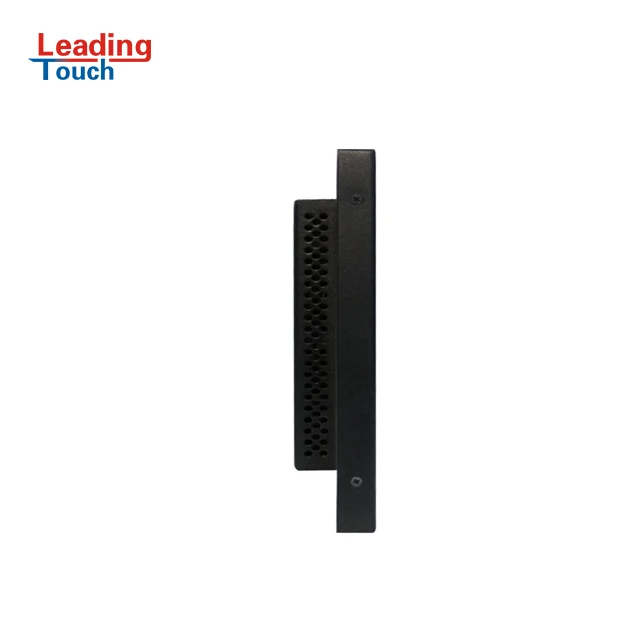

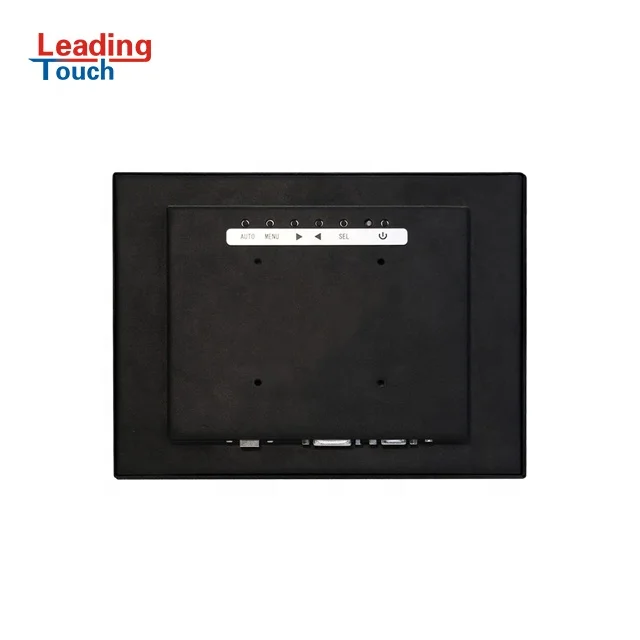

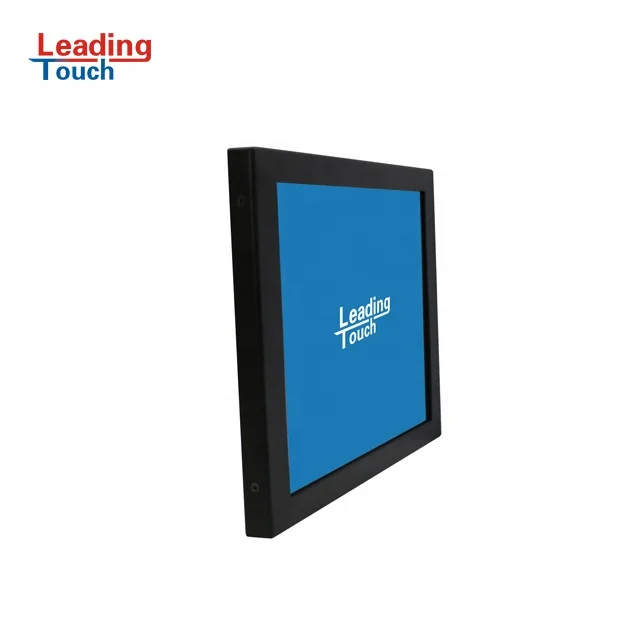

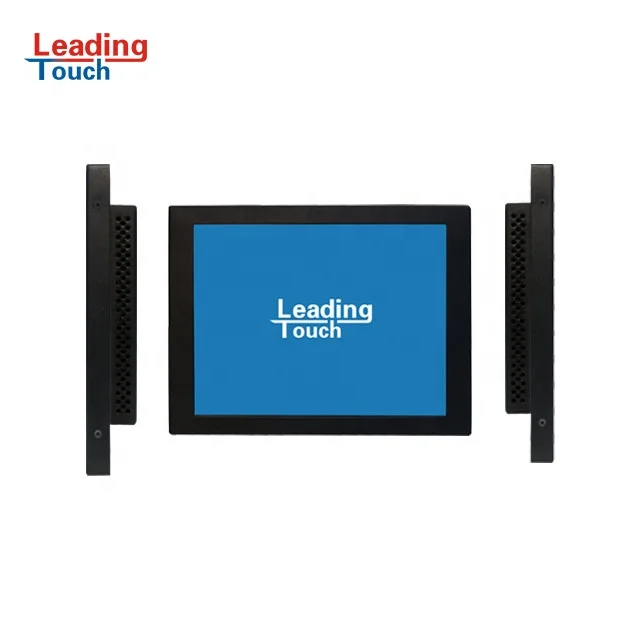

12" Open Frame Touch Monitor

TM-1265 is 12inch open frame touch monitor; cost-effective touch solution which is designed for Kiosk, ATM, Gaming, Casino, Interactive digital, Industrial, Education, Transportation etc., is easily connected and integrated by user.

Features

Standard VESA hole as mounting option

Superb cosmetic, slim housing

Multi-interface apply to various mounting or connection

Economy choice, Reliable quality, Easy operation, widely application

On-Screen display (OSD)

Combinations of features indicate that LeadingTouch Touch Monitor is the best choice for you.

TM-1265 12" Open Frame Touch Monitor Specification
Model	TM-1265-N202D1
Description	12.1" Open Frame 5-Wire Resistive Touch Monitor
Case/Bezel Color	Steel/Black
Display	4:3 Active Matrix TFT LCD
Optimal (native) Resolution	1024×768 @60Hz
Useful Screen Area	248.5mm × 187mm
Colors	16.7 M
Brightness	300cd/m2
Contrast Ratio	700:1 (Typical)
Viewing Angle(CR≥10)	Horizontal: ±80°or 160°total Vertical: ±80°or 160°total
Backlight Lamp Life	50000 hrs
Input Video Format	VGA / DVI Options
Input Video Signal Connector	VGA / DVI Options
On Screen Display(OSD)	Controls (back): ON/OFF，MENU，LEFT，RIGHT，SEL，AUTO
Touch Technology	LeadingTouch 5-Wire resistive touch panel
Touch Interface	Dual RS232 & USB touch interface
OS and Driver	Windows XP, Windows 7/8/10 and Linux, android, Elo drive or LeadingTouch driver
Mounting Options	VESA Mount 75x75 and 100x100, Four side bracket option
Power Supply	DC:+12VDC ± 5%
Power Supply		External Adapter: 100-240VAC, 50-60Hz
Power Consumption	36W
Temperature Range	Operating: 0℃ to 50℃; Storage: -20℃ to 60℃
Humidity Range (no condensing)	Operating: 20%-80%; Storage: 10%-90%
Dimension	Touch Monitor 292 x 231 x 37 MM
Warranty	One Year
Agency Approvals	CCC, FCC, CE, RoHS

Packing & Delivery

PCAP (Project Capacitive)

Open Frame Touch Monitor

Infrared (IR)

Open Frame Touch Monitor

Resistive

Open Frame Touch Monitor

Certifications

Our Company

Founded in 2001, LeadingTouch, the global leader in touch technology, develops, manufactures and markets a complete line of touch screen and touch monitor products, with PCAP, SAW, Infrared, Resistive touch technology. LeadingTouch offers the largest selection of touch screen technologies and LCD touch monitors and carefully designs each product for the demanding requirements of diverse applications, such as Industrial, Medical, POS, Kiosks, Retail, Hospital, Transportation, Office Automation, and Gaming.

Related Products

Packing&Shipping

FAQ

Q1: Which size do you have for the Resistive Touch Screen monitor? A1: 10.1” 10.4” 12.1” 15” 17” 19” 21.5” etc...
Q2: Can you provide customized service? A2: We can make it according to your drawing, supply OEM and ODM service.
Q3: Is it Driver-free? What OS can the ir touch screen panel kit support? A3: No, need calibration. Support Windows, Android, Ubantu, Linux, Mac…
Q4: What is your MOQ? Sample in stock? A4: No limited on MOQ, sample testing is ok. Standard size in stock. It can be dispatched to you very quickly.
Q5: What is your payment term? A5: Alibaba Trade Assurance, T/T, Paypal , etc.
Q6: What is the Resistive touch screen application? A6: Widely used in open frame touch monitor, POS, ATM, KIOSK, Medical, Media player, etc.
Q7: What is your warranty? A7: One year warranty. 12 months warranty lifetime free maintenance except the human damage and force majeure factor, can be 24-monthes or 36-monthes with extra cost.
