Трубогиб для труб EMT 20 25 32 мм
US $150.00-$220.00
Двухголовочный трубогибочный станок 38 для стальной
- Категория: Pipe and Tube Bending Machines >>>
- Поставщик: Zhangjiagang,Telhoo,Machinery,Manufacturer,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 7616.91 $* | 7997.34 $* |
| Aug-18-2025 | 7552.46 $* | 7930.84 $* |
| Jul-18-2025 | 6336.42 $* | 6653.44 $* |
| Jun-18-2025 | 7424.53 $* | 7795.92 $* |
| May-18-2025 | 6464.36 $* | 6787.30 $* |
| Apr-18-2025 | 7296.70 $* | 7661.45 $* |
| Mar-18-2025 | 7232.90 $* | 7594.64 $* |
| Feb-18-2025 | 7168.84 $* | 7526.58 $* |
| Jan-18-2025 | 7104.6 $* | 7459.40 $* |
Характеристики
double head pipe bending machine 38 for steel furniture
About us
Product description
Main Feature
Uses the microcomputer control,operates easily ,performance stable,double-end curving synchronization shapes work piece of the bended pipe opens ,the angle is precise, Double-end curving angle may adjust from0-1850,but must consider the material-taking problem.May establish two ases different angles to be curving .
1. According to different base frame, it can be divided into standard type and rotary type.
2. Hand-operated, auto, semi-circulation and other functions can be chosen.
3.PLC control, imported electric elements. The program can be stored forever, no losing.
4. Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
5. Double head can be used separately.
6.Three pieces can be bended one times.
Item Model | SW25A | SW38A | SW50A |
Power of electric machine | 4 | 5.5 | 7.5 |
Max. Steel, Tube O.D. | Φ25x1.6t | Φ38x1.8t | Φ50x2.0t |
Max. Stainless Steel, Tube O.D. | Φ22x1.6 | Φ32x1.8 | Φ48x2.5 |
Max. Bending Radius (mm) | 26-110 | 38-200 | 50-250 |
Center Distance between Two Shafts (mm) | 120-1200 | 170-1700 | 170-1700 |
Max. Bending Angle (°) | 185 | 185 | 185 |
Bending-Pipes quantity once | Φ13x2 | Φ22x2 | Φ25x2 |
Motor power for Hydraulic (M pa) | 12 | 14 | 14 |
Gross Weight | 750 | 1500 | 2500 |
Machine Dimension | 210x110x125 210x110x135 | 270x126x132 270x136x148 | 350x150x190 350x160x180 |

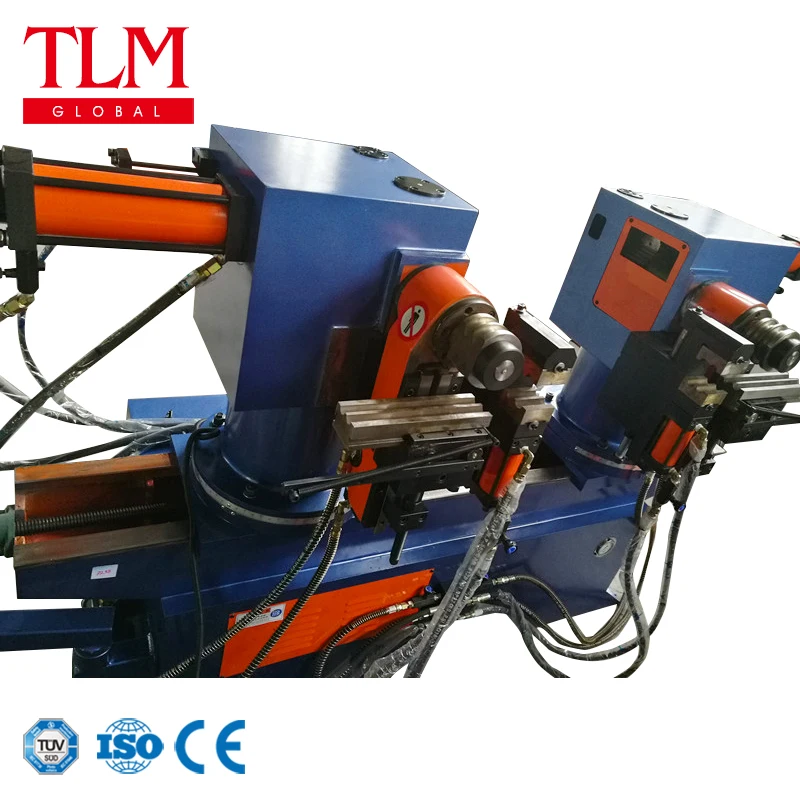

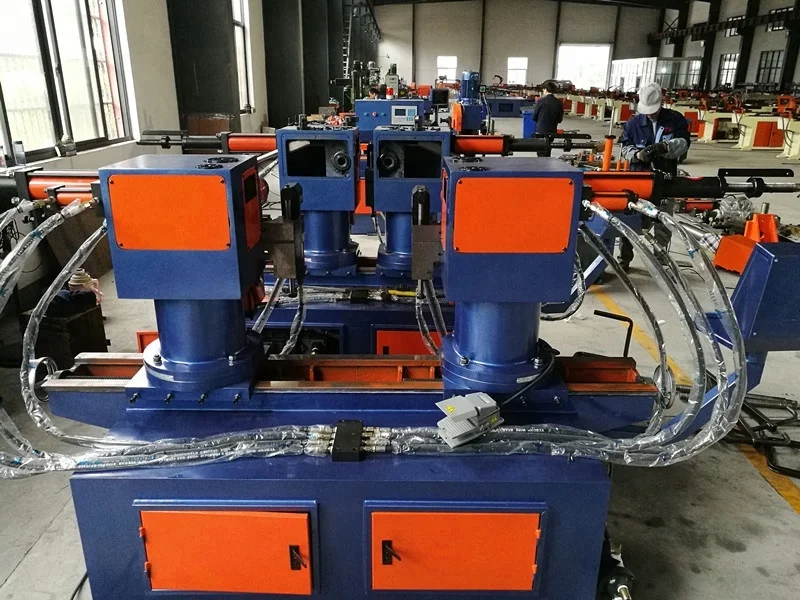

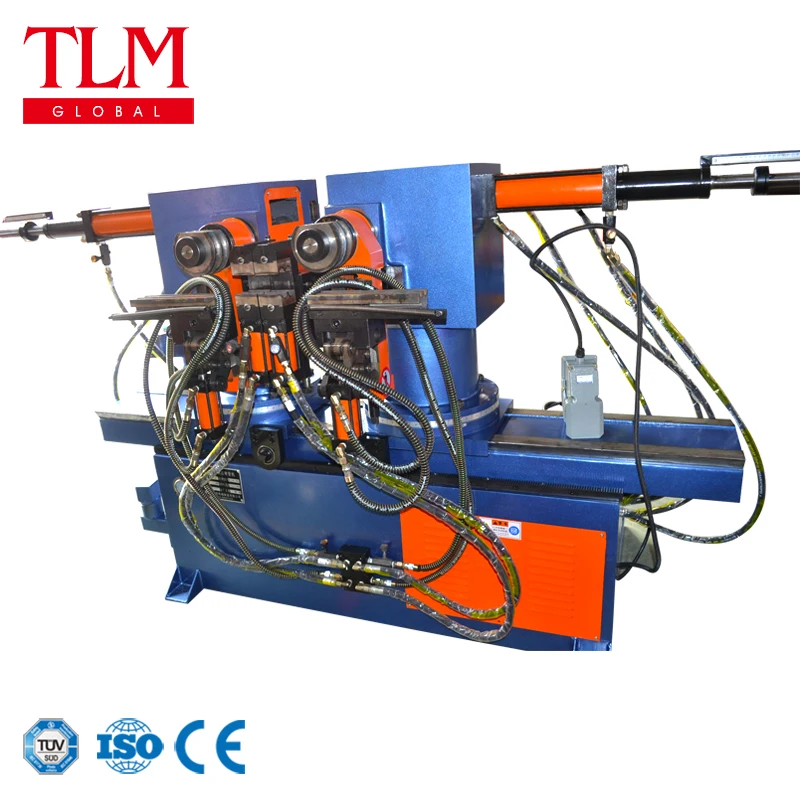

Machine photo

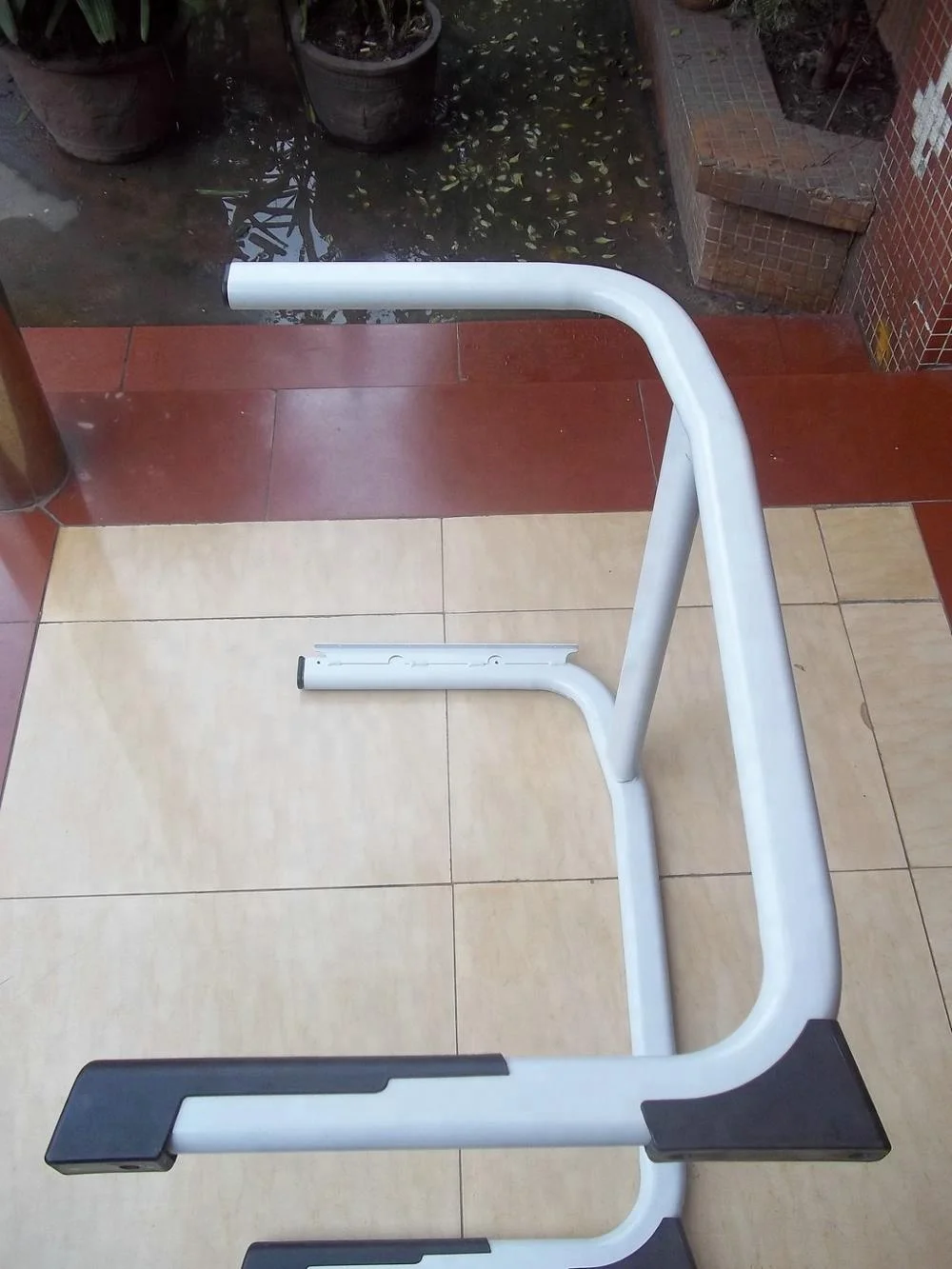

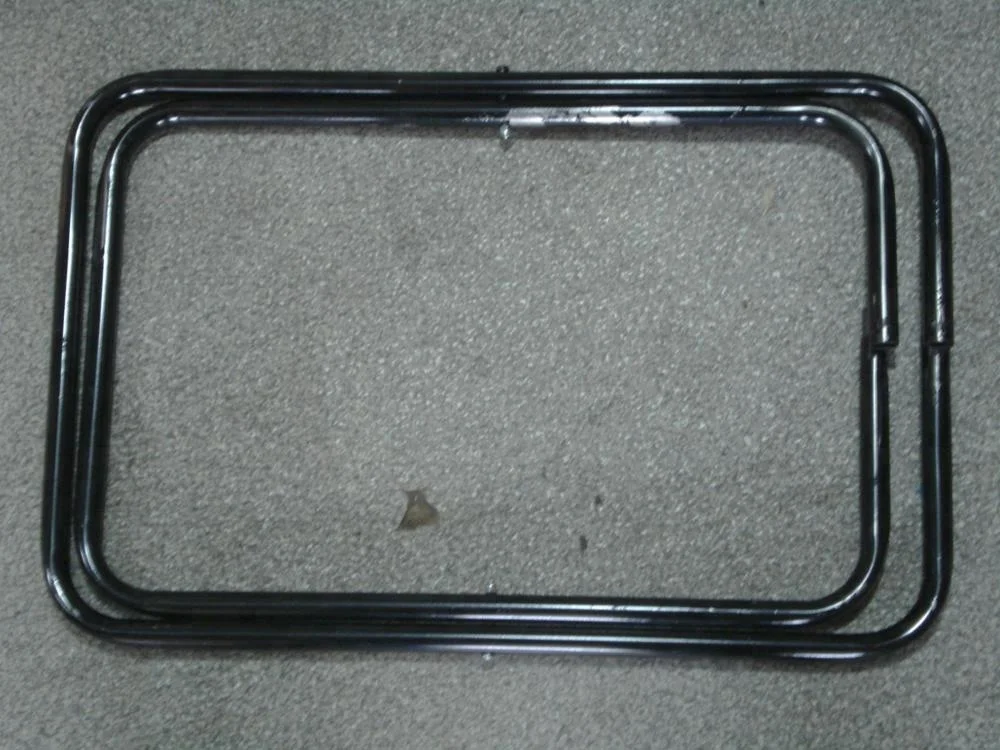

Scope of application
Our Services
1.Warranty period: We guarantee machine quality for one year, during this year, if spare parts of the machine were damaged, we can send the component to the customer by DHL, TNT freely.
2.Our factory can send our engineer to the customer’s factory install, commission and training freely. The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely.
3.Our factory provide the service for the customer forever, if the customer need operation help, can contact us by Skype, Email and Telephone at any time, we provide 24 hours on-line service.
Packaging & Shipping
Certificate
Why choose us
Our exhibition
