OBDSTAR X300 DP Plus C конфигурация полная версия Поддержка программирования ECU и Smart

OBDSTAR X300 DP Plus C конфигурация полная версия Поддержка программирования ECU и Smart

Категория: Другое оборудование для транспортных средств >>>
Поставщик: Shenzhen,Shouer,Electronic,Co.,Ltd.,[44,China]Shenzhen

Цена:127 695,53 ₽ - 155 545,24 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-19-2025	162173.47 $*	165416.54 $*
Jul-19-2025	131526.77 $*	134157.10 $*
Jun-19-2025	159619.92 $*	162811.91 $*
May-19-2025	158342.6 $*	161509.33 $*
Apr-19-2025	126418.63 $*	128946.90 $*
Mar-19-2025	155788.48 $*	158904.48 $*
Feb-19-2025	154511.62 $*	157601.57 $*
Jan-19-2025	153234.42 $*	156299.84 $*

Характеристики

OBDSTAR X300 DP Plus C Configuration X300 PAD2 Full Version ECU Clone+ IMMO+Odometer+ Diagnosis+ Special Functions+ P001

This device is a new Android-based vehicle trouble diagnostic device developed for internet applications. It inherits from OBDSTAR advanced diagnosing technology and it is characterized by covering wide range of vehicles, featuring powerful function, and providing precise result. Through vehicle diagnostic OBD connector and variant mobile intelligent terminals, it achieves vehicle trouble diagnosis for full car model and full system vehicle.

Meanwhile, taking advantage of mobile internet, this device integrates more application and service, such as Maintenance Database, remote assistant, One Key Upgrade etc.

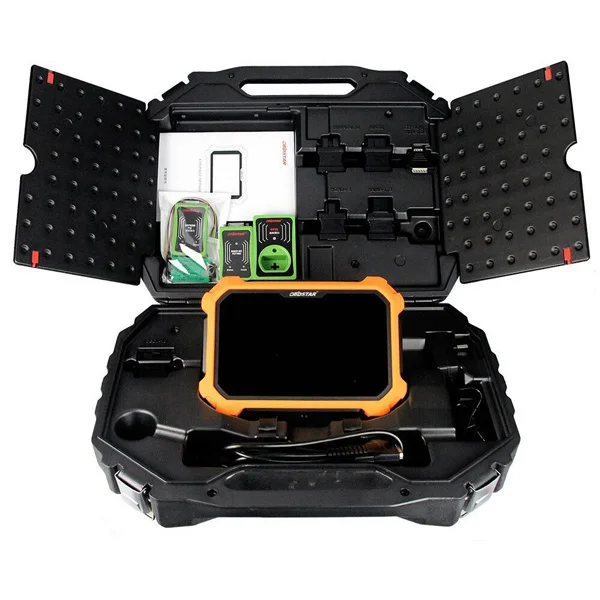

X300 PAD2 Full Package:

Immobilizer+Mileage correction+Diagnosis+Special function (Oil reset +ABS+Battery matching+ECU programming+EPB+Throttle programming+Airbag reset+TPMS+Steering angle reset+OBDII+DPF+Injector code+Suspension matching+Gear learning+CVT learning+EEPROM+Key renewing+ECU cloning)Adapter(P001 programmer+C001 circuit board+C002 circuit board+W001 data cable+W002 data cable+W003 data cable+Toyouta smart key Emulator)+others(Ignition coil+Remote tester).

Diagnostic Function:

1. Diagnose the electronic control system of prevailing vehicle models covering Asian, European, American and Chinese. Diagnosis functions include: Read DTCS, Clear DTCS, Read data stream, Special functions etc.

2. Classify special function: ABS, EEPROM Adapter, Battery match, CVT learning, EPB, Gear learning, Immobilizer, TPMS (low tire) reset, Cluster calibrate, ECU programming, steering angle reset.

3. Specially designed for Android platform with clear and user-friendly interface;

OBDSTAR X300 DP PAD2 Hardware Advantages:

1. Built-in VCI box, communication more stable

2. 8-inch touchscreen, more intuitionistic

3. Can be charged directly via OBD interface

4. Practical and high-end gift box

5. Industrial design with silicone case

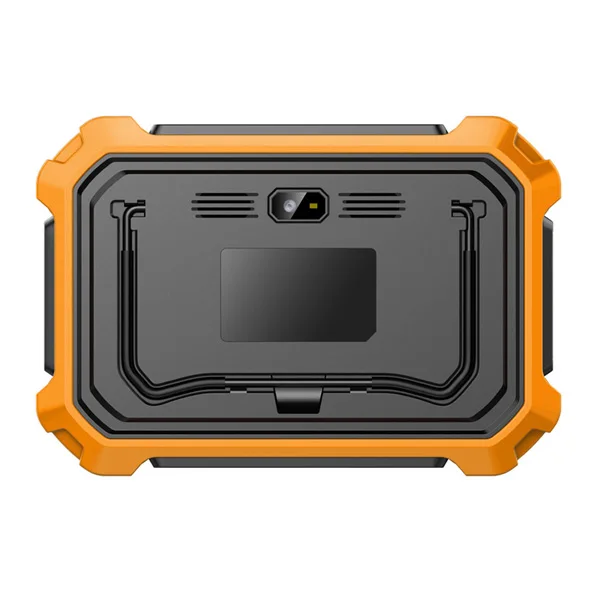

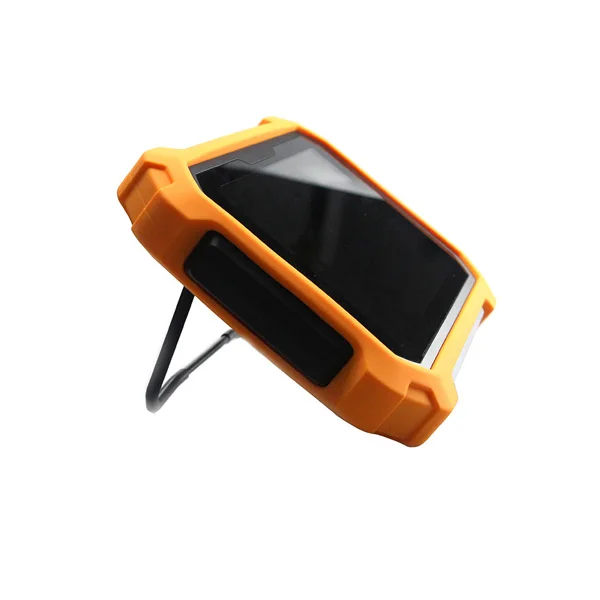

6. Back bracket design:Can prop on the steering wheel or stand on the table, easier to operate

7. With 4 Toyouta simulation keys (the fifth is coming soon)

8. 3 in 1, P001 programmer: combined with EEPROM adapter + RFID adapter+ Key Renew adapter

9. Add the clip of reading SOP 8PIN EEPROM

10. Add wiring harness of ECU reading by OBD (for ECU cloning and switch activation)

X300 DP PLUS Software Advantages:

I ECU Clone

1. ECU Clone, means ECU duplication.

The device copies all the data from the original vehicle ECU, and then writes all data copied into ECU with the same hardware to realize the same ECU function with the original vehicle.

2. Clone directly when replacing a new or a used ECU!

Without online matching in 4S store or removal of ECU bonding wire for reading and writing! Directly write without dismantling OBD!

3. Three features for ECU Clone:

A. Free of 4S online:

break monopoly from 4S, benefiting automobile maintenance industry

B. Simplified operation procedures: realize foolproof operation

C. Non-dismantling with zero risks: read and write data without dismantling ECU

II: Switch activation function

(Today many instruments or audio of vehicles activate secondary power supply to go into power-on status by relevant module CA-N communication on the vehicle, but sometimes an instrument or an audio is separated from vehicle CA-NBUS network, causing startup failure when it needs to be repaired by an auto technician. This function can simulate CA-N communication to activate secondary power supply, so the instrument or the audio enters into power-on status. In this way, it not only can test and verify the instrument or the audio, but also save an enormous cost for an auto technician to purchase a large number of startup platforms of various vehicles and wiring harnesses!)

III: Add “Help” functions

including built-in testable vehicle models, upgrade announcement, features, help notes and wiring diagrams, etc.

IV: Carlist: can directly get on the device

V: Upgrade Announcement: all details are available on the device

VI: Customers can look up the features or uniquely support functions on the device

VII: Help notes: built-in help notes for each model or function

VIII: Wiring diagrams: built-in ECU wiring diagrams, more intuitionistic and convenient

How to use OBDSTAR X300 DP Plus Induction Coil?

I. Functional Overview:
Induction Coil is used to detect the key induction coil failure of the vehicle.

II. Application Method:
Attach the Induction Coil to the key induction coil, and insert the key or turn ignition on, while Induction Coil red indicator lights up and goes out, indicating the key induction coil is good;the indicator does not illuminate to indicate the key coil is damaged, please check and repair or replace.
