Product Description

Product Overview

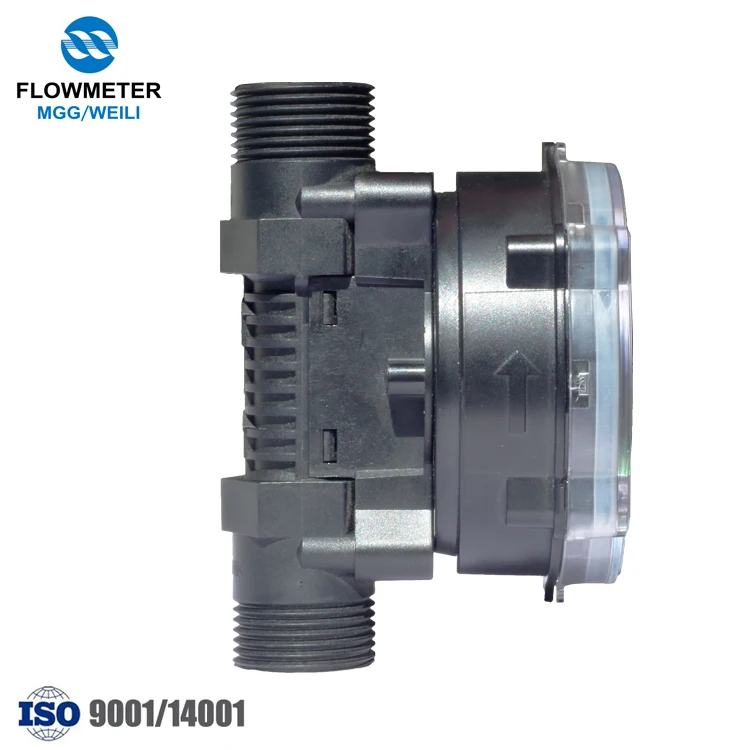

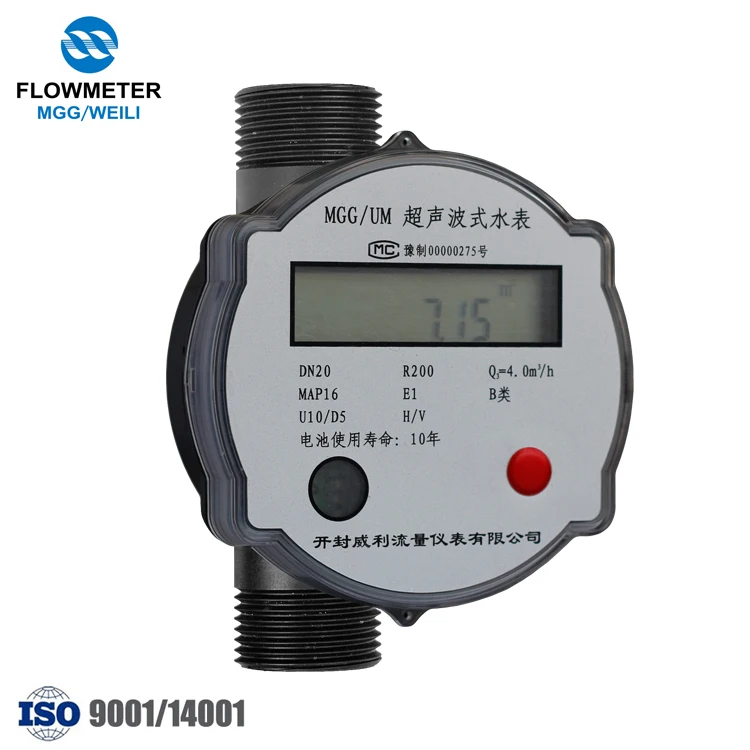

Ultrasonic water meter is to detect ultrasonic waves in the water downstream and countercurrent propagation time difference, This new all-electronic water meter is calculated by the program analysis and processing of water flow rate and then calculate the water flow.

Data sheet
Item
Unit
Detailed data
Nominal Diameter
mm
15
20
25
32
Overload flow Q4
m³/h
3.125
5
7.875
12.5
Permanent flow Q3
m³/h
2.5
4.0
6.3
10
Q3/Q1
250
200
250
200
250
200
250
Transitional flow Q2
m³/h
0.025
0.02
0.04
0.032
0.063
0.05
0.1
0.08
Minimum flow Q1
m³/h
0.016
0.013
0.025
0.02
0.039
0.032
0.063
0.05
Accuracy class
Class 2
Temperature class
T30、T50、T70、T90
Working pressure
MPa
1.6
Pressure class
MAP10
Pressure loss class
△p63
Flow profile sensitivity class
U10/D5
Climate & Mechanical environment class
Class B;
Installation Position
Horizontal or vertical (Down water supply)

Main Features

-- No mechanical movable parts,Impurities in water can’t be affected, Long service life.
-- Compared with the traditional mechanical water meter, the ultrasonic water meter can be measured and has wide range of measurement . It can be measured when it has very small traffic .
-- There are many alarm functions:Battery voltage can alarm、empty tubes or pipes that are not full of water、transducer fault alarm and more
-- Low-power design and the use of high-energy batteries, can work for 6 years or more.
-- The communication interface is M-BUS and Rs485,it can easily achieve remote real-time monitoring and management on the LAN.

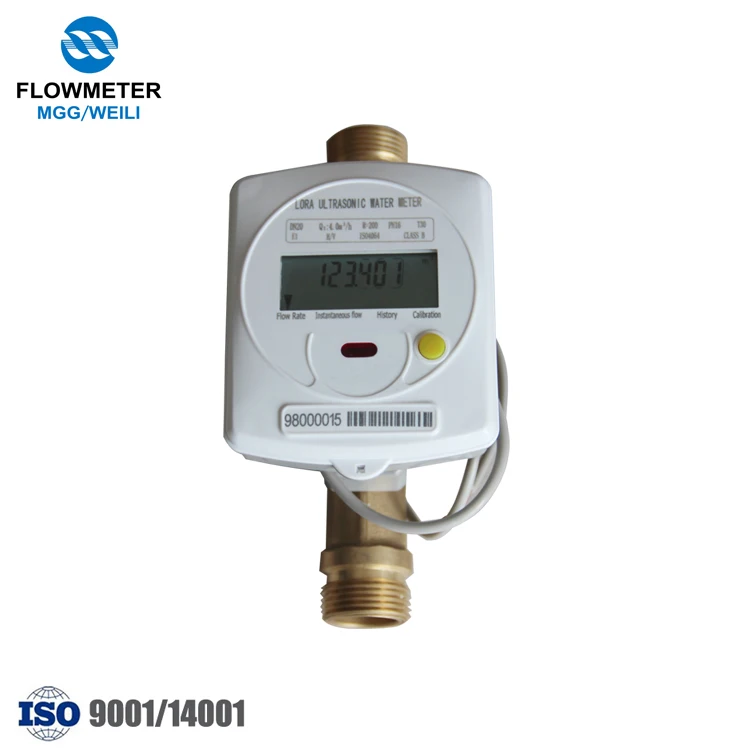

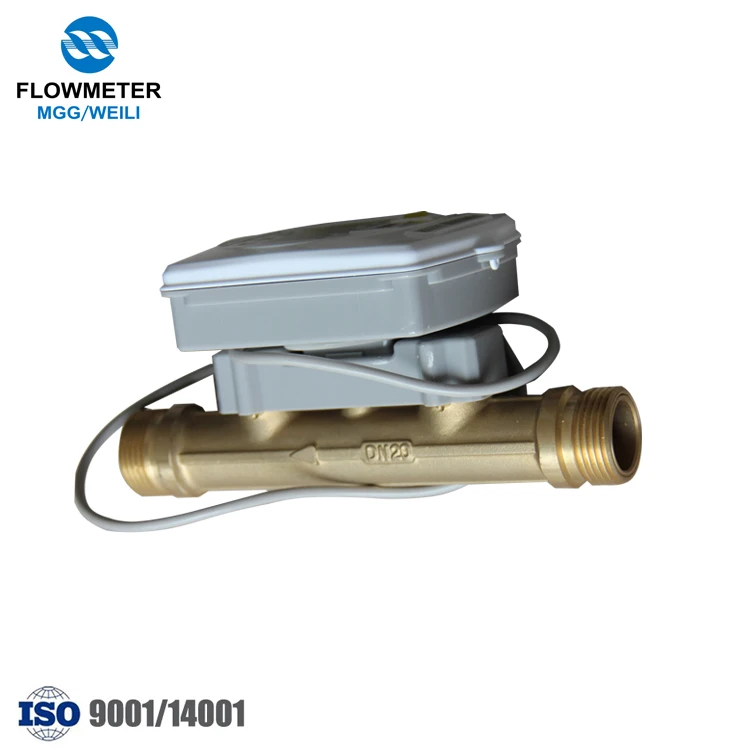

LoRa

Material:Copper
Q3/Q1:R250
Frequency(LoRa):470-510 MHz
Frequency(GPRS AMR/AMI Reading Device):800/850/900/1800 MHz
Power Supply:2.1 V-3.6 V
Receiving Sensitivity:-132dBm
Environmental class:Class B
Static current:uA<10
Transmit Power:50mW

System Operation

1.

The structure diagram of the whole system is as follows.

2.

First of all, install the meters onto the according pipeline that extends into users’ residence.

3.

After the meters are installed, the installation of the concentrator follows.
Installation Procedures – Data Concentrator
(1) Deciding on the meters that need to be groupped under a certain concentrator according to the maximum loading capacity and the communication distance of the concentrator.
(2) Choose the installation position of the concentrator, the choosing of the position should be the hub of the surrounding meters, ensuring the GPRS signal is good, with the access of the AC220V supply.

4.

After the concentrator is installed, proceeding with the entering of the files, joint debugging of the concentrator and thedata center.

Certifications
Detailed Image

Performance Characteristics

--With anti-magnetic interference function that when the two reed switches pick up caused by the magnetic interference, the valve closes off automatically; It automatically opens when the interference stops.
--With the battery voltage detection function, it can pass the power-off information to the management platform when the batetry almost runs out, facilitating the administrator to find that;
--Module with automatic data storage function when power down arises, assuring the data won’t lost when power down, and when the power supply recovers, it is able to continue to work properly.
--The joint of the RF module and the base meter uses the integrated structure, with built-in antenna, reducing the damage of antenna in the process of installation;







Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

FAQ

FAQ

1)How do I select the size of the water meter?
Range of operation (flow rate) is specified for each water meter. Water meters should be selected based on the flow rate range expected at the location of installation. It is not depended on the adjoining pipe size.

2)What is the measurement accuracy of a water meter?
The required accuracy of a good water meter is ±2% in general and ±5% at very low flow rate range. The exact flow range for a particular water meter depends on the size and class.

3)Can I replace my old water meter with a new one of the same size from a different manufacturer?
It is possible, in general. However it is better to check the length due to alternate lengths of the meter permitted in different standards.
