Single phase 220v vfd

 Single Phase 2000w high frequency inverter for fans

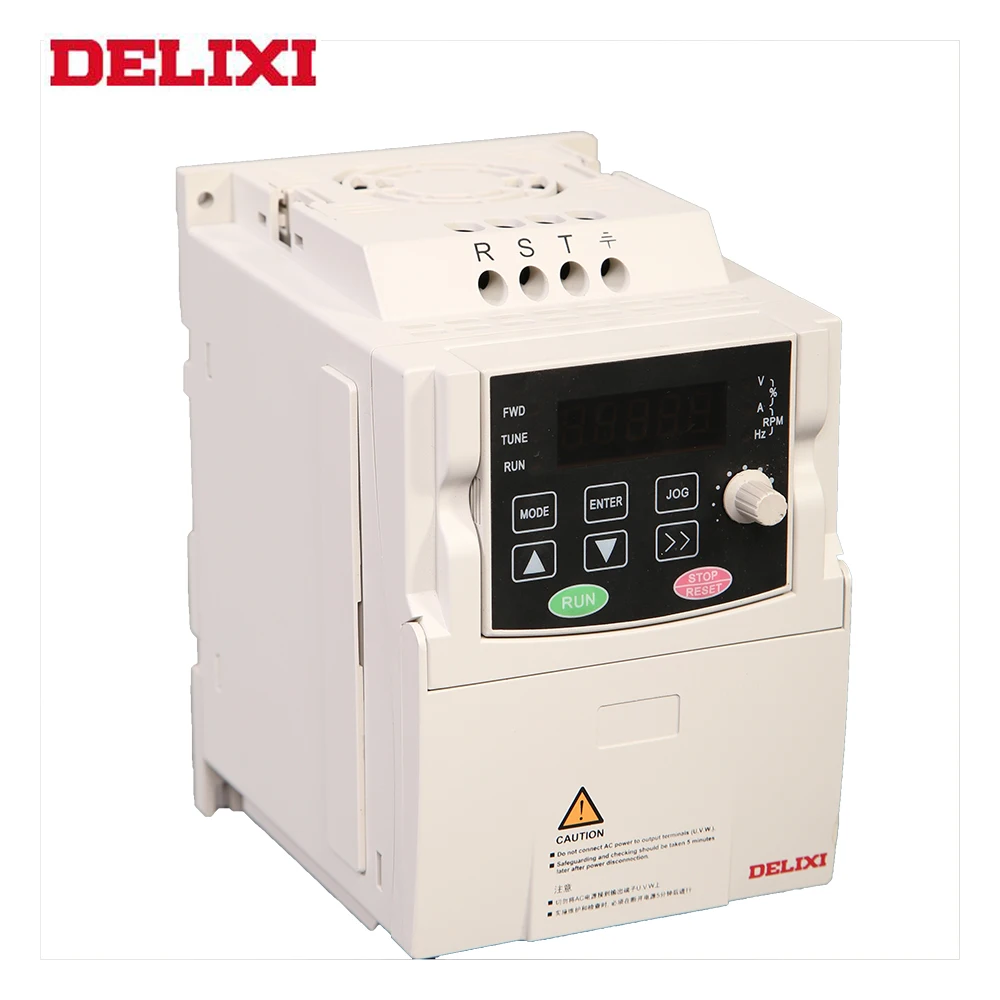

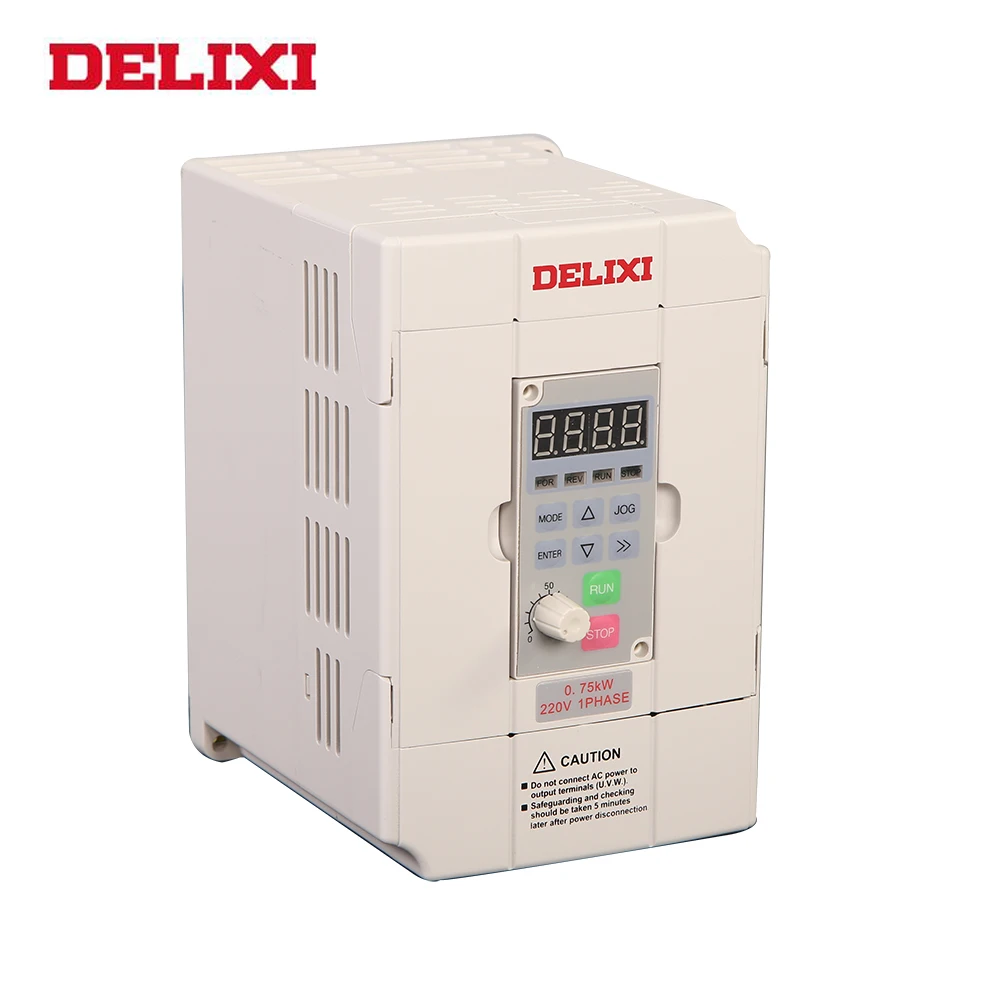

DELIXI CDI-EM60 0.4-2.2KW China Open Loop Wind Turbine Use Frequency Inverter Converter VFD

The CDI-EM60-series inverter is a mini-type low-power inverter with optimum SVC and V/F control, stable performance and simplified functions. It reserves the configuration most-frequently used by users, and can be extended with several I/O and communication interfaces.

Application

Mainly applies to low-power non-VC situations with demanding requirements for input/output.
Die-cutting machine, carving machine, textile machine, glass-making machine, dyeing machine, book sewer, automatic production line and food machine.

 Technical Characteristics

1.Small size and easy operation; Embedded with DC brake function and can have optional external brake unit; Accuracy of stop position.

2.Separate keyboard that supports hot plug and can be pulled out to a distance of 50m at most; a copy keyboard with parameter control is optional.

3.Extensible RS485 communication interface which enables standard MODBUS-RTU communication and can be compatible with a variety of host computers.

4.Long service-life with a controllable fan; the AVR (Automatic Voltage Regulation) function ensures large output torque in case of low input voltage.

5.Multiple protection functions to ensure safe and reliable operation of the motor.

6.All standard products have been treated with conformal coatings.

7.Air-duct isolated by windshields to ensure good thermal dissipation and thus significantly improved adaption to the environment.

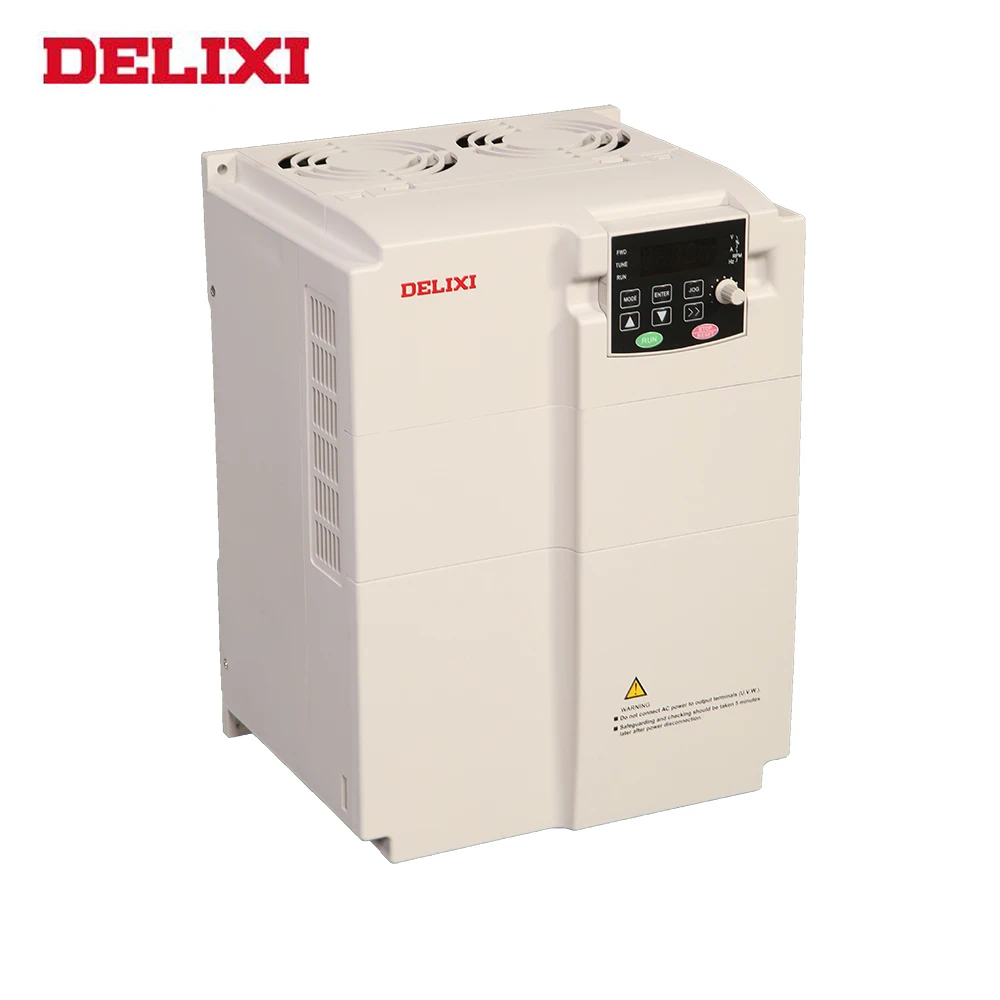

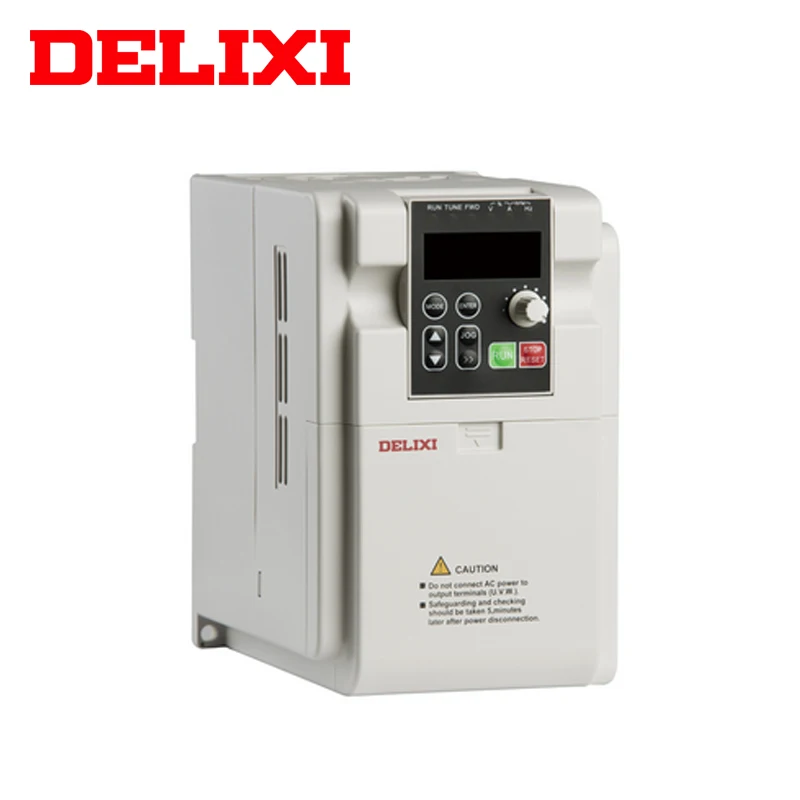

                                                         Other Series to Choose
