Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Свайно-папильонажный земснаряд с роторным разрыхлителем
- Категория: Mining Machinery >>>
- Поставщик: Qingzhou,Dingke,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 95200.65 $* | 99960.25 $* |
| Aug-18-2025 | 94400.60 $* | 99120.34 $* |
| Jul-18-2025 | 79200.83 $* | 83160.80 $* |
| Jun-18-2025 | 92800.36 $* | 97440.23 $* |
| May-18-2025 | 80800.27 $* | 84840.59 $* |
| Apr-18-2025 | 91200.83 $* | 95760.80 $* |
| Mar-18-2025 | 90400.50 $* | 94920.52 $* |
| Feb-18-2025 | 89600.33 $* | 94080.28 $* |
| Jan-18-2025 | 88800.38 $* | 93240.81 $* |
Характеристики
Product Description
Overview

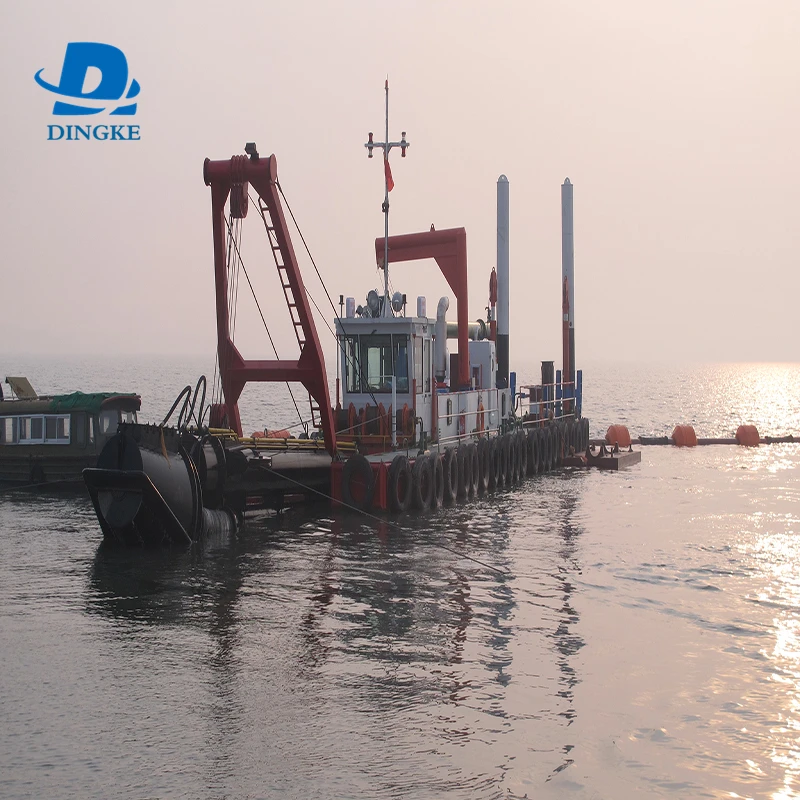

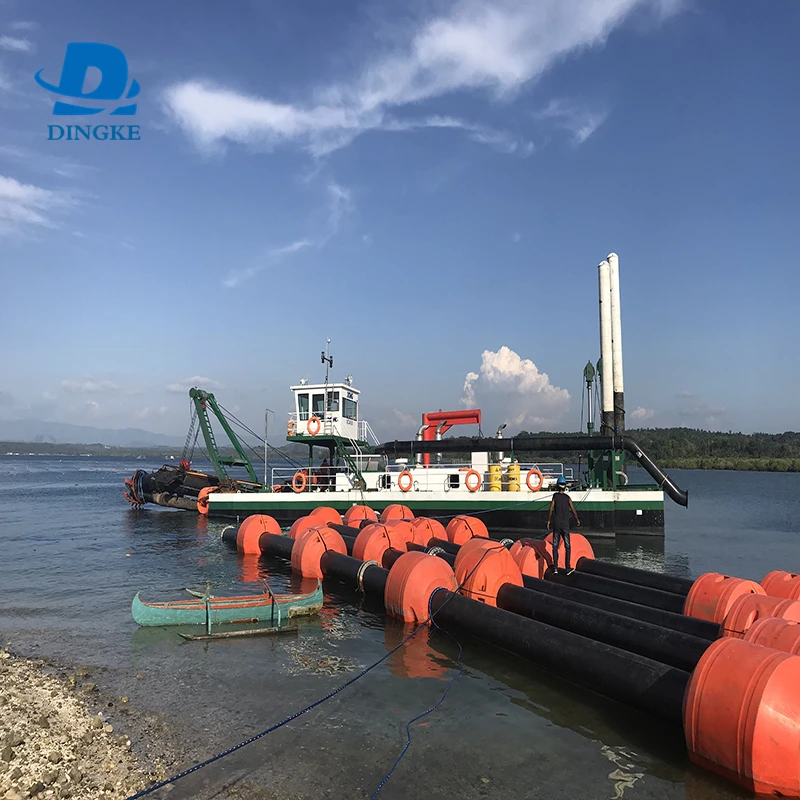

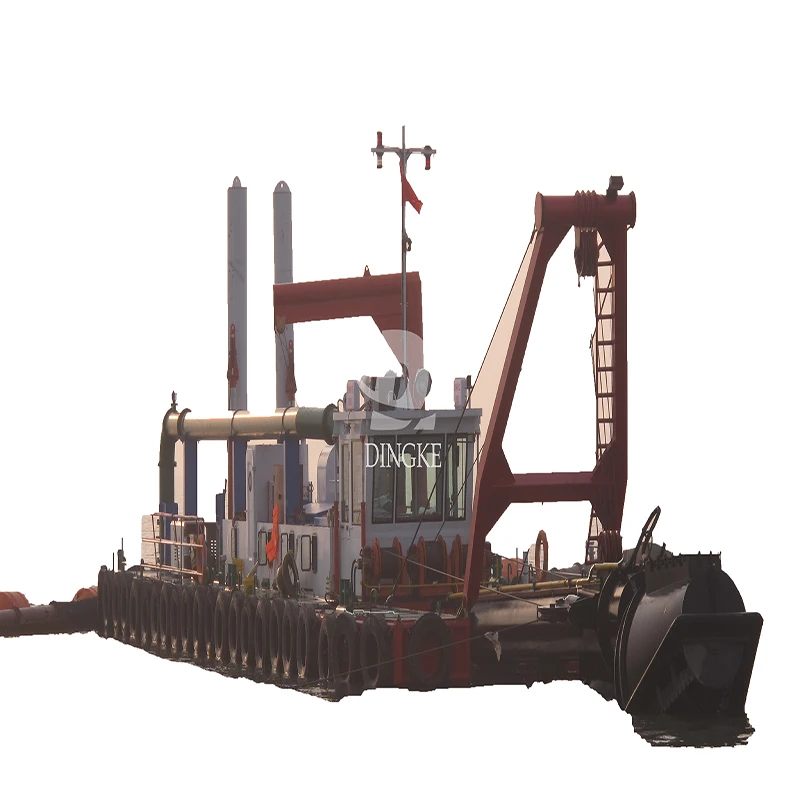

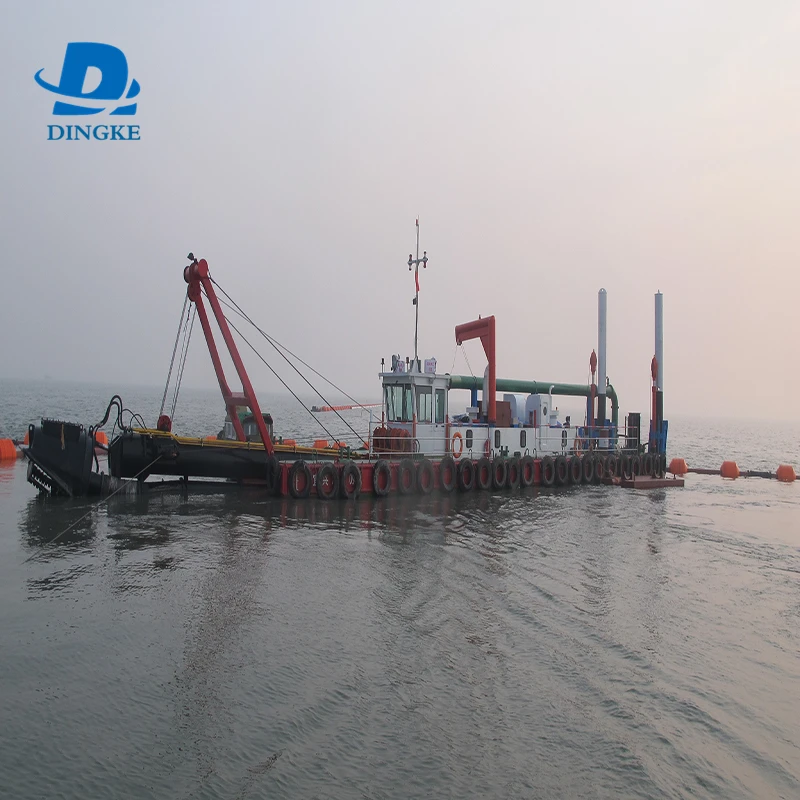

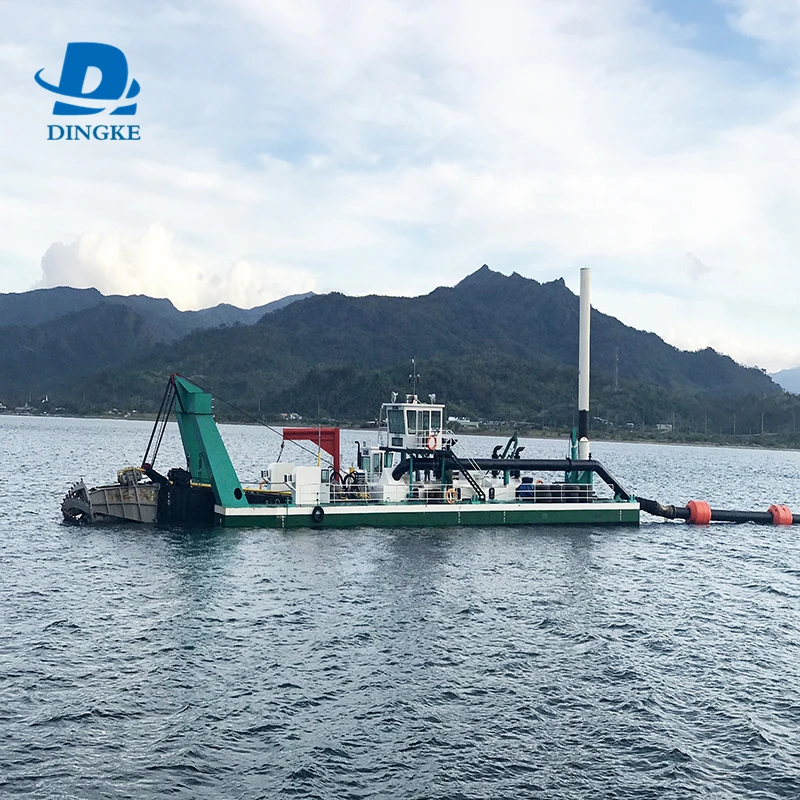

This ship suit shadowing sea (waves less)and follow water area operation requirements that is Non-self-propelled dredger assembled the whole steel welded.
Main Principle:first through Bridge hydraulic cutter underwater excavation of soil was excavated sediment rotating reamer driven with water to form a fluid medium containing certain ores, located in the hydrodynamic cutter circle at the mouth of the mud pump suction , into the pump and get some energy out through the pipeline.
Operating environment qualification | |
Environment highest temperature | 400C |
Minimum ambient air temperature | -100C |
River (sea) water Maximum temperature | 320C |
Relative Humidity | 70% |
Applications
1. Sand Dredging
2. Land Reclamation/Beach Restoration
3. Mineral Mining(such as gold mining,iron mining,tin mining etc.)
4. Port,Lake,River,Harbor,Channel and Dam Desilting
5. Well Head and Location Sweeping
6. Canalization
Required Information
Sketch Drawing
1) Dredging Depth(a):____m
2) Dredging Distance(d):_____m
3) Capacity:____m3/h
Detailed Information
Sand pump
Name: 16/14g-g
Brand: SJZGY
Original: China
Heavy duty, horizontal slurry pump. Hiigh efficiency transfer of abraisive and high density slurries with extended wear life and reliable service intervals.
Gearbox
Name: 3FL620type
Brand: HCQJ
Ritio: 1:1
Output form: One in, three output
Diesel Engine
Name: KTA-38
Brand: CUMMINS
Original: America
Power: 895KW
Speed: 1800r/min
Cutter
Name: Dredging cutter
Brand: DINGKE
Original: China
Cutter diameter: 1550mm
Shaft Power: 150KW
Max Speed: 33r/min
Rubber Pipes
HDPE Pipes
Hydraulic Valve
Floater
Pressure Valve
Instruments
Our Service
Installation At Sight
After-Sales Service
Dredging
Detailes
Cutter
* Diameter 1500mm
* RPM 11,22,33r/min
* Shaft power 110kw (1 sets motor driving)
Main Enginer
* Manufacturer Cummins China
* Model KTA38-M2
* Power 895kw
* RPM 1800r/min
Pump
* Manufacture Warman Technology
* Model 18/16
* Water flow 3000m³/h
* Head of delivery 45m
* RPM 500r/min
* NPSH value <4.5m
* Efficiency 70%
* N. of blade 5 blades
Gearbox
* Manfacturer Hangzhou
* Model JL360
* Ratio 3:1
* Clutch form Electric control
