8-тонный подъемный башенный кран высотой 25 метров по низкой
- Категория: Tower Cranes >>>
- Поставщик: Oriemac,Machinery,&,Equipment,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.59 $* | 0.70 $* |
| Aug-20-2025 | 0.20 $* | 0.73 $* |
| Jul-20-2025 | 0.39 $* | 0.94 $* |
| Jun-20-2025 | 0.25 $* | 0.54 $* |
| May-20-2025 | 0.66 $* | 0.54 $* |
| Apr-20-2025 | 0.2 $* | 0.3 $* |
| Mar-20-2025 | 0.31 $* | 0.1 $* |
| Feb-20-2025 | 0.92 $* | 0.29 $* |
| Jan-20-2025 | 0.84 $* | 0.75 $* |
Характеристики

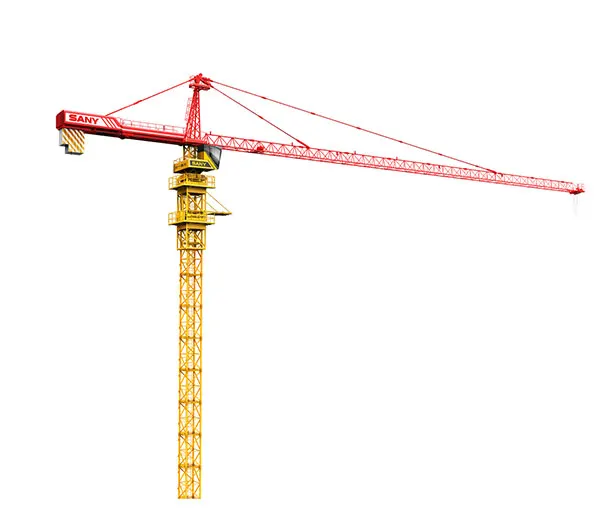

25meters height 8ton lifting weight tower crane cheap price
Product Description
Quotation details | |||
Type | Min.order | Description | |
QTZ80 (6010) | 1 set | Usage | Industrial, civil construction, port, loading bays load and unload |
Free standing height | 25m | ||
attachment height | 151.2m | ||
Working range | 3-40m | ||
Max. Lifting load | 8t | ||
power/frequency | 380v/50Hz | ||
total power | 38.7Kw | ||
Overall height | 36.5t | ||
balance weight
| 16.5t | ||
Mast section | outside dimension | 1835*1835*2500mm | |
Quantity | 9pics mast section(25m) | ||
Packing information | 4*40HQ | ||
Packaging & Shipping
Main mechanism details | ||||||||
hoisting mechanism | Motor | Type |
| YZRDW250M1-4/8 | ||||
Speed | r/min | 2700 | ||||||
Power | kW | 30/30 | ||||||
Reducer | Ratio | i | 40 | |||||
hoisting drum | rope capacity | m | 460 | |||||
Brake | Type |
| YWZ3-250-45 | |||||
braking torque | Nm | 600 | ||||||
steel line | Max. drawing force (N) | N | 15000 | |||||
Specification |
| 619W+FC-15-1770- | ||||||
hoisting speed | 2-falls | m/min | 86 | 44 | ||||
4-falls | 43 | 22 | ||||||
Supplier | Yichun Jiangte Mechanical Transmission Co., Ltd. | |||||||
slewing mechanism
| Motor | Type |
| YZR132M-6 | ||||
Power | kW | 3.7*2 | ||||||
Reducer | Type |
| XX4-80B.157 | |||||
Ratio | i | 157 | ||||||
hydraulic couplings | Type |
| YOX.250 | |||||
slewing speed |
| r/min | 0.60 | |||||
Supplier | Yichun Jiangte Mechanical Transmission Co., Ltd.
| |||||||
ranging mechanism | Motor | Type | YEZS132S-4/8 | |||||
Power | kW | 3 | 4.5 | |||||
Reducer | Type |
| XX3 | |||||
Ratio |
| 38 | ||||||
| steel line | Specification | 619+FC-7.7-1670-1 | |||||
ax.drawing force (N) | N | 6000 | ||||||
ranging speed |
| m/min | 22/40 | |||||
Supplier |
| |||||||
Electrical System contactor
| Supplier | Schneider brand or Siemens brand
| ||||||
