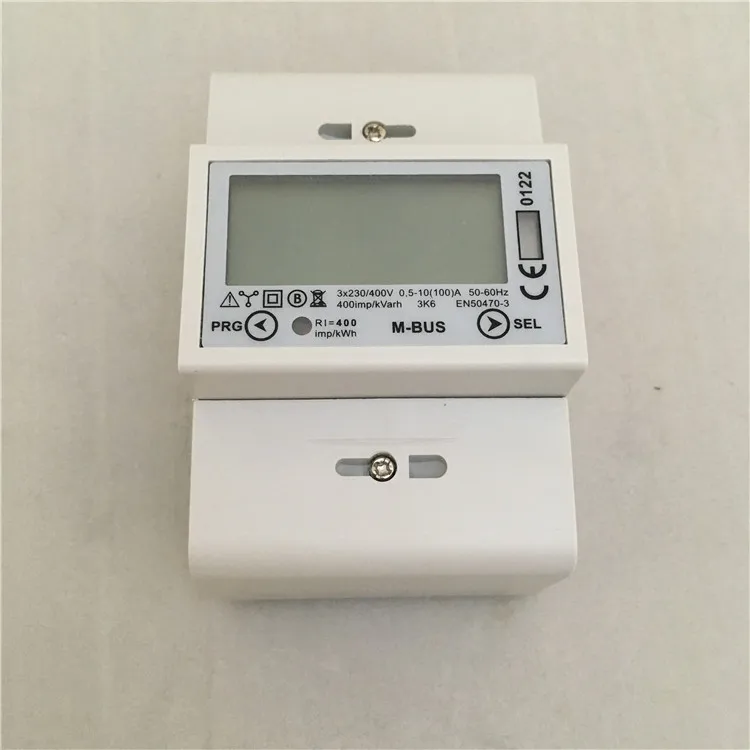

MID утвержденный 100A RS485 Modbus протокол трехфазный DIN-рейка счетчик
- Категория: Счетчики электроэнергии >>>
- Поставщик: Shanghai,Fengyilong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.99 $* | 0.98 $* |
| Aug-16-2025 | 0.4 $* | 0.24 $* |
| Jul-16-2025 | 0.40 $* | 0.4 $* |
| Jun-16-2025 | 0.98 $* | 0.6 $* |
| May-16-2025 | 0.40 $* | 0.78 $* |
| Apr-16-2025 | 0.26 $* | 0.59 $* |
| Mar-16-2025 | 0.13 $* | 0.63 $* |
| Feb-16-2025 | 0.67 $* | 0.66 $* |
| Jan-16-2025 | 0.45 $* | 0.1 $* |
Характеристики
Chinese Import Sites kwh meter 3 phase
Product Description
| Meter Type | DRT-341C Modbus | |
| Voltage (V) | Voltage AC (Un) | 3*230/400 |
| Voltage rang | 3*161/279 to 300/500 | |
| Current (A) | Base (Ib) | 1.5/10 |
| Max (Imax) | 6/100 | |
| Starting current (mA) | 0.4% of Ib | |
| Power consumption of current | ≤2W /10VA per phase | |
| General data | Frequency(Hz) | 50(±10%) |
| Accuracy | 1.0 | |
| Standards | EN50470-3 | |
| Memory back-up | EEPROM | |
| Enclosure material | Upper | Polycarbonate |
| Lower | Polycarbonate/glass fiber | |
| Temperature range(℃) | Operating | -25℃ to +55℃ |
| Storing | -30℃ to +70℃ | |
| Humidity | Operating | 75% |
| Storing | 95% | |
| Protection | Protection against penetration | |
| Of dust and water | IP51 | |
| insulating encased meter | Of Protective class | II |
| Voltage withstand | AC voltage withstand | 2KV for 1 minute |
| Impulse voltage withstand | 6KV-1.2uS waveform | |
| Current withstand | 30Imax for 0.01s | |
| Pulse output rate | 400/3200imp/kWh | |
| Data stored | More than 20 years when power off | |
| RS485 Communication | Modbus RTU | |
Realated Production
FAQ
1.Q: No light for the consumption indicator.
A: Only when there has current, this LED will flash. A2: Please contact your technical supporter to replace this meter.
2.Q: The register can’t run.
A: Check that the power supply
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
3.Q: No pulse output.

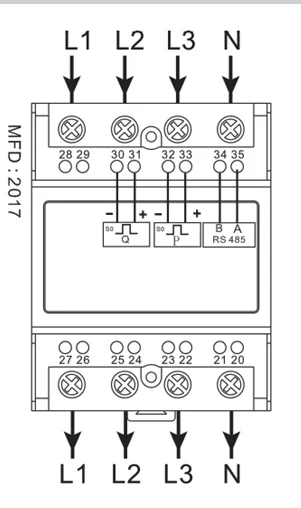

A: Check correct connecting: connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A2: Please contact your technical supporter to replace this meter.
4.Q: Pulse output rate wrong.
A1: Please contact your technical supporter to replace this meter.
