Product Description
Fully Automatic Steel Wire High Speed Nail Making Machine
Product Description
1.Long service life,no less than the traditional common nail making machine, for at least seven years.White belt at low cost and long life which is 5-6 months without an incorrect operation.
2.Automatic oiling , few lubrication points,much less than traditional machines and other nail making machines on market.It is still very tidy when operating.
3.High Production. Set specification 2550 as an example,about 900 kg / 8 hours.
4.No dismantle if not change nail mold specifications which can work for 3 months. Nail cutter 60 classes (8 hours / day, 2.5 wire diameter). Punch time is five times than ordinary equipment depending on the actual using status.
5.Nail cutter do cutting without touch, shear number can reach at least 800 million times (8,000,000 is the cutting times of wire diameter 2.0mm, rough wire diameter will multiplied);low consumption of nail mold, no crack, no fixed mold raw wear, no mold clogging, a single pair of nail mold can cut at least 50 million times, punching is more than 25 million times. Nail cutter, nail mold, punch can be repaired for many times at the same cost compared with general equipment.
6.Super energy-saving: actual consumption of High- speed nail making machine is about 3.5KW,1 ton nail output can save electricity about 20 degrees; while 2.5 sets of ordinary nail making machine consumption is 5-6KW due to long slide stroke and multi sliding friction parts
7. 60% labor saving because of its high efficiency. Coiling nails efficiency gains at least 50% with a high-frequency welding
machine as each nail is quality product without stuck and stop, even if in the speed of 1900 nails/min, coiling speed can improve 30%, so that can reduce 40% labor cost.
8. Seven alarming sensors can protect the machine and ensure the nail quality very well.
2.Automatic oiling , few lubrication points,much less than traditional machines and other nail making machines on market.It is still very tidy when operating.
3.High Production. Set specification 2550 as an example,about 900 kg / 8 hours.
4.No dismantle if not change nail mold specifications which can work for 3 months. Nail cutter 60 classes (8 hours / day, 2.5 wire diameter). Punch time is five times than ordinary equipment depending on the actual using status.
5.Nail cutter do cutting without touch, shear number can reach at least 800 million times (8,000,000 is the cutting times of wire diameter 2.0mm, rough wire diameter will multiplied);low consumption of nail mold, no crack, no fixed mold raw wear, no mold clogging, a single pair of nail mold can cut at least 50 million times, punching is more than 25 million times. Nail cutter, nail mold, punch can be repaired for many times at the same cost compared with general equipment.
6.Super energy-saving: actual consumption of High- speed nail making machine is about 3.5KW,1 ton nail output can save electricity about 20 degrees; while 2.5 sets of ordinary nail making machine consumption is 5-6KW due to long slide stroke and multi sliding friction parts
7. 60% labor saving because of its high efficiency. Coiling nails efficiency gains at least 50% with a high-frequency welding
machine as each nail is quality product without stuck and stop, even if in the speed of 1900 nails/min, coiling speed can improve 30%, so that can reduce 40% labor cost.
8. Seven alarming sensors can protect the machine and ensure the nail quality very well.
Detailed Images
SSS-ZDJ-X90 | Parameters |
Max. Diameter | 3.5mm |
Min.Diameter | 2.0mm |
Max.Length | 90mm |
Min.Length | 32mm |
Speed | ≤760pcs/min |
Capacity | 7kw |
Dimension | 1400*1200*1100 |
Weight | 2800kg |
Features
(1)Unique patent, twice stamping
Dual-mode double-punch
1.Nail head can be punched well even the shank is uneven.
2.Big nail head.
3.Nail head with out knock marks to ensure consistency.
4.Uniform thickness of the nail cap diameter.
5.Hollow design nail die,no small head,no ash blacking,no clip crumbs,no cracking,no frequent dies demolition.
(2)Nail blade holder uses the pendulum structure
1.Short distance,low mechanical wear
2.High precision, nail cutter works without touch, low tool wear.
3.More than 10 million times of single-blade shear, more time-saving and labor saving.

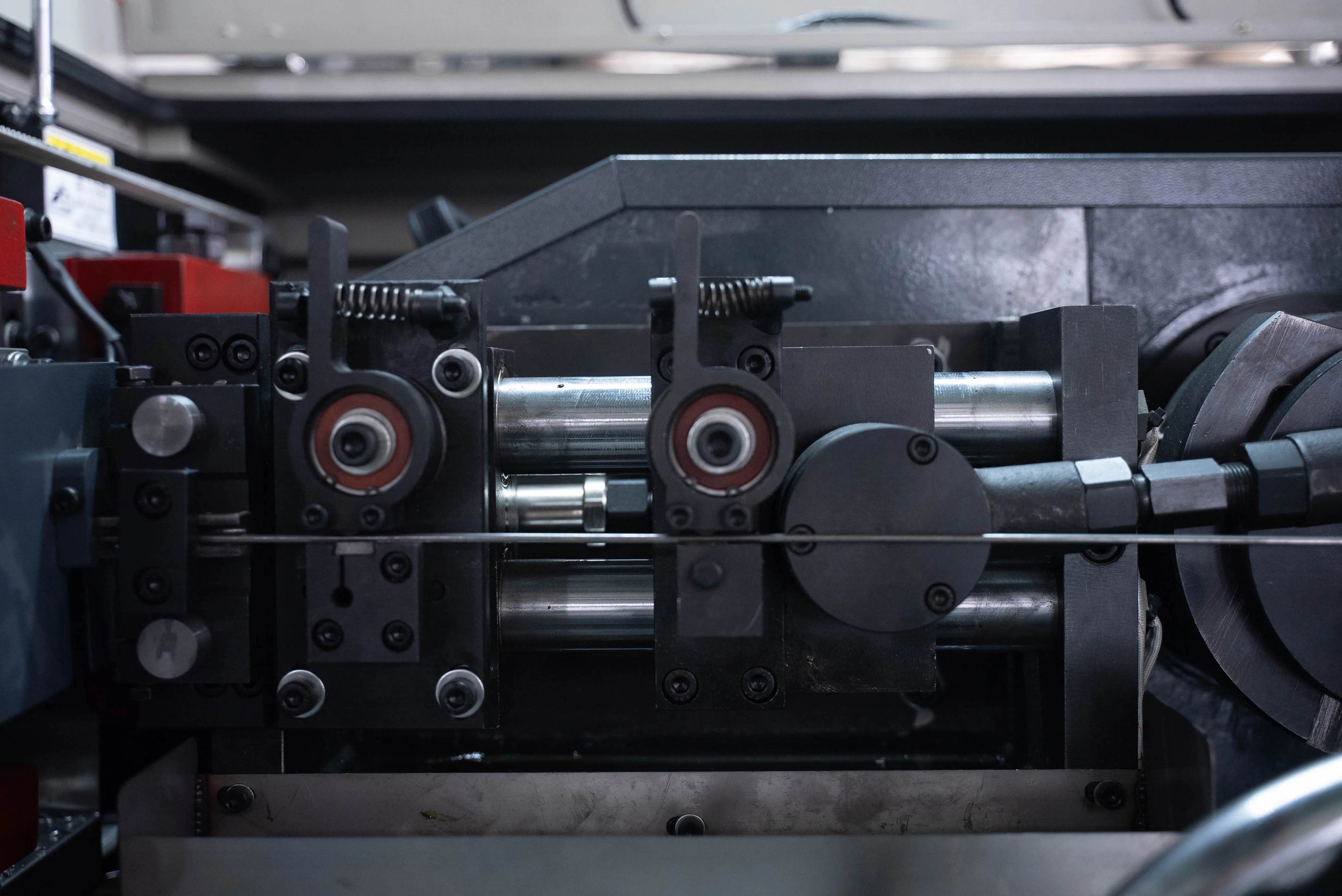

(3)Feeding and rewinding structure
1.High - precision feeding device. The error of each nail length is controlled within 0.3mm
2.Unique wire feeding and retreating combination, each nail through the wire feeding, cutting, wire retreating, three mechanical action, the nail will be completely separated from the nail shank to ensure quality.
Wear parts
Nail Cutter Clamping Die Belt Punches
Certification
Favorable comment
Installation
Indian Customer
Saudi Arabia Customer
Balerus Customer

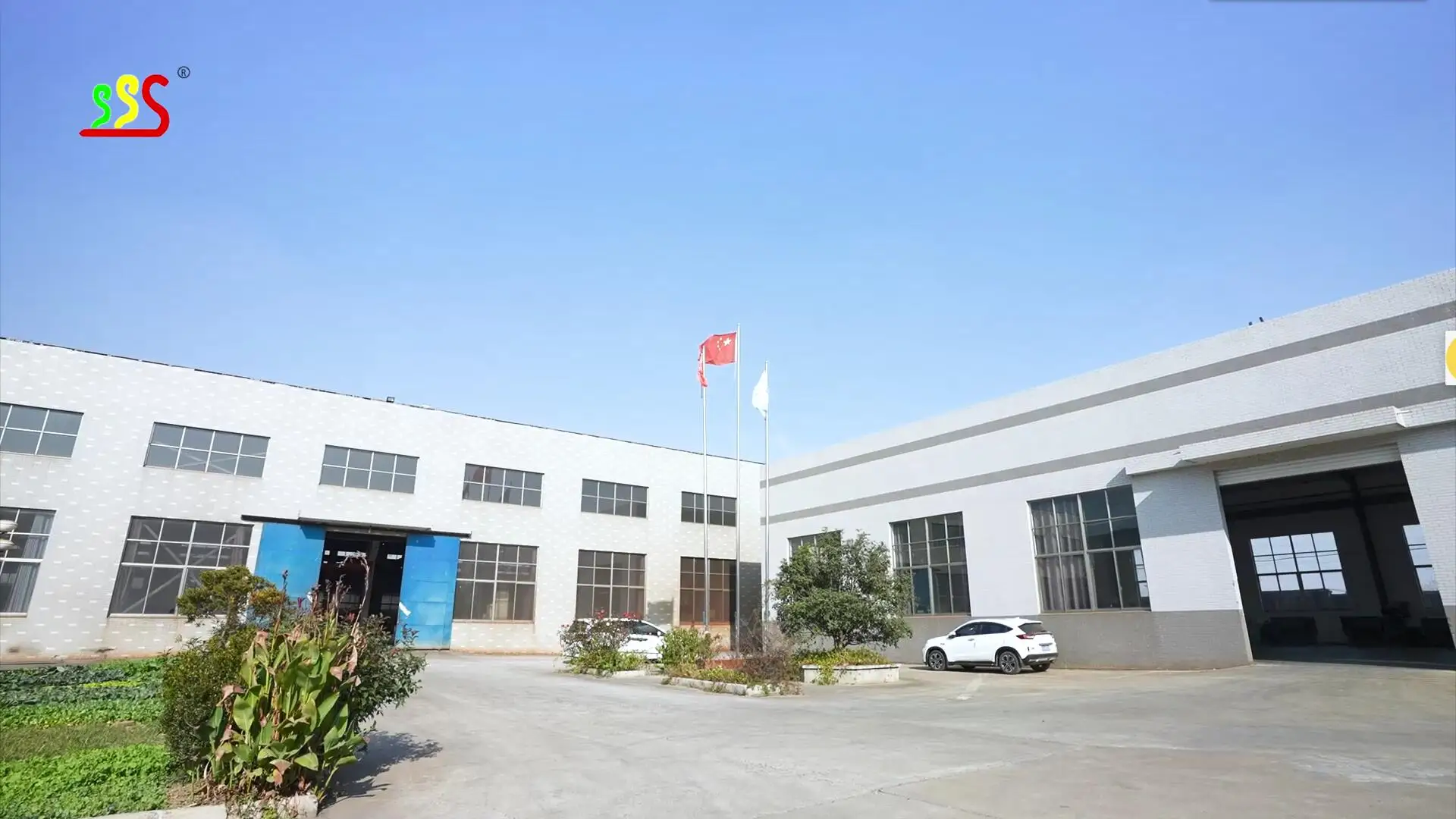

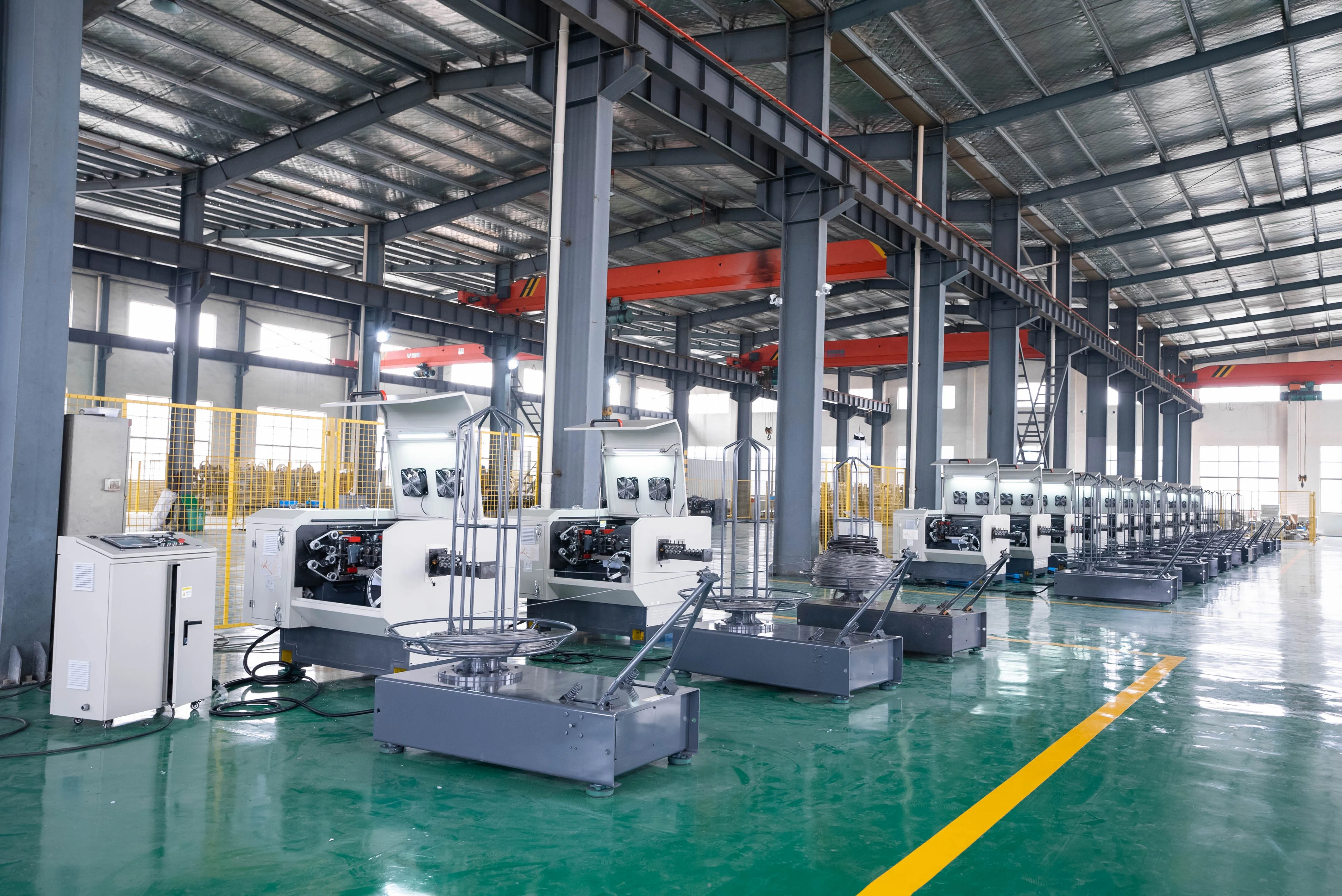

Our Factory
SSS HARDWARE INDUSTRY CO., LTD. specializes in nail making machines, high speed nail making machines, coil nail welding machines, nail polishing machines, thread rolling machines, wire drawing machines, staple making machines, as well as the production lines, all kinds of nails and welding wires.
Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good quality and prompt delivery. Quality is our priority and your satisfaction is what we are striving for.
Our products are very popular in UK , Italy, Germany, France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico, Korea, Brazil, Argentina, Colombia, Guatemala, Venezuela, South Africa & New Zealand. You can totally rest assured of our guaranteed quality and our good after-sales service. Please feel free to contact us for more details including prices.
Looking forward to cooperating with you soon based on our all-time guaranteed quality, best price and service !
Our factory covers an area of 60,000 square meters and owns 300 sets of equipment. We are supported by seven branch work plants to ensure our good quality and prompt delivery. Quality is our priority and your satisfaction is what we are striving for.
Our products are very popular in UK , Italy, Germany, France, Poland, Slovenia, Bulgaria, Belarus, Serbia, Russia, Canada, America, Mexico, Korea, Brazil, Argentina, Colombia, Guatemala, Venezuela, South Africa & New Zealand. You can totally rest assured of our guaranteed quality and our good after-sales service. Please feel free to contact us for more details including prices.
Looking forward to cooperating with you soon based on our all-time guaranteed quality, best price and service !
FAQ
1.Q: What's the packing of the machine?
A.In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
2.Q: What's the payment term?
A.Usually by T/T ( 30% in advance, the balance against the copy of B/L),or L/C at sight.
3.Q: Can I change the motor as my local voltage?
A.We can change the voltage as your requirement.
4.Q: How do your control quality?
A.We have an inspection team to check the products at all stages of the manufacturing process.
5.Q: What parameter is necessary?
A.The wire diameter,mesh size,mesh width ect are mainly needed, detailed information would be appreciated, Special requirement can be discussed.
