Супер сильный стержневой магнит Неодимовый магнитный стержень
US $0.027-$0.99
Мощный магнитный блок класса N35 N38 N42 N50 N52 N42SH Магнитный с Ni-Cu-Ni покрытием Zn 10 мм
- Категория: Магнитные материалы >>>
- Поставщик: ABM,Magnetics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.52 $* | 0.47 $* |
| Aug-17-2025 | 0.91 $* | 0.96 $* |
| Jul-17-2025 | 0.64 $* | 0.22 $* |
| Jun-17-2025 | 0.64 $* | 0.5 $* |
| May-17-2025 | 0.88 $* | 0.49 $* |
| Apr-17-2025 | 0.67 $* | 0.59 $* |
| Mar-17-2025 | 0.35 $* | 0.70 $* |
| Feb-17-2025 | 0.39 $* | 0.18 $* |
| Jan-17-2025 | 0.33 $* | 0.37 $* |
Характеристики
Product Description

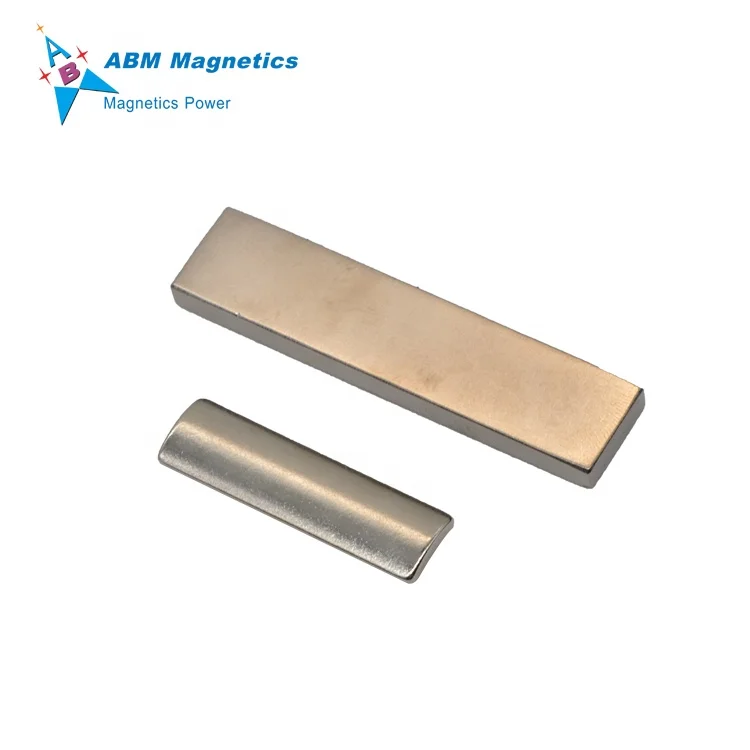

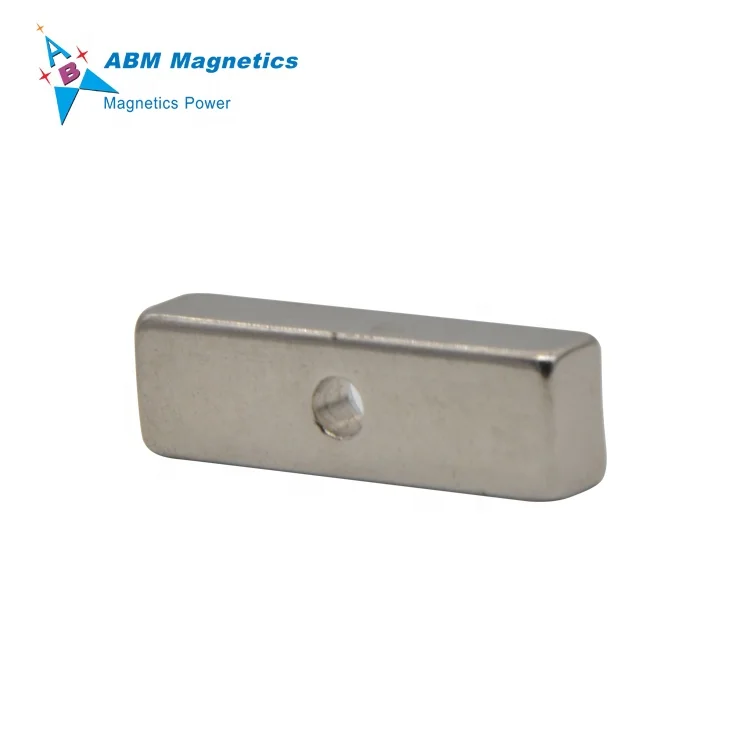

NdFeB Magnet Block Supplying By ABM Magnetics
>> ABM Magnetics focusing on the NdFeB magnets design and manufacturing over 20 years.

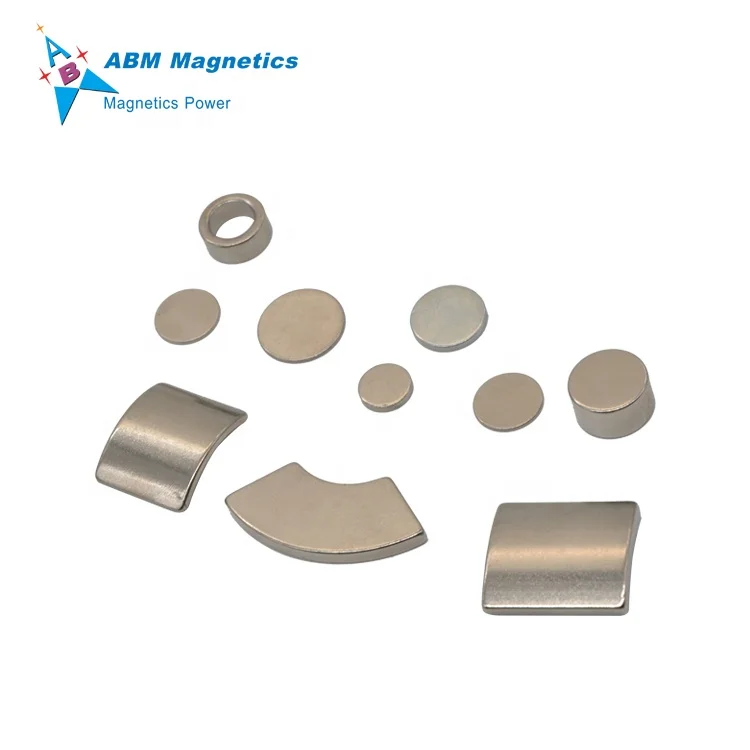

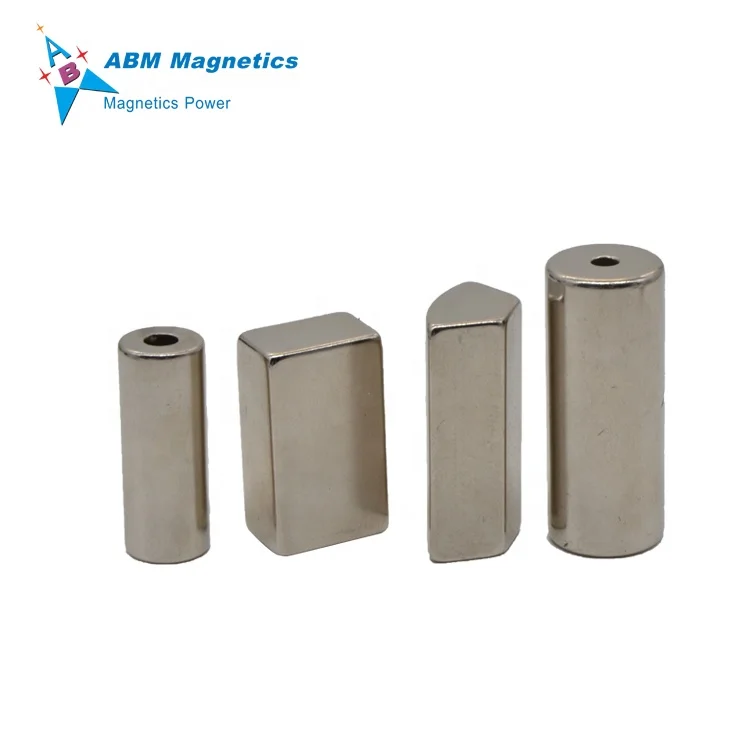

>> ABM can supply a variety of different size, shape and grade magnets to customer, such as magnet disc, magnet block, magnet ring, arc magnet, bread magnet, cup magnet, magnet ball, magnet bar, magnetic hook, pot magnet,cylindrical magnet.
>> ABM's magnets are widely used in electric motors, couplings, high efficiency rotors, drive components, electron beam devices, generators, sensor system, magnetic hook, UAV, mobile ......and so on.
Hot Product Supplying By ABM Magnetics
\t\t\t\t\t\t\t\t\tRatings & Reviews \t\t\t\t\t\t\t
ABM focus on providing best quality magnet to every customer and we also receive lots of 5 stars reviews from customer all over the world.
\t\t\t\t\t\t\t\t\tCertification Shows \t\t\t\t\t\t\t
Providing complete stimulation and testing in order to ensure products' reliabality.
Certifications-Certified By ISO9001,TS16949, ISO14001,RoHS ,SGS
Grade&Coating
Neodymium Material Grade
-NdFeB N35, N38,N40,N42,N45,N48,N50,N52
-NdFeB N35M,N38M,N40M,N42M,N45M,N48M
-NdFeB N50M,N35H,N38H,N40H,N42H,N45H,N48H
-NdFeB N35SH.N38SH,N40SH,N42SH,N45SH
-NdFeB N30UH,N33UH,N35UH,N38UH,N40UH,N42UH
-NdFeB N30EH,N33EH,N35EH,N38EH
-NdFeB N30AH,N33AH.
Neodymium NdFeB Magnet Surface Treatment
- The NdFeB Magnets are more easily oxidized, so, the coating will be required.
- Nomally, the Ni, Ni-Cu-Ni, Zn, Epoxy ,Parylene coating is common in application.
- You can make the choice based on your application for the coating.
Surface Treatment | Coating | Thickness (Micron) | Color | Resistance | Salt Spray Test(Hrs) |
Passivation | N/A | <2 | Silver Grey | Temporary Protection | >8 |
Nickel | Ni | 8-15 | Bright Silver | Good Against Humidity | >24 |
Ni+Cu+Ni | 10-20 | Excellent Against Humidity | >48 | ||
Zinc | Zn | 4-10 | Bright Blue | Good Against Humidity | >24 |
MFZn-C | Shining Color | Excellent Against Humidity | >48 | ||
Tin | Ni+Cu+Sn | 10-20 | Silver | Superior Against Humidity | >72 |
Ni+Cu-Ni+Sn | 15-20 | Superior Against Humidity | >72 | ||
Gold | Ni+Cu-Ni+Au | 10-20 | Gold | Regular Protection | >12 |
Copper | Ni+Cu | 8-15 | Gold | Temporary Protection | >8 |
Epoxy | Epoxy Based | 10-30 | Black, Red Grey | Excellent Against Humidity | >500 |
Ni+Cu+Epoxy | 10-20 | >96 | |||
Ni+Cu-Ni+Epoxy | 10-30 | >96 | |||
Zn+Epoxy | 10-20 | >90 | |||
Parylene | Parylene | 5-15 | Grey transparent colourless | Excellent Against Humidity, Superior against solvents ( gases,fungi and bacteria),FDA approved | >48 |
Neodymium NdFeB Magnets Magnetization Direction
- Thickness magnetized,- Radial magnetized,- Axial magnetized,- Diametrical oriented magnetized
- You can make the choice based on your application or tell us what you want for magnet magnetization.
- You can make the choice based on your application or tell us what you want for magnet magnetization.
Application
Our magnets are widely used in the followings
- Water pump,oil pump,fuel pump, means pump magnets.- Magnet rotor of fans,means fans magnets.
- EPS motor,brushless motor,step motor, dirver motor,means motor magnets
- HDD magnets,- Mobile magnets,- Elevator magnets,- UAV motor magnets,- Pot magnets
- Magnetic hooks,- Magnetic coupling,- Door holder magnets,- Sensor magnets,magnet sensor
- Gun mount magnets,Gun magnet mount
\t\t\t\t\t\t\t\t\tAbout us-ABM \t\t\t\t\t\t\t
>> ABM Magnetics focusing on the NdFeB magnets design and manufacturing over 20 years. We focus on effective quality assurance system to ensure best quality.
>> ABM can supply a variety of different size, shape and grade magnets to customer, such as magnet disc, magnet block, magnet ring, arc magnet, bread magnet, cup magnet, magnet ball, magnet bar, magnetic hook, pot magnet,cylindrical magnet.
>>ABM often attended many exhibitions which forcusing on the Motor, Electric Machinery & Magnetic Materials design and manufacturing. In the exposition scene, many customers are very interesting in our magnets, especially in our design and manufacturing capability.
FAQ
1. What is the sample policy?
- Glad to tell you that we can provide free sample for customers to test quality. We will ship samples by express. For shipping charge, could you please pay for it in advance, we will return the shipping charge to you as soon as you place the series order to us.
2. Can you offer customized size and shape?
- Sure, the size and shape are based on customers' requirements.
3. What is the normal lead time?
- For stock products, we will send goods to you within 1-2 days after receiving the payment.If we do not have them in stock, generally speaking, production time is 15-25 days.
4. What is MOQ?
- No MOQ requirement, but the unit price will depends on the quantity.
5. How about the quality of the magnets?
- Quality control is strictly required before delivery, you will get our products with our test report. Besides, we have joined the Trade Assurance on Alibaba to protect your payment to make sure that we deliver on time and manufacture quality products as required.
6. How to control the magnetic property?
- High quality raw material, Strict quality control system.
7. How to control the production process?
- Our PQC runing SPC, CPK, X-bar, ensure the dimension consistancy and process stability
8. Why Choose Us ( ISO9001,TS16949, RoHS Passed )
- Besides the facilities mentioned above, we have scientific detecting process and strict quality control system which help us to execute our modern manufacturing process smoothly.
- Besides the facilities mentioned above, we have scientific detecting process and strict quality control system which help us to execute our modern manufacturing process smoothly.
- Top-grade management, top-grade product quality and top-grade pre- and post-sales service
- Timely delivery guaranteed.
- ABM Magnetics with its strong first-class products, high-quality pre-sales and after-sales service has customers all over the country's acclaim
- Top-grade management, top-grade product quality and top-grade pre- and post-sales service
- Timely delivery guaranteed.
- ABM Magnetics with its strong first-class products, high-quality pre-sales and after-sales service has customers all over the country's acclaim
