Без мерцания Гальваническая изоляция светодиодный драйвер 20 Вт 350ma 370ma pf> 0 95 пульсация

Описание и отзывы

Трекер стоимости

Характеристики

Flicker free AC to DC transformer plastic cover LED driver 20W

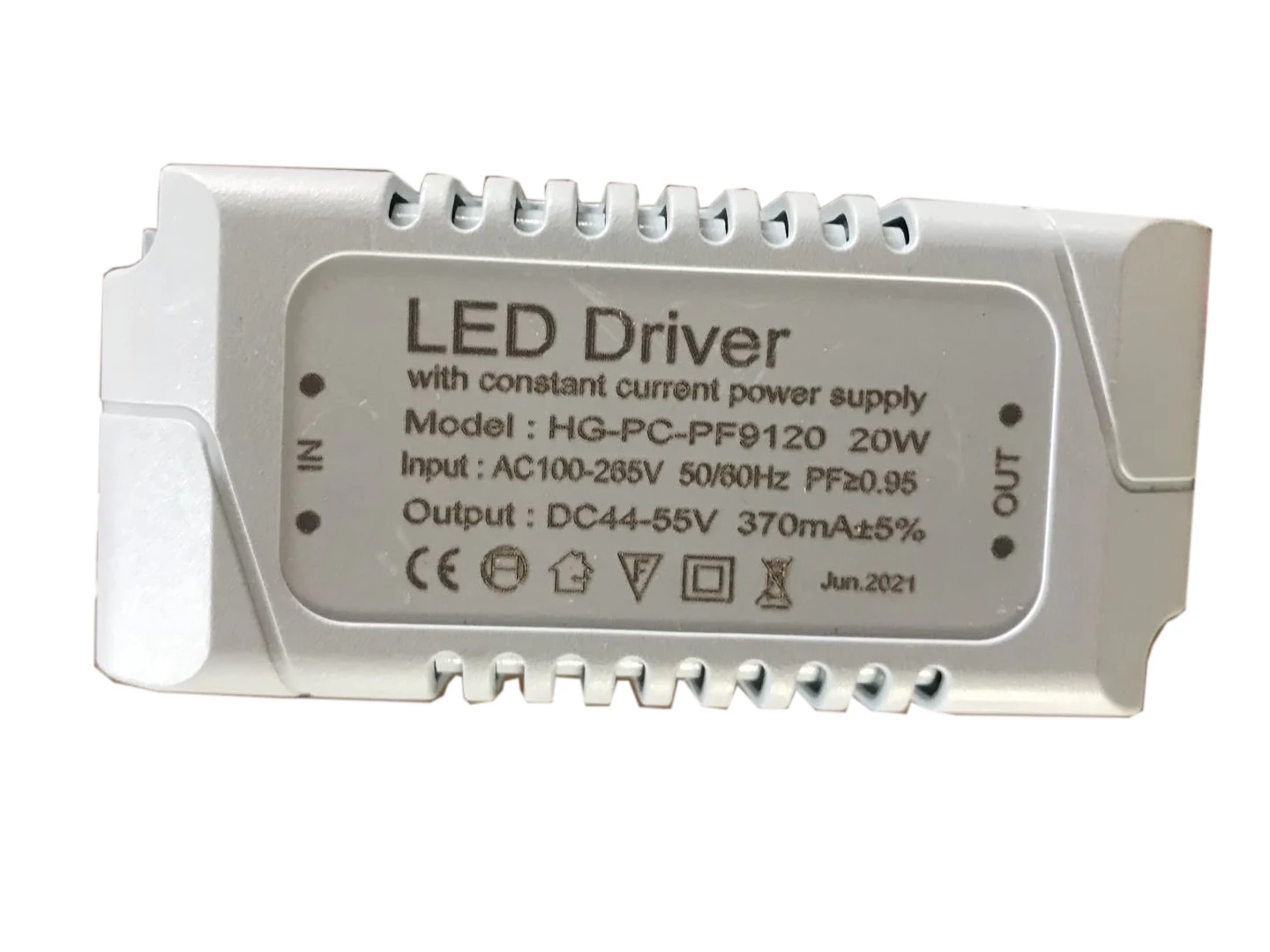

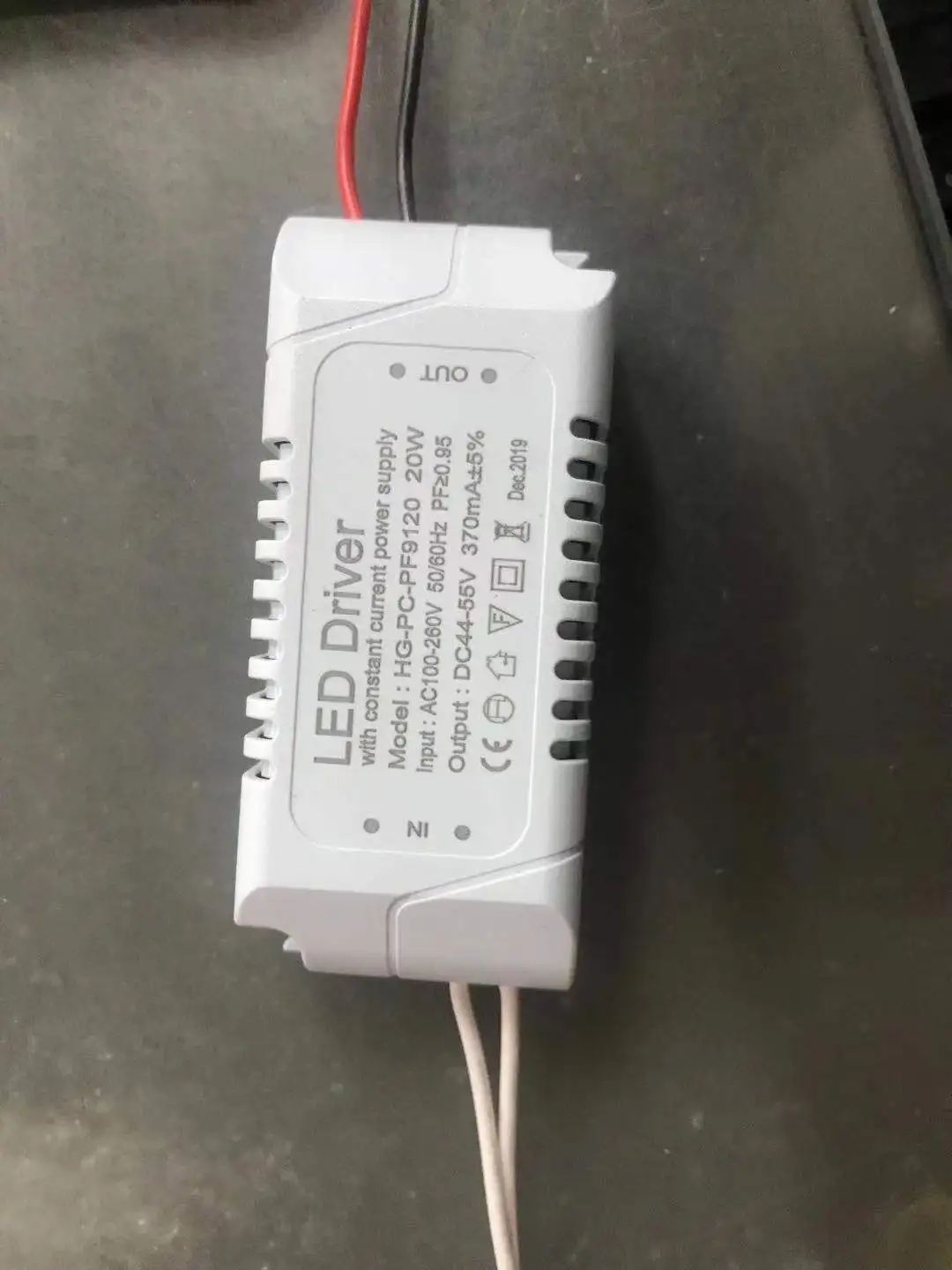

MODEL		HG-PC-PF9120
OUTPUT	DC VOLTAGE	DC44-55V
	CONSTANT CURRENT REGION	370mA ±5%
	RATED CURRENT	370mA
	RATED POWER	20W

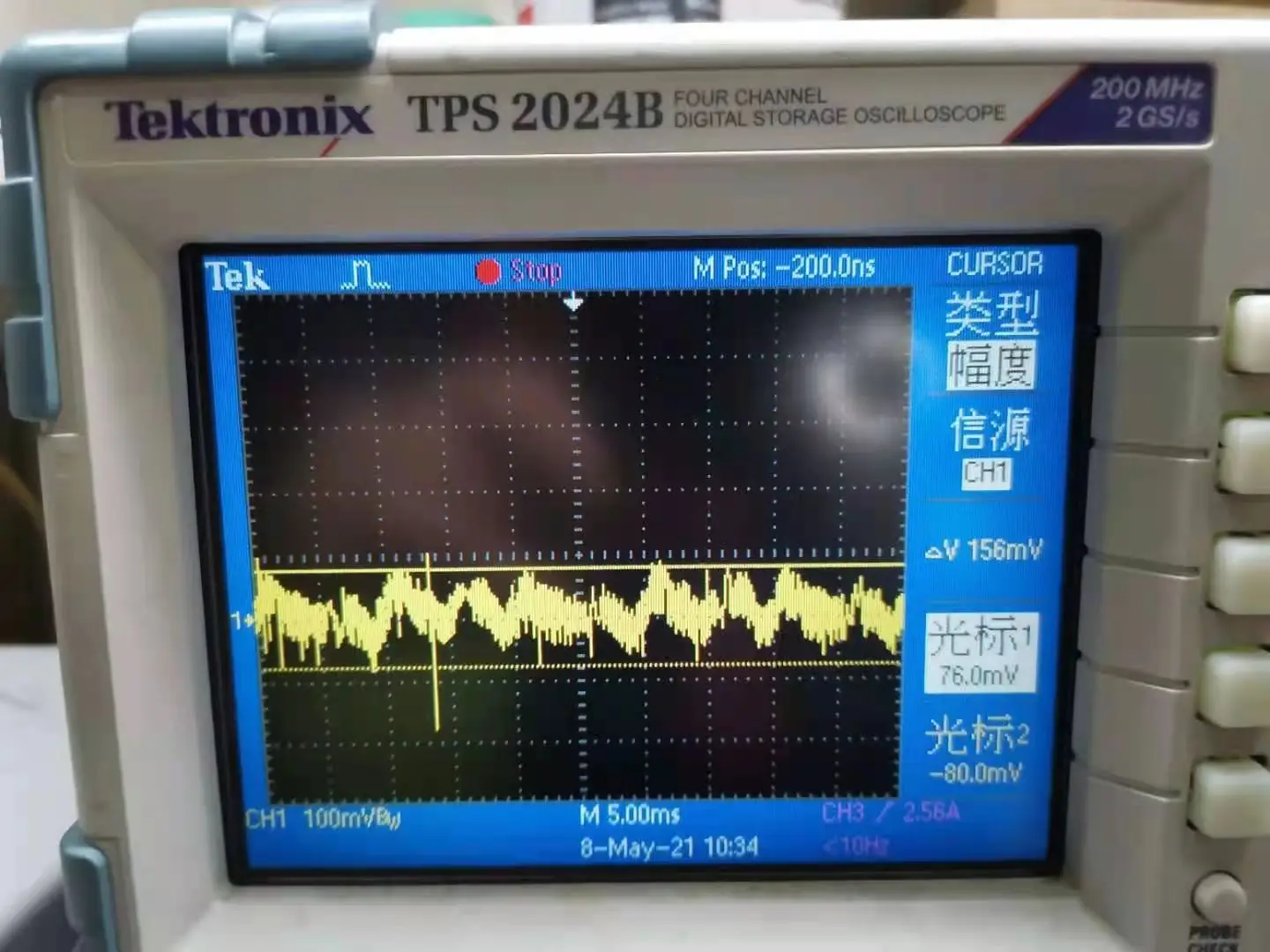

	RIPPLE & NOISE(Max.)	<1%
	VOLTAGE RANGE	44-55V
INPUT	VOLTAGE RANGE	AC100-260V
	FREQUENCY RANGE	50/60Hz
	POWER FACTOR(Typ.)	0.964
	TOTAL HARMONIC DISTORTION(THD)	<10%
	EFFICIENCY(Typ.)	88%
	AC CURRENT	<0.3A
PROTECTION	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed.
	OVER LOAD	Protection type: Shut down o/p voltage, re-power on to recover
Function	DIMMABLE FUNCTION	Non
EMC	EMC EMISSION	Compliance to EN55015

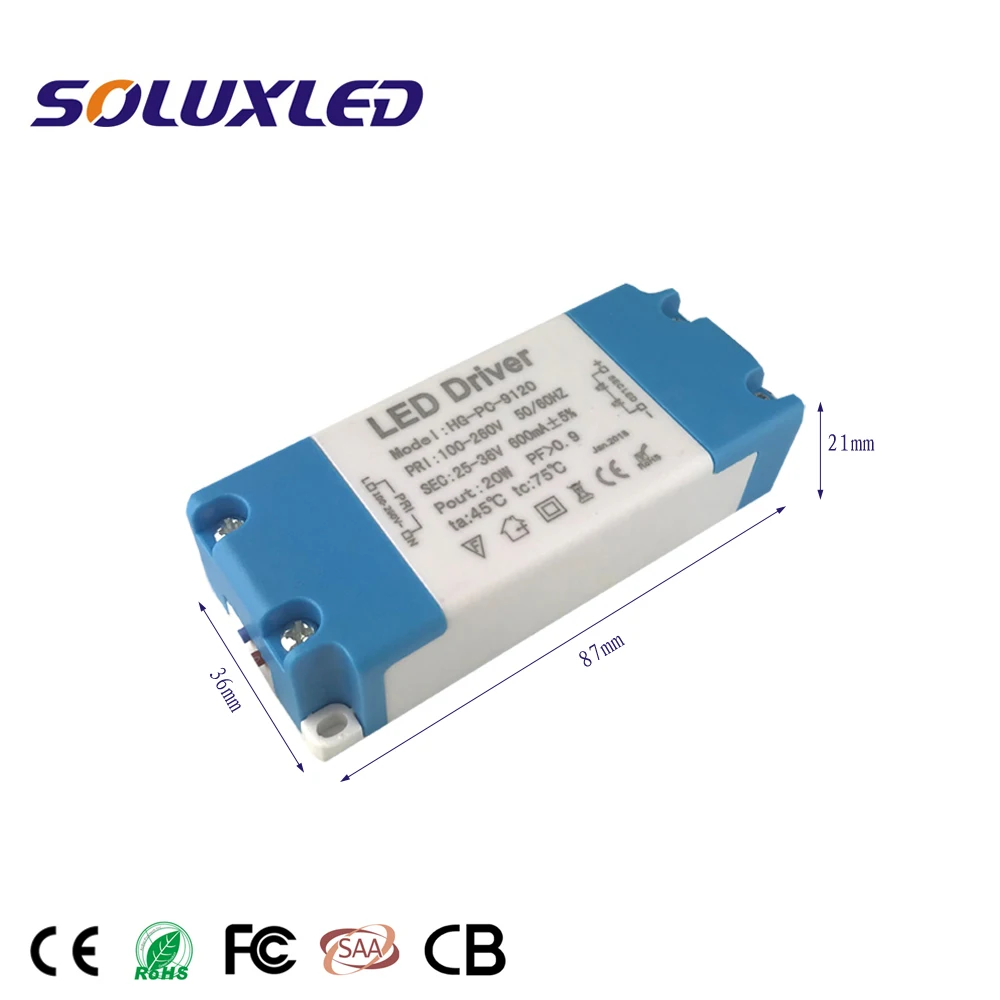

OTHERS	DIMENSION
	PACKING	48g
	WORKING TEMP.	-30~+70℃
	WORKING HUMIDITY	20~95% RH non-condensing
