Product Description

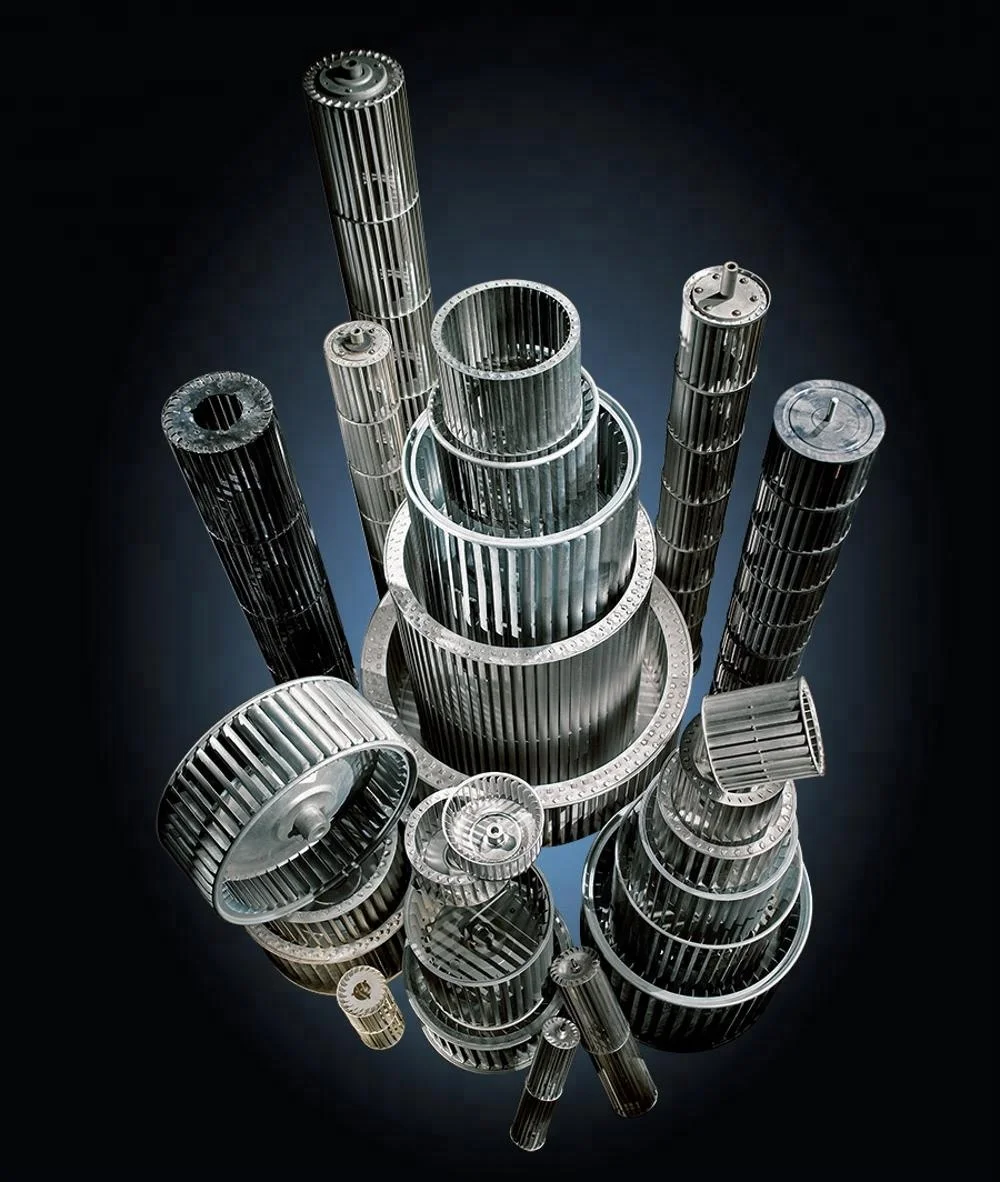

As the company name tells, Fan and Blowers is our founding business. Our fan has been used in China's most esteem car, the RED FLAG.With more then 30 years of experience in this field, XCF has establish itself as one of the major supplier of fan and blowers to the HVAC industry.

Fan blower is consist of three parts: Centrifugal fan in air-conditioning system, air conditioning system in military use and for rang hoods.
Product Details
\t

\t
Centrifugal fan in air-conditioning system
\t
Air quantity
\t
300-5000m3/h
\t
Total pressure
\t
100-520Pa
\t
Static pressure
\t
120-3200Pa
\t
Motor power
\t
30-1000w
\t
Rotate speed
\t
800-2000rpm
\t
                          Size of air outlet
\t
Length:  100-400mm
\t
Width:  65-300mm
\t

\t
Centrifugal fans for air conditioning system in military
\t
Air quantity
\t
300-1500m3/h
\t
Total pressure
\t
250-400Pa
\t
Motor power
\t
80-250w
\t
Rotate speed
\t
1250-1300rpm
\t
Noise
\t
65 dBA
\t
Size of air outlet
\t
Length:  120-200mm
\t
Width:  85-155mm
\t

\t
Centrifugal fans for rang hoods
\t
Air quantity
\t
700-1200m3/h
\t
Total pressure
\t
150-300Pa
\t
Static pressure
\t
250-500Pa
\t
Motor power
\t
50-180w
\t
Rotate speed
\t
800-1500rpm
\t
                        Size of air outlet
\t
Length:  100-200mm
\t
Width:  120-200mm

The fan of deep suction range hood series,which is adopted high quality of galvanized steel and new process of non-oil spraying on the surface.  After dynamic and static balance calibration, the fans have the running balance, strong suction, large air volume, low noise, high oil deposition prevention ability, etc.

The blower of deep suction range hood series, which is applied wth principles of aerodynamics and acoustics to design of air duct.With different structure forms, it is can be changed the wind direction of inlet and outlet to make sure blower with non-oil. Based on the overall design of oil absorption,our company can provide a complete set of professional service.
Company Introduction

ZheJiang XingChang Fan Co. Ltd (XCF) was found in 1979, located in XinChang county, and the fan products were successfully used onto Red Flag car in 1981.Xingchang Fan has been awarded as provincial high and new technology enterprise, one of the best small and medium enterprises with great investment value. It was also honored to be the member organization of China Refrigeration and Air-conditioning Industry Association and China Warmth Supply Working Commission. Nowadays, XingChang Fan has developed into a well-known enterprise with 4 core business: Air Purification and Sterilization/HVAC equipment(IAQ), Precision machining (Specialize in crankshaft), Fin coils, Fan and Blowers.
