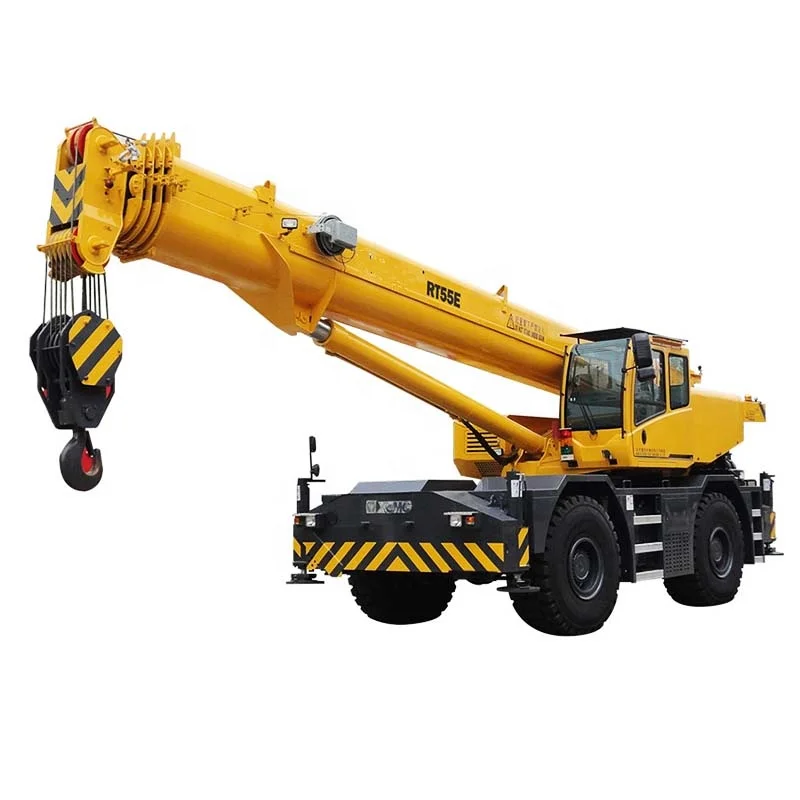

Новый внедорожный кран RT55E 55

Категория: Cranes >>>
Поставщик: Newindu,Construction,Engineering,(Shanghai),Co.,Ltd.

Цена:170 000,00 $ - 190 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	202300.43 $*	212415.93 $*
Aug-16-2025	200600.11 $*	210630.74 $*
Jul-16-2025	168300.8 $*	176715.94 $*
Jun-16-2025	197200.29 $*	207060.33 $*
May-16-2025	171700.58 $*	180285.47 $*
Apr-16-2025	193800.11 $*	203490.36 $*
Mar-16-2025	192100.73 $*	201705.52 $*
Feb-16-2025	190400.85 $*	199920.64 $*
Jan-16-2025	188700.84 $*	198135.90 $*

Характеристики

Products Description

1. Energy-saving and environment friendly

* Specialized energy-saving hydraulic system.
* The torque converter with lockout function has features of large torque at low speeds and high efficiency at high speeds.
* Elevating control system for freefall, without additional power needed.

2. High mobility and efficiency

* Two driving types of 4×2 and 4×4 are adopted with forwards and backwards driving function.

* Four steering modes are adopted , and the min. turning radius is 5.7m with better job site adaptability.

Specification

Dimension	Unit	RT55E
Overall length	mm	12032
Overall width	mm	2980
Overall height	mm	3530
Weight
Total weight in travel	kg	38500
Power
Engine model		QSB6.7
Engine rated power	kW/(r/min)	149
Engine rated torque	N.m/(r/min)	679
Travel
Max. travel speed	km/h	25
Min. turning diameter	m	11.4
Min. ground clearance	mm	460
Approach angle	°	25.8
Departure angle	°	21.8
Max. grade ability	%	55
Fuel consumption for 100km	L	-
Main performance
Max. rated total lifting capacity	t	55
Min. rated working radius	m	2.5
Turning radius at turntable tail	m	4.09
Max. lifting torque	kN.m	1690
Full-extend boom	m	9.9
Full-extend boom+jib	m	37.9
Boom length	m	53
Working speed
Boom lifting time	s	140
Boom full extension time	s	130
Max. swing speed	r/min	-
Max. speed of main winch (single rope)	m/min	-
Max. speed of aux. winch (single rope)	m/min	2
