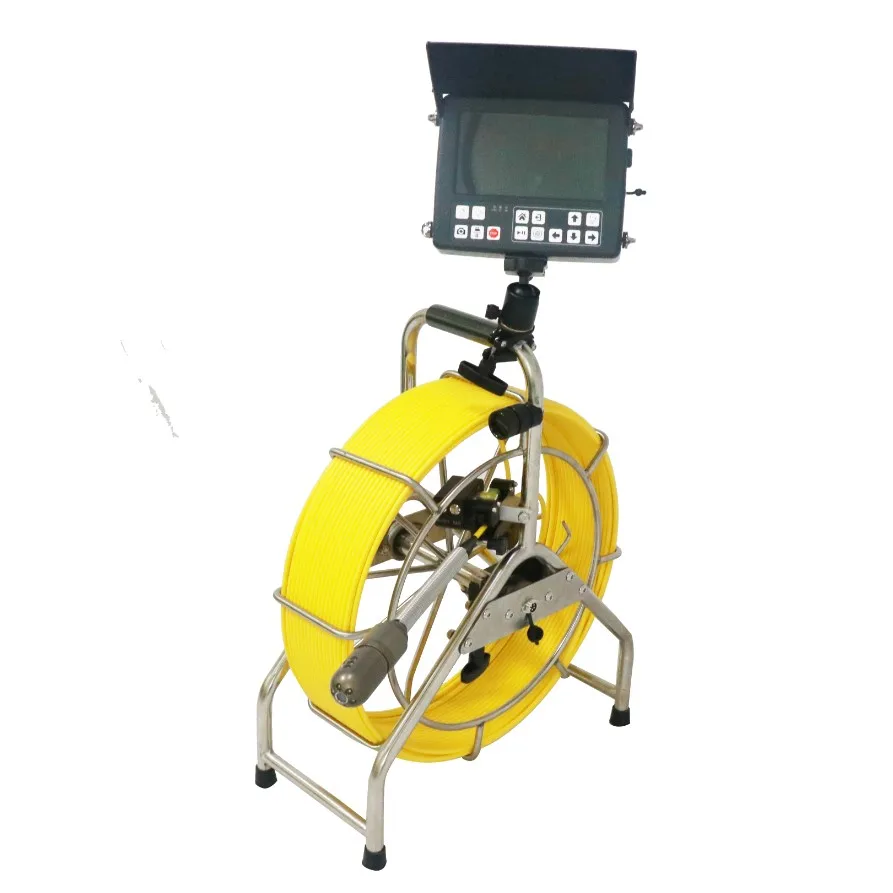

VICAM 60 м цветная боковая и фронтальная Вращающаяся мини-камера для трубопровода с HD 45 мм головкой камеры зондом 512
- Категория: CCTV Camera >>>
- Поставщик: Shenzhen,Vicam,Mechatronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.62 $* | 0.88 $* |
| Aug-17-2025 | 0.56 $* | 0.70 $* |
| Jul-17-2025 | 0.29 $* | 0.15 $* |
| Jun-17-2025 | 0.79 $* | 0.96 $* |
| May-17-2025 | 0.18 $* | 0.14 $* |
| Apr-17-2025 | 0.57 $* | 0.69 $* |
| Mar-17-2025 | 0.40 $* | 0.54 $* |
| Feb-17-2025 | 0.17 $* | 0.9 $* |
| Jan-17-2025 | 0.99 $* | 0.15 $* |
Характеристики
Product Description
Specification
Model Number | V8-3345DU |
Screen Size | 8 inch LCD IPS Screen, 1280*720 resolution |
Cable length | 7mm Fiberglass rod push cable ＆reel |
Camera Diameter | 1/3 CMOS,1.3MP pixel AHD 45mm dual camera head |
Power supply | 12V 7000mA Recharge li-ion battery |

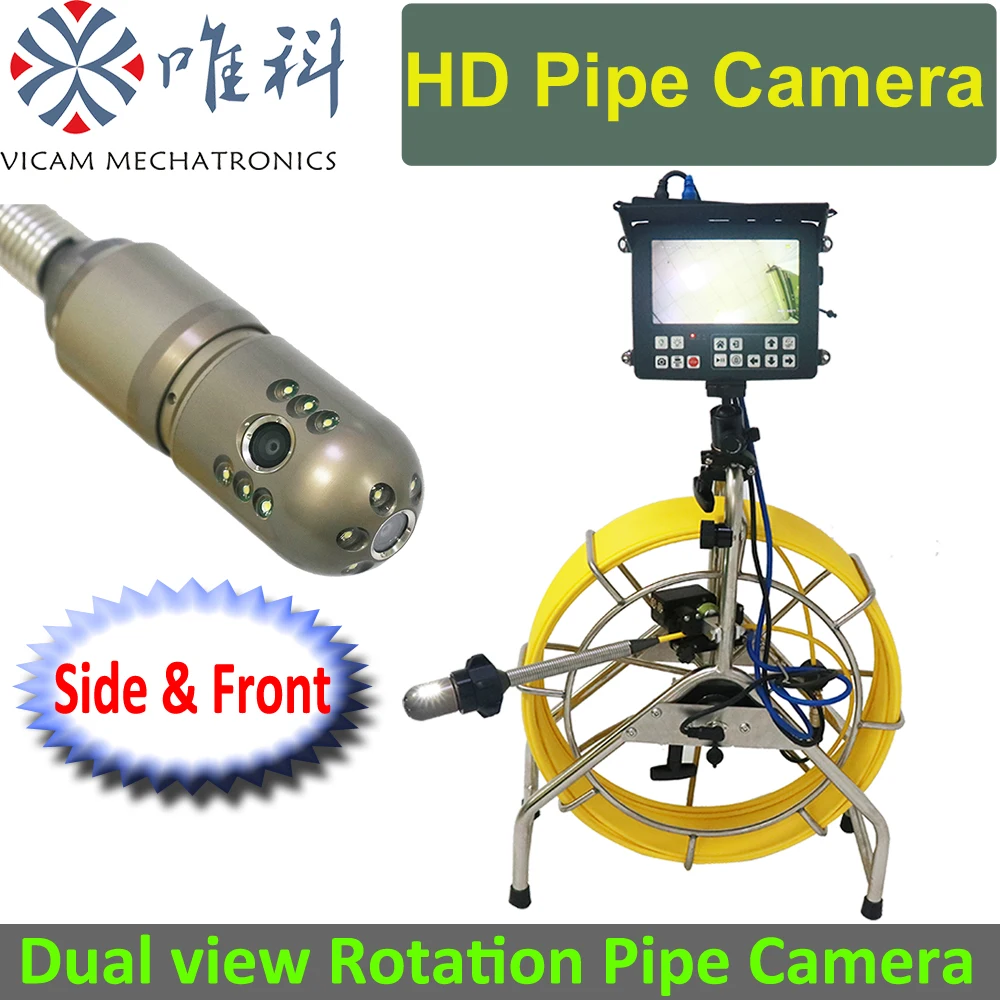

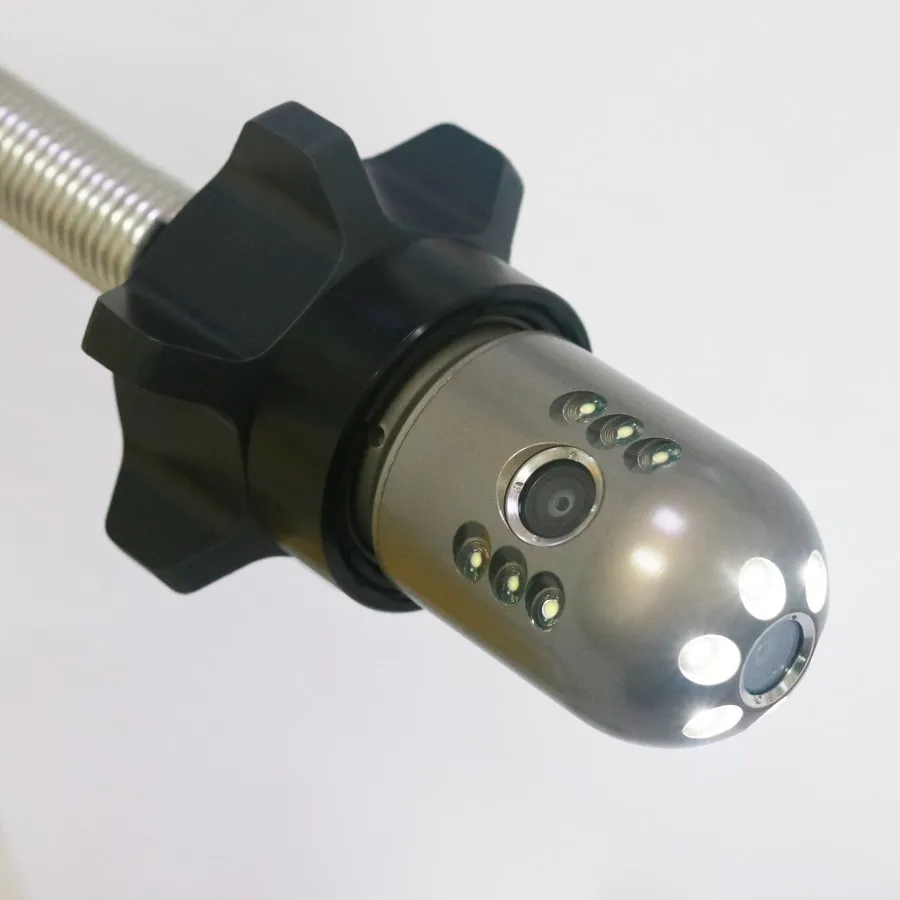

HD 45mm dual view camera head
* Camera size 45mm x 107mm
* Waterproof IP68 up to 3 bar
* View range Horizontal:101°
* Pan 360° rotate endless
* 6pcs high light LED (down view)
* 6pcs high light LED (side view)
* Detachable connection to Cable Reel
* Lens window sapphire glass
* Built-in 512Hz transmitter optional

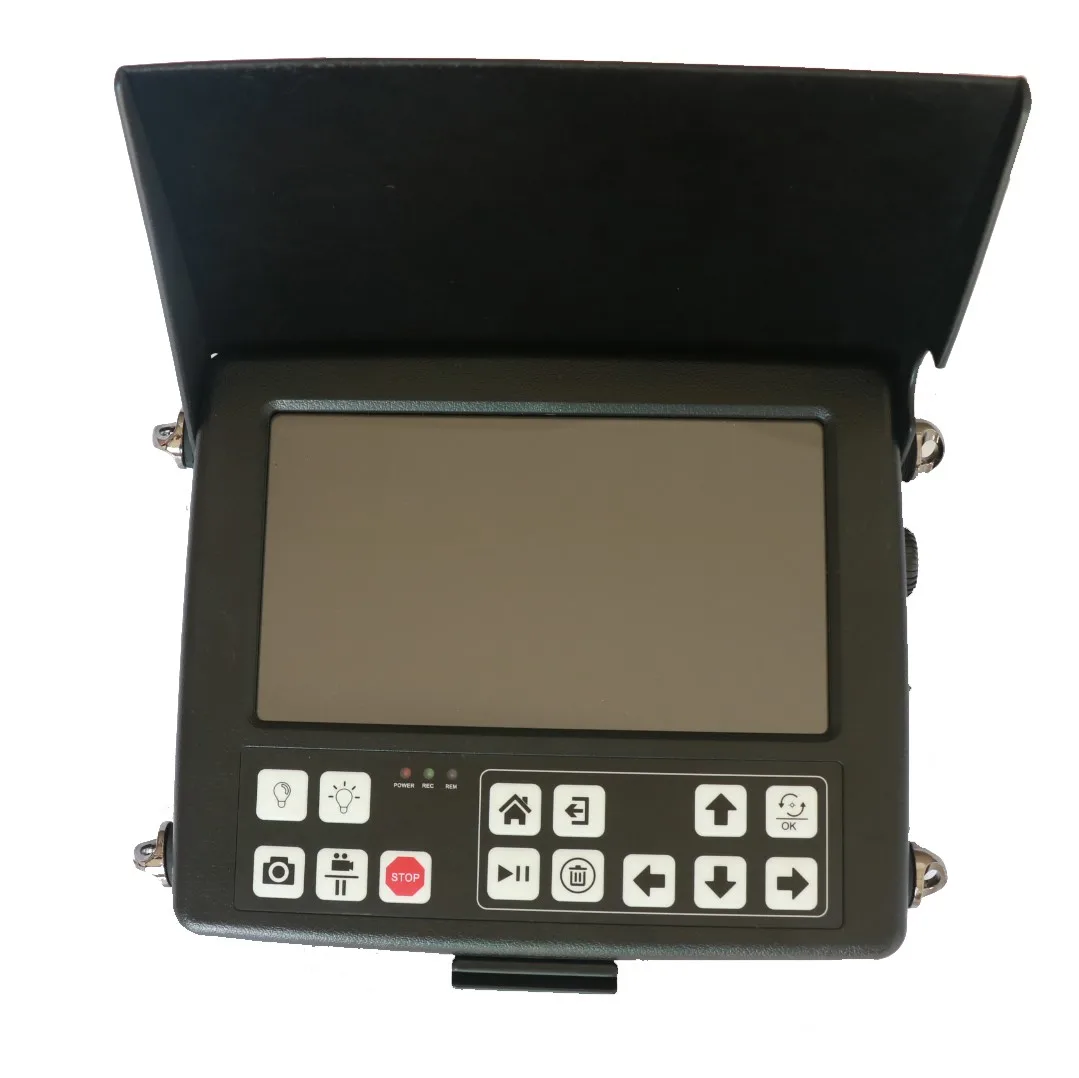

Waterproof DVR control unit
*8"HD IPS LCD Screen, 1280X720 resolution
*HD DVR SYSTEM with 720P video
*Audio ,video and screen capture function
*Waterproof LCD panel
*USB wireless Keyboard
*USB wireless Keyboard
* USB port to connect storage device
( 16G USB flash disk)
* Built-in 7000mA rechargeable
Li-ion Battery Pack
* Sunshade is included
* Box size 23x20x5cm
*Charging time 7 hours,
working time about 4 hours

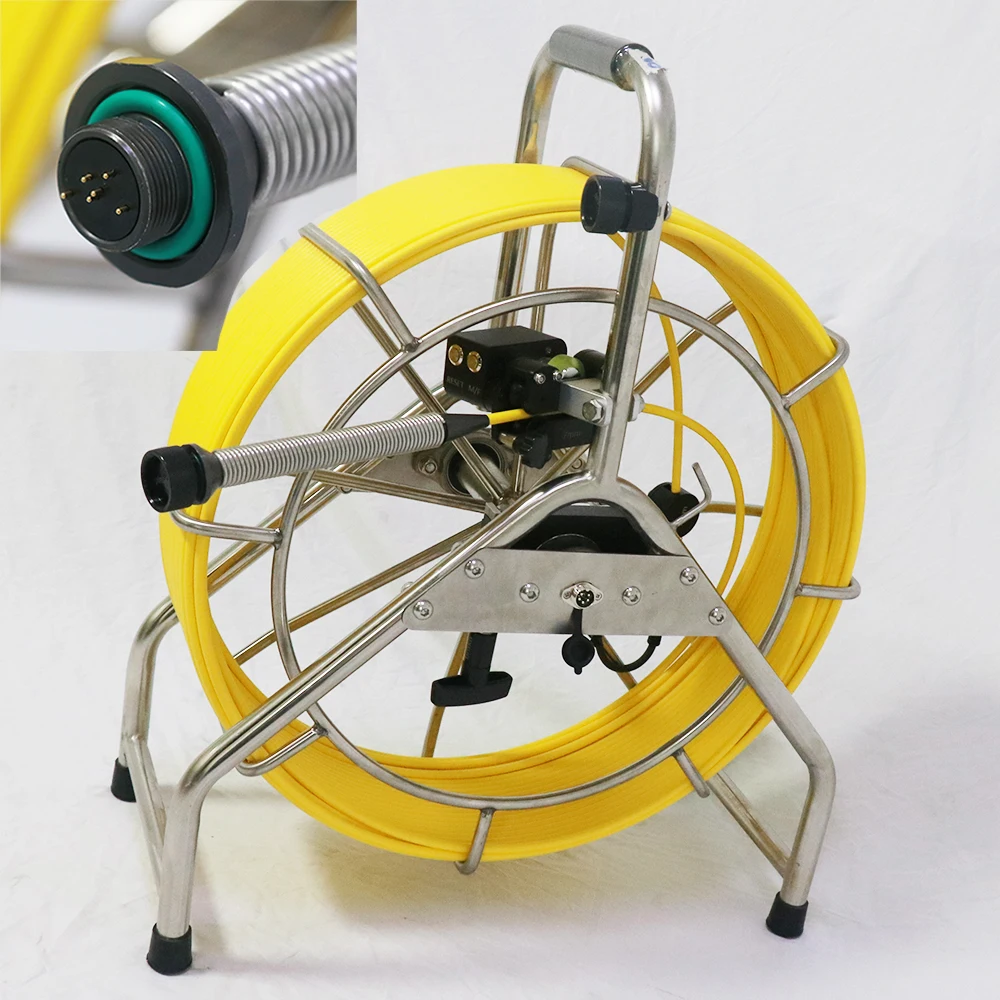

Cable Reel
* Fiberglass push rod cable
* Cable diameter 7mm
* Cable length 60m
* Reel size L51*W25*H64cm * Reel brake available
* Cable diameter 7mm
* Cable length 60m
* Reel size L51*W25*H64cm * Reel brake available
* Pin cap to protect the cable connector
* Updated digital meter counter,error rate less than 1%
* Updated digital meter counter,error rate less than 1%

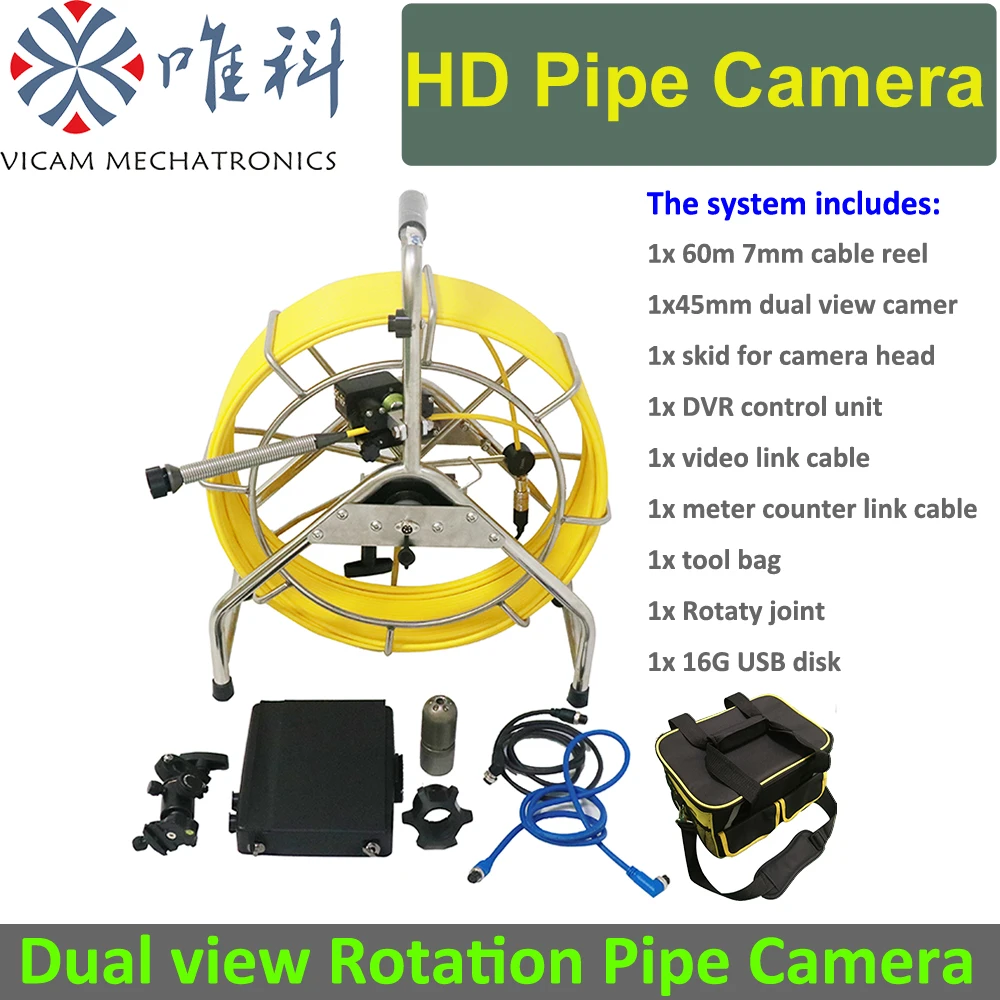

Tool bag
*Size: 32x22x25cm
*Easy to carry
*Include:
Camera head
Control unit
Wireless keyboard
Test cable
Link cables
User manual
*Easy to carry
*Include:
Camera head
Control unit
Wireless keyboard
Test cable
Link cables
User manual
Details Images
Packing & Delivery
FAQ
1 .Can it built in 512hz transmitter?
Yes.It can . The camera length is 110mm. Very smart .
2.Can it be longer cable? Such as 120m?
Yes. It can. The standard length is 60m 7mm cable . If you need longer cable ,we can use 9mm fiberglass cable. The max length is 120m.
3.Is it HD model?
Yes. It is HD model .The video is 720P avi format. The camera is 1.3M pixels resolution
4. It has two cameras.The video is saved to two files or one file?
The recording video is saved to one video file. The "OK" button is to switch "Side / Front " camera head.
Company Profile
Vicam is a professional manufacturer of Video inspection Cameras.Our main products have pipeline video inspection camera system, telescopic pole inspection camera, water well cameras and borehole cameras.
Vicam has more than 8 years experience in design and production.We are designing different pipe cameras to meet the different pipe inspection.
Customer Photos
Certifications
