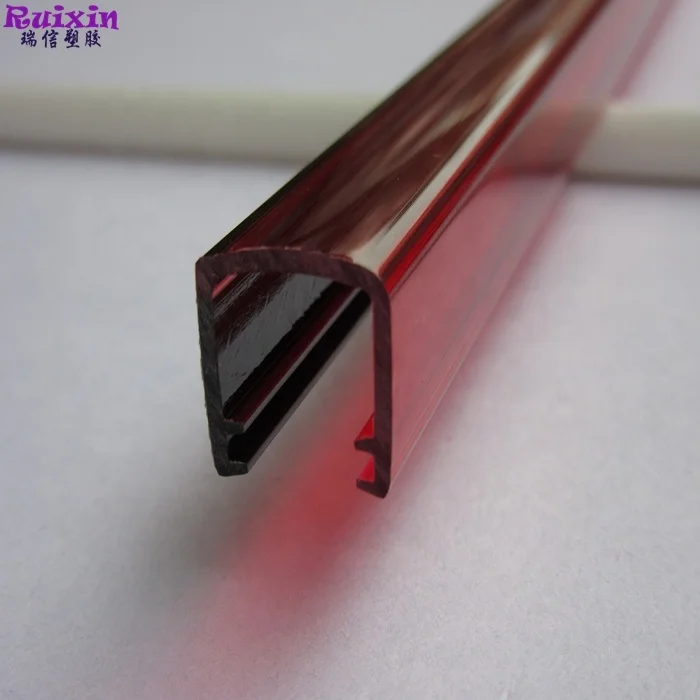

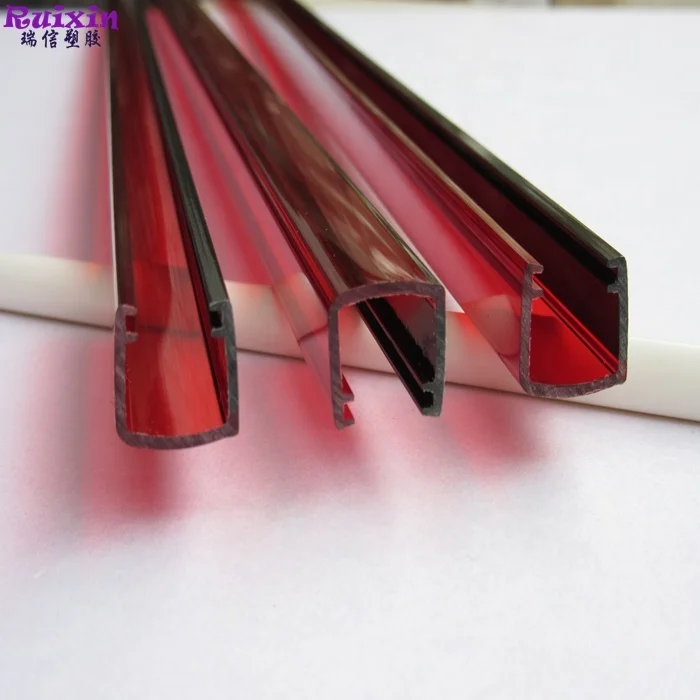

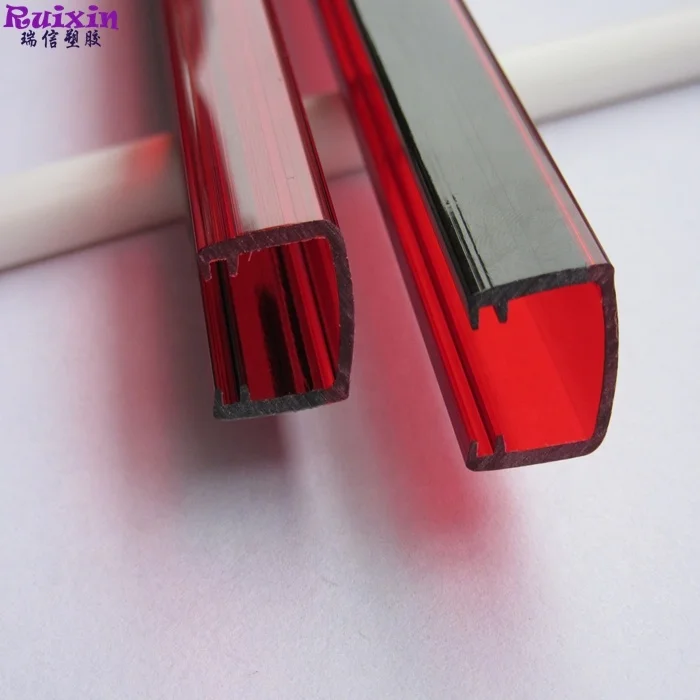

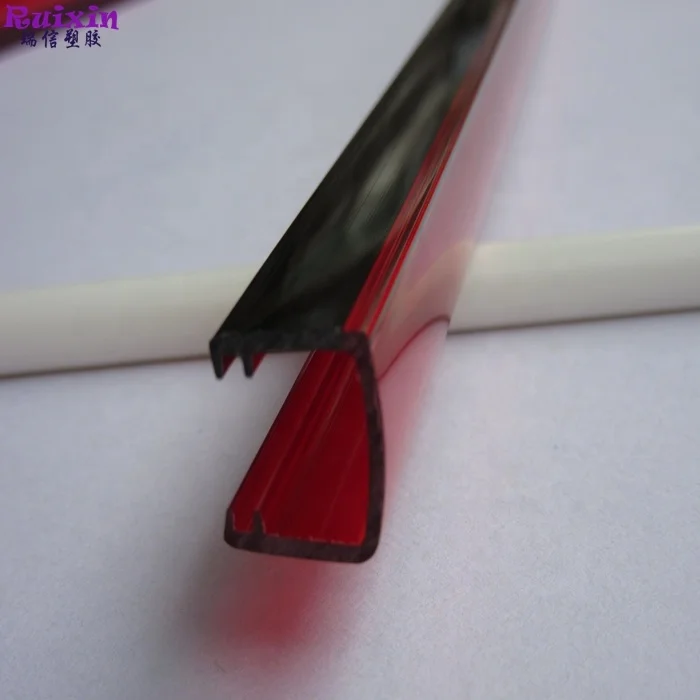

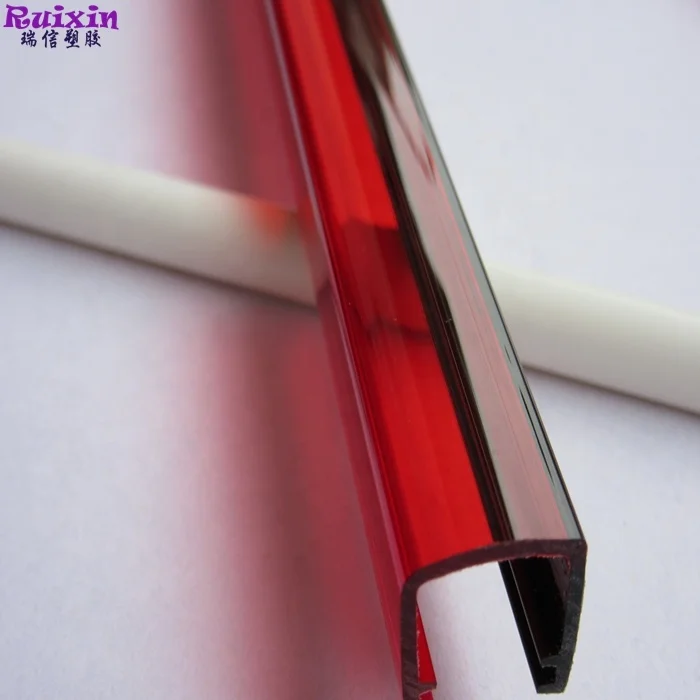

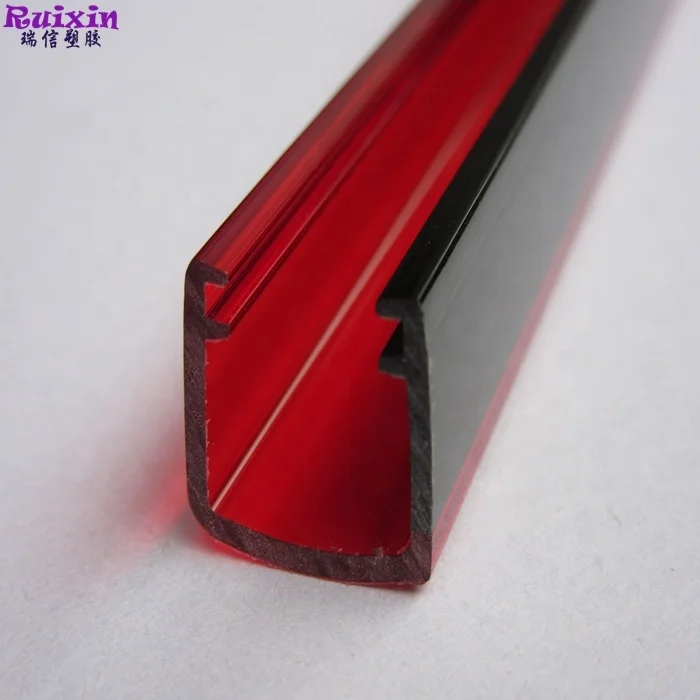

Red color and black coextrusion PC profile for LED strip

 Office, Factory, Shopping mall, School, Home and etc…

LED tube cover:

1. Length can be 60 CM, 90CM, 120CM or by your request.

2. No mercury and other hazardous materials, ROHS compliant.

3.The PC housing can make sure the T8 tube come with a perfect heat emitting function so as to the LED in the tube can work for a long time.

4. PC cover is good for tenacity and quakeproof.

5. Tubes are not glued but screwed, and have suitable holders for it.

6. We can make it according our requirement and drawing.



The Characteristic of Polycarbonate

1.      Excellent impact resistance.

2.      Continuous working temperature: -40 ~ 120℃

3.      Good light transmission.

4.      Good weather resistance and UV protection

5.      High heat insulation.

6.      Simply processed and installed.

7.      UV protection layer: 50um

8.      Soften temperature: 148℃

PC Features:

1. It has strength and elasticity coefficient, high impact strength and wide temperature range.

2. High transparency and free dyeability.

3. Low molding shrinkage and good dimensional stability.

4. Good fatigue resistance

5. Good weather resistance

6. Excellent electrical characteristics

7. Odorless and odorless is harmless to the human body and is hygienic and safe.



Main performance

a. Mechanical properties: high strength, fatigue resistance, dimensional stability, creep is also small (very small changes under high temperature conditions)

b. Heat aging resistance: Enhanced  temperature index of 120~140 °C (outdoor long-term aging is also good)

c. Solubility resistance: no stress cracking;

d. Stability to water: It is easy to decompose when exposed to water at high temperature (use caution when using high temperature and high temperature environment)

e. Electrical performance:

   1. Insulation performance: Excellent (wet, high temperature can also maintain stable electrical performance, is an ideal material for manufacturing electronics and electrical parts)

   2. Dielectric coefficient: 3.0 ~ 3.2

   3. Arc resistance: 120s

f. Formability: injection or extrusion of ordinary equipment

PC plastic bonding

The following adhesives can be selected according to different needs.

    1. G-933: One-component room temperature curing soft elastic anti-vibration adhesive, resistant to high and low temperature, different viscosity bonding speed for several seconds to several hours to cure.

    2. KD-833 instant adhesive can quickly bond PC plastic in seconds or tens of seconds, but the adhesive layer is hard and brittle, and it is not tolerant to hot water of 60 degrees or more.

    3. QN-505, two-component adhesive, soft rubber layer, suitable for large-area bonding or compounding of PC plastic. However, the high temperature resistance is poor.

    4. QN-906: Two-component adhesive, high temperature resistant.

    5. G-988: One-component room temperature vulcanizate, which is an elastomer with excellent waterproof, anti-vibration adhesive, high and low temperature resistance, 1-2mm thickness, initial solidification in about 10 minutes, basic curing in 5-6 hours , has a certain strength. It takes at least 24 hours to fully cure. Single component, no need to mix, apply after standing after extrusion, no need to warm.

     6. KD-5606: UV UV-curing adhesive, bonding transparent PS sheet and sheet, can achieve no trace effect, need to be cured by ultraviolet light. The effect after bonding is beautiful. However, the high temperature resistance is poor.





Model	Polycarbonate
Material	Raw Polycarbonate, 100% virgin
Dimension	1-100mm or customized
Length	customized
Color	Transparent, white, black, green, red and so on…
OEM & ODM	Yes
Certification	ISO9001: 2015
Free sample	Yes
Density	1.19g/cm³
Shape	sheet, rod, tube, gear, pulley, guide rail….or according to your demand
Packing	Plastic bags, Cartons, Wooden case, Pallet, Container, etc.
Advantage	1.One stop procurement
	2.Manufacturer price
	3. Professional free design
	4. OEM&ODM support
	5. Low MOQ
	6. Fast delivery
	7. Free sample



Product Pictures











Please click here to ask more info.









Please click here to ask more info.





Please click here to see co extrusion clear + black sleeve



Co extrusion PVC, white and clear sleeve.







Related Products







FAQ

FREQUENTLY ASKED QUESTIONS



Q1:  Are you the manufacturer for hose?

Yes, we are a professional extrusion manufacturer who was built in 2006.



Q2: What is the MOQ?

Usually our MOQ is amount $1000 per order, but we accept lower quantity for your trial order. Please feel free to tell us how many pieces you need, we will calculate the cost correspondingly, hoping you can place large orders after checking quality of our products and know our service.



Q3: How long is the delivery time?

It takes 7-15 days for MOQ. We have large production capacity, which can ensure fast delivery time even for large quantity.



Q4: Where is the company location?

My company is in Dongguan is located in Guangdong province, China, there are developed traffic and logistics convenience, Near Guangzhou and Shenzhen Port.



Q5: Do you accept OEM/ODM orders?

Sure, we accept OEM / ODM orders.



Q6: Can I get samples?

Yes, we provide samples for free and Buyers need to bear the freight.



Q7: How can I pay?

Usually we make trade on T/T, Western Union etc.



Advantage
(1) Good environmental suitability.
(2) Excellent chemical resistance, long service life
(3)The inside pipe wall is extremely smooth and difficult to leave over dirt.
(4)Connected by welding, leakage prohibit
(5)one-stop service, we are a professional extrusion manufacturer in Dongguan City.



Payment terms & Details

1. T/T, Western union, etc.

2. Samples lead time: 7 days after spec. confirmed.

3. Mass production lead time: 10-25work days after Order.

4. Pay 30% deposit, pay balance 70% before shipment.



Why choose us

1. Our value massage is “Quality is our culture”

2. Our core competencies is silicone products, graphite products, and thermal products.

3. Competitive advantage products.

5. Confidentiality agreement and Business Contract

6. Free sample offer & small order welcomed

7. Quality assurance contract.

8. We are the direct manufacture, which means the price advantage.

9. OEM/ODM Service is available, can design and produce various Non-standard Rubber Parts according to your requirement.

10. One-stop service, we are a professional extrusion manufacturer in Dongguan City.



About us

Firm Name	Dongguan Shipai Ruixin Plastic Products Factory
Mould Width	2mm~100mm with -/+0.1mm tolerance (own mould engineer and equipment)
Professional Capacity	Plastic Extrusion and Co-extrusion machine/equipment
Raw Materials	PVC,CPVC, UPVC, ABS,PC, PMMA, PP,PE/HDPE/LDPE, POM, PMMA,PC,PS,TPU, TPE, TPV, PETG...etc.
Certification	ISO9001:2015
Product Design	OEM/ODM (Plastic sheet profile is used widely over the world ,especially for this design)
Product Color	Various Colors is ok
Package method	Based on customer's request / STD Carton/Pallet
MOQ/MPQ	Based on the production design/Spec.
Annual production	4K Ton
FOB port	Shenzhen
Delivery time	10~20 days
Features of Plastic profile/sheet profile	1.Healthy, conforming to drinking water standards 2. Resistant to high temperatures, good impact strength 3. Convenient and reliable installation, low construction expenses 4. Light weight, convenient to transport and handle, good for labor-saving 5. Smooth inner walls reduce pressure loss and increase flow speed 6. Sound insulation (reduce by 40% compared to galvanized steel pipes) 7. Extremely long usage life for at least 50 years
About Company	Our factory was built in 2006 who is a professional plastic extrusion profile manufacturer, ISO9001:2015 Quality Systems Certification in December 2017. Our company is specializes in producing all kinds of plastic extrusion products (material include PVC, ABS, PS, PP, PE, PA, POM, PC, PMMA, NYLON, PBT, PETG, TPX, shrinking, discharging, etc.). We are happy integrating development, design, production and sales. There are 18 professional production equipments and exquisite production technology. Main products: plastic profile, plastic pipe, plastic bar, plastic rod, wiper accessories, wiper protective sleeve, car seal, LED lampshade, package pipe, POM bar, PE, PP, PBT, track, gold side bar, edge strip, decorative strip, Tapes, adhesive products, etc.   It is widely used in electronics, toys, children's cars, cars, lamps, furniture, stationery, sports equipment, laboratory, medical, advertising, decoration, luggage, sound, building materials, chain, transport equipment and other industries.
