2019 steel wire drawing
- Категория: Wire Drawing Machines >>>
- Поставщик: Shijiazhuang,Aisen,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.84 $* |
| Aug-16-2025 | 0.81 $* | 0.60 $* |
| Jul-16-2025 | 0.70 $* | 0.34 $* |
| Jun-16-2025 | 0.77 $* | 0.99 $* |
| May-16-2025 | 0.88 $* | 0.86 $* |
| Apr-16-2025 | 0.77 $* | 0.20 $* |
| Mar-16-2025 | 0.61 $* | 0.48 $* |
| Feb-16-2025 | 0.0 $* | 0.56 $* |
| Jan-16-2025 | 0.97 $* | 0.13 $* |
Характеристики
Product Description

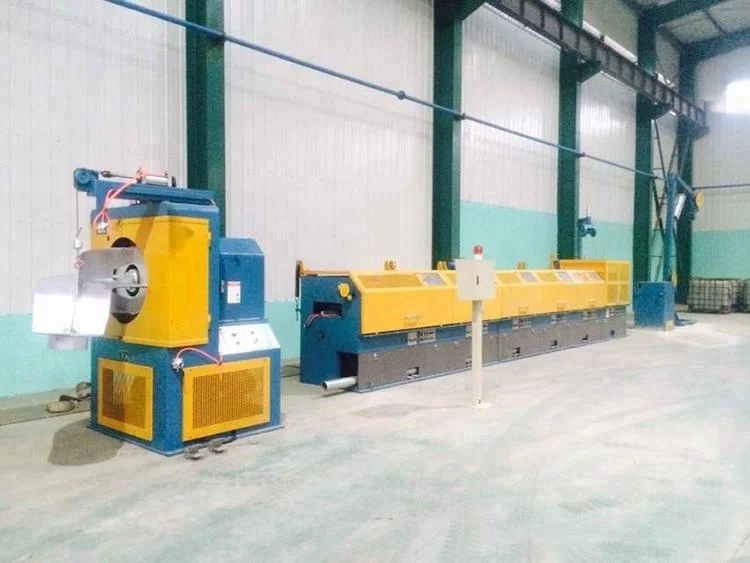

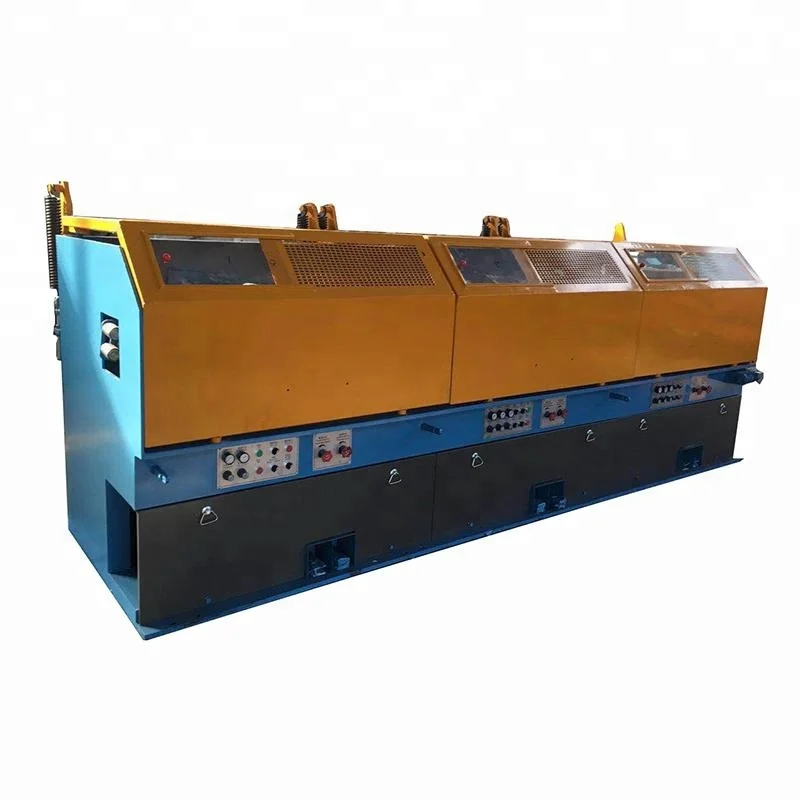

straight type drawing machine
| winding drum diameter | mm | 900 | 800 | 700 | 560-600 | 400 |
| drawing mode munber | time | 9 | 9 | 9 | 10 | 10 |
| maximum inlet wire diameter | mm | Ø14-8 | Ø10-8 | Ø8-6.5 | Ø6.5-5.5 | Ø2.4-1.8 |
| minimun outlet wire diameter | mm | Ø5-3 | Ø4-3 | Ø3-2.5 | Ø2-1.8 | Ø1-0.8 |
| drawing speed | m/min | 300 | 360 | 480 | 750 | 840 |
| inlet strength | mpa | ≤1300 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| total percent reduction | % | 87.24-85.94 | 84-85.94 | 85.94-85.21 | 90.53-89.29 | 87.24 |
| average partial percent reduction | % | 20.48-19.58 | 18.42-19.58 | 19.58-19.13 | 21.00-21.03 | 18.61 |
| power | kw | 110-90 | 90-55 | 75-55 | 37-22 | 15-7.5 |

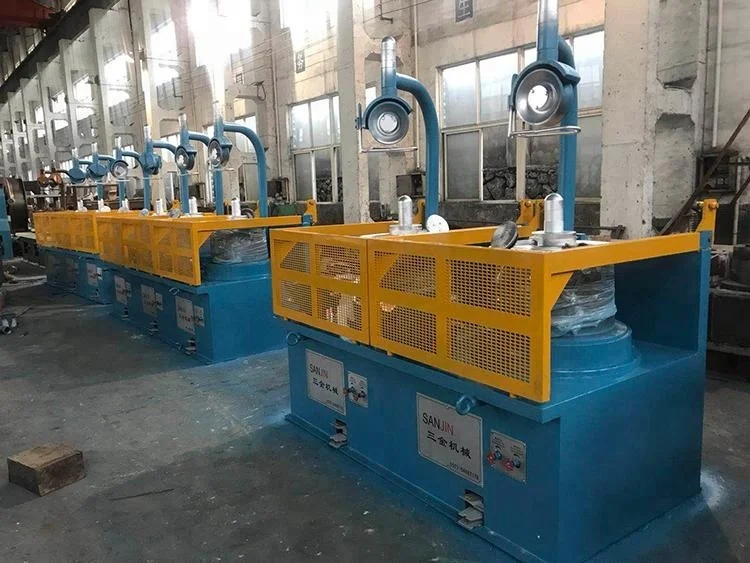

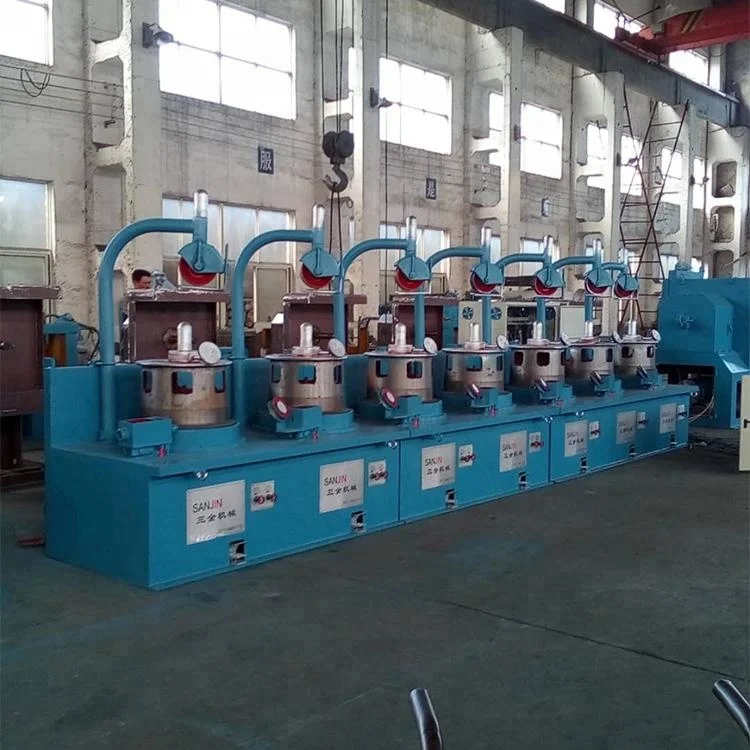

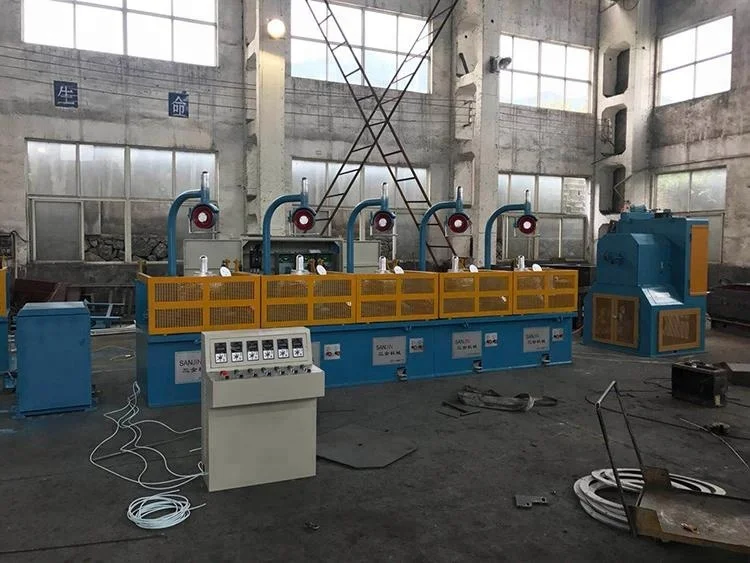

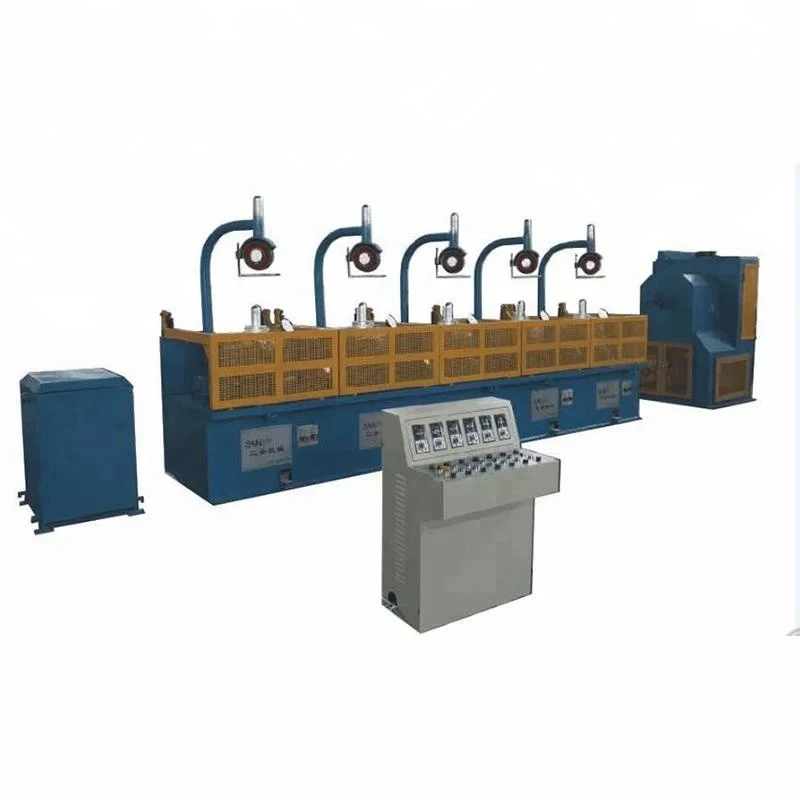

pulley type wire drawing machine
| type | 560 | 650 | 550 | 450 | 350 | |
| drum diameter | mm | 560 | 650 | 550 | 450 | 350 |
| max inlet | mm | 6.5-8 | 10-12 | 6.5 | 4 | 2.5 |
| min outlet | mm | 2.5 | 4 | 2.5 | 1.5 | 0.8 |
total percent reduction | % | 78.7 | 74-87 | 74.88 | 84 | 87 |
average partial percent reduction | % | 22.72 | 20-30 | 20-30 | 23 | 22.5 |
| speed | m/min | 260 | 60-140 | 260 | 318.7 | 280 |
| power | kw | 30 | 45 | 18.5 | 11 | 4 |
| weight | kg | 2500 | 3000 | 1570 | 1280 | 700 |
| meas | mm | 2657*1100*2600 | 2800*1300*2600 | 2657*1100*2600 | 650*1600*2270 | 660*1065*2380 |
handstand type wire drawing machine
winding machine
Friction polishing machine
Packaging & Shipping
Company Information
Shijiazhuang Aisen Machinery Co., Ltd. Is a professional company for metal processing machinery,
Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.
Our company regards “reasonable prices, high quality and good after-sales” as our tenet.
Got great feedback and honor from all the clients.
Our products were sold to more than 20 countries already.
We hope to cooperate with more customers for mutual development and benefits. You are welcome to contact us
