Автоматическая машина для укупорки пластиковых
- Категория: Укупорочные машины >>>
- Поставщик: Shanghai,Npack,Automation,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 14280.55 $* | 14994.15 $* |
| Aug-18-2025 | 14160.93 $* | 14868.83 $* |
| Jul-18-2025 | 11880.82 $* | 12474.45 $* |
| Jun-18-2025 | 13920.96 $* | 14616.24 $* |
| May-18-2025 | 12120.43 $* | 12726.19 $* |
| Apr-18-2025 | 13680.24 $* | 14364.65 $* |
| Mar-18-2025 | 13560.43 $* | 14238.67 $* |
| Feb-18-2025 | 13440.18 $* | 14112.63 $* |
| Jan-18-2025 | 13320.7 $* | 13986.37 $* |
Характеристики

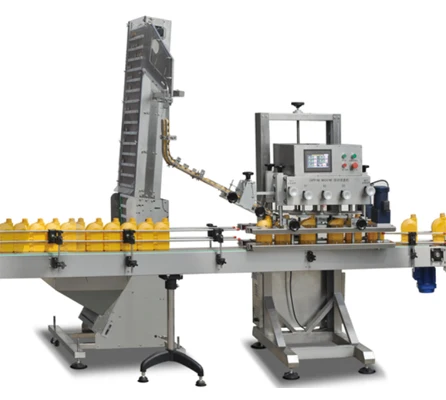

NP- LC automatic spindle screw capping machine
The NP-LC automatic spindle screw capping machine is extremely flexible , is capable of capping accurately and rapidly any cap,such as trigger cap, metal cap, flip cap and so on.
MAIN FEATURE
1. Variable speed AC motors.
2. Spindle wheels adjustment knobs, with lock nut hand wheel.
3. Meter Index for easy mechanical adjustment.
4. No change parts required for a wide range of containers
4. No change parts required for a wide range of containers
5. Comprehensive universal cap chute and escapement
6. With 2 layer bottle clamping belt, suitable for containers of various shap.
1 | Name/Model | NP-LC Automatic linear spindle capping machine | ||
2 | Capacity | 40-150 bottle/minute (actual capacity depends on bottle and caps | ||
3 | Cap diameter | 20-120mm | ||
4 | Bottle Height | 40-460mm | ||
5 | Dimension | 1060*896*1620mm | ||
5 | Voltage | AC 220V 50/60HZ | ||
6 | Power | 1600W | ||
7 | Weight | 500KG | ||
8 | Cap feeding system | Elevator Feeder | Vibration cap sorter | |

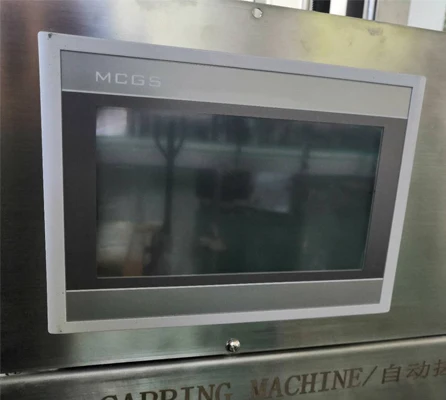

MCGS Touch Screen
Easy operation & adjustable on touch screen

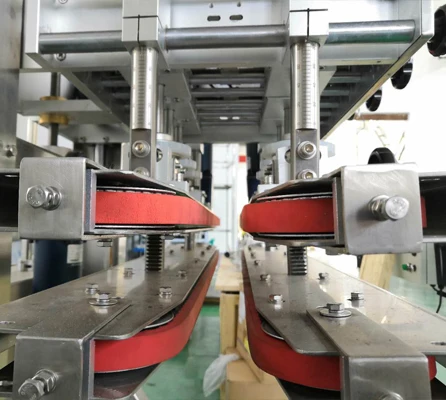

Two-layer Bottle Clamp Belt
The double belts height is adjustable to fit differnet sizes bottles.and the angle is adjustable according to the bottle shape, more stable. Speed is frenquecy contolled to match the conveyor and capping speed
6 Wheels
1. Each wheels speed is indivadually adjustable, requency controlling
2. The wheels can run in opposite direction to make cap fitting the bottles well if necessary
3. Wheels are made of soft material to prevent caps from damage
4. Wheels are horizontally adjustable for different sizes of caps
5. Wheels are vertically adjustable for bottles of different height
6. Each wheels driven by one motor

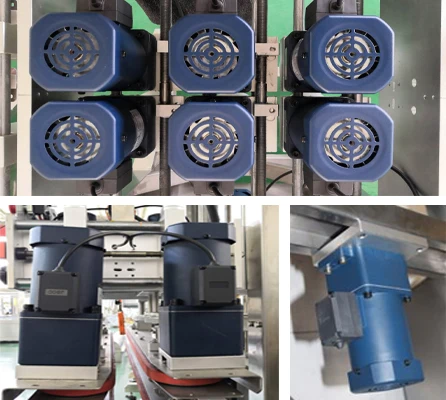

9 Motors
1. 6 motors for 6 capping wheels, and the motors can change to servo motor for torgue adjustable if customer need
2. 2 motors for botle clamping belt
3. 1 motor for machine height adjutment up and down
4. Capping torgue is adjustable for option

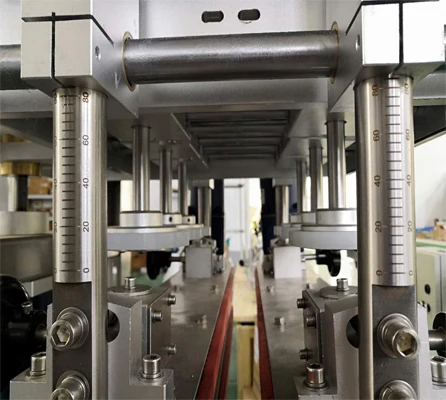

Meter Index
All the adjustment with meters for recording, it is more easy for repalcement different size of caps and bottles
