5bbl 7 bbl 10bbl Пивоваренная

Категория: Машины для производства напитков и вина >>>
Поставщик: Shandong,Yuesheng,Beer,Equipment,Co.,Ltd.

Цена:16 000,00 $ - 18 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	19040.67 $*	19992.23 $*
Aug-15-2025	18880.88 $*	19824.72 $*
Jul-15-2025	15840.60 $*	16632.20 $*
Jun-15-2025	18560.33 $*	19488.32 $*
May-15-2025	16160.1 $*	16968.48 $*
Apr-15-2025	18240.0 $*	19152.50 $*
Mar-15-2025	18080.77 $*	18984.23 $*
Feb-15-2025	17920.14 $*	18816.65 $*
Jan-15-2025	17760.34 $*	18648.55 $*

Характеристики

5bbl 7 bbl 10bbl turnkey complete beer brewing brewhouse brewery system for sale

1. SUS304/306L, or red copper cladding,

2. Two vessels three tank brewhouse: whirlpool under mash/lauter, kettle/hot water tank;

It also can be two vessels: mash/lauter, kettle/whirlpool, or other combination if you like.

3. Heating method: gas/direct fire, steam, electric heating

4. Fermenters quantity based on the beer output you want to brew per day

5. It can be DCS control or PLC auo control as you like;

3BBL700

Eqiupment List	Main part	Specific information
Milling System	Malt Mill	300Kg/h
Mashing System	Mash/Lauter tun kettle/Whirlpool tank Hot water tank Wort Pump Hot water pump Heat Exchanger Wort Oxygenate Assembly	5BBL 3m3/h, 16m 3m3/h, 16m BR0.05/3, 3m
Fermentation System	Fermentation Tank Yeast Adding Tank	5BBL 10L
CIP Cleaning System	Sterilization Tank Alkali Liquor Tank CIP Pump	100L 100L 3m3/h,18m
Cooling System	Glycol Tank Chiller Ice Water pump	10BBL 8200w/h(4HP) Flow Rate: 2m3/hPump Lift: 29m
Control System	Control Cabinet Digital Controller	700×400×2000C2015

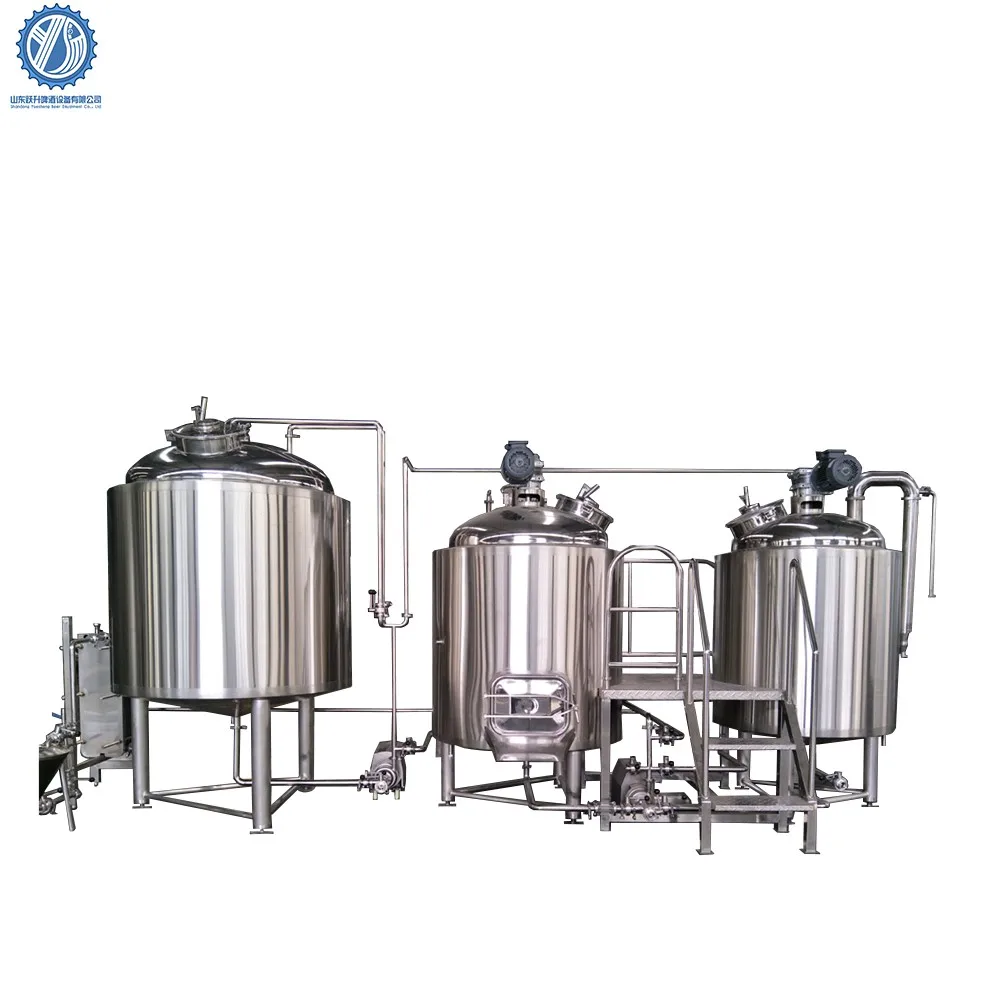

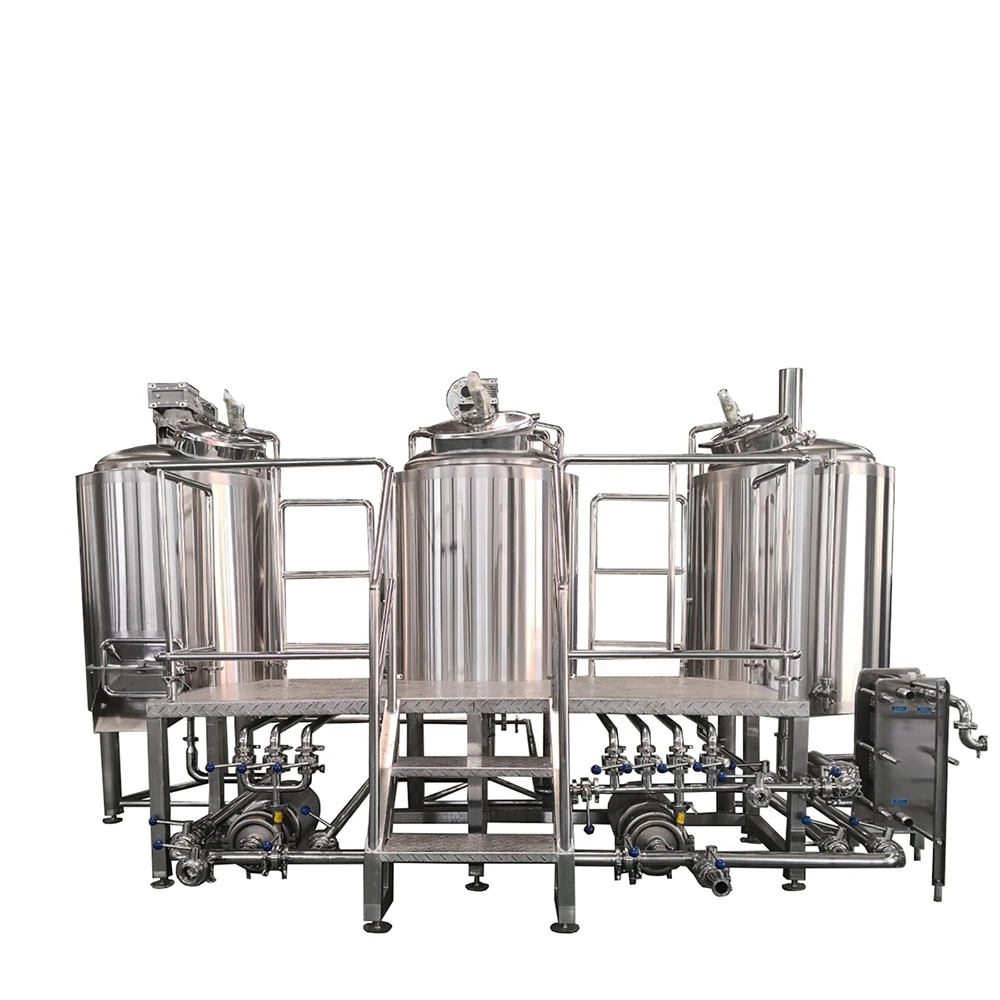

51. For the purpose of making best beer, the brewhouse is the key. On the basis of absorbing European advanced and experienced beer machinery technology, our brewhouse can fulfill various brewing technologies, variable tastes or specific capacities.

All the tanks certified stainless steel material for all tanks, with 100% TIG welded joints and seams with sanitary interior polish. All tanks use tri-clamp connections;

Interior surface to finish pickled and passivated;

Exterior surface is brushed, welding seal is sand polish.

The price will be different according to vessels;

1). Two vessels brewhouse: mash/lauter, kettle/whirlpool;

2). Two vessels-three tank brewhouse: whirlpool or temporary tank under the mash/lauter, kettle;

3). Three vessels brewhouse: mash/lauter, kettle/whirlpool, hot water tank;

500L2

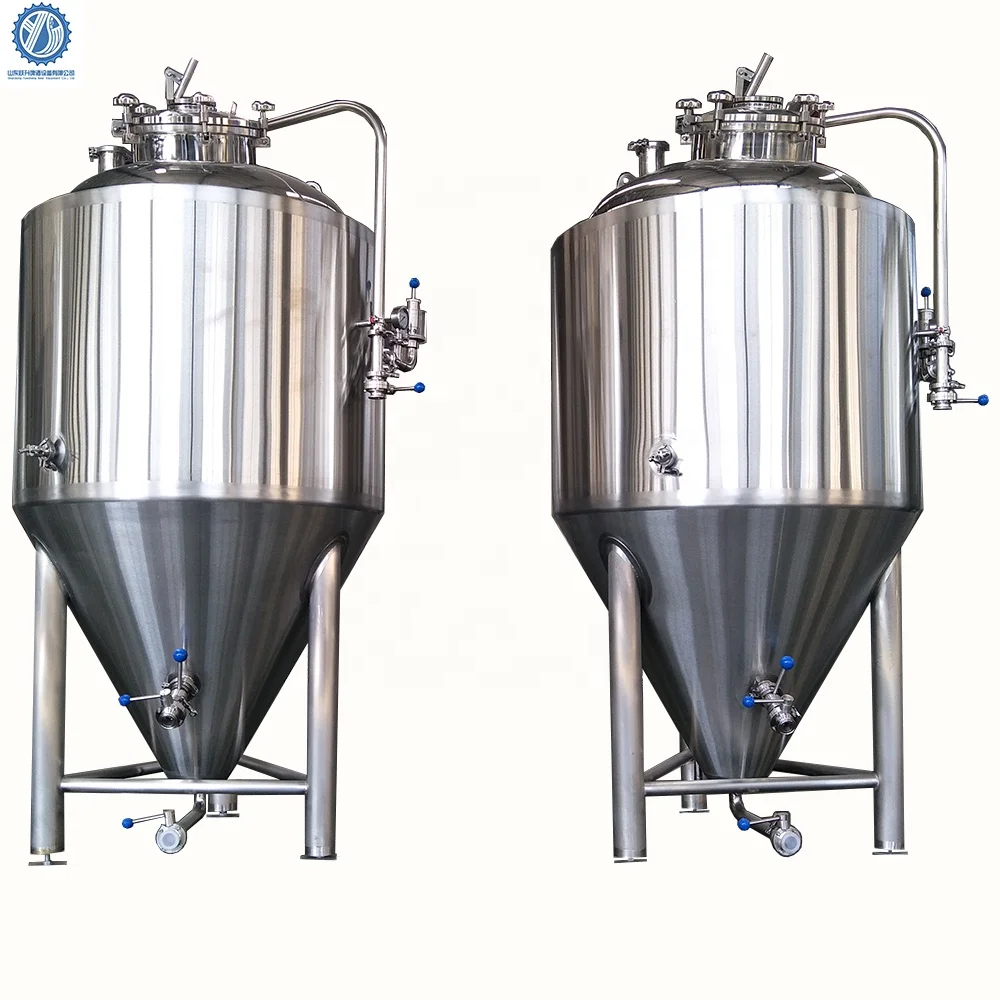

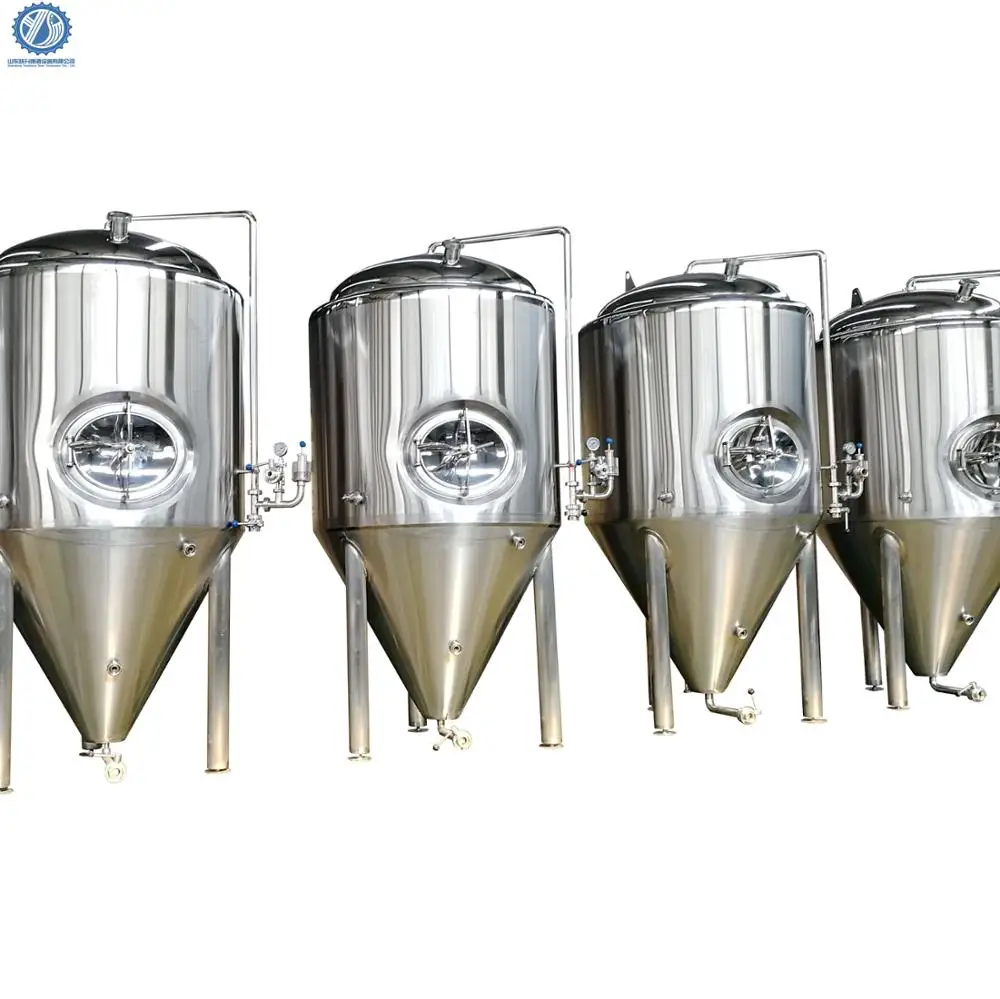

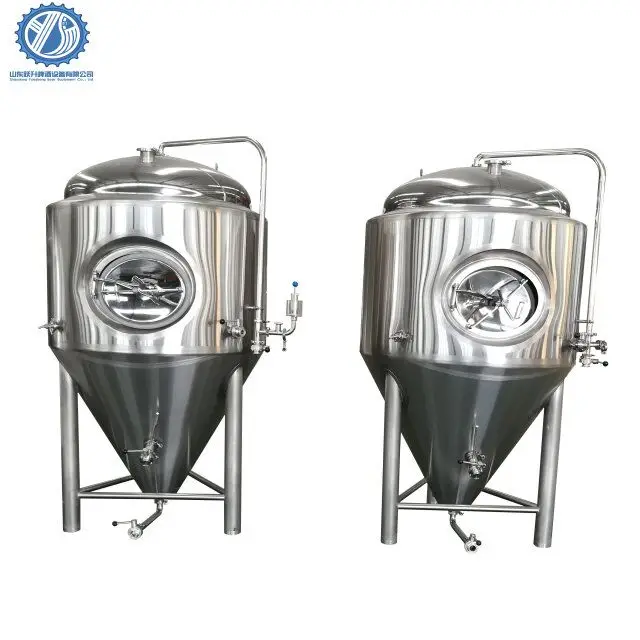

2. The conical fermentation tanks have a dished top with cylindrical body. The 60 degree conical bottom is ideal for fermenting and improving the quality of beer as well as breeding yeast. All the tanks are food grade stainless steel 304 with a 3mm thickness for 100l-5000l, but larger tank is 4mm thickness. The cooling system is a dimple jacket with insulated polyuranthane filling.

It is 100% stainless steel. All tanks comes with 25% head space on top of working volume. All cone come with racking arm. It allows you to start your siphon with the racking arm horizontal, and rotate it slowly downward until you just start picking up yeast sediment.
