Wood Full Automatic Finger Joint Wood Machine Line Machine
Product Description

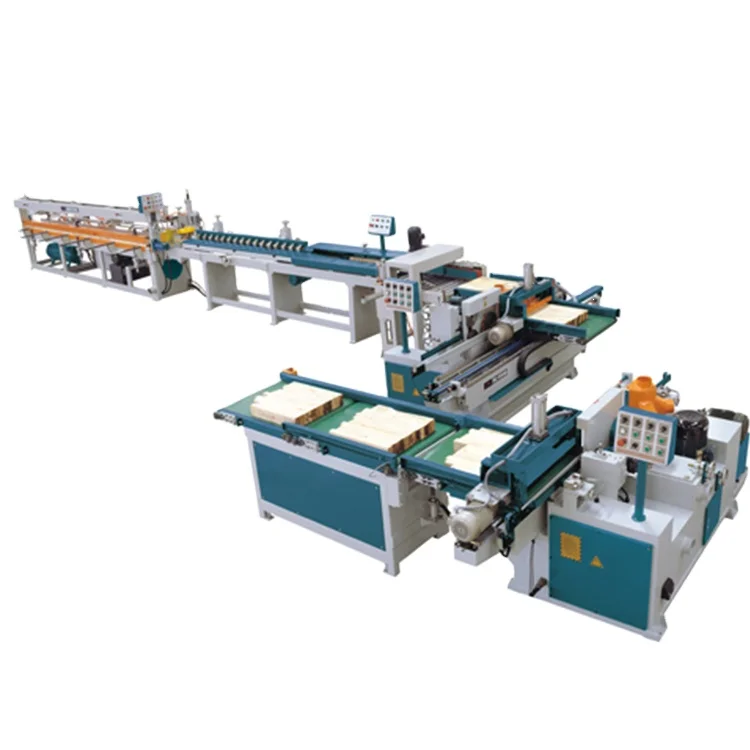

Full automatic finger joint production line(tenon shaper/gluing/tenon jointer)
Technical Parameters
Figer jointer
Figer shaper
MXB3518A-B
Figer shaper
MXB3518C-C
Belt conveyor
Max working length
5000mm/6200mm
150mm-900mm
150mm-900mm
900mm
Effective working width
30mm-150mm
590mm
590mm
590mm
Effective working length
12mm-70mm
18mm-150mm
18mm-150mm
18mm-150mm
Cutting saw rotary
2840r/min
4150rpm
4150rpm
Fret saw motor
2840rpm
2840rpm
rotary speed
Shaper spindle diameter
50mm
50mm
Shaper spindle
6750rpm
6750rpm
rotary speed
Shaper motor power
11kw
11kw
Cutting saw motor
2.2kw
4kw
4kw
Fret saw motor
0.75kw
0.75kw*2pcs
Feeding motor power
0.55kw
0.55kw*2pcs
0.55kw*1pcs
Oil station motor power
4kw
2.2kw
2.2kw
Working speed
70m/min
Working air pressure
0.8Mpa
Max oil pressure
130kgs/c m²
Oil station motor power
4kw
Frequency motor power
1.1kw
1.1kw
Machine dimension(mm)
6100*1250*1600 /
7300*1250*1600
2800*1650
*1450mm
3300*1900
*1450mm
1700*730*980mm
Product Show
Characteristic:
1.Guide rail of finger joint shaper’s conveyor is japan precision linear guide rail to gurantee the shaping accuracy .
2.The design for finger joint shaper is double blades+tooth-tenon knife assembly to provide high precision.
3.The conveyor table of finger joint shaper adopts German pneumatic hydraulic conveyor system to control bakc and forth ,smoothly,low maintenance,high quality .
4.The second push part of finger joint assembler adopts long+short double pushing board design,
by this kind of structure ,it can assemble very short workpiece to reduce the cost .
5.Whole machine is conveniently operated by PLC Central integrated programmable controller.
Model:RL-520A2 Belt conveyor
Model:MXB3518A-B finger tenon shaper
Model:MXB3518A-B finger tenon shaper
Roller conveyor
Chain conveyor
Model: Finger joint machine
