Heavy stone engraver machine cnc router 1325 carving for marble granite tombstone
- Категория: Камень машины >>>
- Поставщик: Shandong,Lintianzhiyuan,CNC,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 5950.66 $* | 6248.72 $* |
| Aug-19-2025 | 5900.68 $* | 6195.36 $* |
| Jul-19-2025 | 4950.45 $* | 5198.99 $* |
| Jun-19-2025 | 5800.23 $* | 6090.13 $* |
| May-19-2025 | 5050.42 $* | 5303.0 $* |
| Apr-19-2025 | 5700.2 $* | 5985.71 $* |
| Mar-19-2025 | 5650.21 $* | 5933.65 $* |
| Feb-19-2025 | 5600.67 $* | 5880.75 $* |
| Jan-19-2025 | 5550.65 $* | 5828.16 $* |
Характеристики

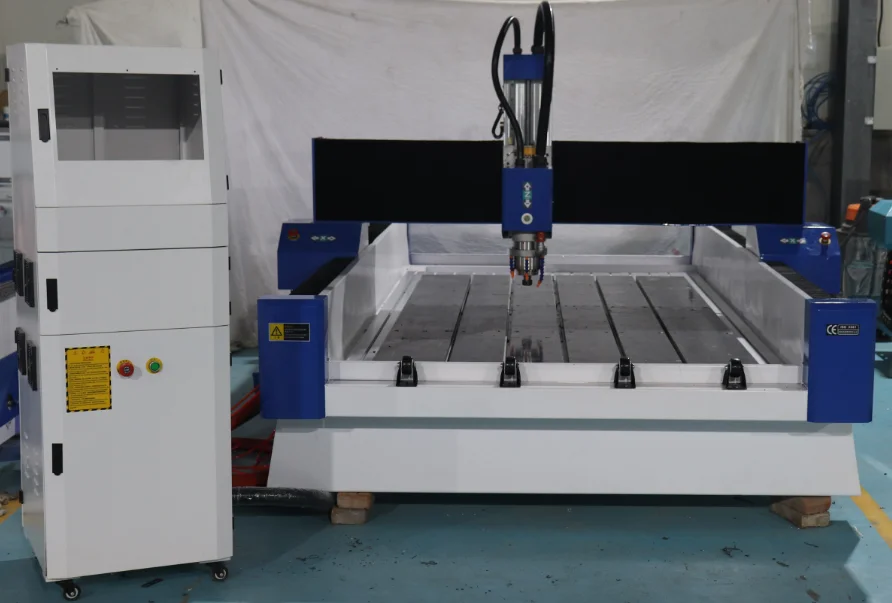

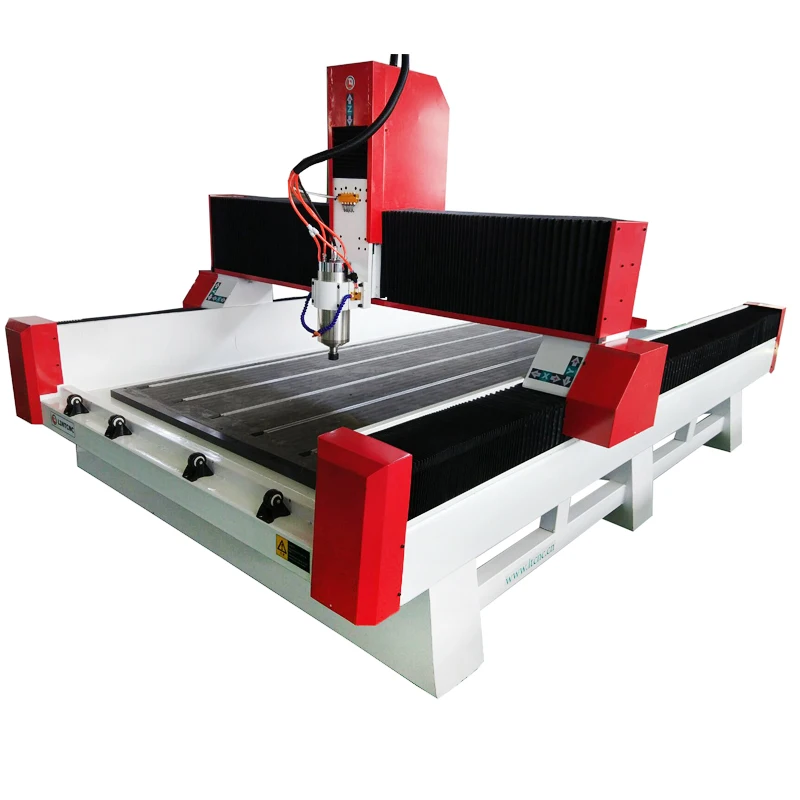

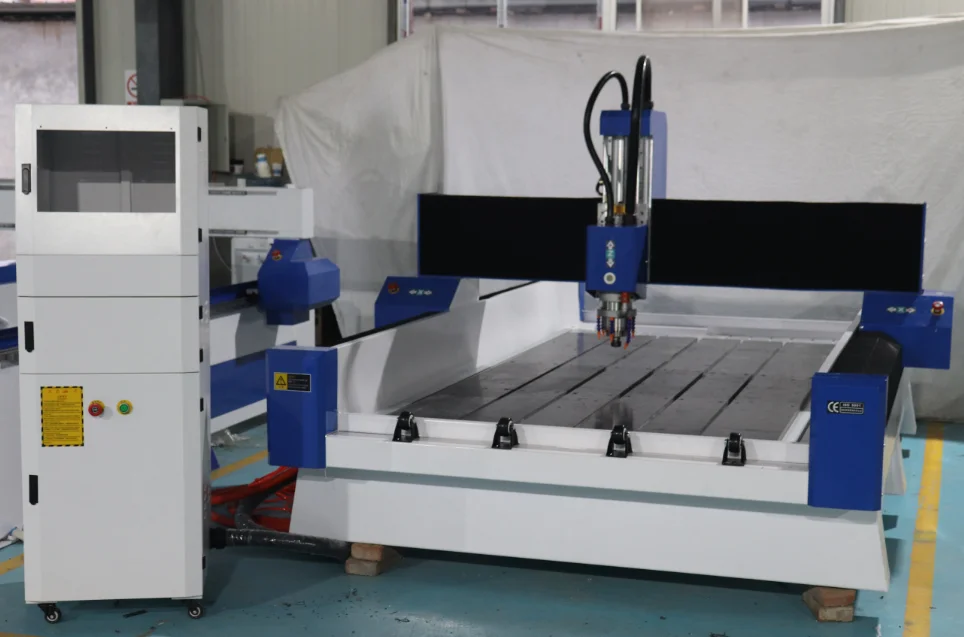

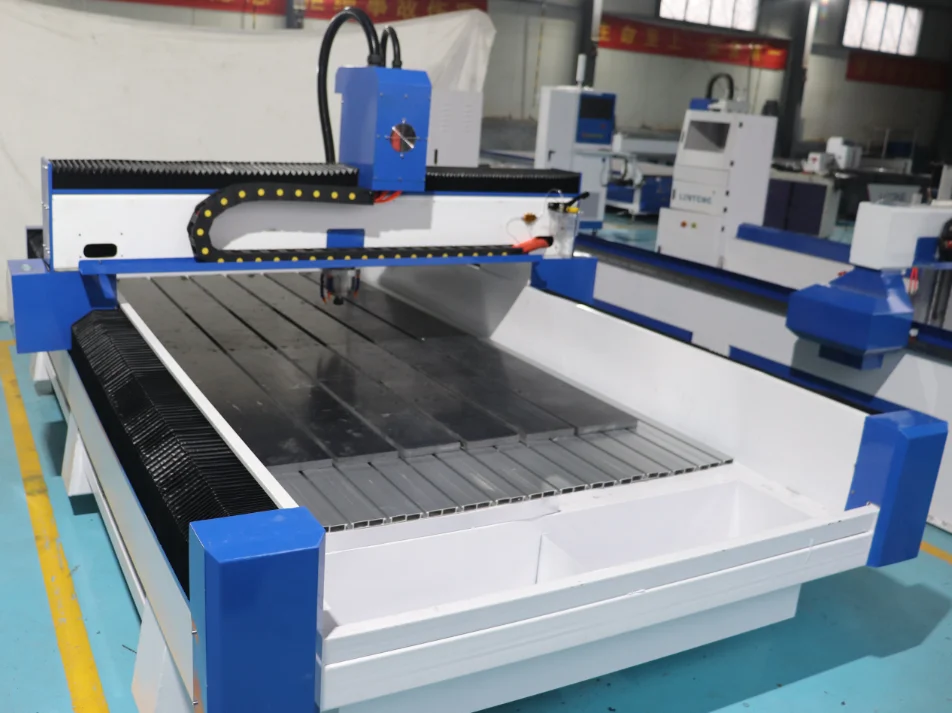

Heavy stone engraver machine cnc router 1325/cnc carving machine for marble granite stone
Product Description
![VB$DL6TISP]BU}PLO0Q`4_C.png](http://sc03.alicdn.com/kf/H7ec8dec279f94cbfa1b17f693d4e7293F/222230951/H7ec8dec279f94cbfa1b17f693d4e7293F.png)
Main features
1. Adopt Taiwan HIWIN Square rails, double-row four columns slide block, high precision, huge bearing
capacity, good moving stability and tools falling accuracy.
2. Whole mahine welded with thickness steel tubes, not easy to be deformed. working table backed
with steel plate, bearing capacity more than 1ton
3. Constant power spindle motr, big cutting intensity and high efficiency
4. Dust proof and wate pcroof design protects the transmission components
5. Equipped with water tank and automatic water cooling system
Technical configuration
| Description | LT-1325 granite stone cnc router | |||||||||
| X, Y axis working area | 1300mm (X)*2500mm(Y) | |||||||||
| Z axis Max. height | 300mm | |||||||||
| Working table | T-slot Table | |||||||||
| Machine structure | 8mm thickness welded steel tube, cast iron vertical shafts and steel gantry | |||||||||
| Spindle | 5.5kw water cooling spindle | |||||||||
| Spindle speed | 0-24000RPM | |||||||||
| Spindle collet type | ER25 | |||||||||
| Cutter diameter | 3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm, 16mm | |||||||||
| Collets | 3.175mm/6mm/12.7mm/16mm | |||||||||
| Guide rail | Taiwan HIWIN20 Linear square rails, thickness 20mm | |||||||||
| Driving method | Taiwan Helical rack for X, Y axis, ball screw for Z axis | |||||||||
| Motor and driver | Leadshine stepper motor (86BYG450B) and driver (MA860H) | |||||||||
| Inverter | 7.5kw Fulling inverter | |||||||||
| Voltage | AC380V/50-60HZ | |||||||||
| Max. Traveling speed | 25000mm/min | |||||||||
| Max.working speed | 12000mm/min | |||||||||
| Machining accuracy | <0.05/300mm | |||||||||
| Control system | Nc-studio control system | |||||||||
| Compatible software | Type3/Artcam/Castmate/Coreldraw/AutoCAD and other CAM/CAD software | |||||||||
| Instruction formatter | G code *.u00 *.mmg *.plt | |||||||||
| Environment temperature | 0-45℃ | |||||||||
| Environment Humidity | 30%-75% No coagulate water | |||||||||
| Other | Tool Sensor; manual oiling system | |||||||||
| About Rotary device | Diameter=150mm; Length=1200mm; | |||||||||
| Diameter=200mm; Length=1200mm; | ||||||||||
| Note: | ||||||||||
| Diameter 0-500mm; Length 0-2000 can be customized | ||||||||||
Application
3D relief ,linear engraving and cutting Of natural marble,bowlder ,granite,artifical stone,tombstone,milestone,
tiles,glass etc.Two-dimensional chamfering and drilling.

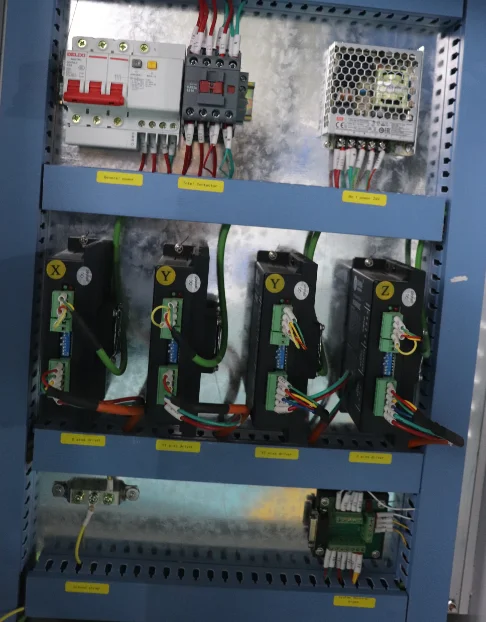

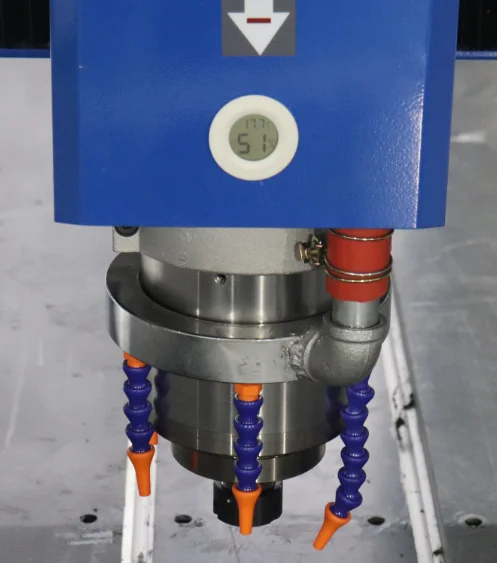

Main parts
Company Information
Jinan LintianzhiyuanCNC Equipment Co., Ltd. is famous in CNC equipment, located in Jinan, Shandong.
Our company integrates the R&D, production, sale and maintenance services. We depend on high-tech
and high-quality products to build the world brand.Our main products: large scale (automatic tool change)
CNC woodworking engraving machine, CNC advertising engraving machine, CNC marble engraving machine,
CNC plasma cutting machine, CNC glass engraving machine, CNC jade engraving machine, CNC metal mold
machine, laser cutting machine, laser cutting bed, laser seal engraving machine and computer cutting plotter
product.
“ We provide one-stop service, including the design, installation, training, commissioning, maintenance and consulting. Your satisfaction is always what we pursue.”
Our Services
Technical Support
1. 24 months quality guaranty for the machine main parts, excluding the consumables, such as water pump,
air pump, exhaust fan, etc. shall be changed free of charge when if any problem during the warranty period.
2. Lifetime maintenance free of charge.
3. Free training course at our plant.
4. Manual of video with machine teach the client how to setup, test, align laser, operate and maintain, also
supply the specifications setting for speed and power to engrave or cut on various material.
5. Life long tech support by email and web camera.
Warranty
2 years for laser machine
10 months for laser tube
Delivery Time
1. for small machine, our standard model, generally 7-10 working days
2. for big machine , our standard model, generally 10-15 working days
Payment Terms
100% T/T, 30%-45% as deposit, the balance before delivery
FAQ
FAQ
1. I never use this kind of machine before, is it easy to learn?
User-friendly English manual and operation video will be sent together with the machine, if there is still
any question, we can talk through phone or Skype.Morever, you could come to our factory to learn how
to use it before shipment. our technicant will give you professional guidance.
2. If the machine has problem, what can you do to help?
Free parts will send to you within warranty time, and there are 24/7 technique support by mail and phone.
our after-sales staff can come to your workshop if the problem still cannot be fixed.
3. How could I know if this machine is suitable for me?
Before ordering, we will provided every details of the machine for your reference, or you could tell us your
work piece,our techniciant will recommend the most suitable machine for you. Furthermore, we can make a
sample in advance for you to check if your drawing is provided.
4) MOQ ?
Our MOQ is 1 set machine.We could send machine to your country port directly,please tell us your port
name.There will be best shipping freight and machine price send to you
