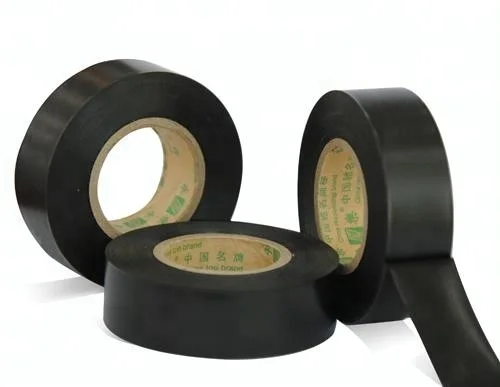

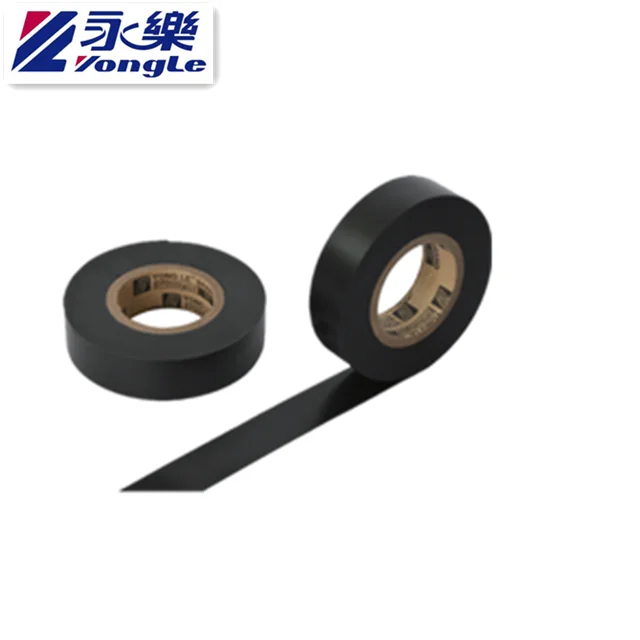

Factory hot sales banding material of high voltage automobile splicing tape



Description:

PVC splicing tape for wire harness is a thin premium grade plasticized PVC film coated with an aggressive rubber based adhesive with good characteristics. It is suitable for continuous use at 85℃ with good electric resistance and soft property, not influenced by most chemical substaces and humidity. It complies with ROHS and REACH requirements.



Recommended uses:

Use as permanent splice covering on antomotive wire harnesses.



Model	Total Thickness	Tensile Strength	Elongation at break	Adhesion Strength		Voltage resistance	Temperature Resistance	Flame Resistance
				To steel	To back
UB085N	0.15	25	200	1.5	1.4	1 KV 1 MIN	85	<2
UB100N	0.17	25	200	1.5	1.4	1 KV 1 MIN	85	<2



Standard Size:

Width	Length	Core
40mm	40m	76mm
40mm	100m	76mm



Other sizes and cores are available. Consult factory.



Company Ability

1985 Company founded

(One of the earliest BOPP tape manufactures in China)

1991 Started manufacturing PVC tape

(One of the earliest BOPP tape manufactures in China)

1995 Huaxia Research and Development Center established

1997 UL listed

1998 ISO9002

1999 CE listed

2000 CSA listed

2002 QS9000 and VDA 6.1 certified

2002 BSI certified

2004 ISO/TS 16949 Quality system certified

2005 ISO 14001 certified

2006 Rated one of the most growth-oriented enterprise by Forbes Asia

2006 HUAXIA GROUP participate in the drafting PVC tape industry standards of China

2007 "Yongle"awarded as China Resounding Brand

2007 "Yongle Tape"awarded as China Top Brand

2009 UPC approved

2010 VED approved
