Wood Doors Painting Machines/Furniture Spray Baking Paint Equipment/Automatic Spraying Paint Machine
Product Description
Production Features:
The five axis reciprocating spraying machine with air spraying system will help you get a good coating film and reduce the manual cost. The details of automatic five axis spraying machine are as follows.
1. This machine is widely used in many industry. Generally speaking , standard type of this machine has two product tray. If you want to buy a machine with four product tray, then you will get double yield under the premise of high quality coating.
2. It is easy to debug the machine. You can finish debugging for usual product in 15 minutes. The program writing of machine is regard one plane of product as a program segment. When you finish setting the start point , end point and the spraying speed, then you have finished a program segment. After finish every program of plane, then the complete program is finished.
3.This machine has continuous spraying method and step spraying method.
4.The atomization and sector, painting output of spray gun can be controlled by computer. When the machine begin to spray , the spray gun can blow, in order to blow dust.
5.It is easy to use this machine ,and you can store 160 programs of product. The machine operated by fully digital computer.
Product Specification:
SPECIFICATIONS FOR FIVE AXIS MACHINE | |
Control system
| 1.The PLC use TAIWAN FATEK Brand 4.The switching power supply use the Taiwan MEANWELL power 5.The Proximity switch and reply use the Japan OMRAON brand |
Aluminium profile module | Our own mold |
Drive system | The servo motor driving use Taiwan DELTA brand |
| 1.Aluminum profile module 6.Rack and pinion drive |
Product exchange platform | 1.Precision splitter:Flange Model 140/180DF, high precision, high speed 3.tricrystal transducer control |
Product rotation platform | 1..Precision splitter |
Spray gun | 1.Automatic spraying guns:Japan ANEST IWATA brand WA-101 series automatic spraying. the calibre is 1.0mm 2.The power use Janpan SAMSR stepping motor 3.The degree of horizontal travel for the gun: 0-180 degree |
Programming mode | Off line programming |
Power supply | 4KW |

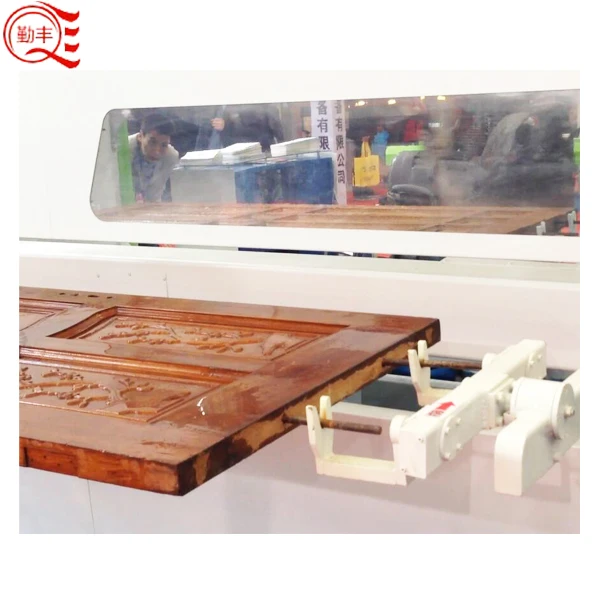

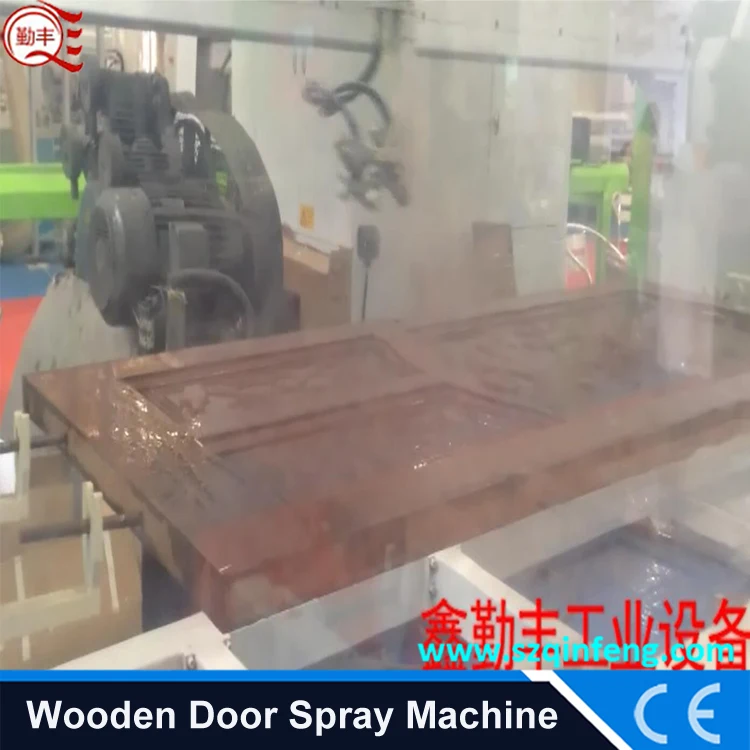

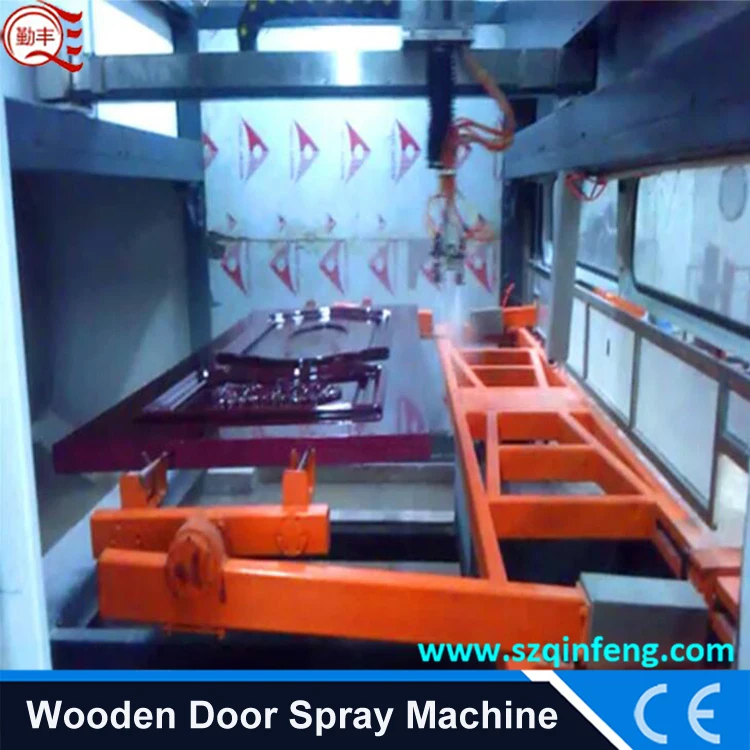

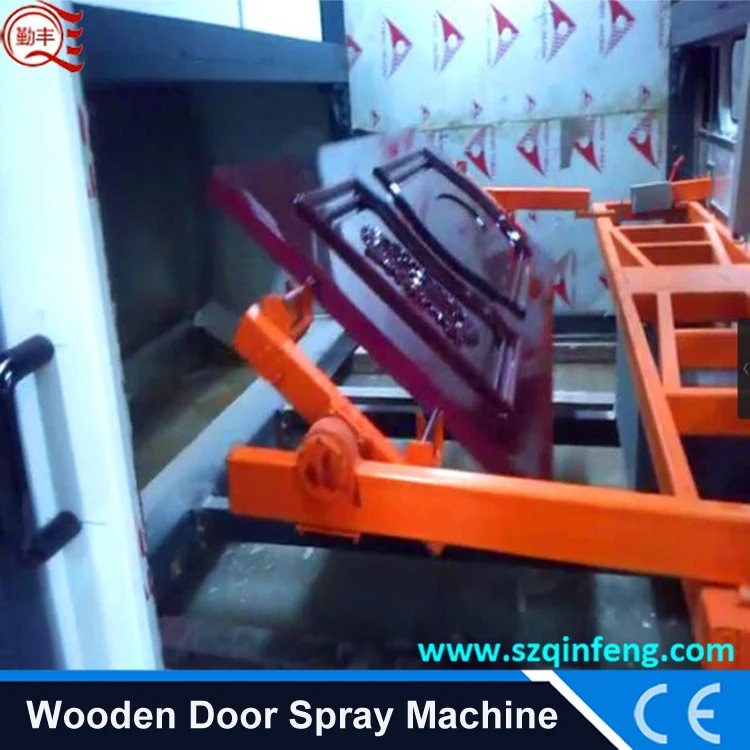

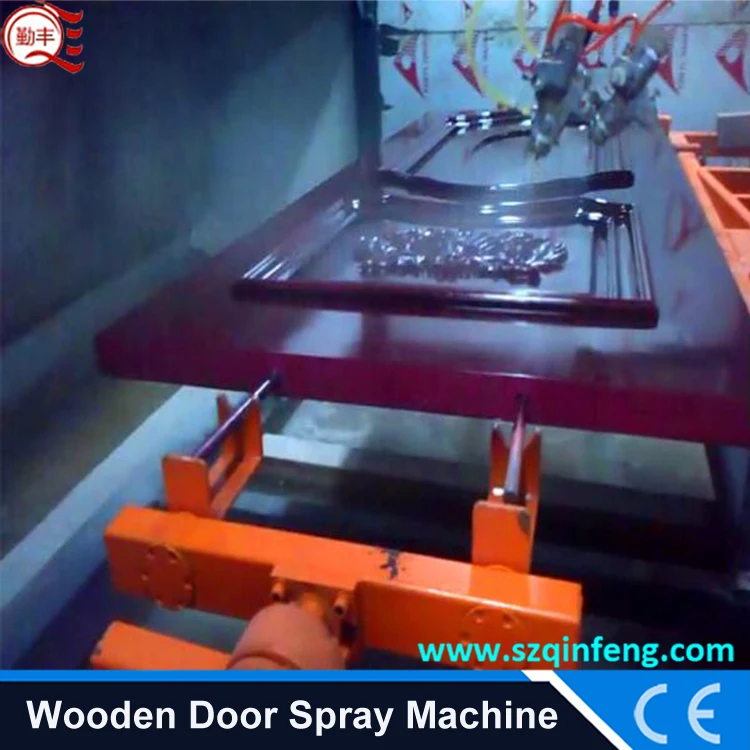

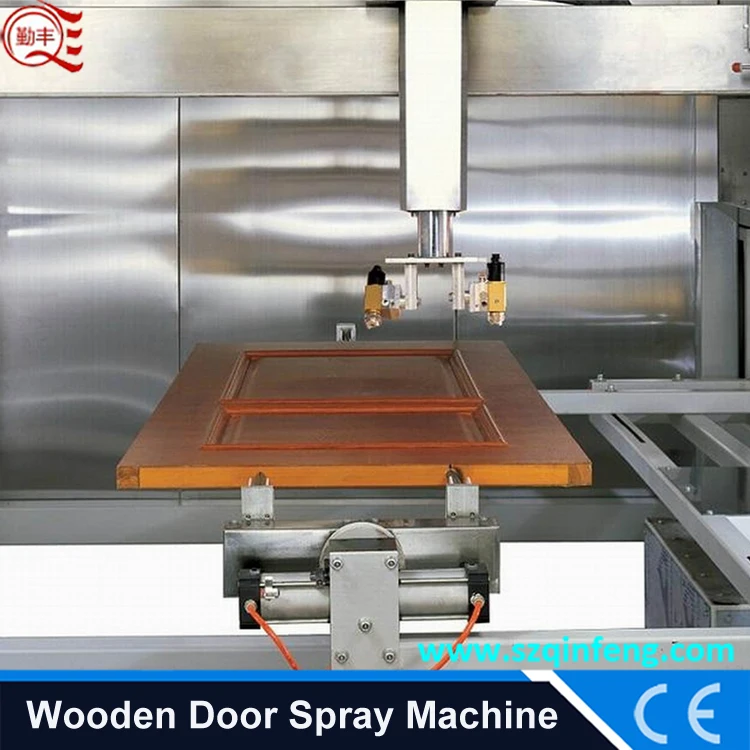

Product Pictures:
Application:
The wooden door spray paint machine is widely used for spraying the wooden door product, High quality spraying effect and high efficiency.
Related Products
Company Information
Shenzhen Xinqinfeng industrial equipment co., LTD. was established in 2004.The products are sold to various regions of mainland China and foreign countries.From a development department,Xinqinfeng has become a professional manufacturers which currently specializing in non-standard automatic mechanical Equipment’s development, design and production, with standard large plant and advanced production equipment.After years of unremitting efforts and accumulation, Now Xinqinfeng specializes in industrial automation equipment with considerable scale and strength.
Main products include industry surface automatic painting, automatic drying, as well as automatic spraying the entire plant planning, designing and manufacturing, as well as industrial robots, robots, automation equipment and other non-standard test equipment.
Main Products:
- Whole factory plastic parts automatic dust coating equipment
- Whole plant metal products electrostatic coating equipment
- Whole factory furniture electrostatic coating equipment
- Whole plant locomotive, motorcycle coating equipment
- Manipulator, Spraying robot etc Industrial Robot equipment
- Automatic UV curing furnace line
- Fully automatic electrostatic dust removal equipment
- DISK automatic electrostatic coating equipment
- All kinds of Drying,silk-screen equipment
- All kinds of PVC/SUS belt,Nylon conveyor equipment
- Teflon/Ceramic powder /PE immersion high temperature equipment
- All kinds of Water Curtain Booth etc equipment
- High level Air Supply System
- Waste water/waste gas recycling system
- Whole plant electroplating coating equipment
- Whole factory electrophoresis coating equipment
Packageing & Shipping:
it will packed by the vacuum membrace firstly, Then use the square box section to fixed,finnaly the equipment will be sealed with the wooden frame.
Infos Requirements:
Normally, Most of the machine is customized for our customer. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please send us the detail infos about your workpiece as blow:
1. The maximum size of workpiece:
2. The output per month/per day:
3. Spraying process(What paint will you use? Spraying times? )
4. Other requirements from customer:
PLS Offer the relative infos above,Then We will provide our professional suggestions and work out an appropriate design for your project.Then the quotation with detail specification will be offered to you ASAP.
