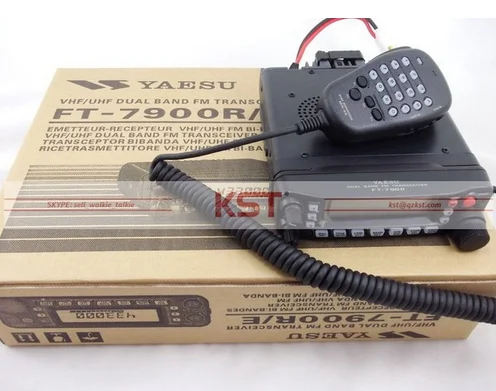

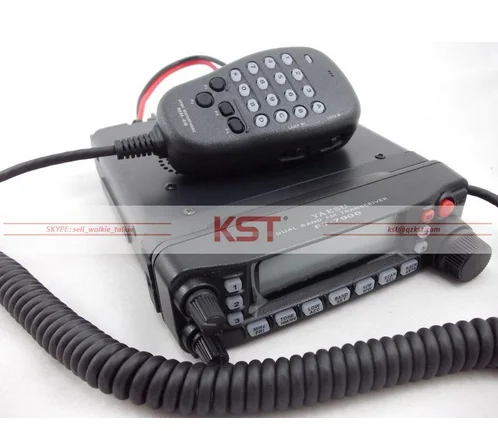

Yaesu FT-7900R автомобильное мобильное радио двухдиапазонное 10 км базовая станция автомобиля мобильный трансивер

GENERAL

Frequency Range Receive:

108-520 and 700-999 MHz (cellular blocked).

Frequency Range Transmit:

144-148, 430-450 MHz

Frequency Steps:

5/10/12.5/15/20/25/50/100 kHz

Operating Modes:

F3E, F2D, F2A

Antenna Impedance:

50 Ohm, Unbalanced

Antenna Jack:

SO-239 [U.S.A. version]

Frequency Stability:

? ppm -4°F to 140°F (-20°C to +60°C)

Supply Voltage:

DC 13.8V ?5%, Negative Ground

Current Consumption:

Receive Squelched - Less than 0.5 A

TX

HI

0

144 MHz

8.5 A

0

430 MHz

9.0 A

Operating Temperature Range:

-20°C to +60°C (-4°F to +140°F)

Case Size:

5.5 x 1.6 x 6.6 inches (140x42x168 mm)

Weight:

Approx. 2.2 lbs (1.0 kg)

TRANSMITTER

RF Power Output:

50/20/10/5 Watts (144 MHz)

0

45/20/10/5 Watts (430 MHz)

Modulation Type:

Variable Reactance

Maximum Deviation:

? kHz, ?.5 kHz

Spurious Radiation:

-60 dB or better

Microphone Impedance:

2 K Ohm

Data Jack Impedance:

10 K Ohm

RECEIVER

Circuit Type:

Double-Conversion Superheterodyne

Intermediate Frequencies:

45.05 MHz & 450 kHz

Sensitivity (12dB SINAD):

<0.2uV typical

Selectivity:

12 kHz/30 kHz (-6/-60 dB)

Squelch Sensitivity:

Better than 0.16uV

AF Output:

2W @ 8 Ohm @10% THD

AF Output Impedance:

4-16 Ohm (Internal Speaker 8 Ohm)

Specifications are subject to change.
