Понижающий преобразователь напряжения ruideng DPH5005 с

Technical parameters:

Input voltage range: 6.00-50.00V

Output current: 0-5.000A

Product Weight: about 267g

Open size: 71mm*39mm

Length of connecting line: 200mm

Output voltage resolution: 0.01V

Output Voltage accuracy: ± (0.5% + 3 digits)

Output voltage range: 0V-50.00V

Output power range: 0-250W

Display module size: 79*43*38(mm) (L*W*H)

Power module size: 93*72*42(mm) (L*W*H)

Fixed hole center distance: 86mm, 64mm

Output current resolution: 0.001A

Output Current accuracy: ± (0.5% + 5 digits)

Pay attention bfore shipping:

There are 3 version , No communication version, communication + USB version, communication + USB+ BT (bluetooth).

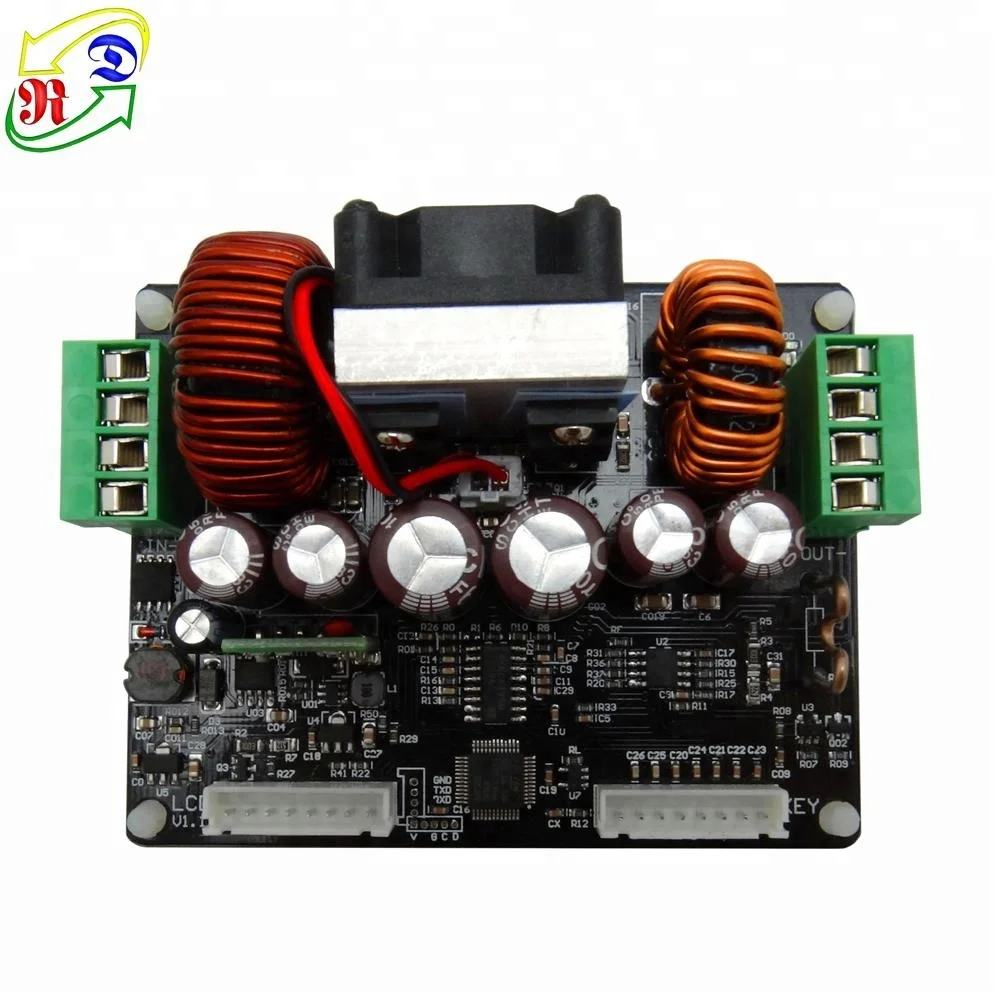

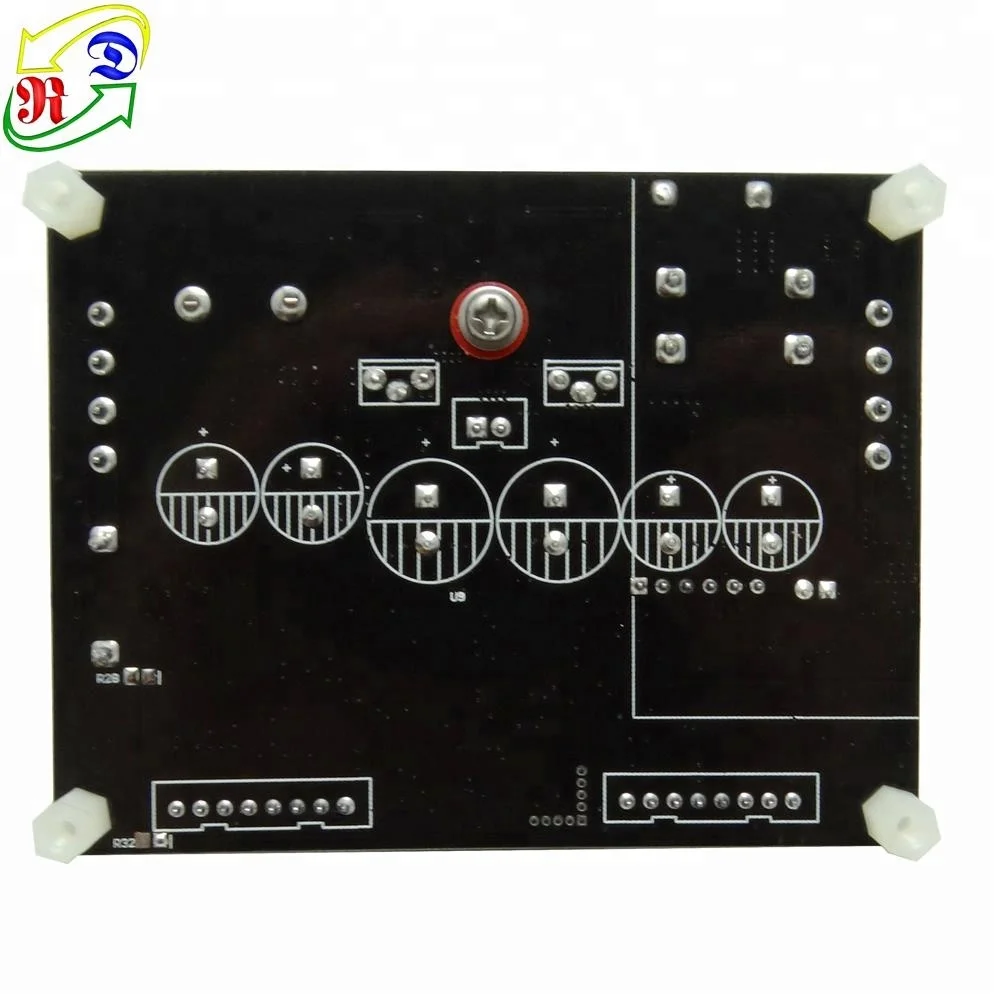

Connection description:

IN+: Input positive                                 IN-: Input negative:

OUT+: Output positive:                         OUT-: Output negative

Note: Input voltage range is DC 6-50V and 50V is the limit voltage; please leave a room to use. Or else it will be burnt. The input must be DC power supply, not AC 220V, or else it will be burnt too. Though this module has reverse connection protection and output short circuit protection, you can muse be in strict accordance with connection description to connect. If you connect the supply power with output, the module will be burnt.

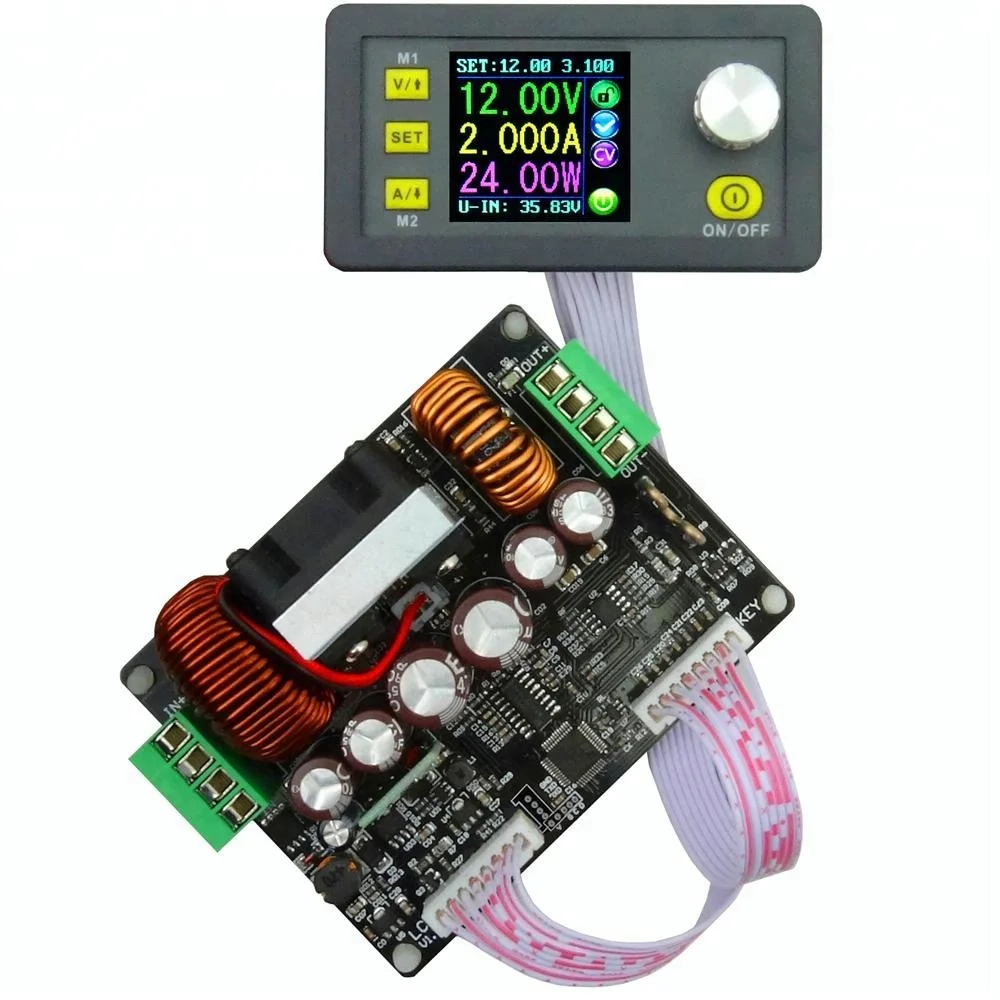

1-Voltage setting/Page up to choose/Shortcut extract M1 data group

2-Data setting/ Extract value of the specified data group/Store value into the specified data group

3-Current setting/Page Down to choose/Shortcut extract M2 data group

4-1.44 inch color LCD screen

5-Coding potentiometer/Data adjustment/Lock all buttons

6-Open or close output

Operating instructions:

1. Set the output voltage and output current on the main interface.

2. Set the data on the data setting interface.

3. Set the protection value.

4. Adjust the brightness of screen.

5. Data setting and store the specified data group.

Function description:

1. Open or close the output.

2. Lock the button to avoid wrong operation.

3. M0-M9 ten groups data group.

4. Extract Shortcut storage data group M1 or M2.

5. Extract the specified data group.

NOTE:

1. When you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.
2.If you want to ensure output at full load, you must make sure that input is higher than 18V and 180W; pay attention to heat elimination at full load.
3. Connection between display part and power part should be according to the corresponding words. Otherwise it will not work by wrong connection.
4. If you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uH, C is over 2200 uf.
