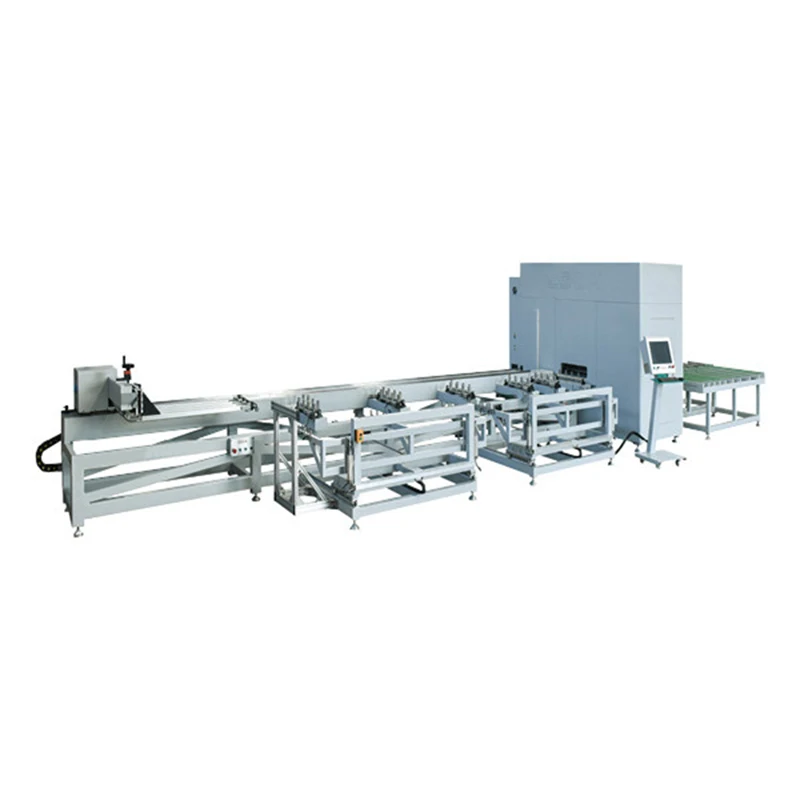

Станок для резки оконных профилей/китайский станок обработки алюминия с

Product Application

--Suitable for efficient sawing of aluminum profiles with cutting 45 ° and 90 °.
-- Automatic feeding table can be continuous automatic clamping profiles for uninterrupted transmission, saving-time

    and efficient.
--Adopt intelligent control system, sending and discharging section adopt servo motor and bevel gear drive, transmission

   speed is fast.
--Repeat length and precision are high; cutting size is accurate, size change is quick.
--"Send", "Take" out the use of pneumatic manipulator to ensure the feeding accuracy and discharge speed.
-- The discharging section has the function of automatic sorting, which can automatically sort the sections of different

    lengths.
--Optimize the cutting function: according to the job list cutting details, the profile can be optimized cutting.
--High-precision spindle motor drives the saw blade to rotate smoothly and reliably with high cutting precision.
--Standard bar code printer, real-time print material identification, identification of process information to facilitate

   material management.

Main Specification

1) Input Voltage: 380V / 50HZ
2) Total power: 12.5KW
3) Spindle power: 3 × 3.0KW
4) Working pressure: 0.6 ~ 0.8MPa
5) Air consumption: 150L / min
6) Spindle speed: 2800r / min
7) Blade specifications: ∮ 500 × ∮ 30 × 120T
8) Sawing size (W × H): 90 ° 135 × 255mm, 45 ° 110 × 170mm
9) Sawing length: 350 ~ 6000mm

Cutting Precision
1) Repetition on length: ± 0.2mm
2) Repetition on angle: ± 5'
3) Verticality of cutting surface: 0.1mm (100x100mm section)
4) Planeness of cutting surface: 0.1mm (100x100mm section)

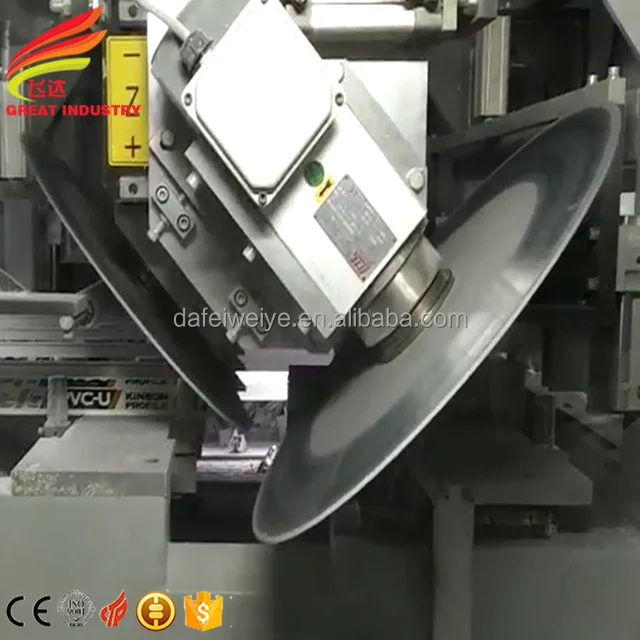

HIGH-PRECISION

SAW BLADE

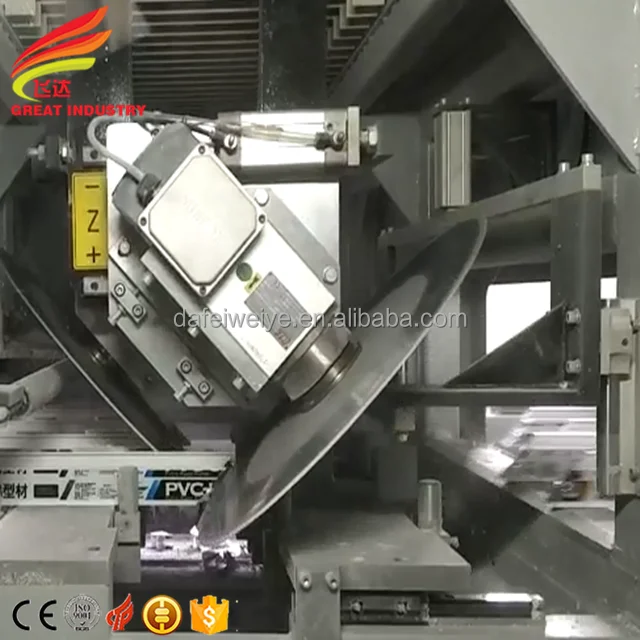

                  CUTTING PROFILES

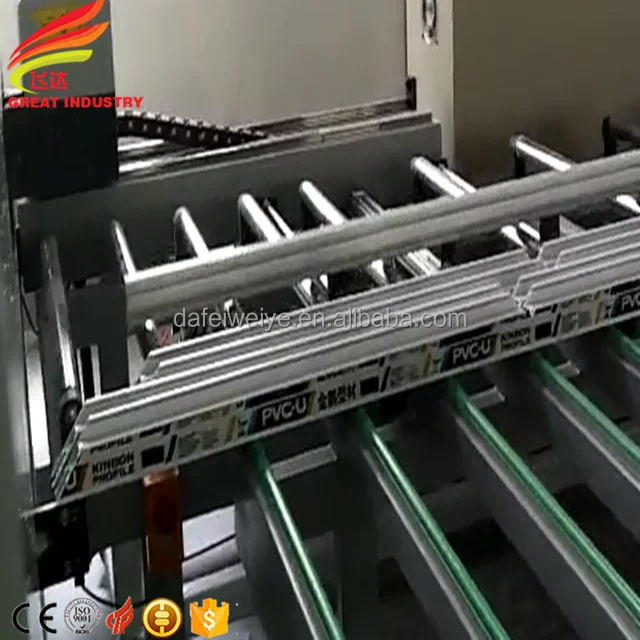

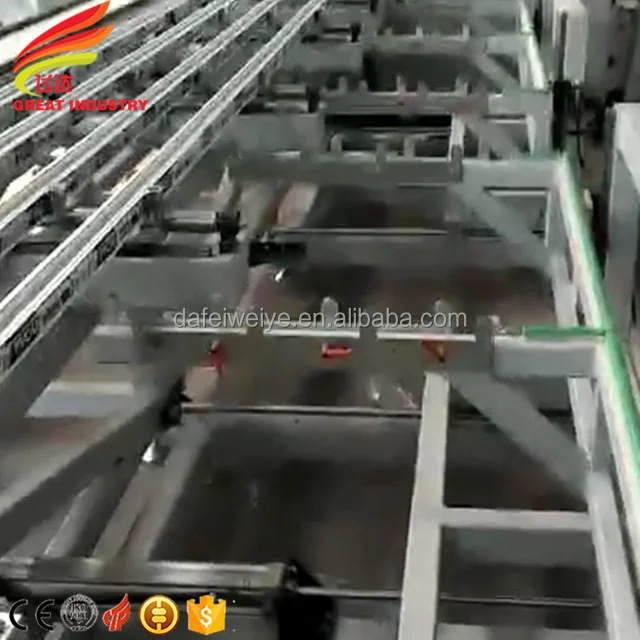

FULLY AUTOMATIC MOBILE WORKBENCH

          PERFECT CUTTING

Q: If I make Aluminum window and door, how many basic machines do i need?
A: Double head cutting saw ,Lock hole copy milling machine,End milling machine,
    Automatic Corner connector automatic cutting saw,Single head Corner Crimping machine.

Q: How can I get the best machine for our business?
A: Just let us know your cutting material, size, thickness, and working area needed.
     we will suggest the most suitable machine and professional solution.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare.
     We will send you the English version user manual and install video which shows how to
     assamble and use the machine clearly, almost all the customers can operate the machine
     easily.
     Don't worry about this. FEIDA will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual.
     But in case you have any problem, our professional after-service team will provide you any
     support you need any time!
B: We can send you free components to you if your machines are in guarantee time.
C: We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other
    different machines.

Q: When can we arrange shipment?
A: We usually arrange shipment in 15 days after getting deposit, but customized machines should be
     more than 25 days.

Q: What services can provide in your company?
A: Two years guarantee
B: Free adjustment
C: Free training to operation and maintenance workers.
D: Free industrial information
E: Free investment analysis for windows, doors and curtain wall project.
F: Free layout design for windows,doors and curtain wall production lines.
G: Provide follow-up service, regular maintenance and lifetime service for our machines sold.
H: Provide technical support including pressure design and caculation for window and curtain
     wall companies.
I: Provide quick supply of spare parts for window and curtain wall companies.
