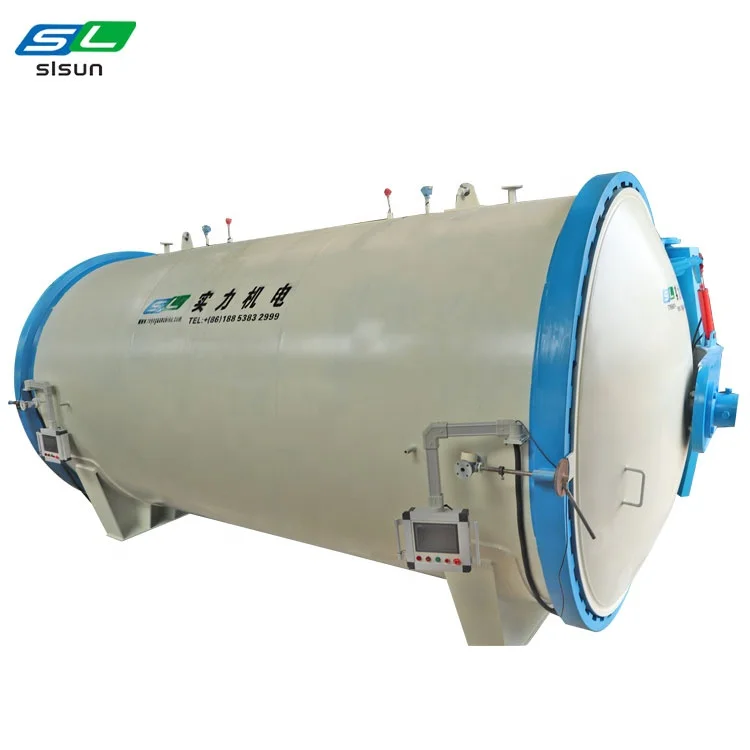

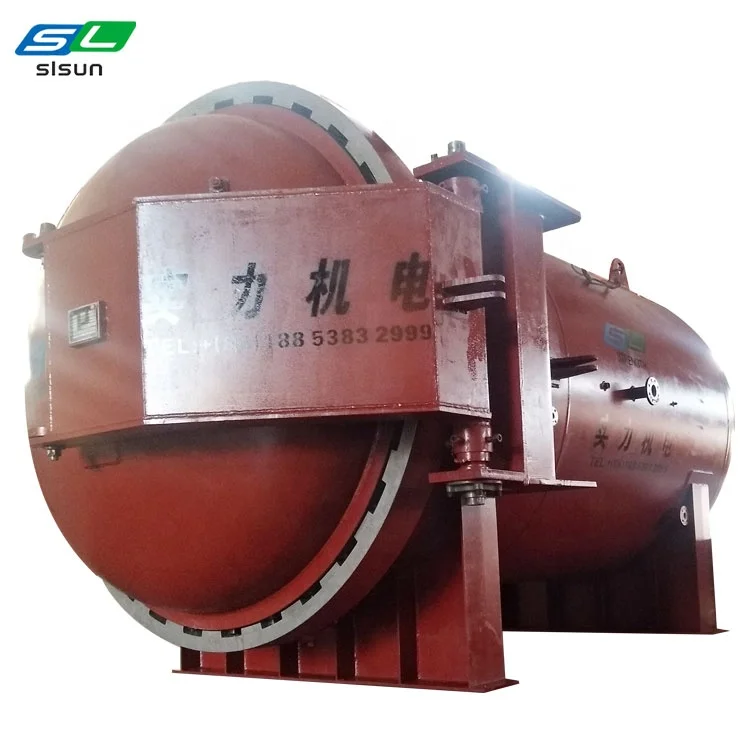

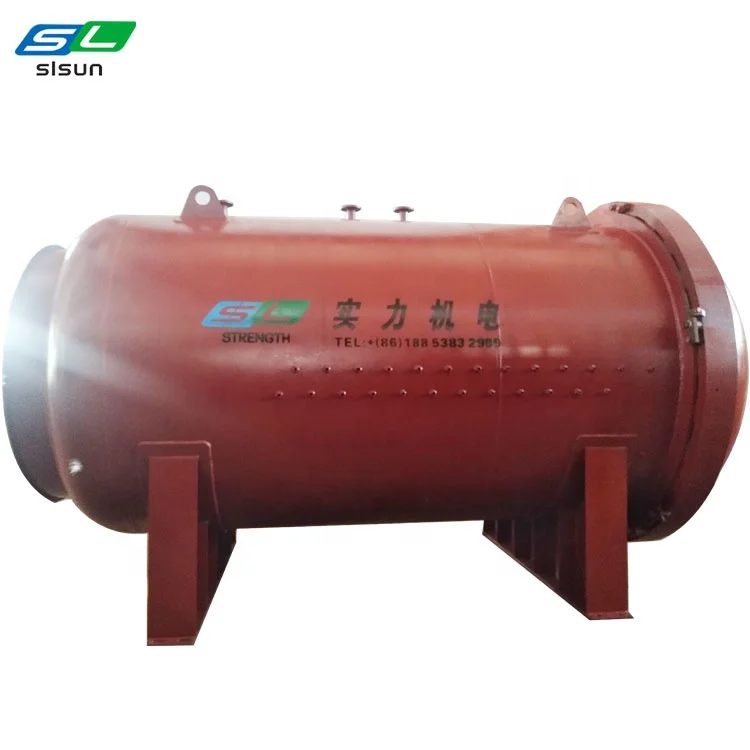

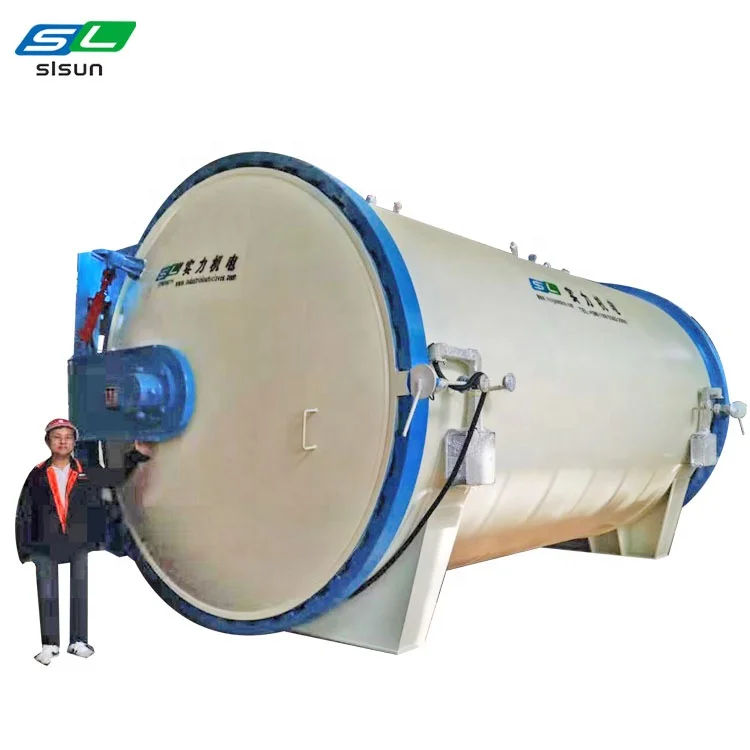

Автоклавная машина из композитного углеродного волокна для продажи

Автоклавная машина из композитного углеродного волокна для продажи

Категория: Сосуды высокого давления >>>
Поставщик: Taian,Strength,Equipments,Co.,Ltd.

Цена:50 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	59500.34 $*	62475.81 $*
Aug-16-2025	59000.77 $*	61950.29 $*
Jul-16-2025	49500.54 $*	51975.69 $*
Jun-16-2025	58000.1 $*	60900.77 $*
May-16-2025	50500.90 $*	53025.16 $*
Apr-16-2025	57000.98 $*	59850.67 $*
Mar-16-2025	56500.25 $*	59325.3 $*
Feb-16-2025	56000.40 $*	58800.71 $*
Jan-16-2025	55500.35 $*	58275.55 $*

Характеристики

Product Description

ASME standard composite autoclave for aeronautics industry with high quality (also called industrial autoclave for carbon fiber, composite autoclave) is the pressure vessel specially designed and manufactured to fabricate composite material, carbon fiber autoclave is one of the our hot sale industrial autoclave products. Carbon fiber autoclave (also called a composition material or composite) is made from two or more constituent materials with significantly different physical or chemical properties that produce a material with characteristics different from the individual components when combined.

Specification

No	Item	Data
1	Effective Diameter	600 mm-6000 mm
2	Effective Length	800 mm-30000 mm
3	Working Pressure	0.2 Mpa- 10.0 Mpa
4	Working Temperature	100℃-500℃
5	Temperature Control Accuracy	±2 ℃
6	Pressure Control Accuracy	±0.01 Mpa
7	Vacuum Limit	≤ 2 Kpa
✳Remark: Other specifications can be customized according to specific requirements.

Product Advantages

①Adopt Siemens automatic control system, save energy and manpower
② Uniform heat distribution in the tank, constant pressure.
③Suitable for curing of various kinds of composite materials.
④Perfect pressure control, forming effect is good.
⑤The hot pressure tank adopts PLC automatic control system, with accuracy up to ±1-2℃.
⑥ Thermal insulation tank with aluminum silicate wool, head with double layer insulation, plus stainless steel lining insulation effect is good.
⑦With quick opening type pressure vessel double safety interlock device. Synchronous alarm, pressure boost after closing, pressure relief after opening.

Details Images

German Siemens PLC one-key control system. More precise control.

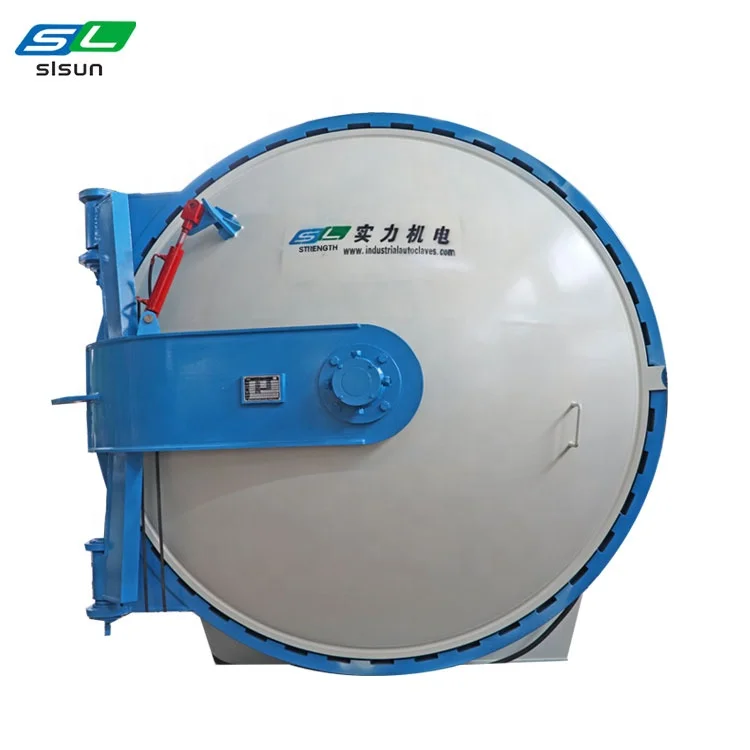

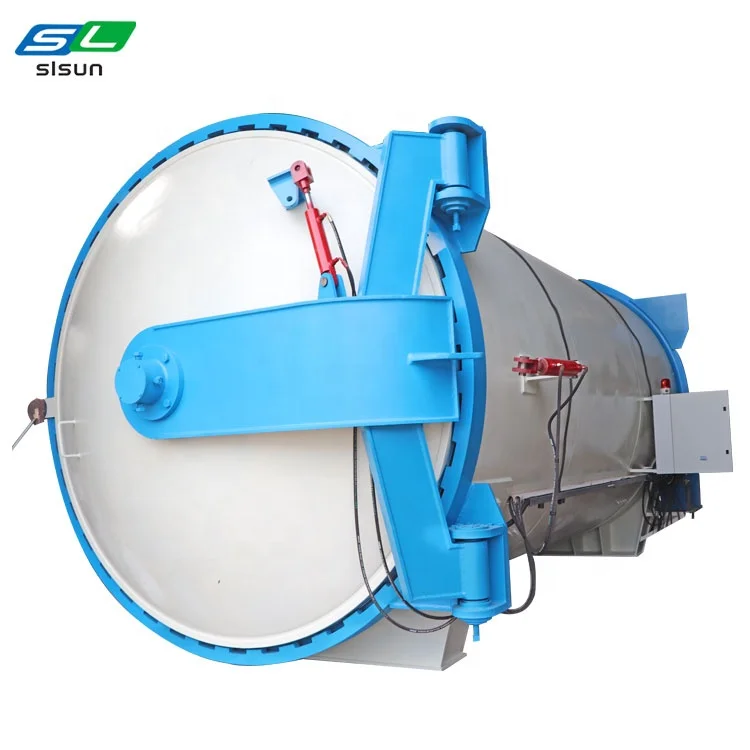

Hydraulic automatic safety interlock.
Easy and fast operation

Manual safety interlock device.
Double insurance, safer.

High quality insulation materials.

Almost perfect craftsmanship.

Vacumn Pump

Packing & Delivery

Protect the surface with plastic film

Accessories will be inside the kettle.

Ship with container.

Ship by truck on the way.

Port lifting.

Transport on the way.

Company Profile

Tai'an Strength Equipments Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions.

Company has cover an area of 70000 ㎡ manufacturing base and 15000 ㎡ modern manufacturing plants, can
provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
