Lightcarbon Новый aero углерода 700c шоссейная рама LCR015-D
- Категория: Велосипедная рама >>>
- Поставщик: Xiamen,Lightcarbon,Composite,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.84 $* | 0.16 $* |
| Aug-19-2025 | 0.84 $* | 0.46 $* |
| Jul-19-2025 | 0.61 $* | 0.36 $* |
| Jun-19-2025 | 0.31 $* | 0.38 $* |
| May-19-2025 | 0.53 $* | 0.9 $* |
| Apr-19-2025 | 0.20 $* | 0.33 $* |
| Mar-19-2025 | 0.47 $* | 0.85 $* |
| Feb-19-2025 | 0.2 $* | 0.20 $* |
| Jan-19-2025 | 0.17 $* | 0.76 $* |
Характеристики
Products Description

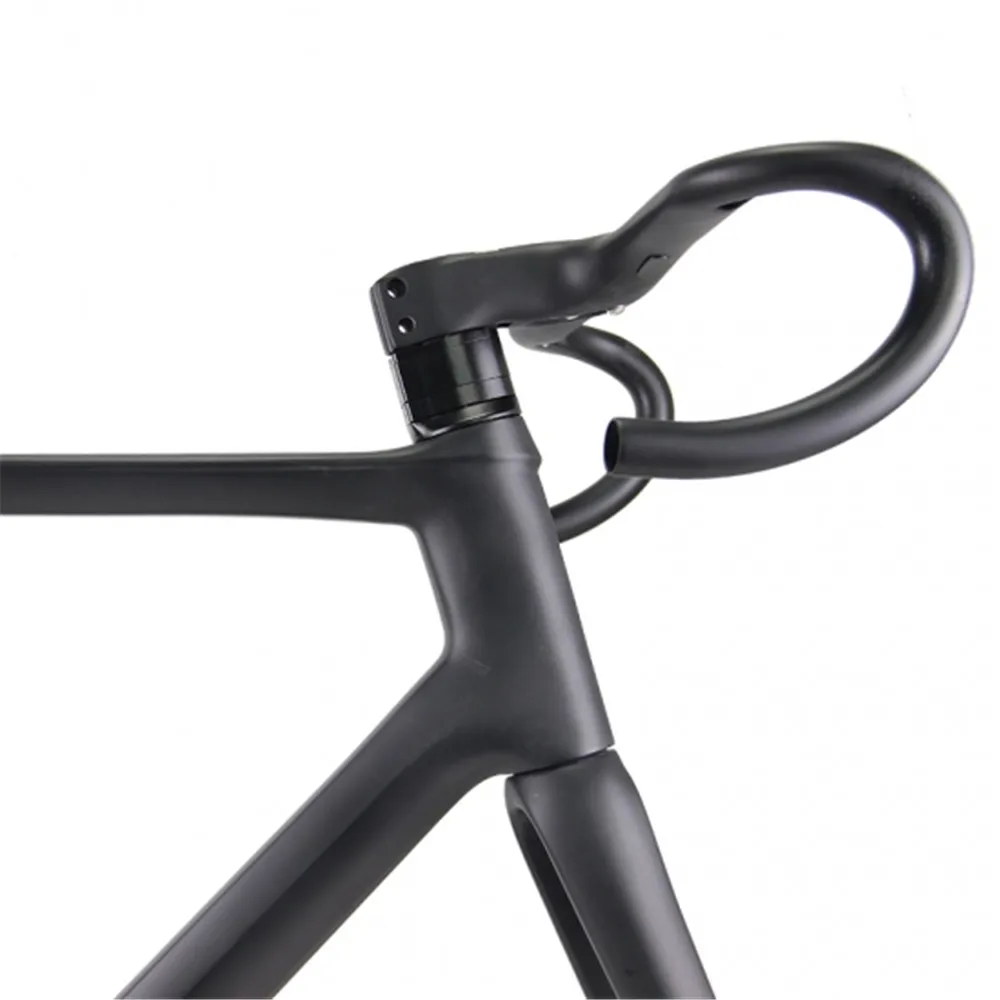

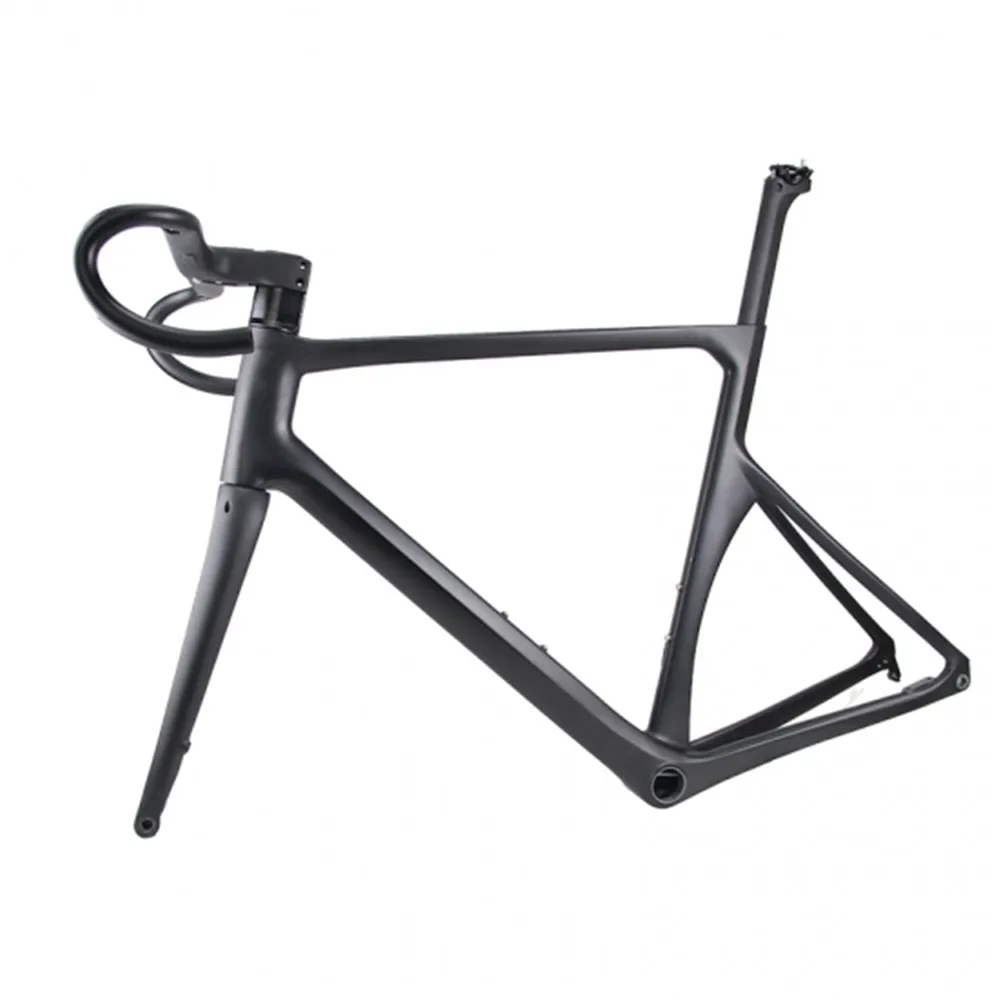

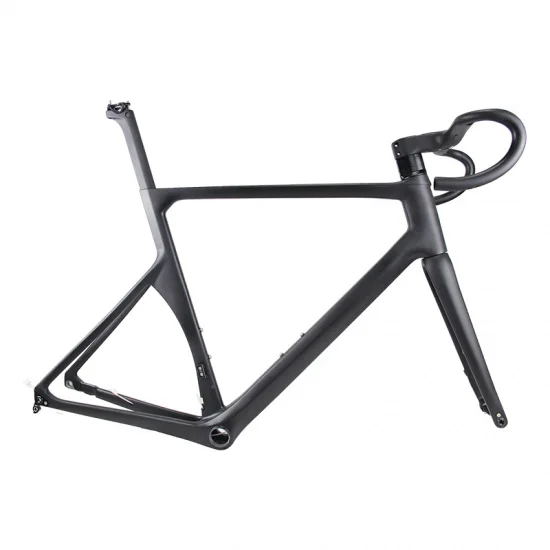

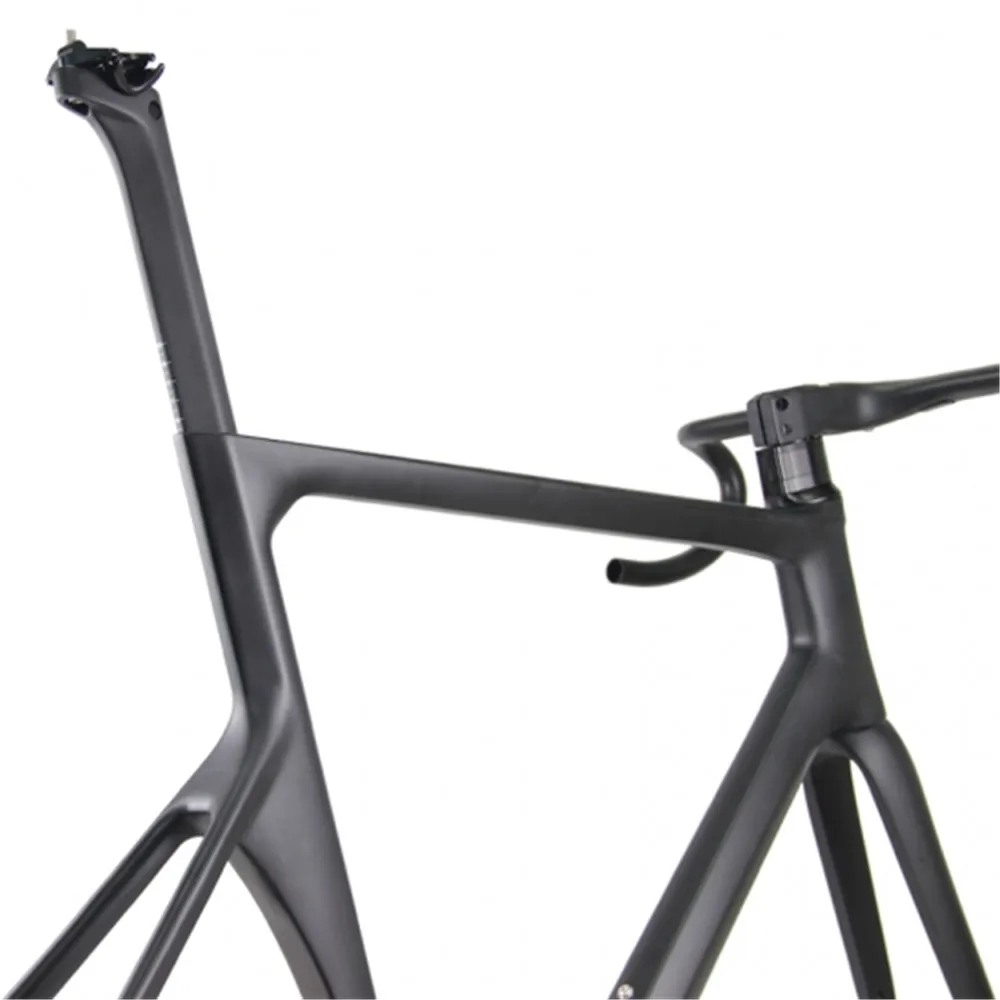

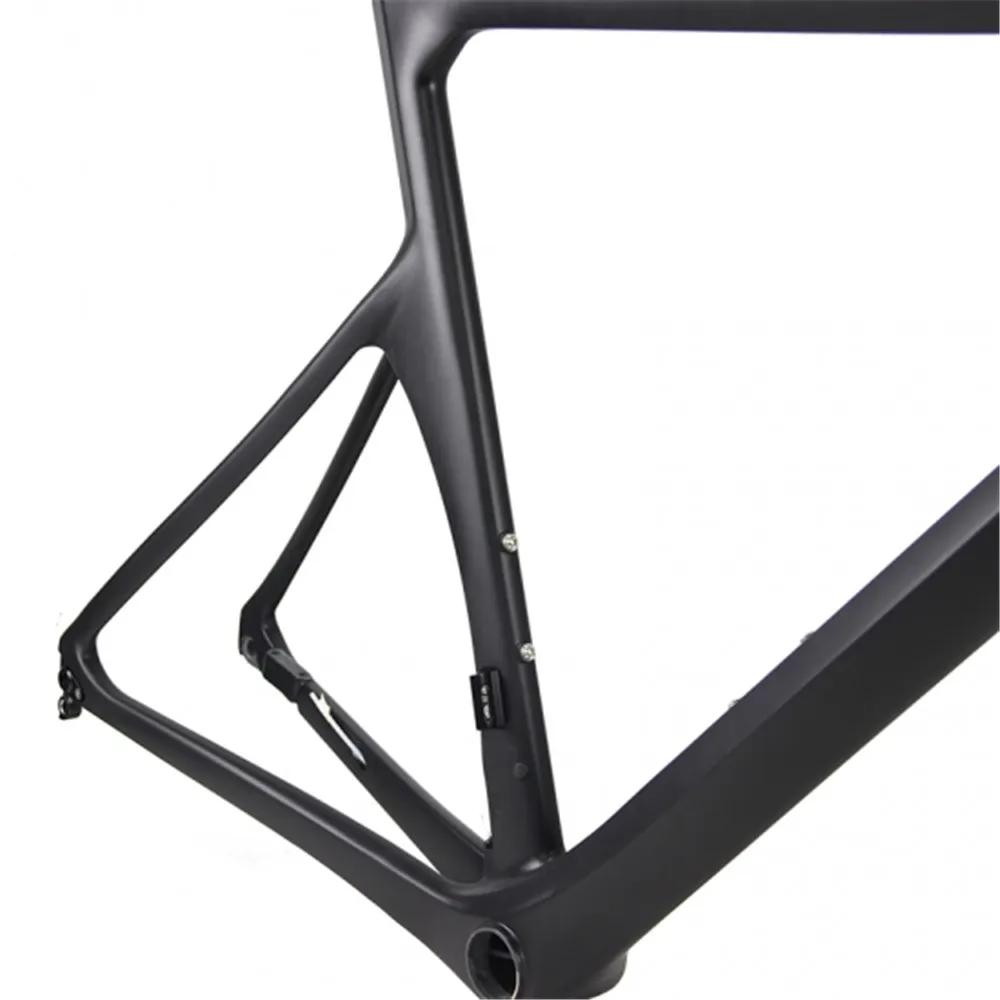

Lightcarbon new aero carbon 700c road bike frame LCR015-D disc brake type
- New Aero Carbon Road Disc Brake Frame
- Flat mount Disc brake 140mm
- Full internal cable routing
- Machanical and Di2 groupset compatible
- High modulus carbon fiber
- Flat mount Disc brake 140mm
- Full internal cable routing
- Machanical and Di2 groupset compatible
- High modulus carbon fiber
Frame | Lightcarbon New Aero Carbon Road Disc Brake Frame |
Material | High modulus Toray T700 carbon fiber |
Size | 480, 510, 540, 570 |
Fork | Lightcarbon specify carbon fork |
Handlebar width | 400/420/440mm |
Stem | 90/100/110/120mm |
Headtube | Straight 1 1/2" head tube |
Weight | 1150g/54cm |
Seatpost length | specify seatpost |
Bottom bracket | BB86 |
Max tire clearance | 700*28c |
Brake mount type | Flat mount Disc brake 140mm |
Dropout | Front 12*100mm thru axle Rear 12*142mm thru axle |
Groupset | Recommended install electronic shifting groupset |
Handlebar&stem | Compatible with handlebar HBR07 ONLY |
Test Standard | ISO4210 |
Warranty | 2 years |
Geometry
LightCarbon new road frame geometry
480 | 510 | 540 | 570 | |
SEATPOST INSERT LENGTH | 200mm | 250mm | 270mm | 280mm |
REACH | 369mm | 392.8mm | 395.4mm | 404.3mm |
TOP TUBE LENGTH, HORIZONTAL | 525mm | 550mm | 570mm | 590mm |
STACK | 524mm | 533mm | 553.8mm | 571.2mm |
WHEELBASE | 956mm | 985mm | 985.5mm | 1002.6mm |
CHAINSTAY LENGTH | 405mm | 405mm | 405mm | 405mm |
FRONT CENTER | 561mm | 586.6mm | 590.2mm | 604.2mm |
BB DROP | 68mm | 68mm | 68mm | 68mm |
BB HEIGHT | 372mm | 372mm | 372mm | 372mm |
SEAT TUBE ANGLE | 73.5° | 73.5° | 72.5° | 72° |
HEAD TUBE ANGLE | 72.5° | 73° | 73.5° | 73.5° |
SEAT TUBE LENGTH | 480mm | 510mm | 540mm | 570mm |
HEAD TUBE LENGTH | 120mm | 130mm | 150mm | 170mm |
BIKE STANDOVER HEIGHT(700C*28C) | 745mm | 776mm | 800mm | 822mm |
FORK RAKE/OFFSET | 45mm | 45mm | 45mm | 45mm |
FORK LENGTH, FULL | 370mm | 370mm | 370mm | 370mm |
TRAIL | 60.4mm | 58.4mm | 53.8mm | 53.8mm |
Technology & Test
High Modulus Toray Carbon Fiber
The prepreg we use is weaved with high modulus carbon fiber(Toray T700, T800, T100) and impact resistance nanoment resin, which is the basis to make strong, stiff while still light weight carbon bike components.
PU and EPS(3D mandrel) Technology
PU and EPS((3D mandrel) Technology are used to smoothen the inner surface of frame, well proportion frame wall thickness, which improve the strength and durability of frame.
Who is LightCarbon?
Xiamen LightCarbon Composite Technology Co., Ltd. is the leading manufacturer of carbon bike components in China.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Our main products are: carbon frames and carbon rims.
2012 – We set up a carbon frame factory in Huizhou City, Guangdong Province. Since then we started developing and manufacturing of carbon frames and carbon forks.
2015 – We took shares of a carbon rim factory in Xiamen City, Fujian Province. At the same time, we set up international
LightCarbon team, handling international sales and after-sales service.
Since 2016, we started to exhibit in global bike exhibitions, including Eurobike, Interbike, Cosmo Bike, etc. And have established business relationship with many well-known brands. After 7 years fast development, now we have served customers in over 50 countries.
Why Trust Us?
We have more than 20 engineers in our R&D Dept. Some of them have over 15 years experience in carbon frame bicycle industry, plus worked in OE factories for brands of Specialized, Cannondale, Pinarello etc... With the support of experienced R&D Dept., we are always in the leading for new products developing.
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
All of our carbon frames and rims are made of high modulus carbon fiber (Toray T700, T800 and T1000), and they are tested under new ISO4210 standard.
In addition, we raise the test standard up to 20% to do stricter testing. We never start mass production until our new products pass all the tests successfully.
Warranty: 2 years quality warranty is offered for all our carbon frames and forks, carbon rims and wheels.
At present, there are about 180 workers in our carbon rim factory, and about 150 workers in our carbon frame factory. Our current production capacity is:
carbon frame ---> 2000 sets/month
carbon fork ---> 3500 pcs/month
carbon rim ---> 4500 pcs/month
carbon wheel ---> 1000 pairs/month
Exhibition
2019 LIGHTCARBON Eurobike Show
2019 Taipei Cycling Show
2018 Interbike E-bike Show
2018 Eurobike Show
2017 Italy Cosmo Bike Show
2017 Spain UNIBIKE SHOW
2016 Italy Cosmo Bike
2016 America Interbike show
......
2019 Taipei Cycling Show
2018 Interbike E-bike Show
2018 Eurobike Show
2017 Italy Cosmo Bike Show
2017 Spain UNIBIKE SHOW
2016 Italy Cosmo Bike
2016 America Interbike show
......
Product Packaging
Contact Us
Skype: Wendy-LightCarbon WhatsApp/Mob: 0086-18250750130
