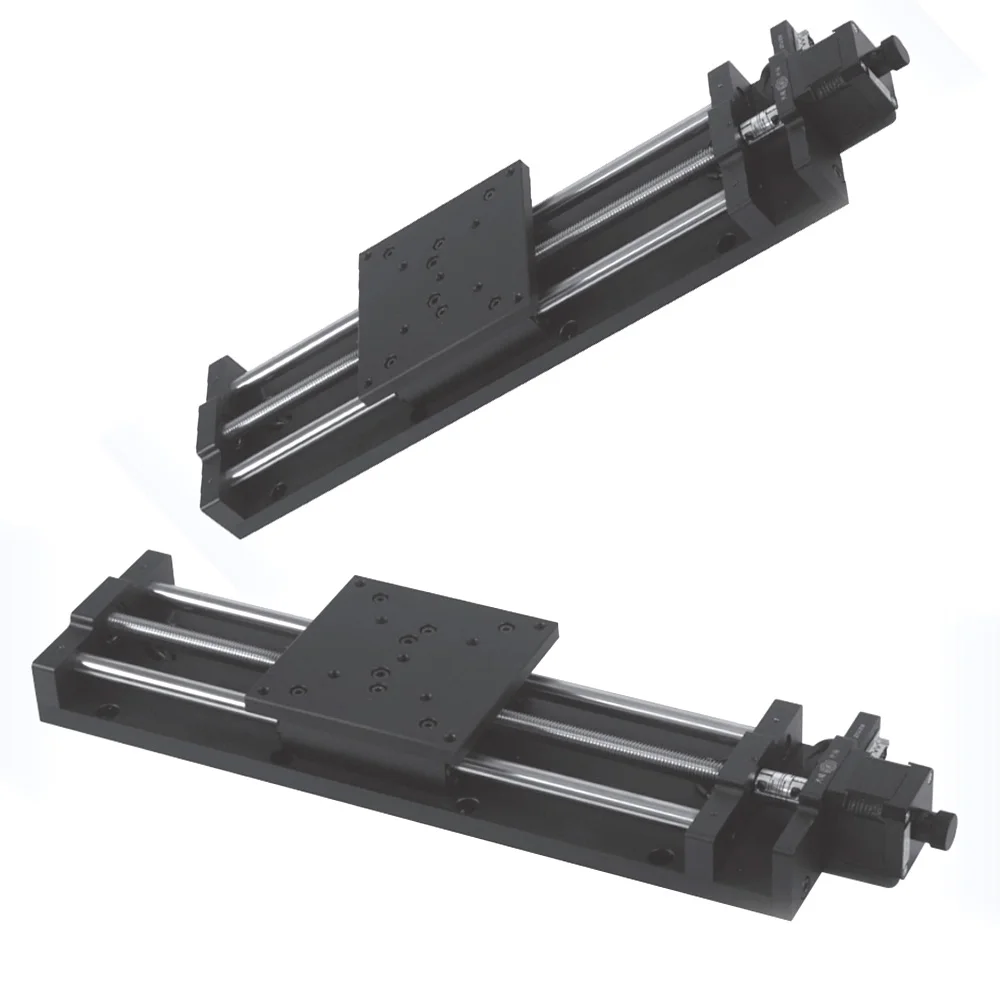

Ball screw xy motorized table cross slide table fast high power micro linear electronic translation stage aluminium dovetail
Company Information
Specification
we can customize any models products according to your sizes or quality requirements
Model | ETS-50 | ETS-100 | ETS-150 | ETS-200 | ETS-300 |
Travel(mm) | 50 | 100 | 150 | 200 | 300 |
Screw Leading (mm) | 4 | 4 | 4 | 4 | 4 |
Main Material | Aluminum | ||||
Surface Treatment | Black Anodized | ||||
Lead Rail | Linear Bearing Guide | ||||
Maximum Speed (mm/s) | 30 | ||||
Resolution (8 subdivide)(μm) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Repeated Positioning Accuracy (μm) | 5 | 5 | 5 | 5 | 5 |
Drive Motor | 42 Stepper Motor | ||||
Step Angle | 1.8° | ||||
Central Loading (kg) | 10 | 10 | 10 | 10 | 10 |
•Uses the high quality ball screw, linear bearing guide rail, key parts like bearing motor adopt famous manufacturers’ products, insure the high and stable quality
•Convenient for connected with our PMC series controller, the end is equipped with a hand wheel, can be manually adjusted, hand wheel, can be manually adjusted.
•Base has standard pitch of the thread holes and hole, easy for mounting.
•Features: small volume, low noise, conventional transmission, high cost performance.
•Operation place: medical instrument transmission, conventional measurement, the rational experiments, the teaching demonstration for common transmission
Product Show
