Лучшее качество MQT-130 портативная пневматическая машина для анкерования jumbolter крепления бурения угольной

Лучшее качество MQT-130 портативная пневматическая машина для анкерования jumbolter крепления бурения угольной

Категория: Mining Machinery >>>
Поставщик: Tianjin,Good,Drill,Co.,Ltd.Tianjin,Ltd.

Цена:65 612,85-66 744,11 ₽*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	78078.65 $*	81982.33 $*
Aug-17-2025	77422.73 $*	81293.70 $*
Jul-17-2025	64956.52 $*	68204.33 $*
Jun-17-2025	76110.73 $*	79916.18 $*
May-17-2025	66268.76 $*	69581.2 $*
Apr-17-2025	74798.6 $*	78538.41 $*
Mar-17-2025	74142.67 $*	77849.39 $*
Feb-17-2025	73485.28 $*	77159.30 $*
Jan-17-2025	72829.10 $*	76470.35 $*

Характеристики

Product Description

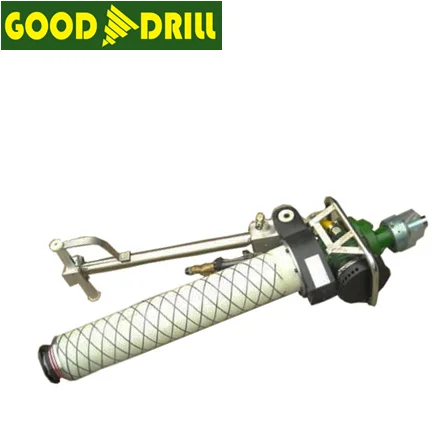

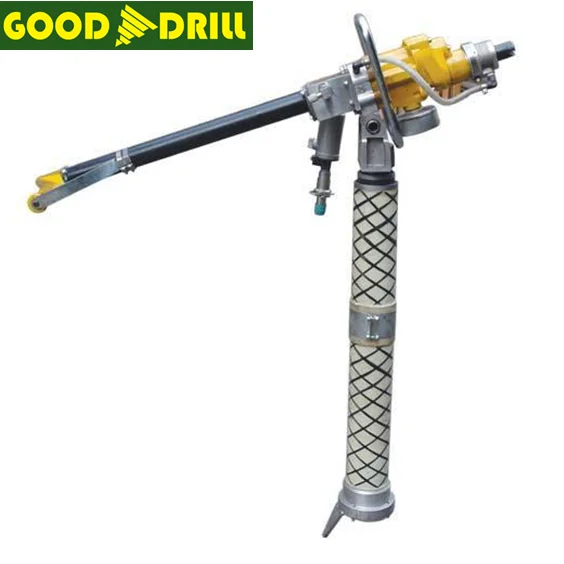

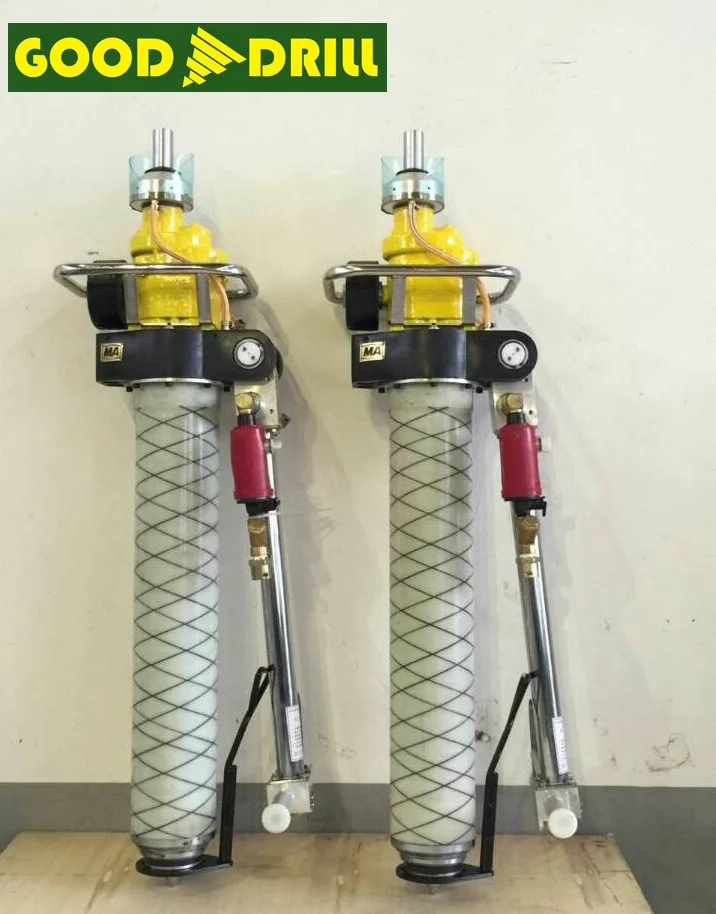

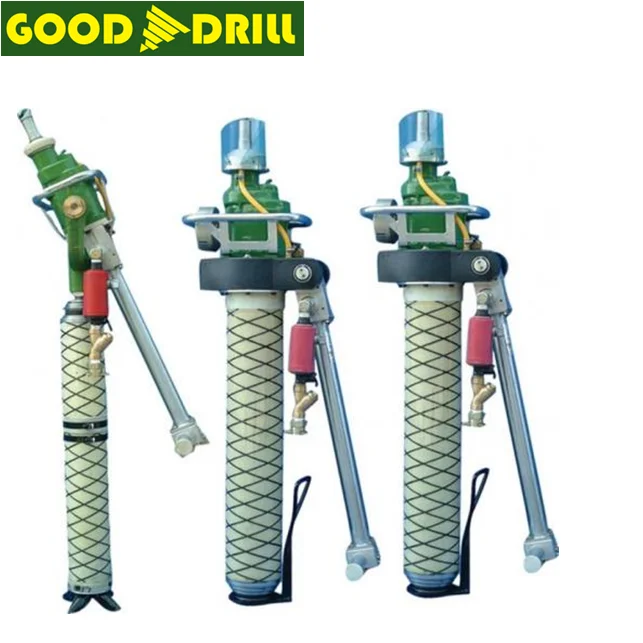

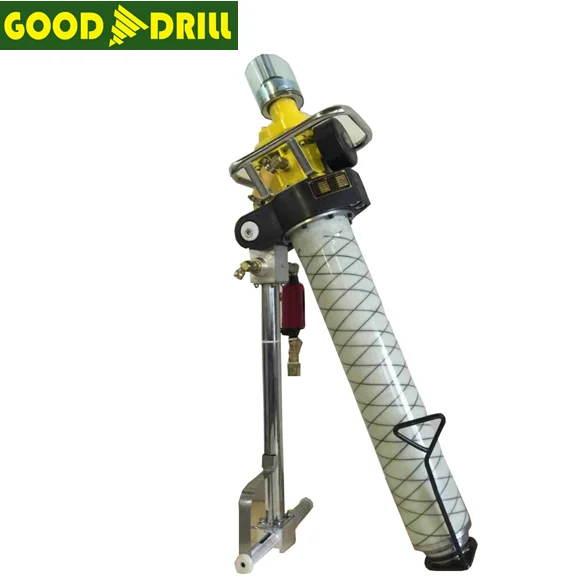

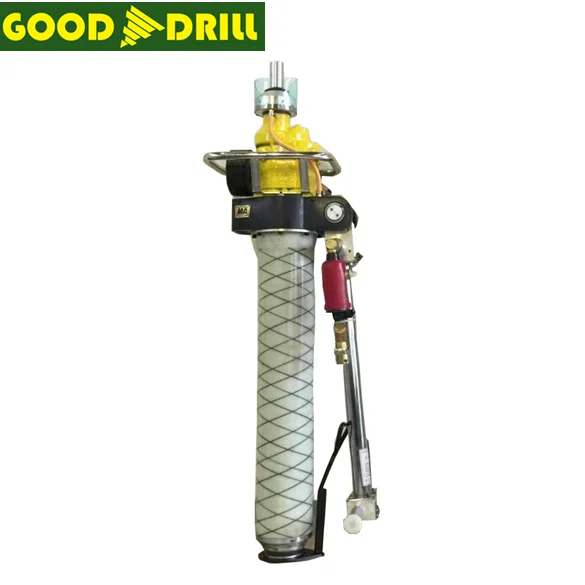

Best quality MQT-130 handheld pneumatic roof bolter jumbolter anchoring machine for drilling coal mine

pneumatic roof bolter

Application:

MQT-120/2.7 pneumatic anchor drilling machine Is widely applicable to roadway ( rock hardness ≤ f8), especially applicable to the bolt supporting operation for coal road, both drilling roof bolt hole and drilling anchor hole, but also mixing and installing resin bolt type anchor, anchor, without other equipment. It will achieve a bolt nut installation and tightening once , and achieve the initial anchorage preload requirements.

Characteristics:
small volume, light weight, easy operation, easy maintenance. Gear type of pneumatic motor, stable running, high reliability. New type FRP (Fiber-reinforced plastic) Air leg design, safety and explosion-proof, longer service life.

\t Type	\t	\t MQT-85 /2.0-C	\t MQT-90 /2.1-C	\t MQT-110 /2.5-C	\t MQT-120 /2.7-C	\t MQT-130 /2.8-C	\t MQTB-80 /2.0-C
\t Work Pressure	\t MPa	\t 0.4-0.63	\t 0.4-0.63	\t 0.4-0.63	\t 0.4-0.63	\t 0.4-0.63	\t 0.4-0.63
\t Rated Pressure	\t MPa	\t 0.5	\t 0.5	\t 0.5	\t 0.5	\t 0.5	\t 0.5
\t Rated Rotated Speed	\t r/min	\t 220	\t 220	\t 220	\t 220	\t 206	\t 240
\t Rated Rotated Torque	\t N.m	\t 85	\t 90	\t 110	\t 120	\t 130	\t 80
\t Stall Torque	\t N.m	\t 190	\t 190	\t 210	\t 210	\t 220	\t 185
\t Non-load Speed	\t r/min	\t ≥600	\t ≥600	\t ≥560	\t ≥560	\t ≥560	\t ≥600
\t Air Consumption	\t m³/min	\t 4	\t 4	\t 4	\t 4.4	\t 4.5	\t 4
\t Max. Pulling Force	\t KN	\t 8	\t 8	\t 8	\t 8	\t 8	\t 4
\t Water Flushing Pressure	\t MPa	\t 0.6-1.2	\t 0.6-1.2	\t 0.6-1.2	\t 0.6-1.2	\t 0.6-1.2	\t 0.6-1.2
\t Noise	\t dB(A)	\t ≤95	\t ≤95	\t ≤95	\t ≤95	\t ≤95	\t ≤95
\t Shank Hex. Size	\t mm	\t 19:22	\t 19:22	\t 19:22	\t 19:22	\t 19:22	\t 19:22
\t Weight	\t Kg	\t 52	\t 52	\t 55	\t 55	\t 57	\t 46
