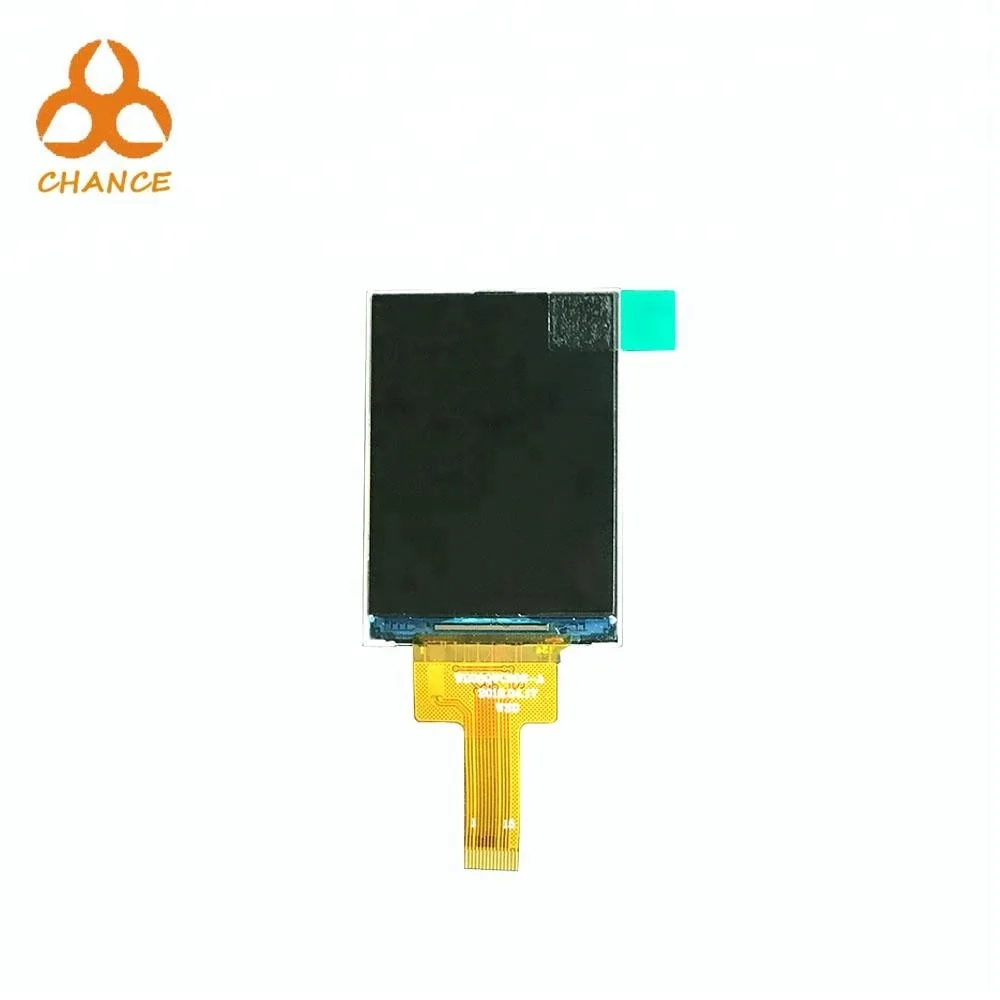

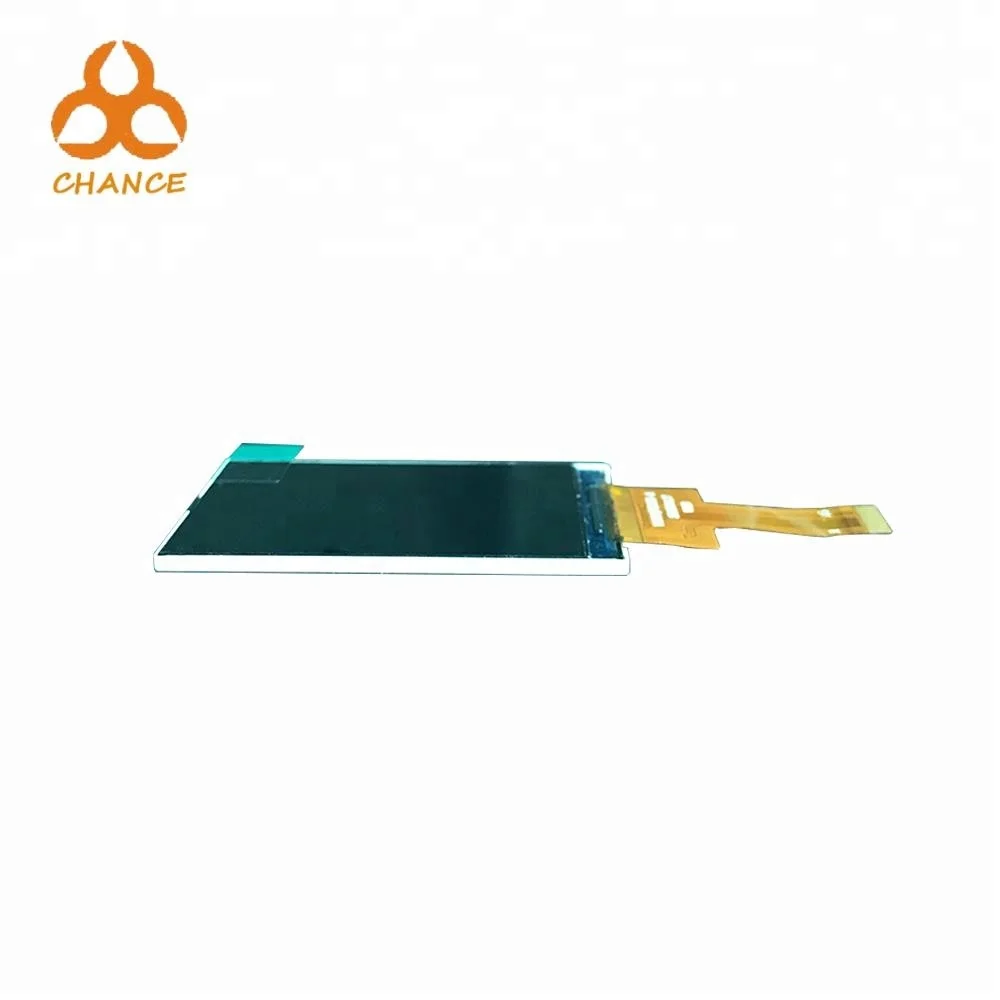

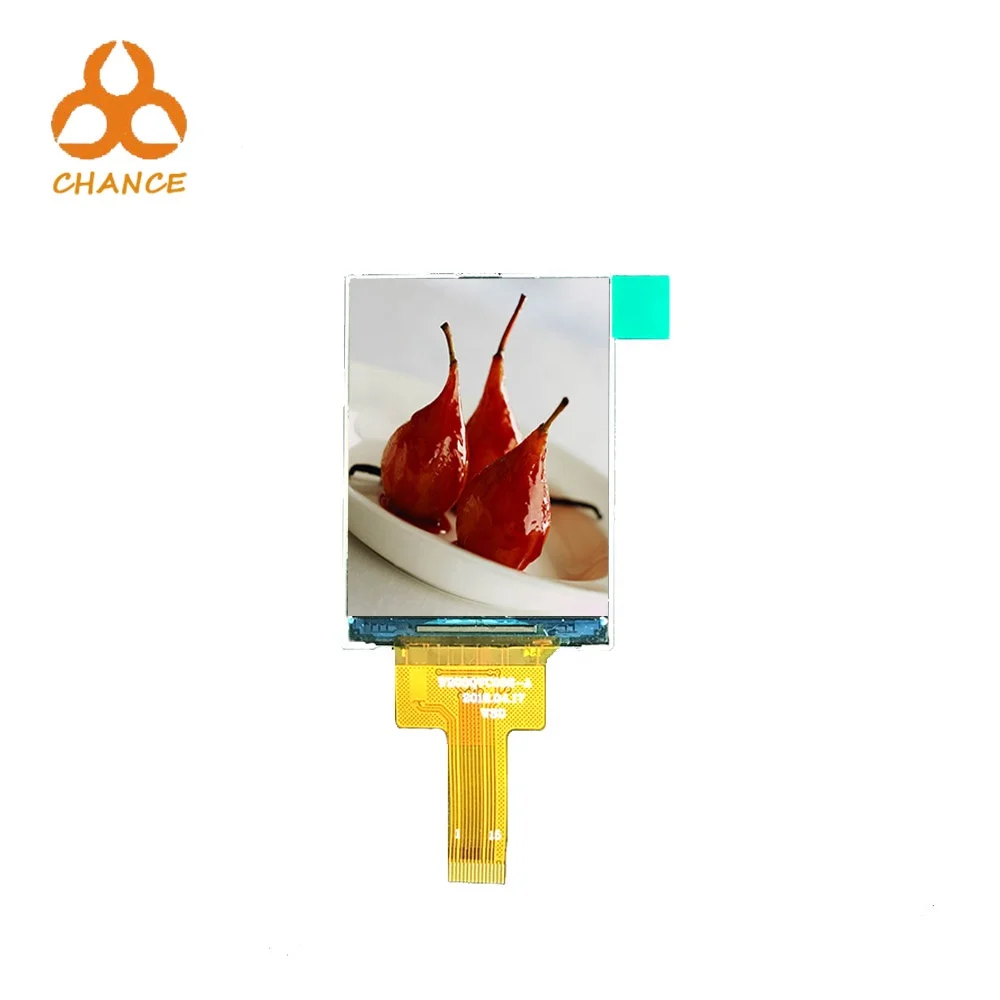

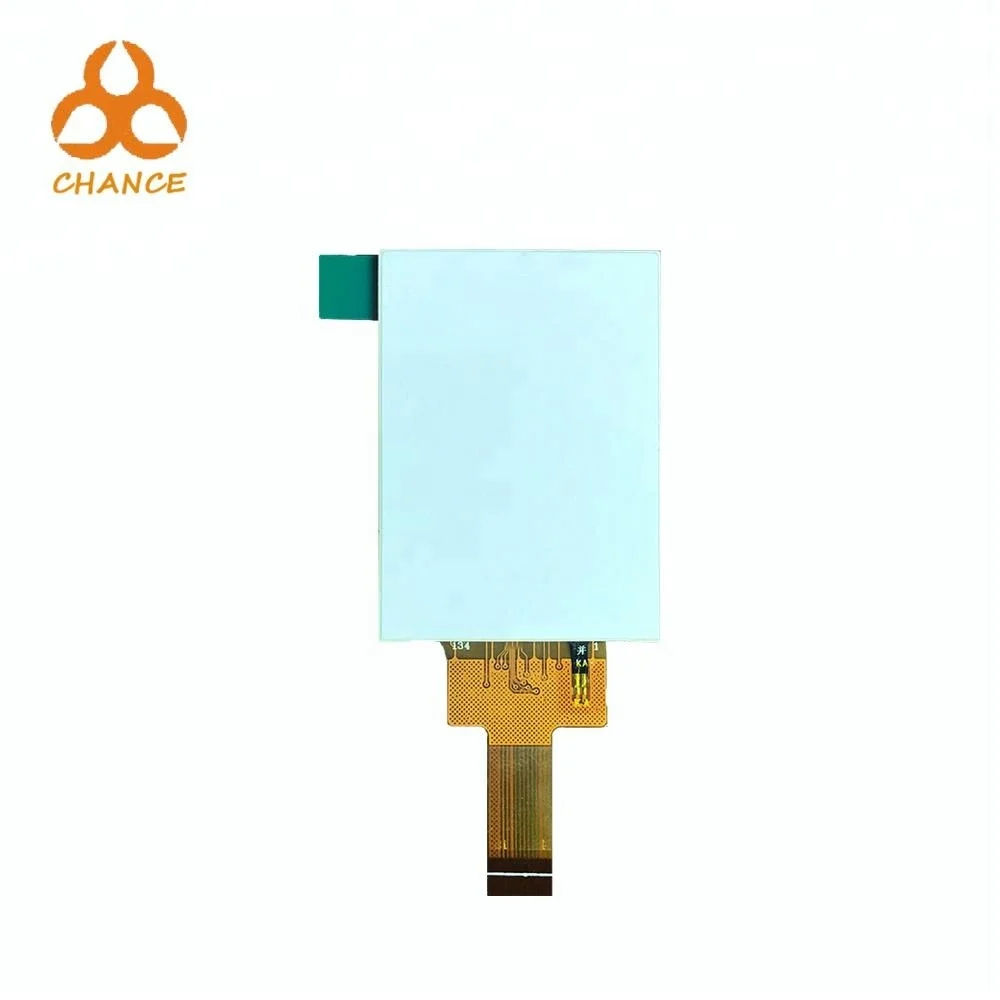

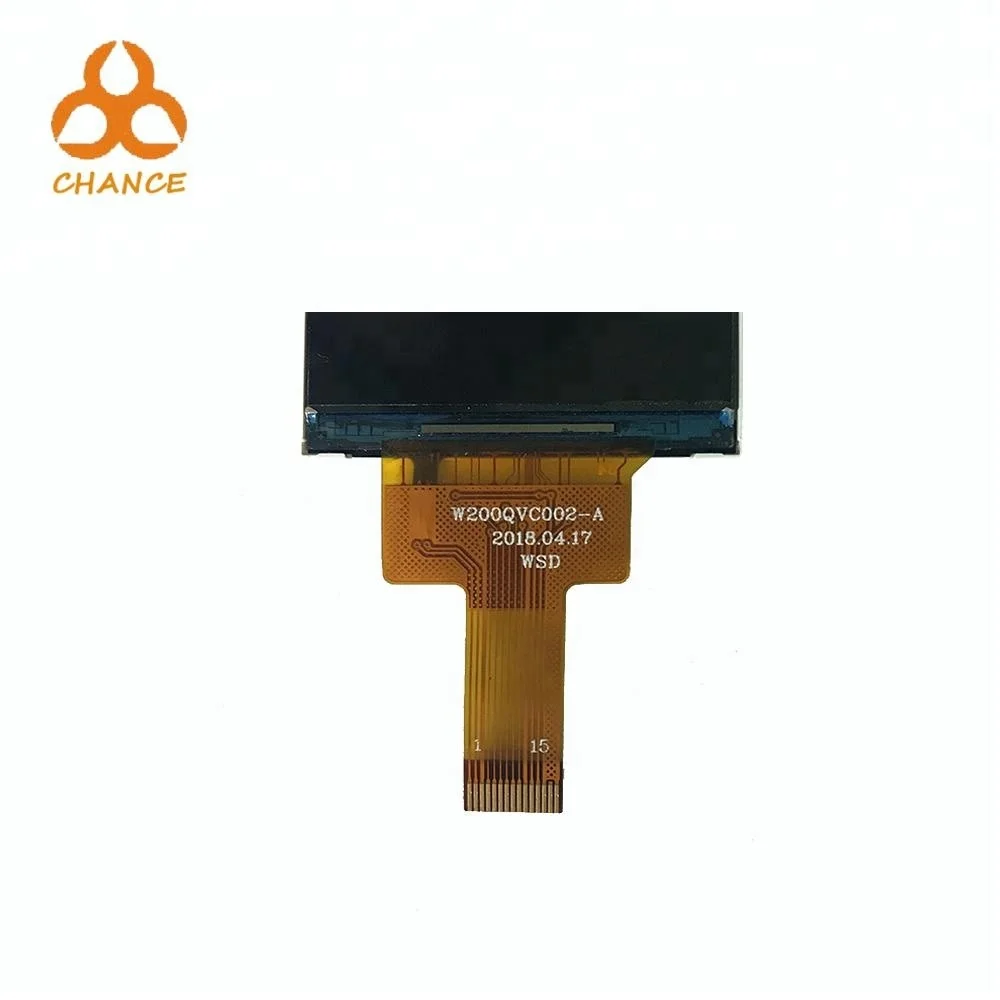

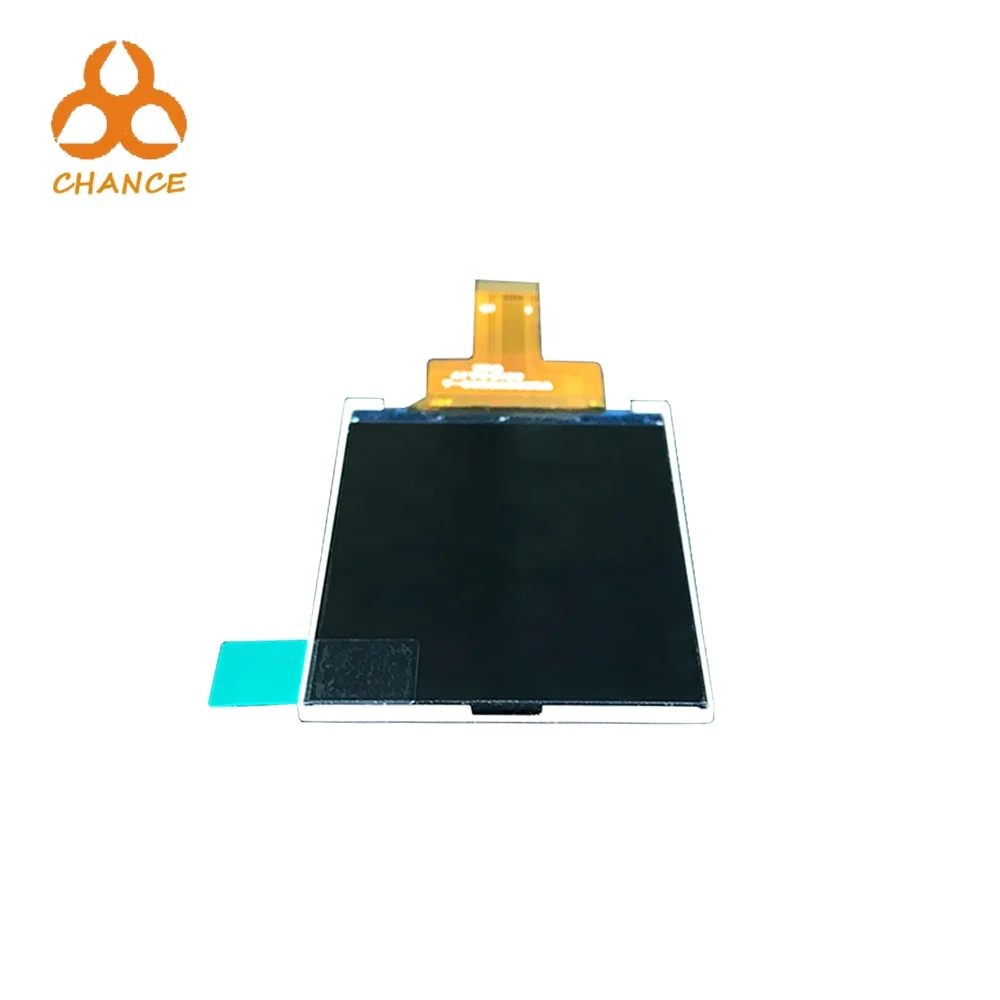

2 0 дюймовая панель ЖК-экрана 240*320 с интерфейсом SPI mini ips
- Категория: LCD Module >>>
- Поставщик: Shenzhen,Chance,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2.95 $* | 2.57 $* |
| Aug-19-2025 | 2.99 $* | 2.98 $* |
| Jul-19-2025 | 2.41 $* | 2.42 $* |
| Jun-19-2025 | 2.92 $* | 2.27 $* |
| May-19-2025 | 2.58 $* | 2.28 $* |
| Apr-19-2025 | 2.34 $* | 2.56 $* |
| Mar-19-2025 | 2.64 $* | 2.20 $* |
| Feb-19-2025 | 2.87 $* | 2.35 $* |
| Jan-19-2025 | 2.49 $* | 2.63 $* |
Характеристики
Product Description
Parameters
| Item | Specification |
| Display Mode | Normally Black,Transmissive |
| Display Technology | α-Si TFT active matrix |
| Outline Dimension | 34.60(H) X 47.80(V) X 1.90(T) mm |
| Active Area | 30.6 (H) X 40.8 (V) mm |
| Resolution | 240X(RGB)X320 dots |
| Pixel Pitch | 0.1275X0.1275 mm |
| Pixel Configuration | RGB Stripe |
| Backlight | White LED |
| Luminance | (250)(Min.) cd/m2 |
| Surface Treatment | Anti-Glare |
| Driver IC | ST7789V |
| Viewing Direction | All |
Pin
| Pin No. | Symbol | I/O or connect to | Description | When not in use |
| 1 | LEDA | LED DRIVER | Backlight anode. | - |
| 2 | LEDK | LED DRIVER | This pin is used to be serial interface clock. | - |
| 3 | GND | PWR SUPPLY | POWER GROUND. | - |
| 4 | RESET | I/O | Reset pin. | - |
| 5 | TE | I/O | Tearing effect signal. | - |
| 6 | RS/DCX | I/O | Display data/command selection pin in 4-line serial interface. | GND/IOVCC |
| 7 | SCLK | I/O | The serial interface clock signal. | GND/IOVCC |
| 8 | SDA | I/O | SPI interface input/output pin. | GND/IOVCC |
| 9 | CS | I/O | Chip select signal. | GND/IOVCC |
| 10 | GND | PWR SUPPLY | POWER GROUND. | - |
| 11 | IOVCC | PWR SUPPLY | Interface power supply,1.65v~3.3V. | - |
| 12 | VCC | PWR SUPPLY | Analog power supply, 2.5V~3.3V. | - |
| 13 | GND | PWR SUPPLY | POWER GROUND. | - |
| 14 | NC | - | No connect. | - |
| 15 | GND | PWR SUPPLY | Backlight cathode. |
Drawing
Company Information
Our Services
Packaging & Shipping
FAQ
Q1: How many years for warranty can you provide?
A1: Normally 1 year. Can be longer but price should be modified.
Q2: How long can I get reply?
A2: Within 24 hours. Chinese working time 9:00-18:00 Monday-Friday online service to help you solve problems.Also reply by phone is possible at night time and weekends.
Q3: What shall we do if we find any item missing or defectiv after
receiving the goods?
A3: Please contact us ASAP, we will check it and offer the best solution according to the situation.
Q4: Is it possible to customize the LCD modules?
A4: Yes you could let us know the concrete requirements then we will design and confirm with you.
Q5: Is it possible we appoint the delivery agent?
A5: Yes. Except the couriers we mentioned, we could use others as your requirement.
