JC-3000CS который изготовлять водяной бак челнок ротационная формовочная


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.3 $* 0.33 $*
Aug-16-2025 0.16 $* 0.12 $*
Jul-16-2025 0.79 $* 0.73 $*
Jun-16-2025 0.15 $* 0.48 $*
May-16-2025 0.79 $* 0.65 $*
Apr-16-2025 0.1 $* 0.18 $*
Mar-16-2025 0.88 $* 0.83 $*
Feb-16-2025 0.35 $* 0.82 $*
Jan-16-2025 0.57 $* 0.26 $*

Характеристики


About Jingcan

Ningguo Jingcan Rubber &Plastic Products Co.,Ltd, located in  National Economic and Technological Development Zone, Ningguo city Anhui Province China.The company forcus on rotomolding reseach and technical development, supply all kinds rotomolding machinery and mould for developing countries worldwide with its rich experience of rotational products producing.


We never give up Innovation and developing, not only for best machinery, but also for green life type of people on earth. No pollution and no noise and well environment, using our hands to build a beautifu future.

Product Description

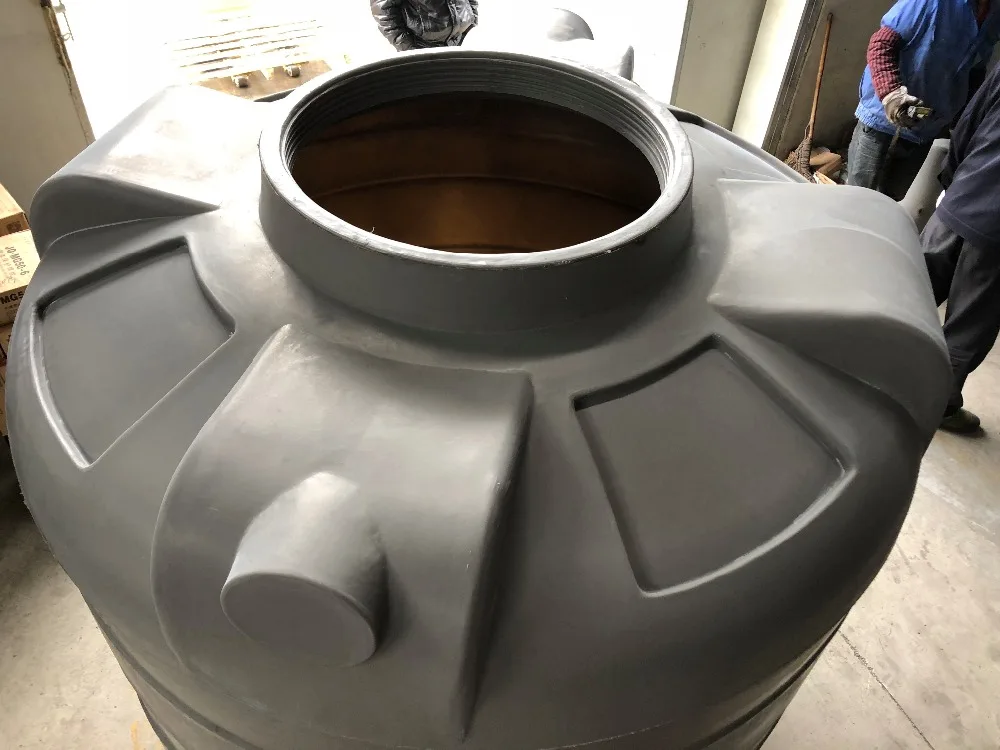

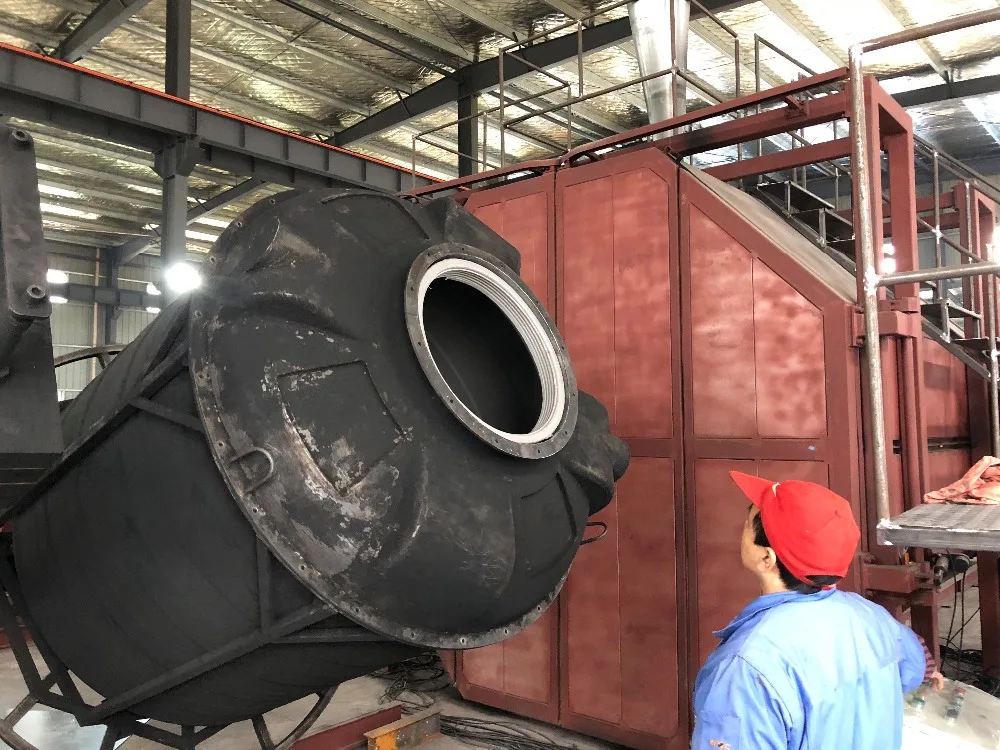

Shuttle rotational molding machine  Jc-3000cs mold for water tank producing

JC series shuttle rotational molding machine is the antic integration products from customer generally requirement, personal requirement and industry trend. Practical man-machine interface make the setting for process parameters of different products easily and quickly. Using the Programmable control technology PLC, improve the system working efficient and dependability, reduce the integrated cost, and maintenance frequency; Using the inverter technology, reducing energy consumption, fatigue strength of the machine, improve the life of the machine

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Details

Mechanical Part:

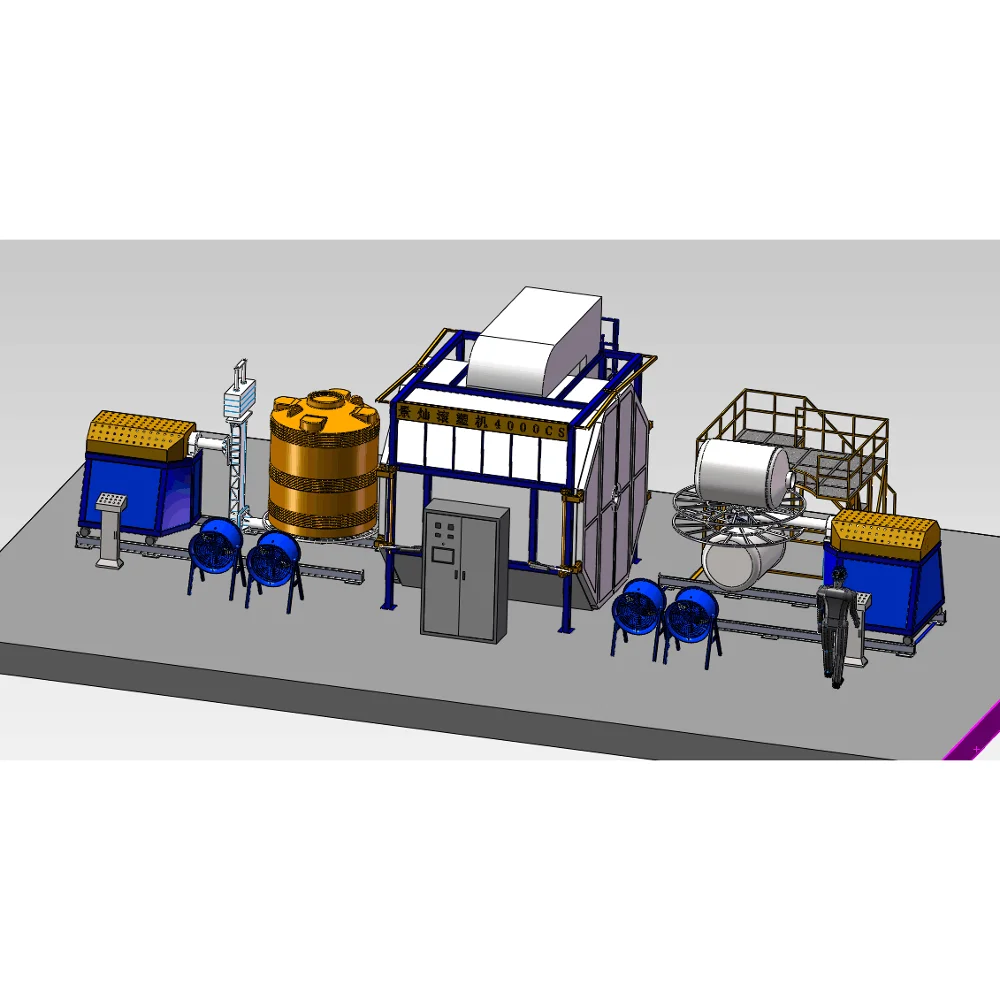

It consists of an inline arrangement of a central oven that shares the two cooling/load/unload stations, one on each side of the oven assembly. The oven has a cylindrical horizont design. ROTOLINE pioneered the manufacture of machines with cylindrical oven, which provides a homogeneous airflow in all areas of the oven avoiding "dead spots".

Electrical Part:

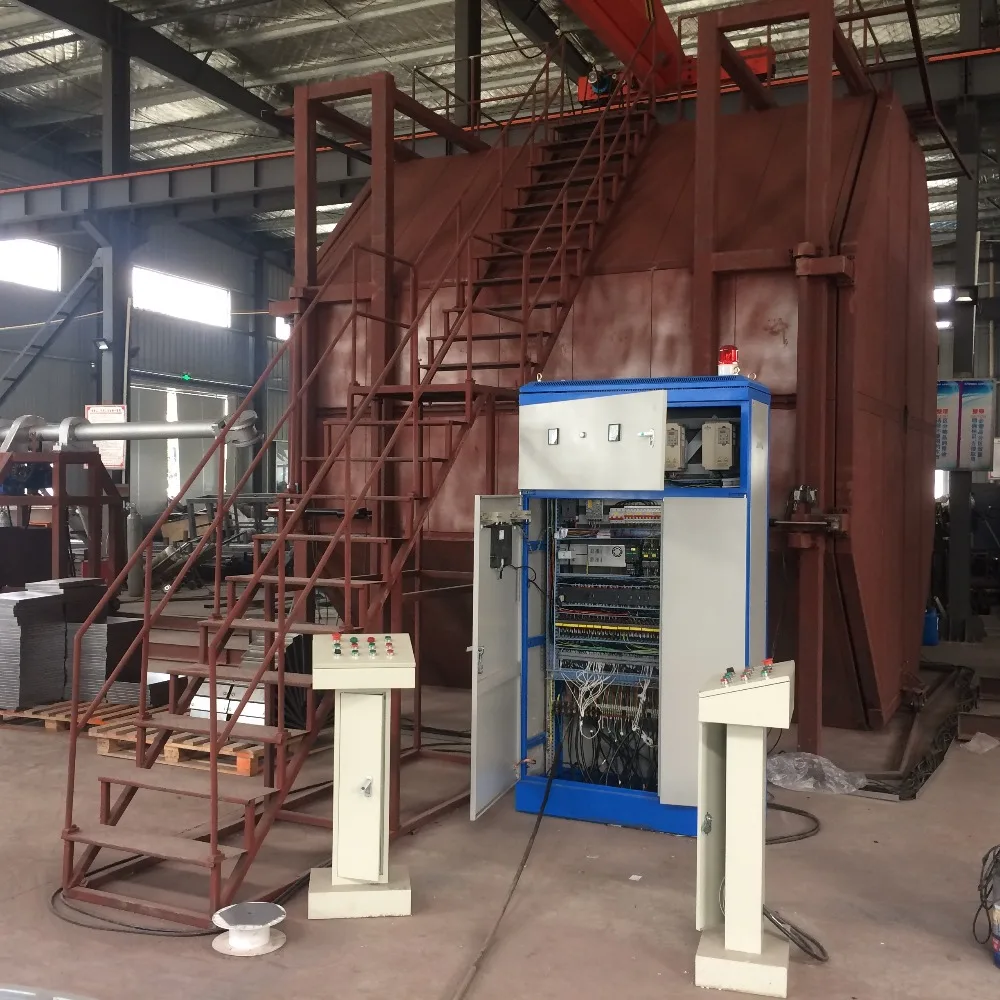

The machine is equipped with a General Panel where are installed and interconnected all programmable and eletromechanical components such as PLC (Programmable Logic Controller), computer, contactors, motors breakers, power supplies, transformer, VFDs (variable frequency drives), push buttons, selector switches and light/sound alarms. This panel is mainly used to set the recipe parameters for the production.

Burner System:

The heating system of the Rotoline machines is done with a gas burner. The machine is supplied with a burner ready to operate with two different types of fuel gas, NG (Natural Gas) and LPG (Liquefied Petroleum Gas).

Cars/Arms:

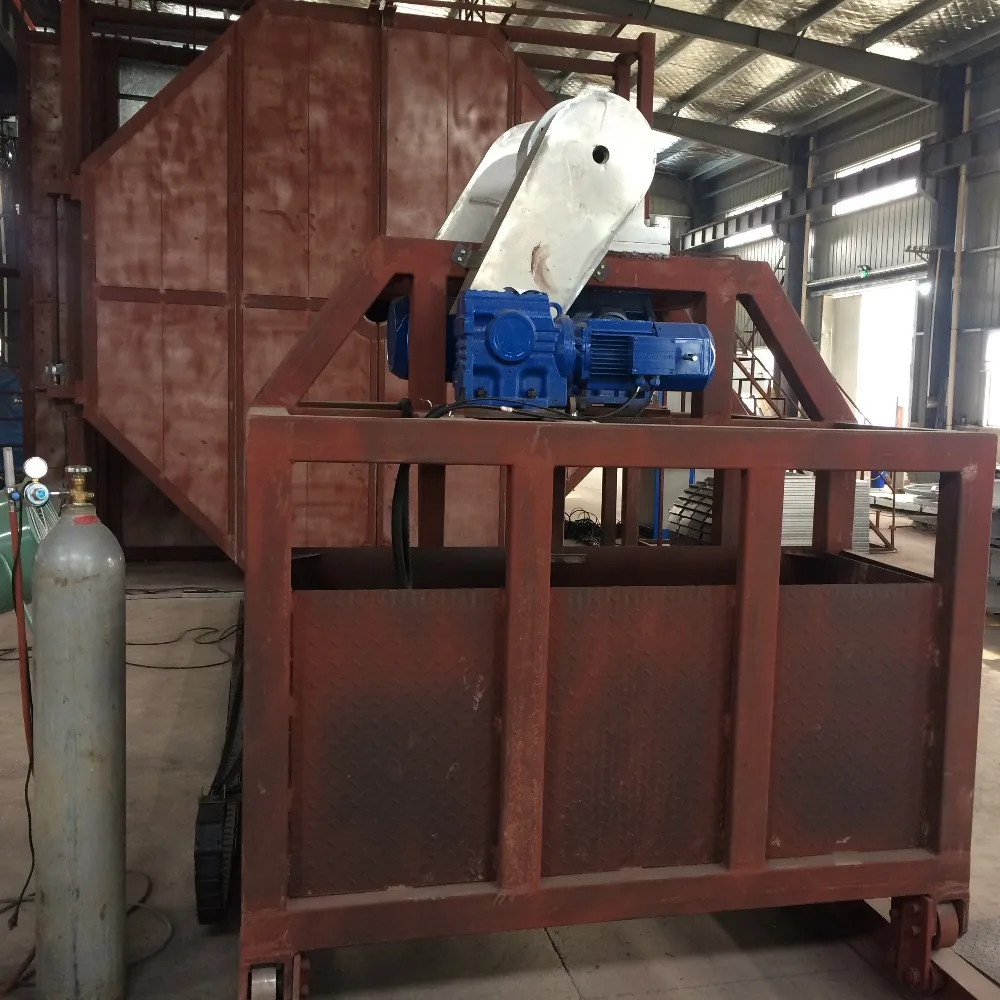

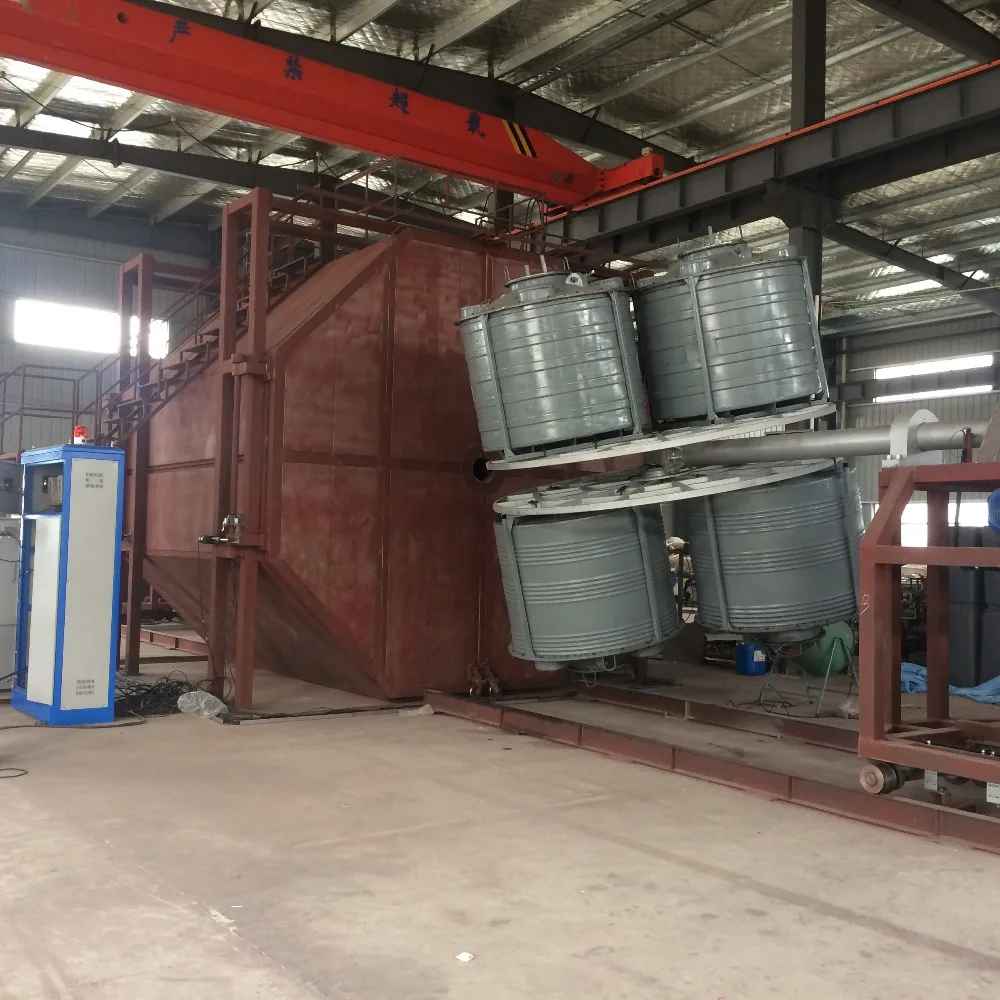

The Shuttle machine model has two cars that can be equipped with Straight arm or optional Offset arm "C" , both built with a reinforced structure and heat treated for steel stress release.

Management Control:

The PLC is loaded with a software management control system which gathers information from multiple sensors such as temperature and pressure, installed in various parts of machine, doing all the interlock and control functions of machine operation and providing a specific and concise input to the controller of the gas burner.

Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

* Molds could be supplied.

Payment and packing

1 30% payment as deposit

2 70% before shipping
