OC-F08 поставка фабрики горячая Распродажа фиксированный кислорода O2 детектор угарного газа с световой сигнализации и функция хранения
- Категория: Gas Analyzers >>>
- Поставщик: Henan,Oceanus,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.80 $* | 0.94 $* |
| Aug-19-2025 | 0.56 $* | 0.47 $* |
| Jul-19-2025 | 0.42 $* | 0.1 $* |
| Jun-19-2025 | 0.57 $* | 0.42 $* |
| May-19-2025 | 0.7 $* | 0.98 $* |
| Apr-19-2025 | 0.43 $* | 0.13 $* |
| Mar-19-2025 | 0.10 $* | 0.48 $* |
| Feb-19-2025 | 0.93 $* | 0.30 $* |
| Jan-19-2025 | 0.68 $* | 0.87 $* |
Характеристики
Description

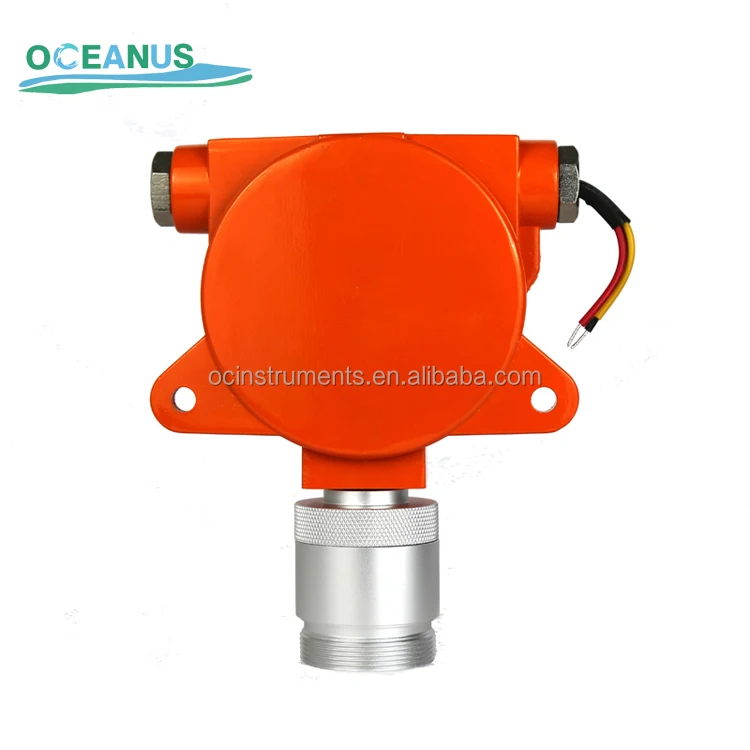

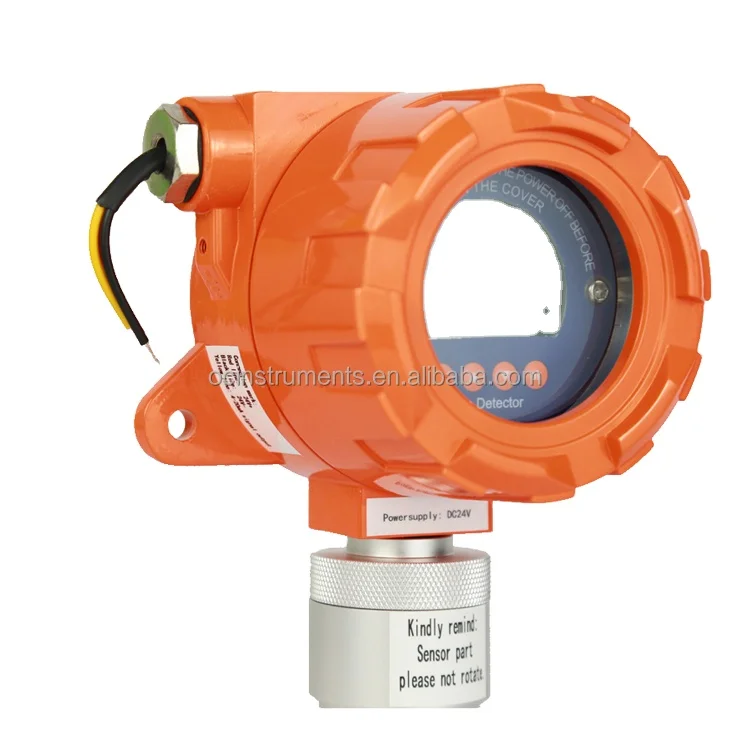

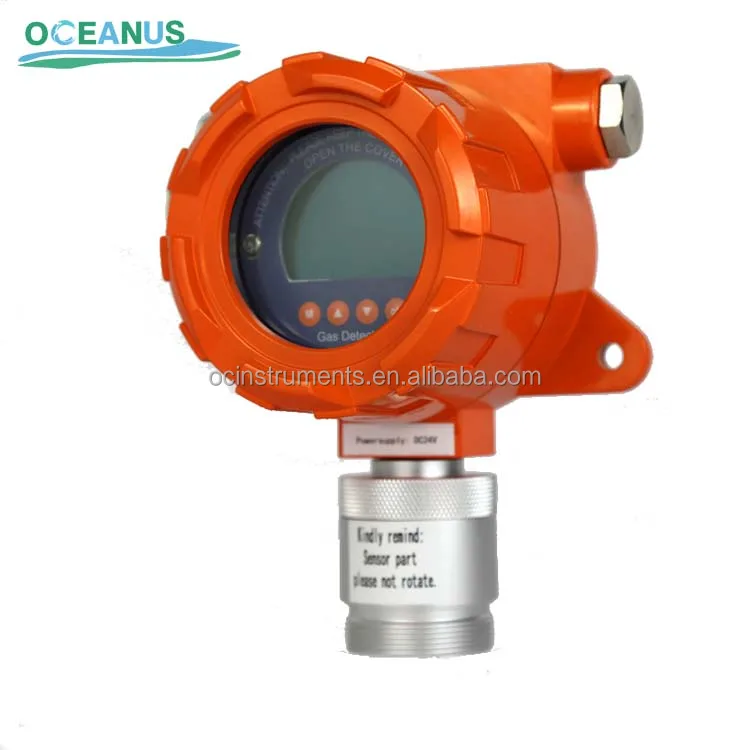

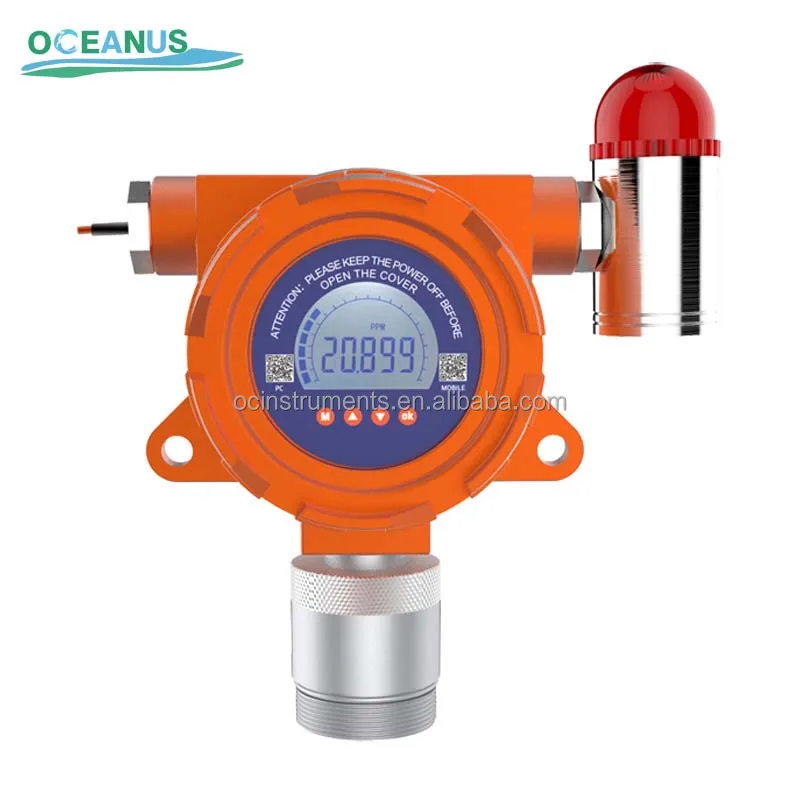

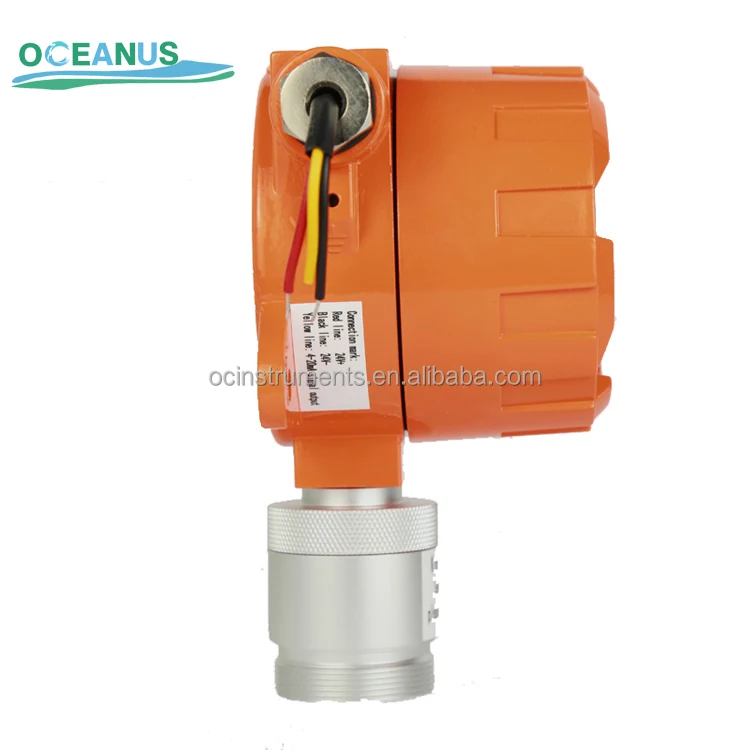

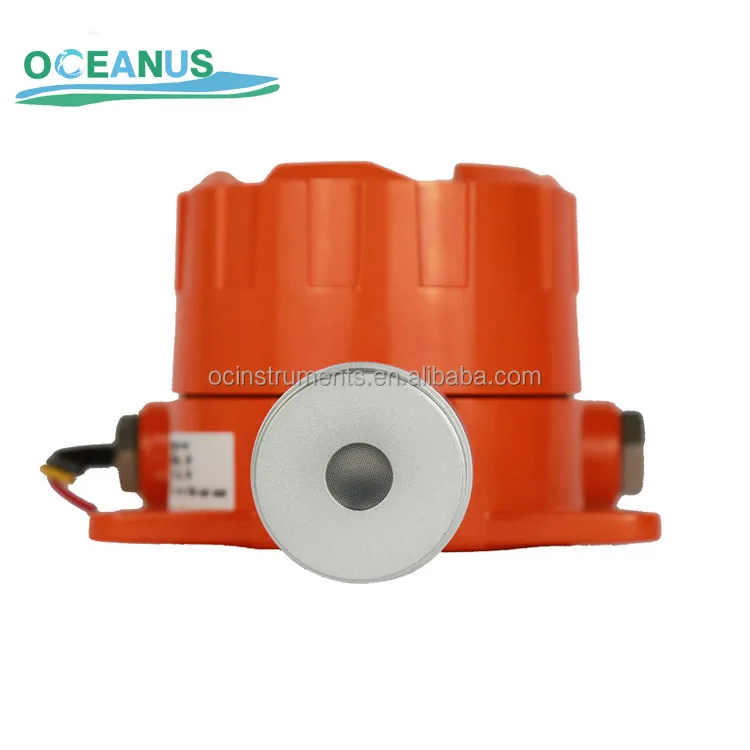

OC-F08 online Oxygen gas monitor used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis. O2 gas alarm
Detection Gas | Oxygen (O2) or customized, etc |
Detecting Range | 0-100%VOL or customized |
Resolution | 0.01%VOL oxygen O2 gas detecting equipments |
Sampling | Diffusion or pump-suction, circulation selectable |
Precision | ≤±3%F.S o2 sensor, fixed o2 detector |
Repeatability | ≤±1% o2 gas meter, O2 gas transmitter detector |
Zero drift | ≤±1%(F.S/year) |
Sensor Type | Electrochemical sensor |
Sensor Life | 2~3 years(Catalytic combustion, Electrochemical, Semiconductor) |
3~5 years(PID, Infrared) | |
Response Time (T90) | ≤20s |
Alarming mode | Audible-visual alarm(Optional) |
Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) |
Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter | |
Pressure: 86kPa~106kPa | |
Working Voltage | 24V DC(16~30VDC) |
Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; |
(Optional) Four-wire system RS485 digital signal output; | |
(Optional) Frequency signal 200~1000Hz output; | |
Two-level relay output:220VAC 0.5A, 5VDC 0.5A | |
Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
Material of Body | Cast aluminum |
Explosion-proof Index | Ex d IIC T6 |
Protection Grade | IP66 |
Electrical Interface | 3/4″NPT(Female Screw),1/2″NPT(Female Screw) |
Transmit Distance | ≤2000m (If more than 2000m, can add the repeater.) |
Dimension | 210 mm×140 mm×92 mm(L×W×H) |
Weight | About 1.5Kg |
Standards | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
Warranty | 12months |
Certificate | CNEx, CE, RoHS |
| Gas type | Measuring range | Sensor type |
| Ex | 0~100%LEL | Catalytic combustion sensor |
| O2 | 0~25%vol/30%vol | Eelectrochemical sensor |
| CO | 0~500ppm/1000ppm/2000ppm/5000ppm/10000ppm | |
| H2S | 0~100ppm/1000ppm | |
| H2 | 0~1000ppm/40000ppm | |
| N2 | 0~100%vol | |
| NH3 | 0~100ppm/500ppm | |
| C2H4O | 0~100ppm/500ppm | |
| SO2 | 0~20ppm/2000ppm | |
| Cl2 | 0~10ppm/20ppm/50ppm/200ppm | |
| HCl | 0~50ppm/100ppm | |
| HBr | 0~50ppm/100ppm | |
| ClO2 | 0~50ppm | |
| O3 | 0~1ppm/10ppm/50ppm/100ppm/1000ppm/2000ppm | |
| NO | 0~200ppm/500ppm/2000ppm | |
| NO2 | 0~20ppm/100ppm/500ppm/2000ppm | |
| PH3 | 0~20ppm/100ppm/1000ppm | |
| HCN | 0~30ppm/50ppm/100ppm | |
| HF | 0~10ppm | |
| CH2O | 0~10ppm | |
| THT | 0~50mg/m3 | |
| Helim | 0~1000ppm | |
| Argon | 0~100%vol | |
| SiH4 | 0~50ppm/100ppm | |
| CH4S | 0~20ppm | |
| CO2 | 0~5000ppm/10000ppm | Infrared sensor |
| SF6 | 0~1000ppm | |
| CH4 | 0~200ppm/10%vol | |
| TVOC | 0~20ppm/100ppm/1000ppm | PID sensor |
| CS2 | 0~10ppm/50ppm/100ppm | |
| CH3Br | 0~20ppm/100ppm/200ppm | |
| CH4 | 0~10%vol/50%vol/100%vol | Laser sensor |
Henan Oceanus Import & Export Co., Ltd.
Henan Oceanus Import & Export Co., Ltd. has been engaged in the marketing of the Gas detection system since the establishment. Our company own the R&D force and an excellent marketing team, also the strict quality testing standards. Gas detection system is our main products, including of the Portable gas detector, Fixed gas detector, Gas detection controller, we can provide the good quality and after-sell for agents in different countries, for the end users we can provide the whole solutions for different applications. With the development of our company, our engineer research the new products, Air quality monitor system, particle counter, hardness tester and other instruments. All of the products are widely applied to different industrial fields. With the advantage of technology, products, price, pre-sale and after-sale service, we believe we can successful set up favorable and close relationships with the partners in various fields, including petroleum, chemical, gas industry, electric power, environmental protection and energy saving, steel industry, metallurgy, water treatment, pharmaceuticals industry medical industry and food service industry. 4-20ma gas analyzer o2, O2 Fixed gas detector, O2 Gas Emission Analyzer
Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.
Q: Which payment methods are supported?
A: Usually we support the TT, Western Union, Paypal.
Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
