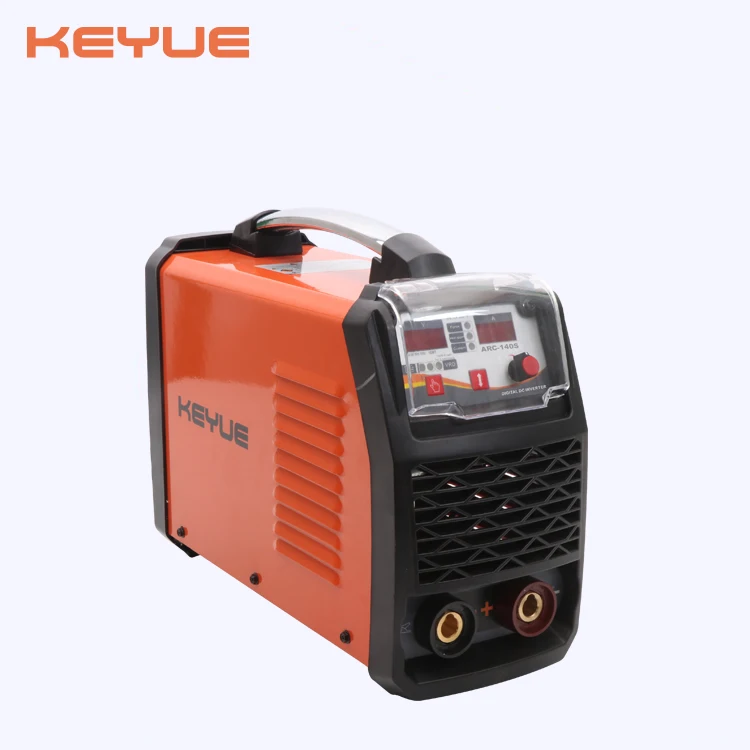

Однофазный 110V/220V двойное напряжение 140A возможностями антипригара/дуги силовой/горячего старта портативный DIY ММА сварочный аппарат IGBT Инвертора DC дуговой сварки под флюсом
- Категория: Аппарат для дуговой сварки вручную >>>
- Поставщик: Keyue,Welding,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 77.4 $* | 79.22 $* |
| Jul-20-2025 | 63.11 $* | 64.99 $* |
| Jun-20-2025 | 76.80 $* | 78.59 $* |
| May-20-2025 | 76.78 $* | 78.0 $* |
| Apr-20-2025 | 60.89 $* | 61.10 $* |
| Mar-20-2025 | 74.49 $* | 75.82 $* |
| Feb-20-2025 | 74.33 $* | 75.45 $* |
| Jan-20-2025 | 73.63 $* | 74.93 $* |
Характеристики
Product Description
Product feature
- IGBT technology,the core adopts advanced IGBT inverter device,high frequency
- Digital mater to preset and display welding current
- VRD function is optional,which is safe for welders
- Smaller,lighter and portable,this equipment is protected by a solid metal casing
| Model | ARC-140S |
| Input voltage(V) | AC110V or AC220V±10% |
| Input power(KVA) | 3.5/5.2 |
| Input current (A) | 32/24 |
| Rated output | 24V/100A or 25.6V/140A |
| Output current(A) | 20-100/20-160 |
| No-load voltage (V) | 65±5 |
| Duty Cycle% (40℃ 10min) | 140A 30% |
| 77A 100% | |
| Efficiency (%) | 70 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight (KG) | 7 |
| Gross weight (KG) | 9 |
| Dimension of machine (mm) | 390*155*300 |
| Dimension of package (mm) | 480*240*408 |
Performance
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel
| 1.5-5 | 2.2.5/3.25/3.2 | 20-140 | ARC-140 |
1.5-10 | 2.5/3.2/4.0 | 20-160 | ARC-160 | |
1.5-10 | 2.5/3.2/4.0 | 20-200 | ARC-200 | |
1.5-15 | 2.5/3.2/4.0/5.0 | 20-250 | ARC-250 | |
2-20 | 2.5/3.2/4.0/5.0 | 20-400 | ARC-400 | |
≥16.0 | 5.0/6.0/8.0 | 20-600 | ARC-630 |
