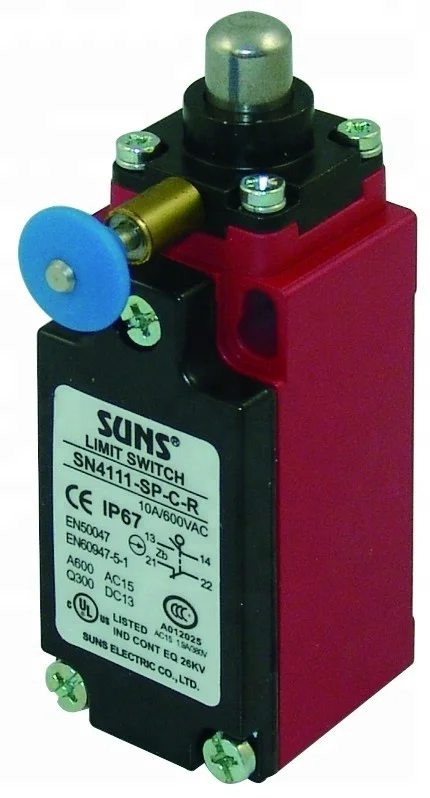

Высокое качество компактный водонепроницаемый Концевой
- Категория: Limit Switches >>>
- Поставщик: Suns,Electric,(Zhangzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.54 $* | 0.87 $* |
| Aug-20-2025 | 0.13 $* | 0.33 $* |
| Jul-20-2025 | 0.28 $* | 0.11 $* |
| Jun-20-2025 | 0.94 $* | 0.94 $* |
| May-20-2025 | 0.79 $* | 0.54 $* |
| Apr-20-2025 | 0.26 $* | 0.47 $* |
| Mar-20-2025 | 0.54 $* | 0.36 $* |
| Feb-20-2025 | 0.47 $* | 0.61 $* |
| Jan-20-2025 | 0.66 $* | 0.59 $* |
Характеристики
Product Description
| Specifications: | |
| Operating Speed: | 0.05mm-2m/sec |
| Operating Frequency: | Mechanical:120ops/min Electrical: 30ops/min |
| Insulation Resistance: | >100mΩ@500V DC |
| Contact Resistance: | <25mΩ |
| Rated Voltage: | 300V AC(EN60947-5-1) |
| Rated Current: | 5A |
| Electrical Rating: | AC15 A300 DC13 Q300 |
| Dielectric Strength: | 1000VAC for 1 min between non-continuous terminals |
| 2500VAC for 1 min between each terminal and ground | |
| Service Life: | Mechanically 1×107 (operations) |
| Electrically 5×105 (operations) | |
| Operating Temperature: | -25~+80 (-13~+176) without formation of ice |
| Humidity: | <95%RH |
| Weight: | ~300g |
| Cable: | 5 cores, 0.75mm2 7CPRE.0.5MM2,9CORE,0.34MM2 |
| Contact Form | zb |
| Degree of Protection: | IP67 |
Dimension;
