USR-N510 промышленный IoT Серийный rs232 rs845 к ethernet-конвертеру с поддержкой XON XOFF CE FCC RoHs

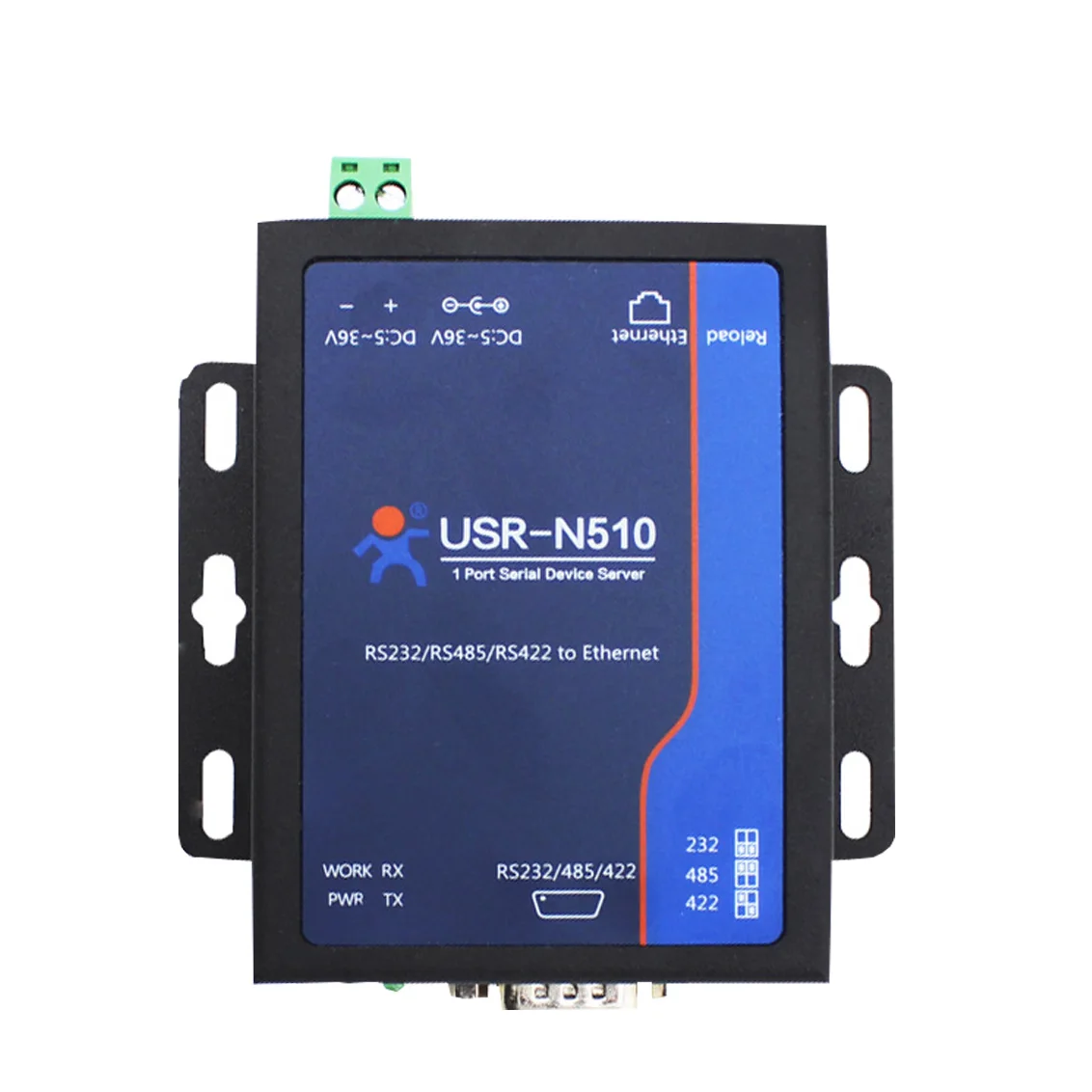

USR-N510 Industrial IoT serial rs232 rs845 to ethernet converter

USR-N510 is a single serial rs232 rs845 to ethernet converter, which can realize bidirectional transparent transmission between serial and Ethernet. Through simple settings via webpage or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission.USR-N510 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
More protection: The device has high-level protection on power supply, serial port, Ethernet port.

System Information
Processor: Cortex-M4
Basic Frequency: 120MHz
Flash: 512K byte
Ethernet
Port: Number 1
Interface Standard: 8 pin RJ45
Rate: 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection
Protection: 2KV electromagnetism isolation, shell insulation blocking
Network Protocol: IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client
Receive Buffer: Max 16k bytes buffer
Serial
Port Number: 1
Interface Standard: RS-232:DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z)
Data Bits 5,6,7,8
Stop Bit: 1,2
Check Bit: None,Even,Odd,Space,Mark
Baud Rate: 600bps ~ 230.4Kbps
Flow Control: RTS/CTS
Buffer: Send and receive 2k bytes respectively
Protection RS-485: anti-static 2KV,lightning protection
RS-485 Pull-up and Pull-Down Resistor: 2.2 KΩ
Software
Virtual Serial(USR-VCOM): Windows 2000 or higher(32 bit/64 bit)
Configuration:  Built-in webpage, computer set-up software, serial command
Basic Parameter
Size: 88 x 81 x 24 mm
Operating Temp:. -40 ~ 85°C (industry)
Storage Temp. -40 ~ 85°C, 5 ~ 95% RH (no condensation)
Input Voltage: DC 5 ~ 36V
Working Current: 53mA @ 12V
Power: <1W
