Наружные воздушные потолочные волоконно-оптические кабельные Фитинги Аксессуары Линия электропередачи кабельная
- Категория: Кабельные зажимы >>>
- Поставщик: Hunan,Shuanglin,Communication,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.76 $* | 0.16 $* |
| Aug-16-2025 | 0.33 $* | 0.76 $* |
| Jul-16-2025 | 0.21 $* | 0.56 $* |
| Jun-16-2025 | 0.80 $* | 0.80 $* |
| May-16-2025 | 0.22 $* | 0.45 $* |
| Apr-16-2025 | 0.40 $* | 0.90 $* |
| Mar-16-2025 | 0.20 $* | 0.87 $* |
| Feb-16-2025 | 0.3 $* | 0.59 $* |
| Jan-16-2025 | 0.97 $* | 0.9 $* |
Характеристики
Product Description
Outdoor Aerial Overhead Fiber Optical Cable Fittings Accessories Transmission Power Line Cable Hardware
Tension Clamp and Suspension Clamp
Preformed Tension Clamp are designed to connect ADSS cables and poles/towers . Armor rods can provide protection and cushioning to the ADSS cables. The special design of Preformed rods makes ensure that Tension Clamps can't cause undue stress to the ADSS cables, so as to ensure the normal lifetime of cables system.
Tension Clamp are designed to connect OPGW cables and tensile poles (or towers). Armor rods can protect and provide cushioning to the OPGW cables. The special design of Armor rods makes ensure that Tension Clamps can not cause undue stress to the OPGW cables, so that the normal lifetime of cable system is ensured.
Tension Clamp are designed to connect OPGW cables and tensile poles (or towers). Armor rods can protect and provide cushioning to the OPGW cables. The special design of Armor rods makes ensure that Tension Clamps can not cause undue stress to the OPGW cables, so that the normal lifetime of cable system is ensured.
Structure and Raw Material:
Shackle--Hot dip galvanized steel.Shackle is connected with fastening clamp on tensile pole (or tower).
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting U- Shackle and Clevis Thimble.
Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.
Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.
Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop, in order to increase gripping strength of Tension Clamps while decreasing side pressure
Shackle--Hot dip galvanized steel.Shackle is connected with fastening clamp on tensile pole (or tower).
Twisted Chain Link--Hot dip galvanized steel. Twisted Chain Link is intended for connecting U- Shackle and Clevis Thimble.
Thimble---Hot dip galvanized cast steel. Thimble is plugged in shackle of Tension Clamp for protection and connection.
Armor Rods----- Aluminum clad steel wire. Armor Rods increase friction with a layer of particle emery inside to cables. Rods are assembled into four subsets in workshop which reduce misalignment errors and speeds installation. The ends are bent outward to provide stress relief at the critical cable departure areas.
Preformed Dead End -- Preformed Dead End are made of hot dip galvanized steel wire or aluminum clad steel wire, it is assembled into one subset with a layer of firm emery inside in workshop, in order to increase gripping strength of Tension Clamps while decreasing side pressure

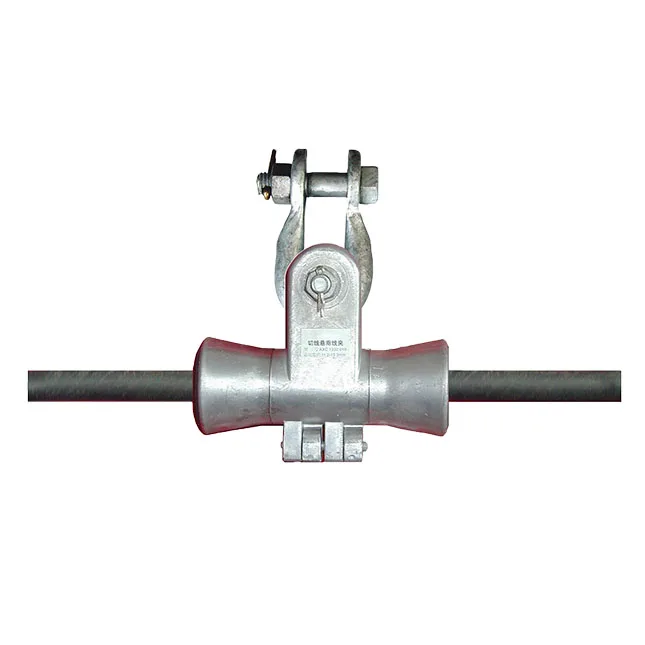

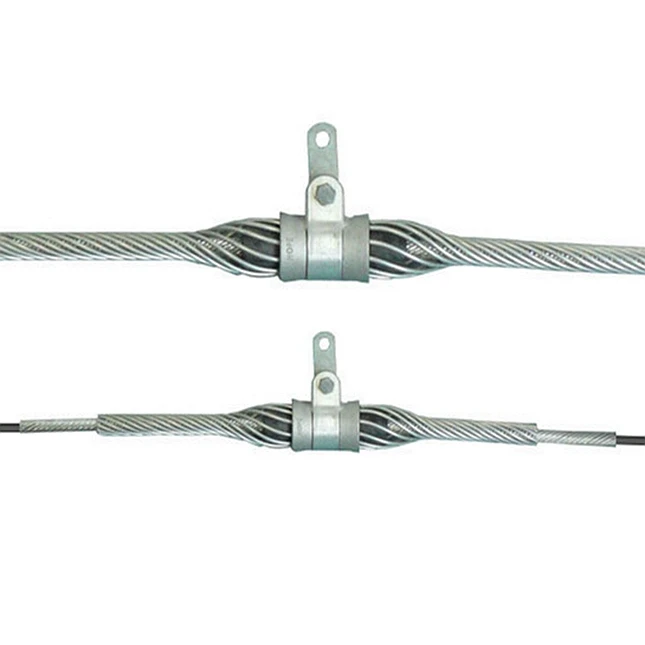

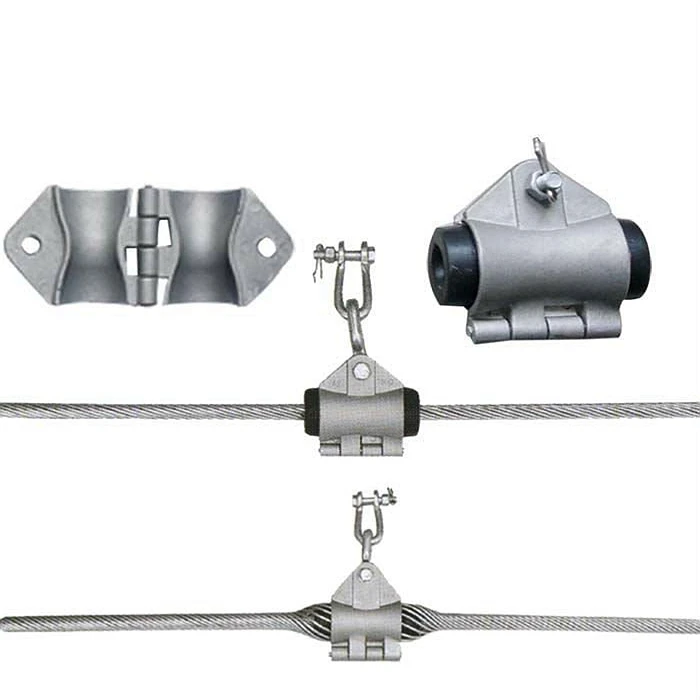

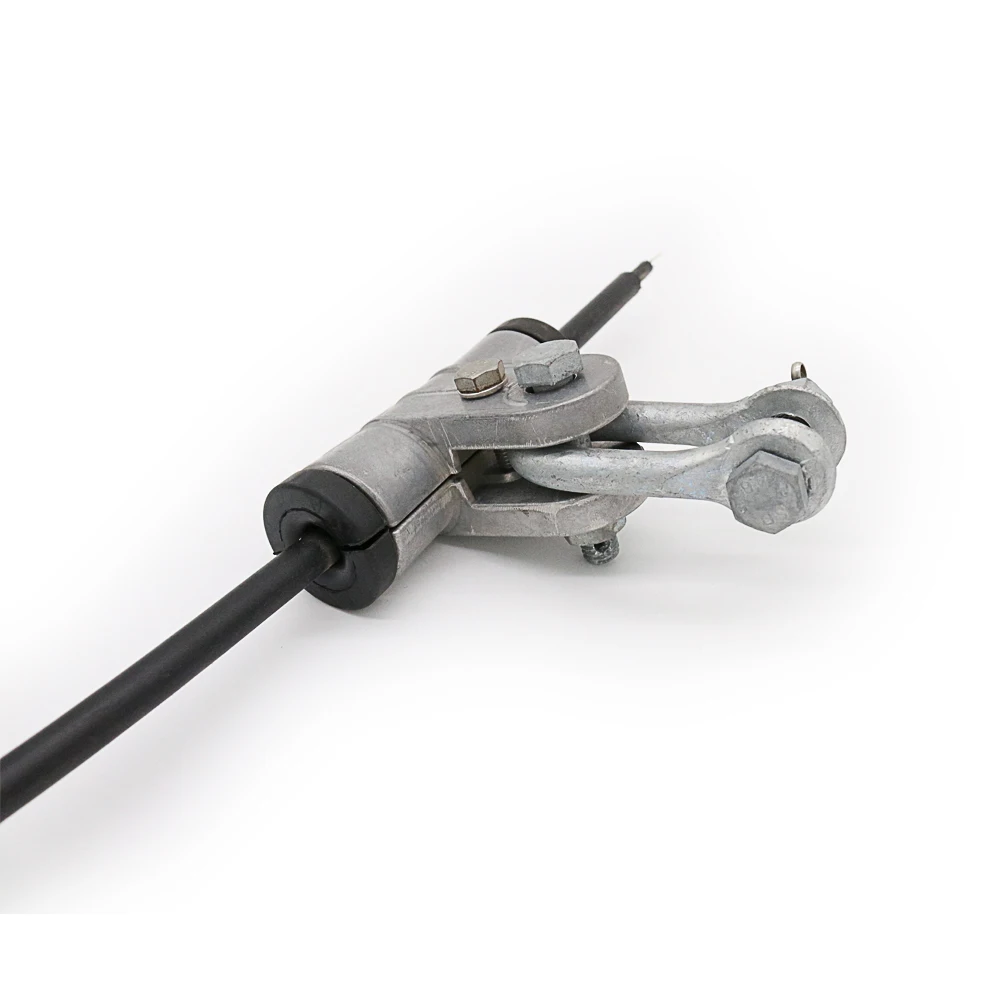

The Preformed Suspension Clamp is
the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.
the connecting hardware of ADSS cable hang in transmission line pole (tower). It can reduce static stress at the support point and increase ant-vibration ability of ADSS cables, and cushioned against the dynamic stress of aeolian vibration. as well as ensure that the cable bending will not exceed the permissible values, make the cable does not produce bending stress, so that the fiber optic don't produce extra loss in the cables.
Structure and Raw Material:
Housing Clamp---It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Housing Clamp---It is made of corrosion resistance cast aluminum alloy, which is stable, better anticorrosive in aero and mechanical performance.
Rubber Insert--- It consists of high-class rubber and center reinforcing assembly, rubber insert is with ozone resistance, chemical resistances, weather resistance performance,with high and low temperature performance, high strength and elasticity, small compression deformation.
Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---Accordingto the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.
Bolt, Flat Washer, Spring Washer, Nut, Split Lock, Shackle--- Standard Parts of Electric Power.
Inner Preformed Rods---Accordingto the mechanical performance and chemical composition to custom-made the aluminum alloy wire, with high tensile strength, hardness strength and excellent elasticity and strong rust resistance , it can be used for a long time in the bad weather condition.
Outer Preformed Rods--- The same as the Inner Preformed Rods.
Product Name | Tension Clamp/Suspension Clamp |
Cable span | 100/200/300/400/500m |
Installation Method | Pole Tower |
Cable Type | ADSS OPGW Cable |
Metal Joint Box for ADSS,OPGW Cable:
Cable Joint Box is designed for splicing ADSS,OPGW cables and the normal cables, including two to four sleeves for input and output.
Loose storage space makes storage more conveniently, quickly and cable bending radius big enough, avoiding fiber optic extra loss and ensuring transmission performance.
The double sealed designs make Cable Joint Box more reliable. Easy to install and fix on pole(tower) or tubes.
Fastening Clamp:
1.Fastening Clamp for Tower
Series of Fastening Clamps are designed to connect Tension Clamps, Suspension Clamps and towers, it is according to the tower type of hanged points and the size of main material.
2.Fastening Clamp for Pole
Series of Fastening Clamps for Poles are designed to connect Tension Clamps, Suspension Clamps and cement poles, it is according to the pole type of hanged points and the size of main material.
More Related Products
Packing & Delivery
Factory Show
Our Company
Hunan Shuanglin Communication Technology Co.,Ltd. is one of the biggest manufacturer of fiber optic cable in China.
The company establishes industrial bases in up to 10 provinces of China and in South America, Europe, South Africa, Mid East, Southeast Asia, and marketing technological service branches in over 30 countries and regions around the world, supplying products in over 80 countries and regions.
The company has passed a lot of international management certificates such as UL, ROHS, ISO9001, ISO14001, OHSAS18001 and so on.
Follow up the clients’demands; make greater efforts to create more values for them, maintain long-term strategic cooperation with all larger Telecom Carriers, integrators and clients at home and abroad
More Products you can visit our website: http://sl-fibercable.en.alibaba.com
Why Choose Us:
1.Competitive price
2.Fast delivery
3.Longtime warranty
4.Reliable quality
5.Professional product and technical support
6.Prompt answer for any question or inquiry
7.Value-added service: except good products, we can provide good services on logistic and other help you may need.
Our Service:
1.Send us your inquiry ,we will revert back to you within 12 hours.
2.Adopt strict process and raw materials control to guarantee the life span of 30 years.
3.All our products are well tested,we provide you with test report and certification.
4.We sincerely welcome customers home and abroad to visit our manufactory.
Contact Us
FAQ
(Maybe you will have some questions as below)
Q1.About the price?
Re.We usually quote within 12 hours after we confirm the technical data of your products.
Q2.What's the payment method?
Re.We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.
Q3.What are your terms of payment?
Re.30% in advance,and 70% before shipment
Q4.How to ship the items to me?
Re.Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.
Q5.How long is your delivery time?
Re.The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.
Q6.Can you send me a free sample?
Re.Yes,We are willing to send free sample,if you would like to pay the shipping costs.
Q7.Do you accept OEM or ODM?
Re.Yes,we're factory. any your customized requirements we can do our best to help you realize.
