Характеристики

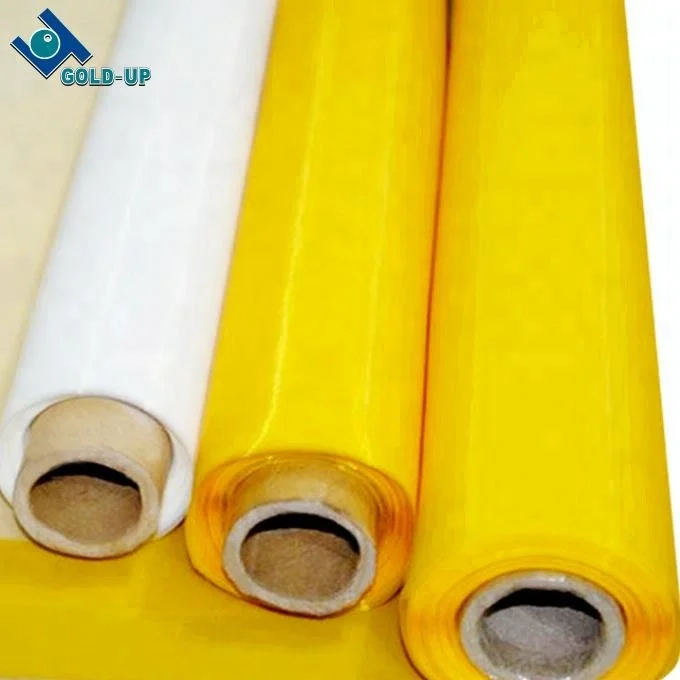

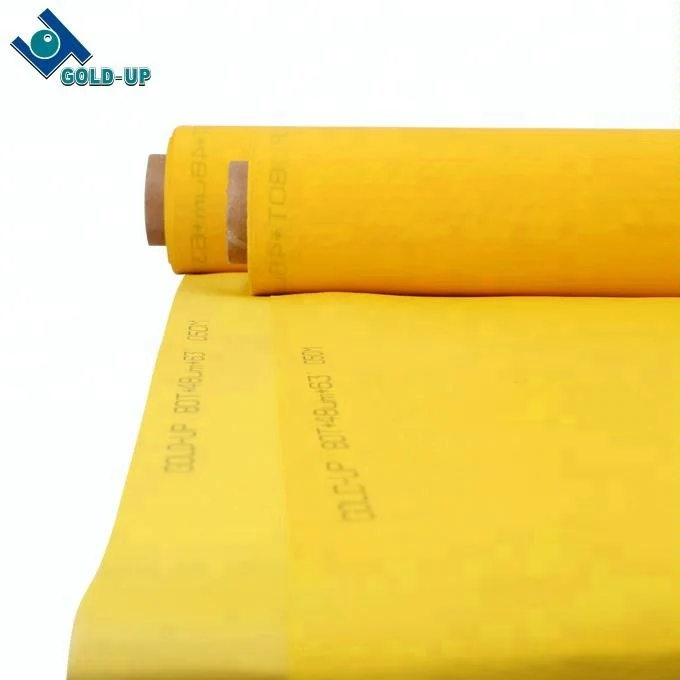

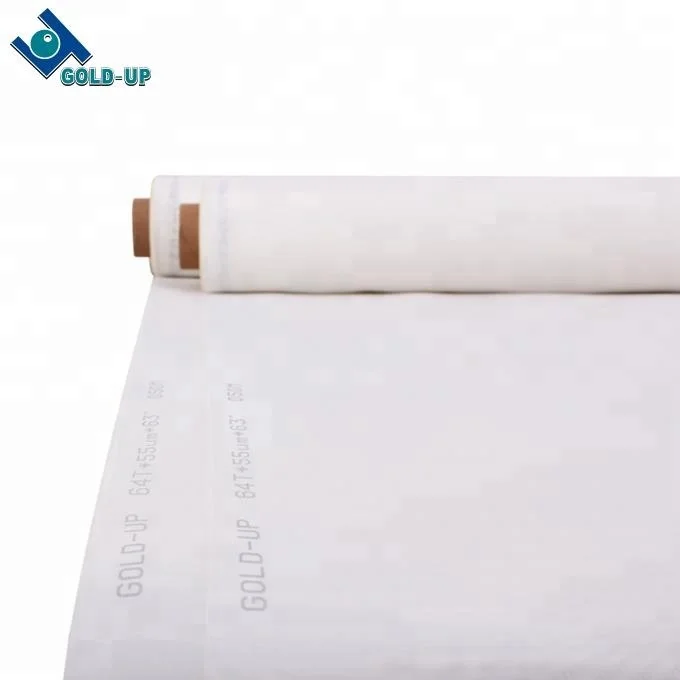

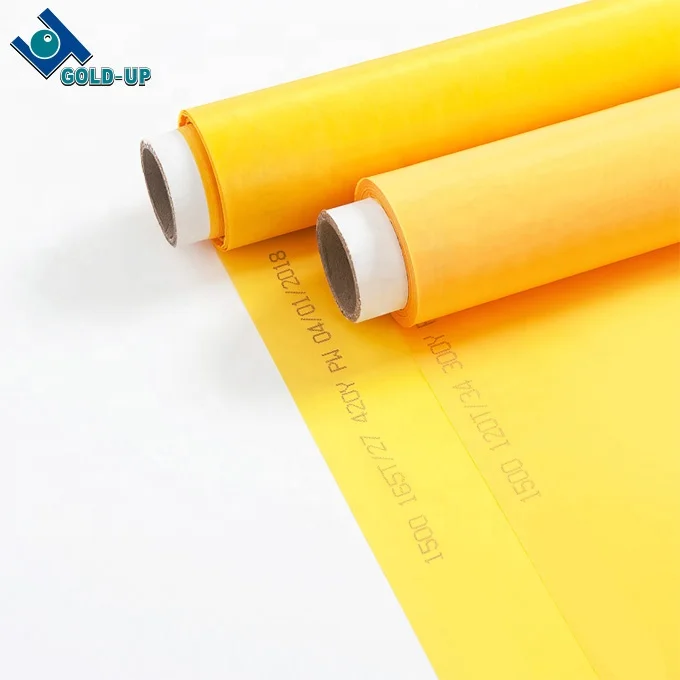

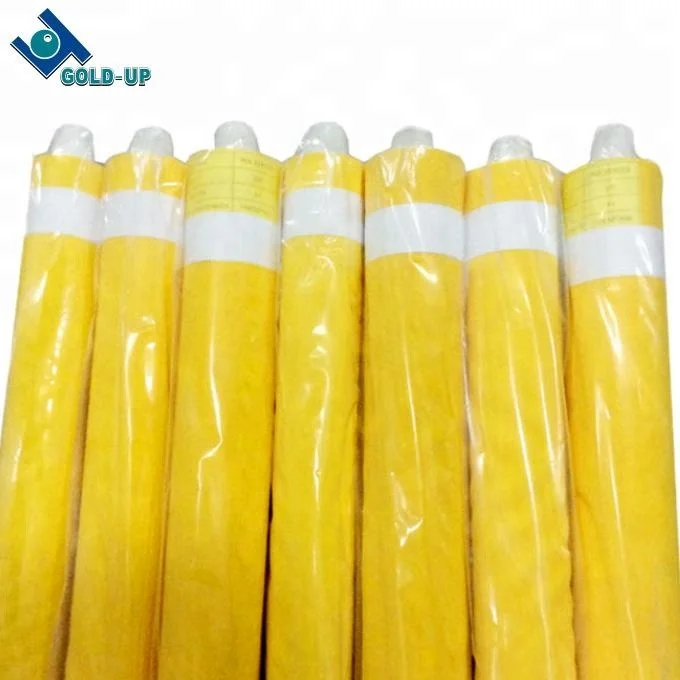

100% monofilament polyester silk screen printing mesh for porcelain /cloth/textile/ PCB printing

Product Description

Mesh_gold up-14.jpg

Characteristics:

• The better durability of screen life and stretchability.
• Higher tension levels.
• Faster tension stabilization.
• Precision bore, well-distributed, stabilization, superior stencil adhesion.
• Good ink and paste release behavior.
• Time-dependent stability and good cohesion with sensitive emulsion.
• Increased resistance to abrasion and harsh reclaiming chemicals.

Mesh_gold up-13.jpg

Mesh features	Screen/stencil maker benefit
Unsurpassed UV light undercutting protection of yellow mesh	· Absorption range adapted to the UV radiation spectrum. · Sharp-edged reproduction of the artwork on the stencil.
Adhesion and preparation optimized mesh surface	· Homogeneous coating and constant application of emulsion · Compatible with all standard emulsions. · Extended screen life.
Reproducible mesh relaxation	· The tension drop between the stretching and printing the process is stable and low for subsequent print runs. · Process and product reliability.
Good ink and paste release behavior and anti-static	· When bonding after the stretching process, adhesive passes good through the mesh, therefore less problem in bonding the mesh to the frame. · To prevent the dust.

Fabric Mesh:

Our company manufactures various specification mesh especially used in T-shirt Printing. This kind of mesh is plain weaved polyester mono-filament yarn. The characters of this mesh contain high strength, low elongation, good tension stability, high quality, and reasonable price. The mesh has been used widely in T-shirt industries in China.

Mesh count	Thread diameter	Mesh opening	Open surface	Width	Color
cm/inch	micron	micron	%	inch	/
10T/25	250	740	53	63	white
16T/40	200	435	47	63	white
24T/60	150	270	42	63	white
29T/74	120	223	42	63	white
36T/90	100	189	46	63	white
43T/110	80	150	42	63	white
51T/130	71	124	40	63	white
64T/160	55	103	42	63	white
72T/180	55	86	37	63	white
80T/200	48	79	38	63	yellow
90T/230	48	62	32	63	yellow
100T255	40	60	36	63	yellow
110T/280	40	48	27	63	yellow
120T/305	34	49	35	63	yellow
140T/355	34	37	27	63	yellow
150T/380	31	32	23	63	yellow
165T/420	31	23	15	63	yellow

Application Scenarios:

Mesh application_gold up.jpg

Company Information

Shanghai/Kunshan Gold-up Screen Printing Facilities Co., Ltd

located in Shanghai and been as a member of SGIA/FESPA since 2009 to retain our loyal customers all over the world.
We focus on promoting our high quality bare and meshed aluminum frames, and screen printing equipment to North America market at competitive pricing.
