Инвертор Контроллер компрессора постоянного

Категория: Инверторы и Преобразователи >>>
Поставщик: Guangdong,Chico,Electronic,Inc.

Цена:115,00 $ - 150,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Aug-15-2025	146.84 $*	149.4 $*
Jul-15-2025	118.32 $*	120.17 $*
Jun-15-2025	144.32 $*	147.35 $*
May-15-2025	143.14 $*	146.77 $*
Apr-15-2025	114.84 $*	116.97 $*
Mar-15-2025	140.37 $*	143.17 $*
Feb-15-2025	139.39 $*	142.5 $*
Jan-15-2025	138.85 $*	141.45 $*

Характеристики

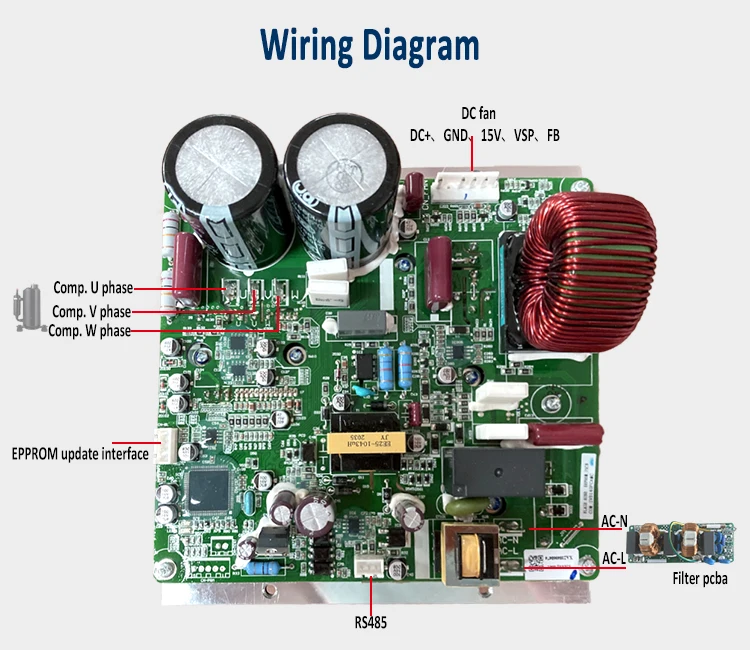

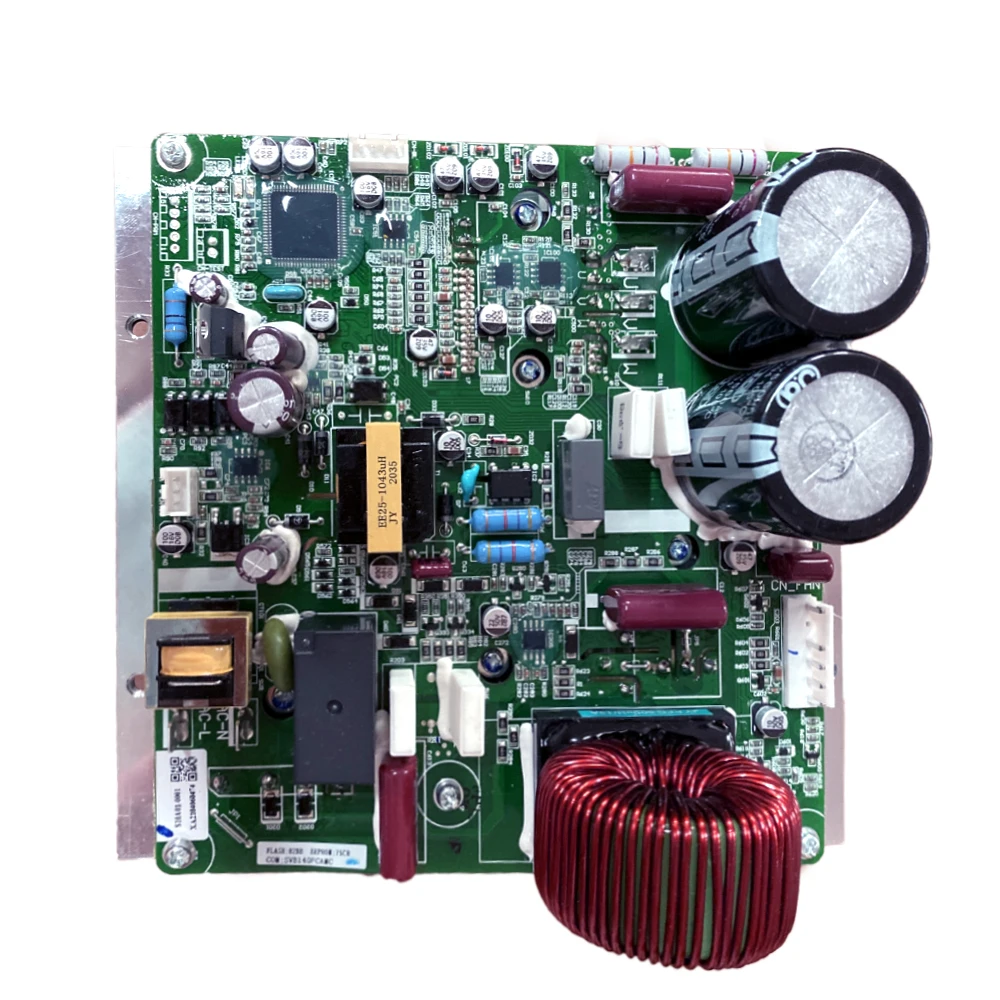

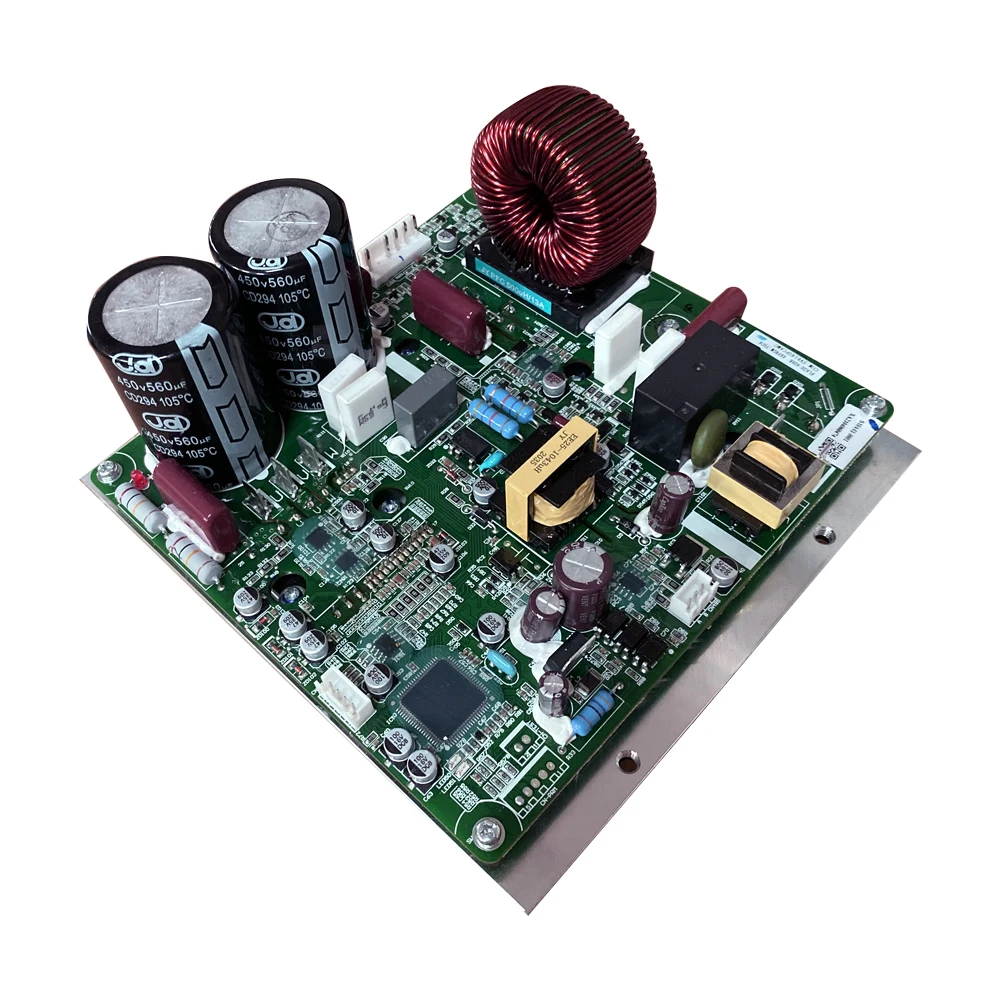

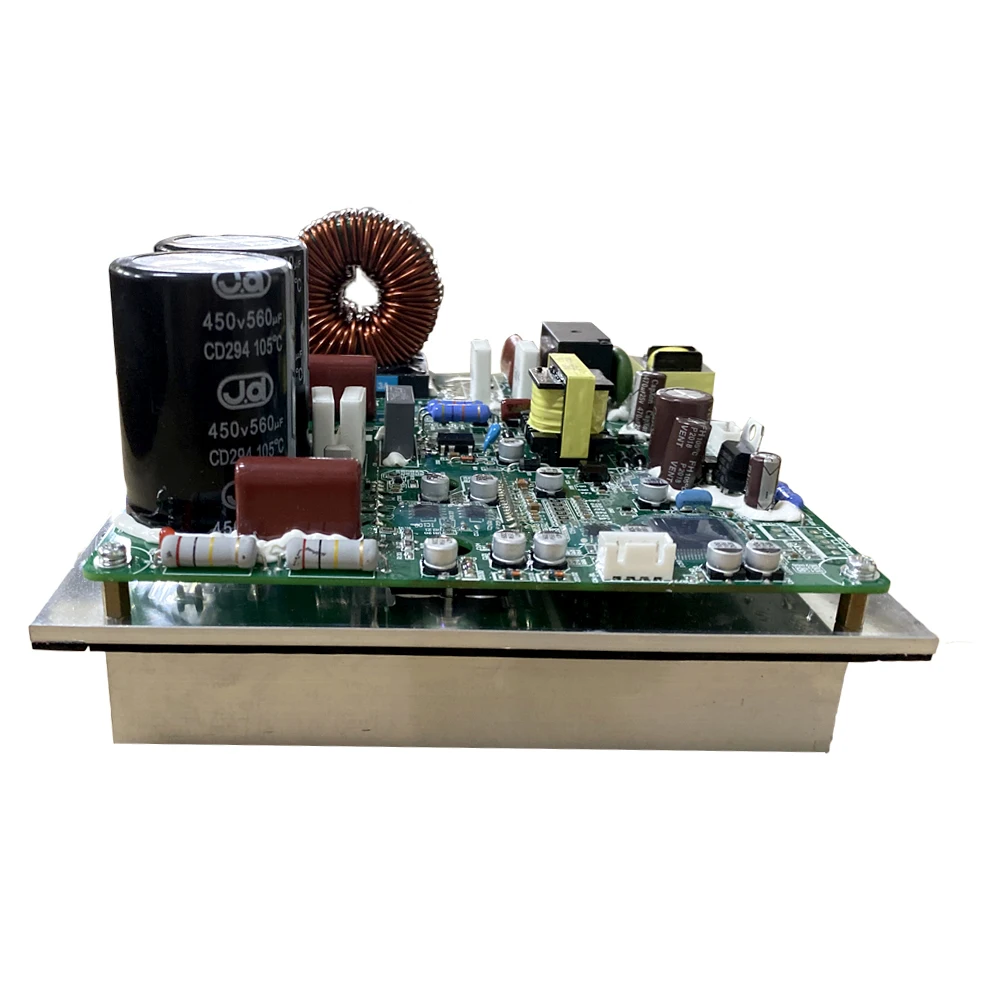

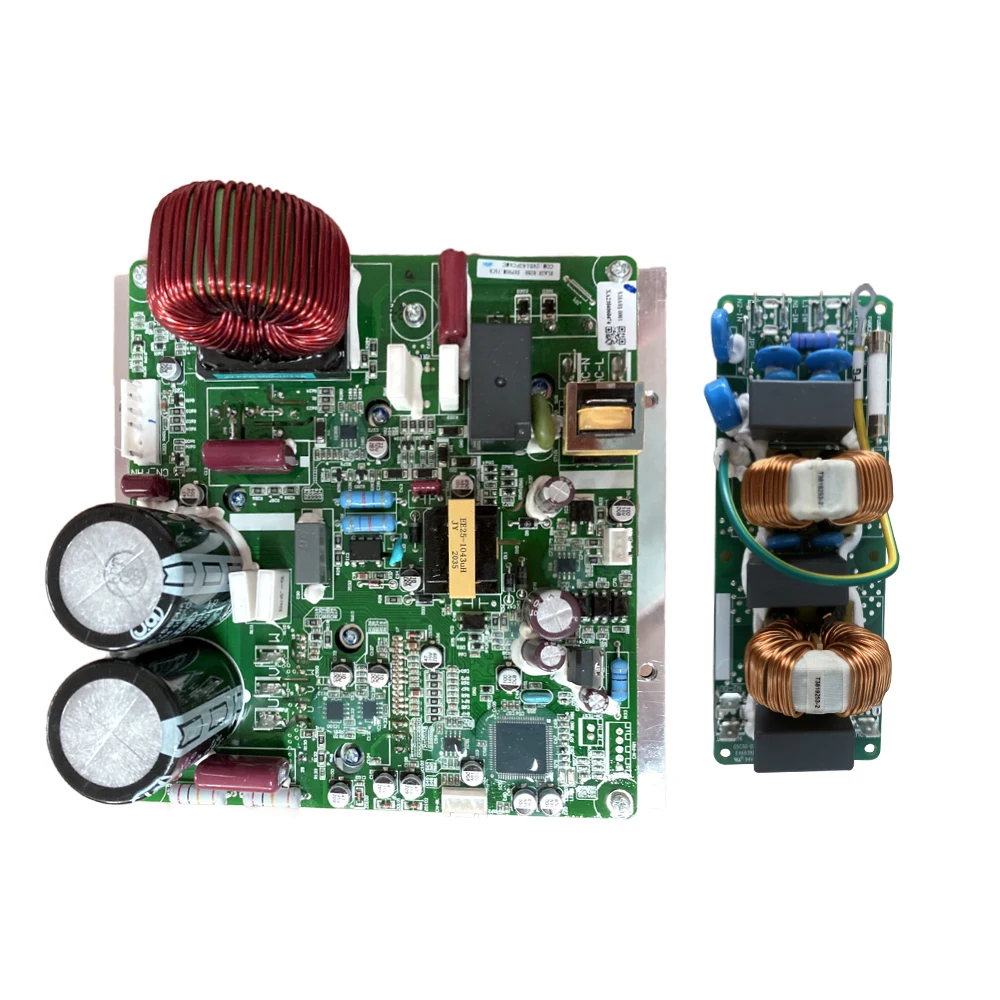

S16A01 Single Phase Inverter Compressor Driver PCBA

S16A01 is designed for driving DC frequency inverter compressor. This module can be used for DC365V and VSP signal control DC fan.
ELECHICO compressor driver module integrates switching power supply, IPM module, communication circuit with the advantages of low
harmonic and high efficiency.

Technical Data

Type	180 °sinusoidal DC inverter driver
Rated input voltage	Single phase standard voltage 220 V 50 / 60 Hz, operable voltage 170-265 V
Input maximum power	3.5KW 220V AC
Input maximum current	16A
PFC	PF value (0.90-0.99)
Carrier frequency	5.0k Hz (adjustable according to compressor noise)
Output mechanical frequency	15-120Hz (ultimately according to the specification of the compressor)
Control type	180-degree sinusoidal vector driving
Communication interface	RS485
Communication protocol	Standard Modbus RTU Baud rate 1200 bps
Operating temperature range	-20 To 60℃
Operating humidity range	<95% and noncondensing

Failure Alarm

Over current protection of compressor	IPM over current protection
Communication failures	IPM over temperature protection
Compressor drive protection	Abnormal AC phase or CT
DC bus overvoltage or undervoltage protection	AC over current protection
Over power protection of compressor	EPPROM fault
