Rubber calender machine/rubber sheet making machine
NAME : Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machine
QINGDAO QISHENGYUAN designs and manufactures complete range of rubber calenders with 2-4 rollers and width 250-2500mm for rubber industry to meet the very toughest production challenges, 4-roll "S" arrangement represents the heart of the calender.Our calenders, furthermore, through shifting of rolls, roll bending, cross-axis and pre-loading, can be enriched by the most advanced automatic control and adjustment systems for thickness and profile of the film.
Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machine parameters
Model | XY- 630
| XY- 1120A | XY-1400 | XY-1500 | XY-1730 | XY-2130 | XY-2430 | |
Roll dia | mm | 230 | 360 | 400 | 450 | 610 | 710 | 810 |
Roll working length | mm | 630 | 1120 | 1400 | 1500 | 1730 | 2130 | 2430 |
Roll ratio |
| 1:1:1 1:1.42:1 | 1:1:1 0.733:1:1 | 1:1:1 1:1.383:1 | 1:1:1 1:1.5:1 | 1:1:1 1:1.4:1 | 1:1:1 | 1:1:1 1:1.5:1 |
Middle-roll linear speed | r/min | 0.8-8 | 3-21.06 | 3-26.39 | 2.62-26.2 | 5.4-54 | 8-50 | 2-20 |
Adjusting nip range | mm | 0-7 | 0-10 | 0-10 | 0-6 | 0-20 | 0-20 | 0.5-25 |
Min.Calendering product thickness | mm | 0.2 | 0.2 | 0.2 | 0.2 | 0.15 | 0.15 | 0.5 |
Calendering product width | kg | 100-500 | 500- | 1200 | 1400 | 1400 | 1900 | 2150 |
Motor power | kW | 7.5 | 45 | 55 | 75 | 132 | 185 | 220 |
Overall dimensions | mm | 3168 | 6500 | 6500 | 7420 | 7010 | 7650 | 9300 |
mm | 890 | 1500 | 1500 | 2200 | 3950 | 4560 | 3150 | |
mm | 1830 | 2440 | 2440 | 2900 | 3730 | 4080 | 5200 | |
About weight | t | ~2.6 | ~16 | ~22 | ~26 | ~52 | ~67 | ~94 |
Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machinery configuration
Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machinery Features
Roller: is made of Chilled Cast Iron alloys, whose work surface has high hardness,wear-resistance and durable life.
Rollers' gap adjustment: manual or electric mode
Roller bearings' lubrication: dry oil or thin oil by manual or electric mode
Bearing bush: nylon sleeve,copper sleeve or double row spherical roller bearing
Motor: ordinary or frequency motor
Reducer: hard tooth surface reducer

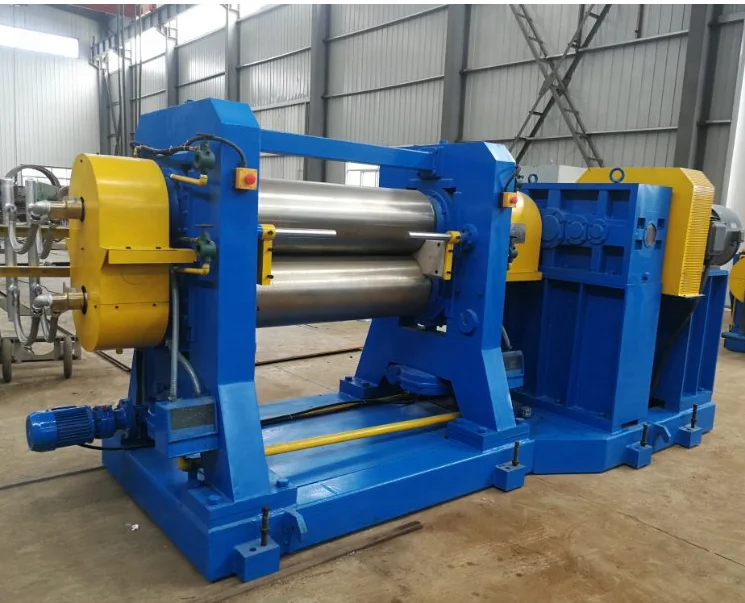

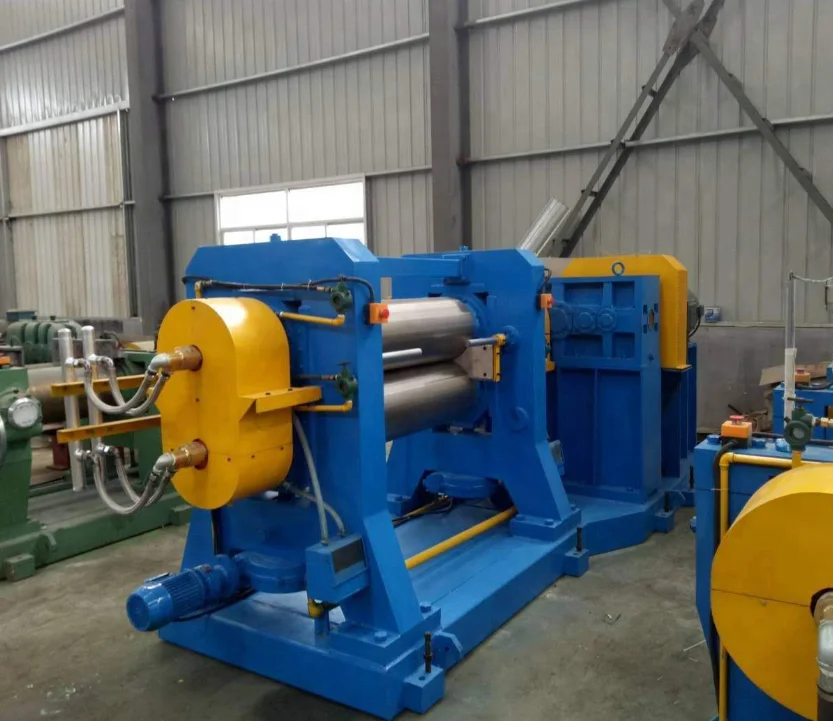

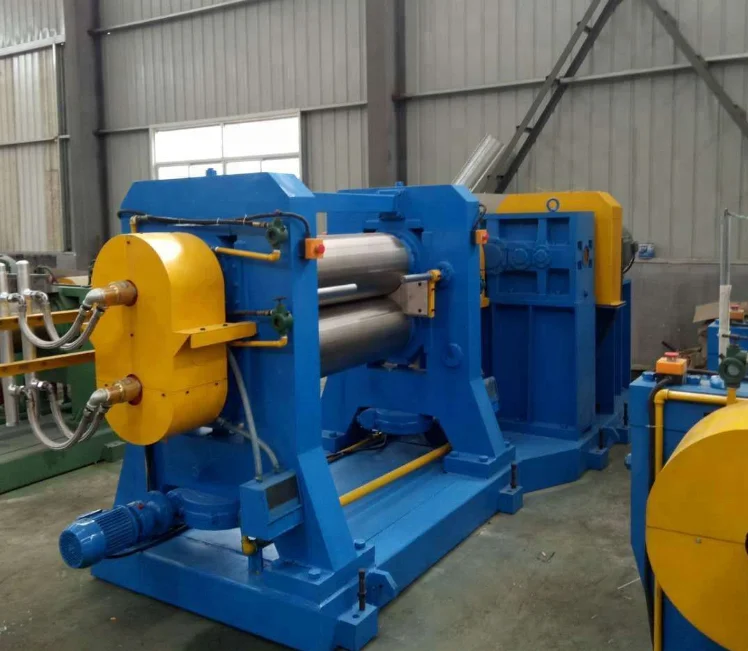

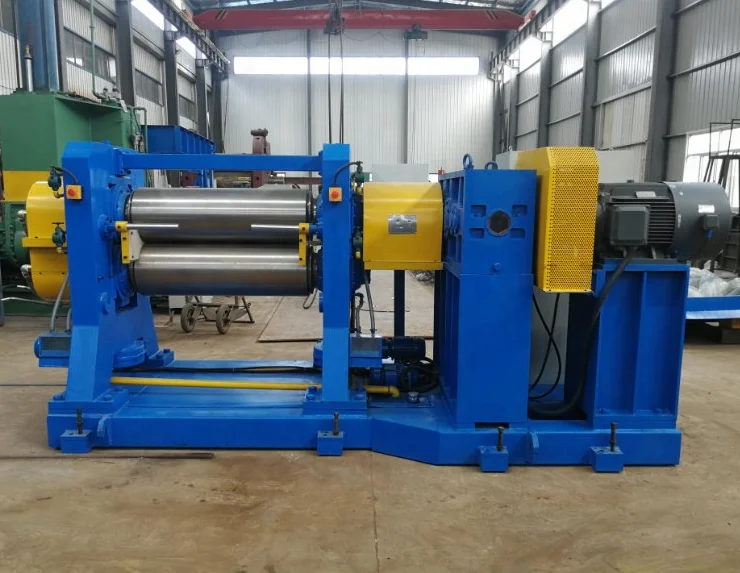

Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machinery sample photos
Fabric/Rubber calender machine & Rigid PVC film calendering line & Conveyor Belt Making Calender Machinery loading and delivery
