Горизонтальная формовочная машина для формирования металла завод в

Месяц

Минимальная цена

Макс. стоимость

Aug-16-2025

437255.68 $*

446000.21 $*

Jul-16-2025

354624.39 $*

361716.66 $*

Jun-16-2025

430369.80 $*

438976.68 $*

May-16-2025

426926.92 $*

435465.39 $*

Apr-16-2025

340852.53 $*

347669.12 $*

Mar-16-2025

420040.72 $*

428441.66 $*

Feb-16-2025

416597.38 $*

424929.75 $*

Jan-16-2025

413154.29 $*

421417.79 $*

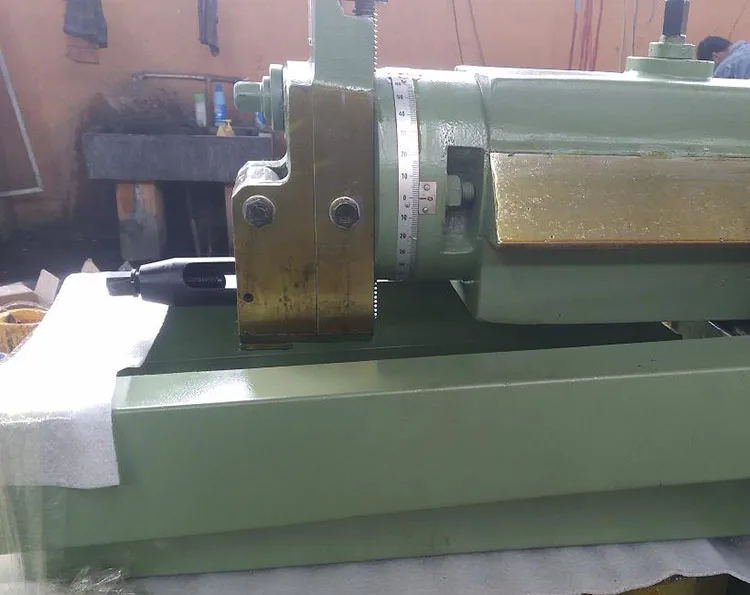

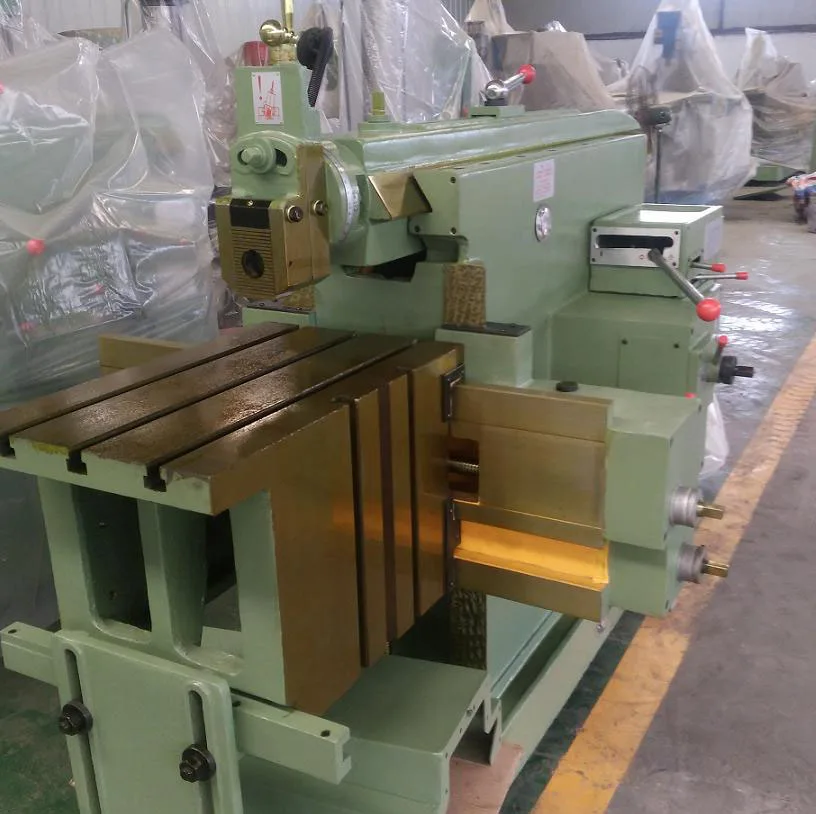

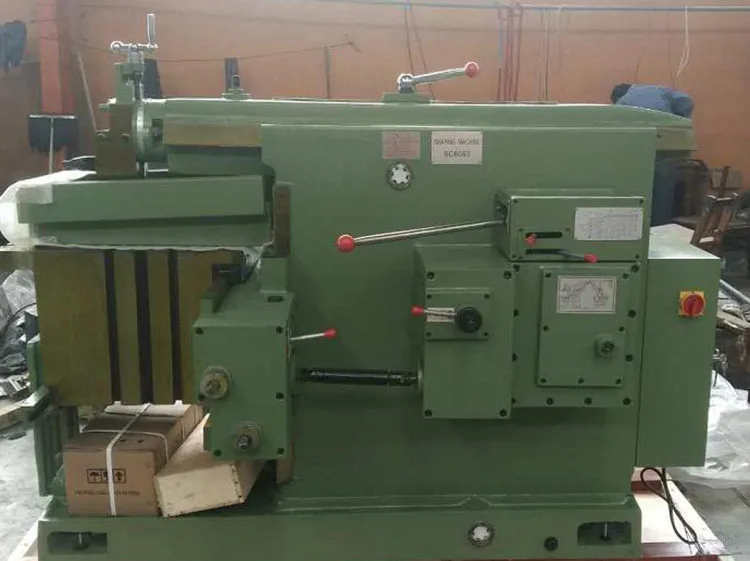

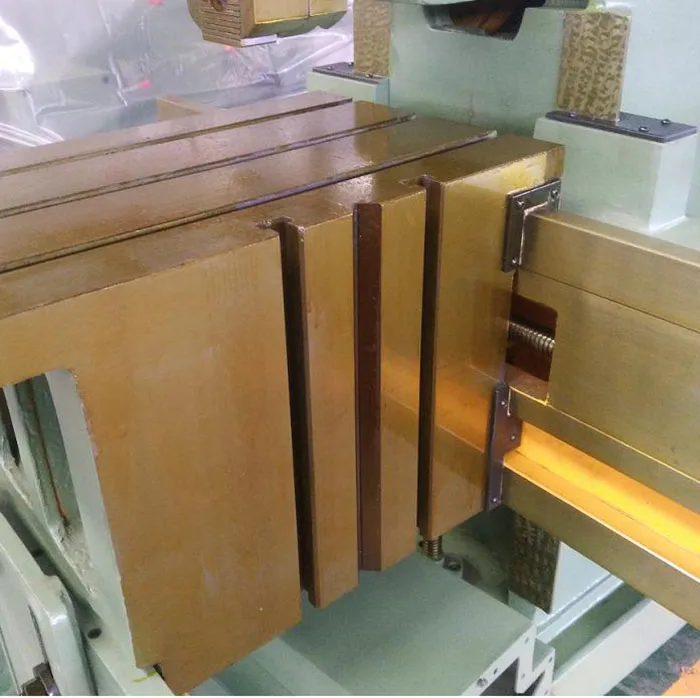

China factory horizontal metal shaper shaping machine

Model		BC6063
Max.shapping length(mm)		630
Max.range of the horizontal movement of the table(mm)		630
Max.distance between the ram bottom and table(mm)		385
Max.length of the vertical movement of table(mm)		360
Dimensions of table top(L×W)(mm)		630×400
Max. stroke length of the toolhead(mm)		120
Max.swivel angle of the toolhead(°)		±60°
Max.section of tool(W×T)(mm)		20×30
Number of ram reciprocation per minute(NO/min)		14-80
Range of table feed	Horizontal	0.2-0.25
	Vertical(mm/recip)	0.08-1
width of the T-slot for center positioning(mm)		18
Power of the main motor(kw)		3
N.W/G.W(kg)		1750/1870
Overall dimensions(L×W×H)(mm)		2342×1225×1480
