3 трехфазный панель Цифровой ток amp монитор с высоким и низким дисбаланс
- Категория: Экранные измерительные приборы >>>
- Поставщик: Acrel,Electric,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.15 $* | 0.95 $* |
| Aug-16-2025 | 0.51 $* | 0.76 $* |
| Jul-16-2025 | 0.86 $* | 0.57 $* |
| Jun-16-2025 | 0.68 $* | 0.15 $* |
| May-16-2025 | 0.16 $* | 0.1 $* |
| Apr-16-2025 | 0.15 $* | 0.33 $* |
| Mar-16-2025 | 0.27 $* | 0.40 $* |
| Feb-16-2025 | 0.90 $* | 0.86 $* |
| Jan-16-2025 | 0.24 $* | 0.50 $* |
Характеристики
Product Description

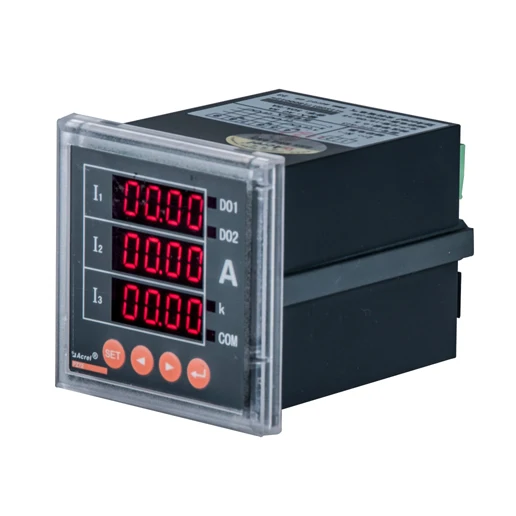

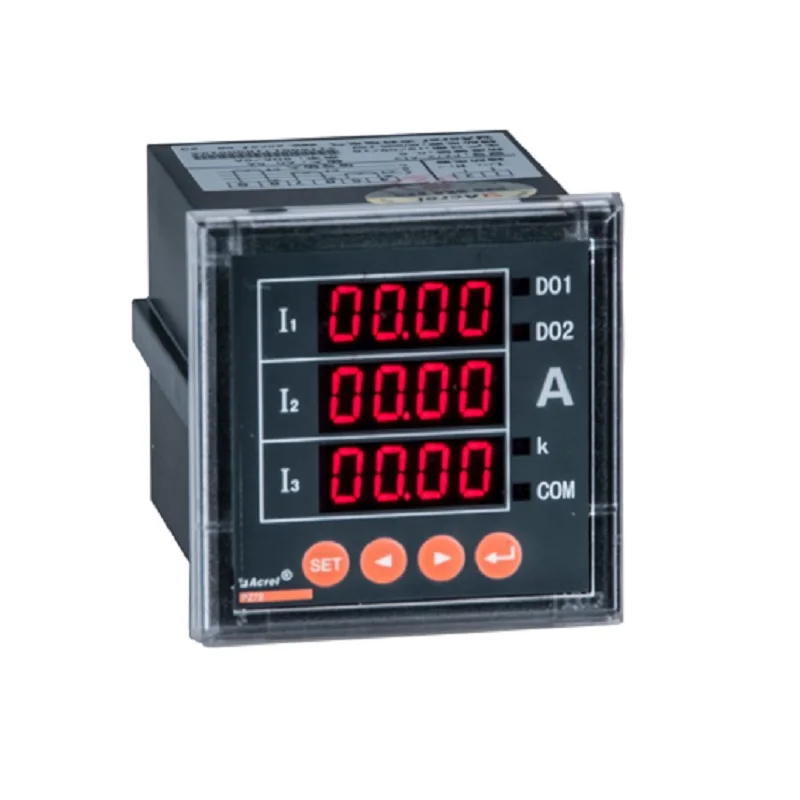

ACREL 3 phase current amp monitor meter with high low unbalance alarm AMC72-AI3/J
ACREL PZ series ac current meter adopts ac sampling technology,this series can measure monitor currentthe user can magnify current by pressing button on the meter. It is with modbus rtu protocol RS485 communication;
It can convert electrical signal to dc analog signal out,add DI and DO,alarm relay output and other functions.
It can convert electrical signal to dc analog signal out,add DI and DO,alarm relay output and other functions.
Functions and parameters
Functions description:
*Accuracy:0.5
*4 digits LED display
*Input:5A or 1A by CTs
*Optional communication and functions:
C:Modbus rtu RS485
M:One analog output(programmable 4-20mA)
J:1 channel alarm output
K:2DI/2DO
J:1 channel alarm output
K:2DI/2DO
Model | ACERL AMC72-AI3/J 3 phase current amp monitor meter with low high unbalance alarm | |
Dimension | ||
Panel size | 75*75 mm | |
Housing(WXHXD) | 66*66*98mm | |
Cut out | 67*67mm | |
Technical data | ||
Phase | 3 phase | |
Display | LED | |
Input current | AC 1A or 5A connected by CTs | |
Input power | AC 85~270V or DC100-350V | |
Optional Communication | C:RS485 Communication | |
Optional function | M:One analog output(programmable 4-20mA) | |
J:1 channel alarm output | ||
K:2DI/2DO | ||
Accurracy | class 0.5 | |
Environment | ||
working Temperature | ‘-10~55℃’ | |
Humidity | ≤93%RH(non-condensing and place without corrosive gas | |
Altitude | ≤2500m | |

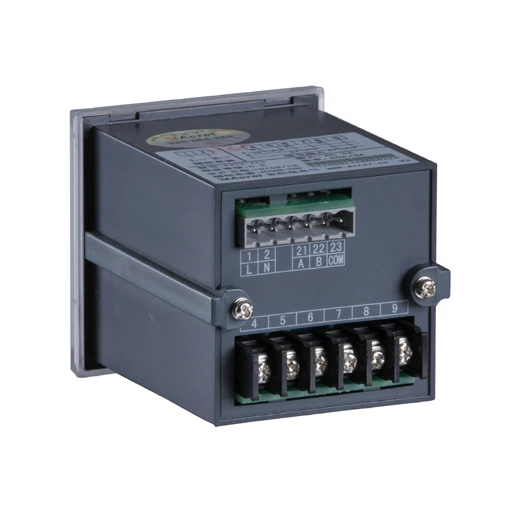

Dimensions and wirings
Model | Panel size(mm) | Housing size(mm) | Cut out size（mm) | ||||||||
Width | Height | Width | Height | Depth | Width | Height | |||||
AMC48-AI3 | 48 | 48 | 44 | 44 | 100 | 45 | 45 | ||||
AMC48L-AI3 | |||||||||||
AMC72-AI3 | 75 | 75 | 66 | 66 | 98 | 67 | 67 | ||||
AMC72L-AI3 | |||||||||||
PZ80-AI3 | 84 | 84 | 75 | 75 | 98 | 76 | 76 | ||||
PZ80L-AI3 | |||||||||||
AMC96-AI3 | 96 | 96 | 86 | 86 | 92 | 88 | 88 | ||||
AMC96L-AI3 | |||||||||||
Solutions and applications
Production Process
Payment and delivery
1. Payment: TT 100% in advance,credit card,western union,in cash and so on.TT 30% as deposit and the balance before shipment or
against copy of B/L is acceptable if the order is large.
2. Delivery:in 3-7 working days after payment received.
3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and UPS.
against copy of B/L is acceptable if the order is large.
2. Delivery:in 3-7 working days after payment received.
3. Delivery ways:By sea,air,train or international courier like Fedex,TNT,DHL and UPS.
