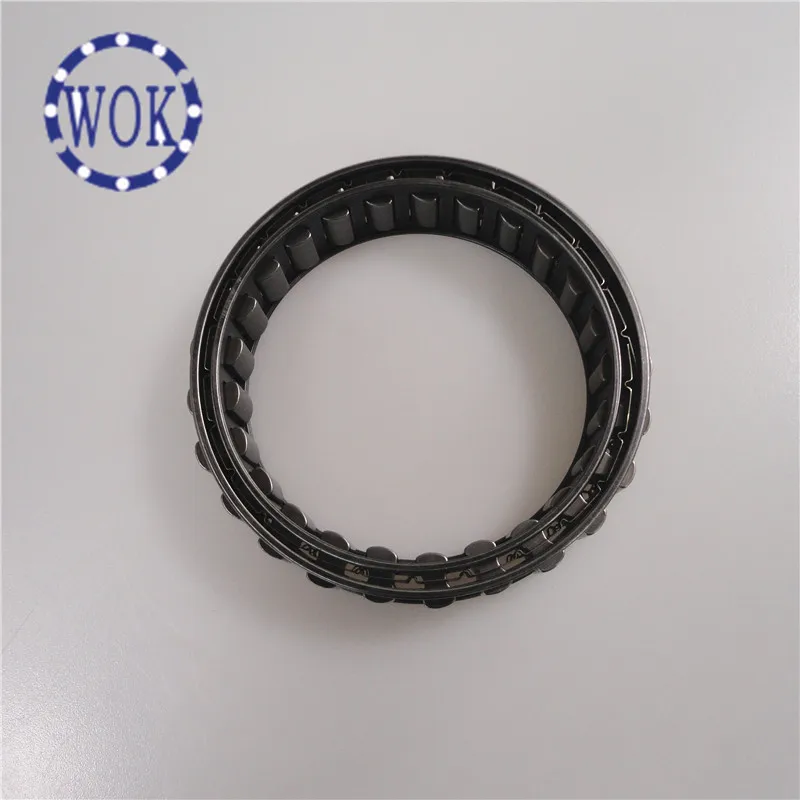

DC High Performance Customized Electric One Way Bearing

Product Description

Type DC is a sprag type freewheel cage without inner or outer races. It must be installed in a design providing races, bearing support for axial and radial loads, lubrication and sealing. The DC type version-N accepts all types of lubricants currently used in the power transmission equipement.

The sprag space tolerance must not be exceeded. Inner and outer races must both have a minimum plain width “e”, without any recess, to ensure the freewheel functions correctly as shown on following pages. Alternatively, races can be made in case hardened steel shafts, or housings, to the specification below. Surface ardness of the finished part should be HRC 60 to 62, for a
depth of 0,6 mm minimum.

Core hardness to be HRC35 to 45. Surface roughness not to exceed 22CLA. Maximum taper between races: 0,007 mm for 25 mm width.

More Details

Type		Overrunning Speed		Sprag Space				Clamps	Sprag Number	Weight
	TKN1) Nm	nimax2) min-1	namax3) min-1	mm	emin mm	θdmin mm	θbmax mm			kg
DC2222G-N	63	8600	4300	8.33±0.075	10.0	50	15	-	12	0.030
DC2776-N	119	6900	3400	8.33±0.075	13.5	58	18	-	14	0.055
DC3034-N	124	6300	3100	8.33±0.075	13.5	62	20	-	14	0.060
DC3175(3C)-N	159	6000	3000	8.33±0.075	13.5	63	21	3	16	0.060
DC3809A-N	275	5000	2500	8.33±0.075	16.0	71	25	-	18	0.085
DC4127(3C)-N	224	4600	2300	8.33±0.075	13.5	75	27	3	18	0.090
DC4445A-N	363	4300	2100	8.33±0.01	16.0	79	29	-	20	0.095
DC4972(4C)-N	306	3800	1900	8.33±0.01	13.5	86	33	4	22	0.100
DC5476A-N	525	3500	1700	8.33±0.01	16.0	92	36	-	24	0.110
DC5476A(4C)-N	525	3500	1700	8.33±0.01	16.0	92	36	4	24	0.130
DC5476B(4C)-N	769	3500	1700	8.33±0.01	21.0	92	36	4	24	0.180
DC5476C(4C)-N	990	3500	1700	8.33±0.01	25.4	92	36	4	24	0.200
DC5776A-N	604	3300	1600	8.33±0.01	16.0	98	38	-	26	0.110
DC6334B-N	806	3000	1500	8.33±0.01	21.0	104	42	-	26	0.175
DC7221(5C)-N	675	2600	1300	8.33±0.01	13.5	115	48	5	30	0.140
DC7221B-N	1279	2600	1300	8.33±0.01	21.0	115	48	-	30	0.185
DC7221B(5C)-N	1279	2600	1300	8.33±0.01	21.0	115	48	5	30	0.210
DC7969C(5C)-N	2038	2400	1200	8.33±0.01	25.4	124	53	5	34	0.280
DC8834C-N	2055	2300	1100	8.33±0.01	25.4	132	55	-	34	0.270
DC8729A-N	1250	2200	1100	8.33±0.01	16.0	134	58	-	34	0.165
DC10323A(5C)*-N	1612	1800	900	8.33±0.01	16.0	155	68	5	40	0.205
DC12334C*-N	4800	1500	750	8.33±0.01	25.4	184	80	-	50	0.400
DC12388C(11C)	4875	1500	750	9.50±0.01	25.4	186	80	11	44	0.400

Note:
1)Tmax=2xTKN
2)Inner race overruns
3)Outter race overruns
*)The inner cage centering flange is on the opposites
**)Extension of tolerance to ± 0,013 permissible
Other dimensions on request



Mounting Example

Using Notice

Use 2 # lithium grease 30% + Engine oil 70% , Stirring evenly. grease the required temperature range -40 ℃ ~+ 150 ℃. Plus grease once for every month.
