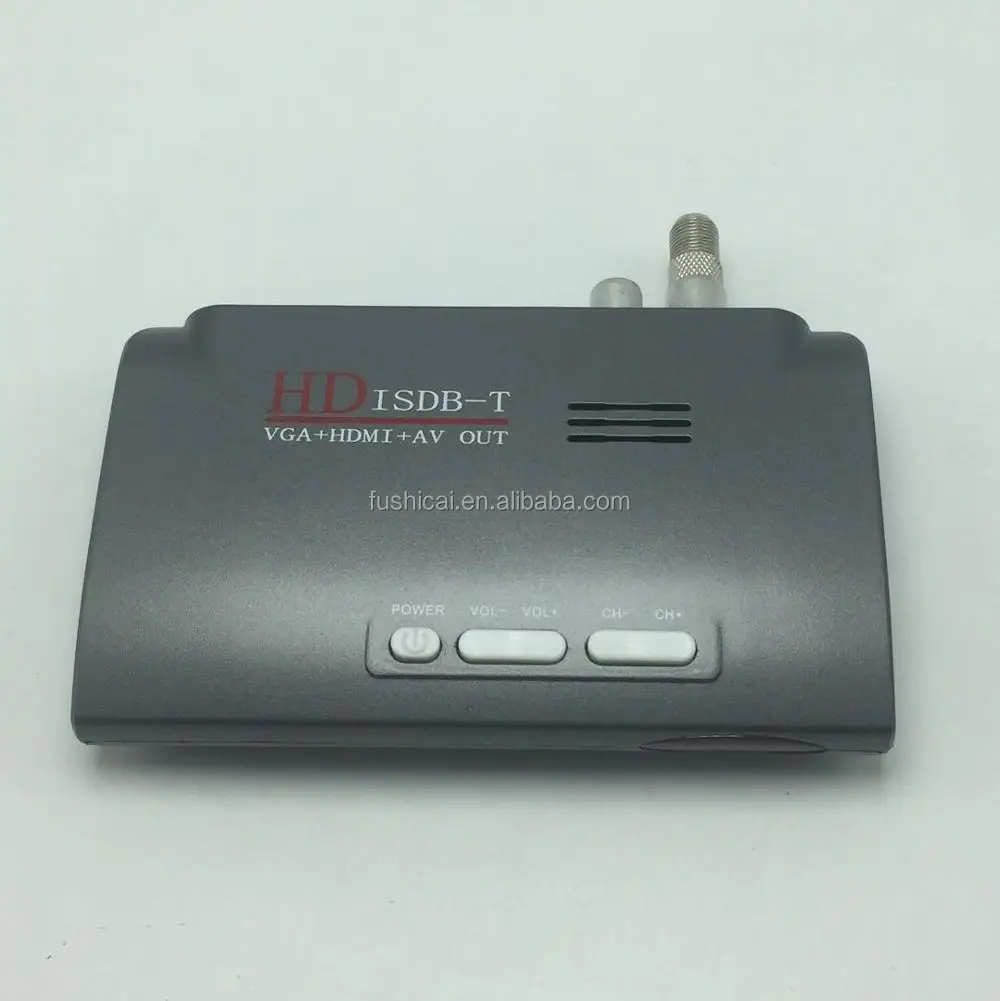

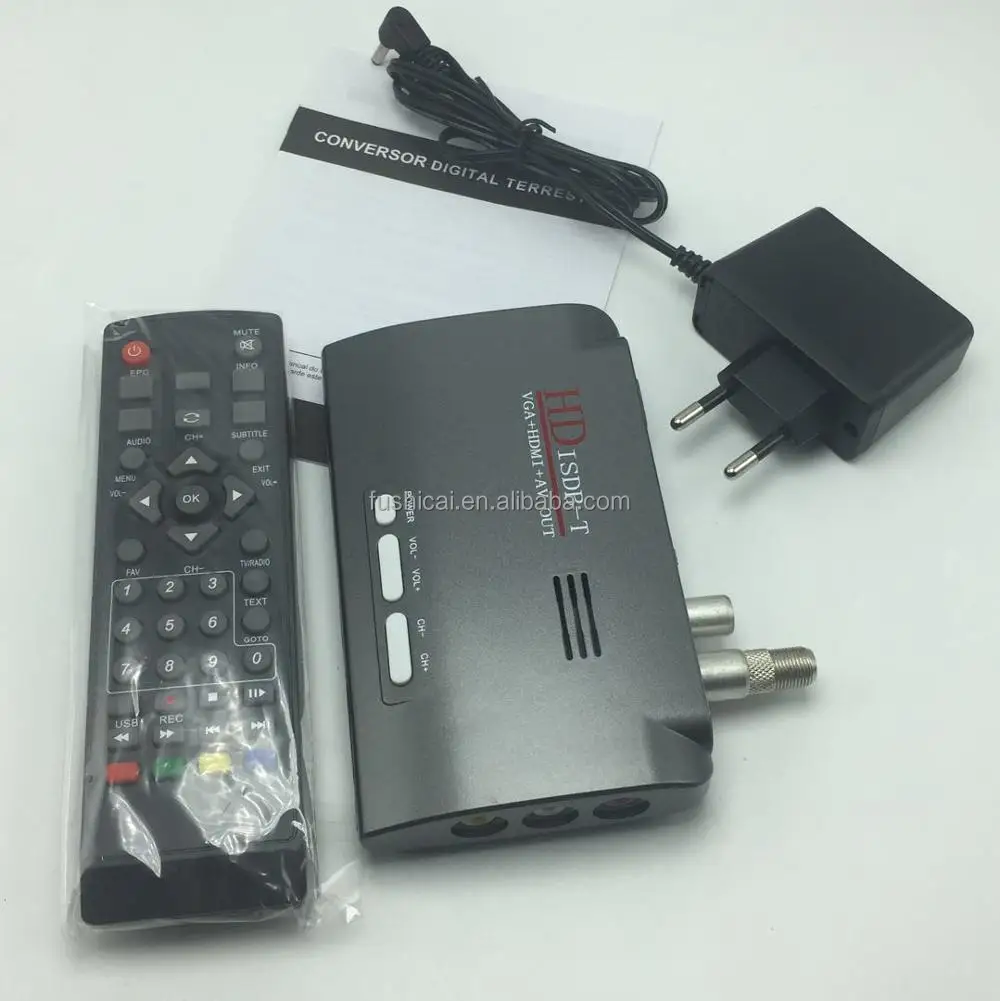

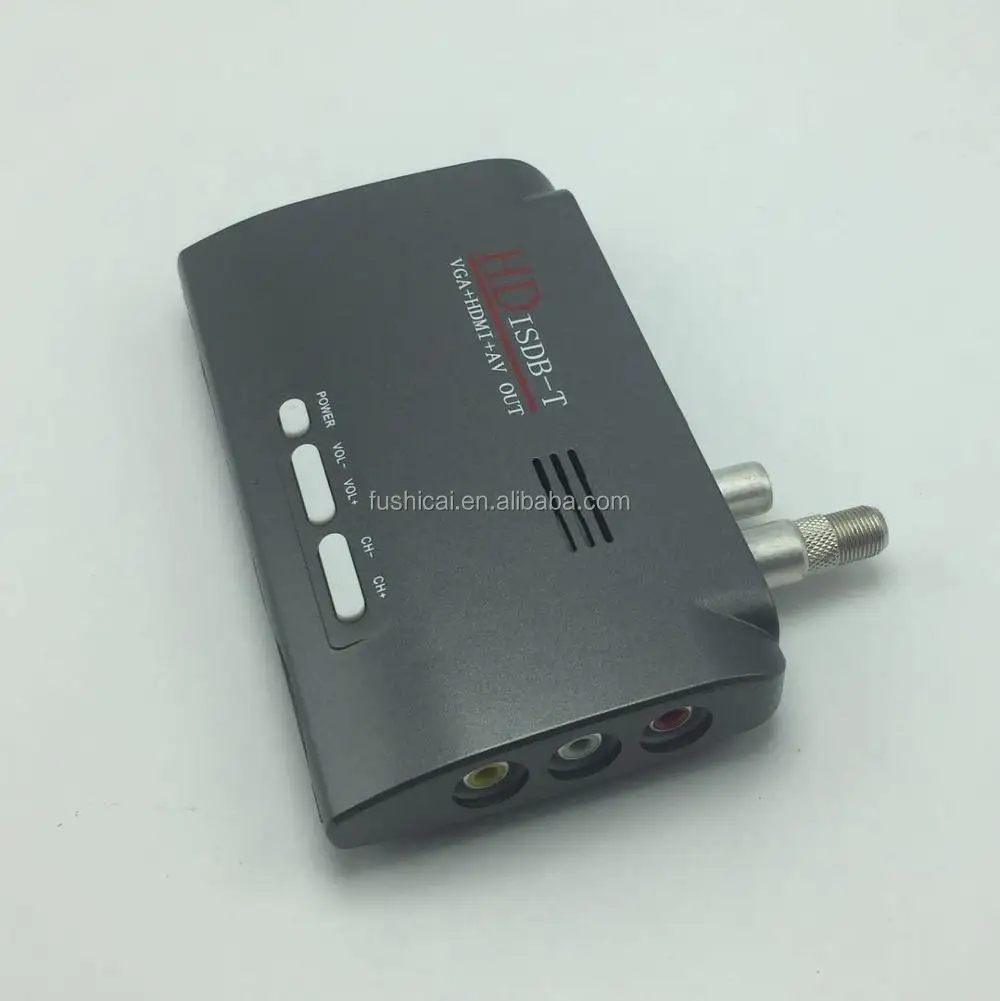

HD digital ISDB-T VGA + HD-MI AV OUT tv тюнер set

Категория: Satellite TV Receivers >>>
Поставщик: Shenzhen,Fushicai,Electronic,Technology,Co.,Ltd.

Цена:8,95 $ - 9,65 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	10.0 $*	11.67 $*
Aug-15-2025	9.50 $*	9.59 $*
Jul-15-2025	8.60 $*	8.66 $*
Jun-15-2025	9.35 $*	9.86 $*
May-15-2025	8.77 $*	8.72 $*
Apr-15-2025	9.39 $*	9.16 $*
Mar-15-2025	9.13 $*	9.64 $*
Feb-15-2025	9.5 $*	9.13 $*
Jan-15-2025	9.51 $*	9.61 $*

Характеристики

HD digital ISDB-T VGA+HD-MI+AV OUT tv tuner set top box

Hardware

CPU MSTAR-MSD7805(128 pin) MIPS 34Kf@600MHz

Memory32X16Mbit DDR2 Frequency1066

Flash32M bytes

Modem Type ISDB SOC Chip Set

TUNER Rafael R836

Rear panel USB 2.0 Embedded One Host,

red LED Standby,green LED Open

Panel KEY,: POWER, VOL+, VOL-, CH+ ,CH-

Rear Panel Tuner RF input connector

EC-type IEC169-2 Female

Tuner RF Loop through connector

IEC-type IEC169-24 Male

HDMI V1.3/V1.4

RCA CVBS AL AR Connector x1

Ypbpr RCAx1

Power AC100~240V 50Hz/60Hz

Demodulation

Terrisal Receiver Standard ISDB-T broadcast (1, 3, 13 segment)

Input RF Frequency

VHF:177.143~213.143 MHz: UHF 473.143~803.143MHz.

Bandwidth6MHz

Demodulation QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard Interval"1/4,1/8,1/16,1/32"

FFT Mode2K/ 8K/32K

Input level -83 - -5dBm

Software Features

•used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,Philippines, Ecuador

•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant

•Support 3D interface

•Support teletext/subtitle/muti-language

•Supported 7-Day EPG function, VBI Teletext

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder

Video Decoder

Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder

MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Dolby Digital), AAC-LC, WMA

E-AC-3 (Dolby Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

Media Codec:avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc
