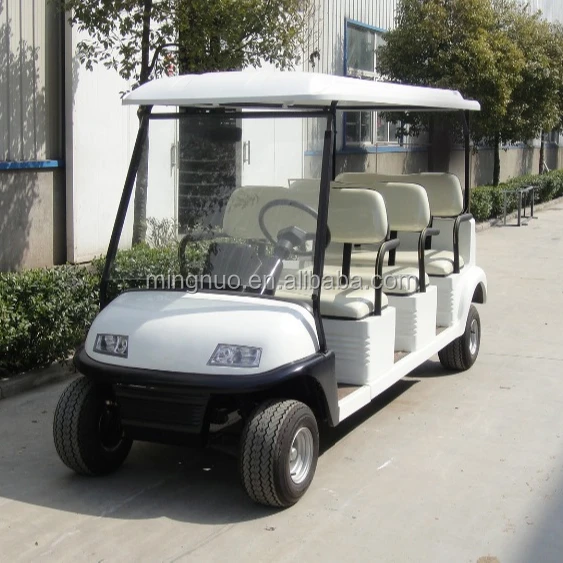

Six seats sightseeing car MN-H76F technical parameter and configuration

MN-H76F

1	Passenger	6
2	Dimension(L*W*H)	3450×1230×1820mm
3	Curb weight	1050kg
4	Rated load	670kg
5	Wheel base	2940mm
6	Track front	980mm
7	Track rear	1010mm
8	Minimum ground clearance	160mm
9	Max speed(full load)	25km/h
10	Braking distance	≤4.5m
11	Minimum turn radius	≤6m
12	Maximum gradeability (full load)	20%
13	Parking capacity(no load):	15%
14	Motor rated power	3KW
15	Battery	150AH
16	Lighting voltage and power	12V/110W
17	Charging time	8-10h
18	driving range	80km
19	tire	145R12C

Basic configuration table



lVehicle body:Steel frame and high strength of FRP

lChassis:Enhanced chassis of micro cars, anti rust electrophoresis painting, phosphating after washing and

lFront windshield:Tempered glass with windscreen wiper

lCeiling:Fiberglass reinforced plastic making

lSeat:High rebound leather seat

lFloor:High-grade vehicle floor leather

lInstrument desk:MP3/USB socked and player, forward and backward indicator, the car battery capacity and battery containing table indicator, polyurethane foaming armrest,glass block

lLamp and trumpet:Front headlights, front light, steering lights, reversing lights, traffic lights, brake lights, electric horn

lMotor:High quality DC motor--3kw,superior traction performance , overload capacity,long service life,

lBattery: High quality large capacity and deep cirulation maintenance-free battery,

lBattery voltage:48V,

lBattery capacity:150AH

lElectric control system:High-performance electric system with overcurrent and undervoltage protection, gentle start and durable service

lCharge device:Full automatic & high efficiency pulse microcomputer intelligent charger, automatic stop after full charge, effectively extending battery life

lSuspension system:Front Mcpherson independent suspension, rear suspension for multi plate spring, cylinder type hydraulic shock absorber

lBrake system:Hydraulic double tube braking system,front and rear drum wheel brake,mechanical parking brake

lSteering system:Gear rack type steering system,The utility model has the function of automatically adjusting the gap to make the steering vehicle move easily

lTire model:Durable and high quality automobile tires
